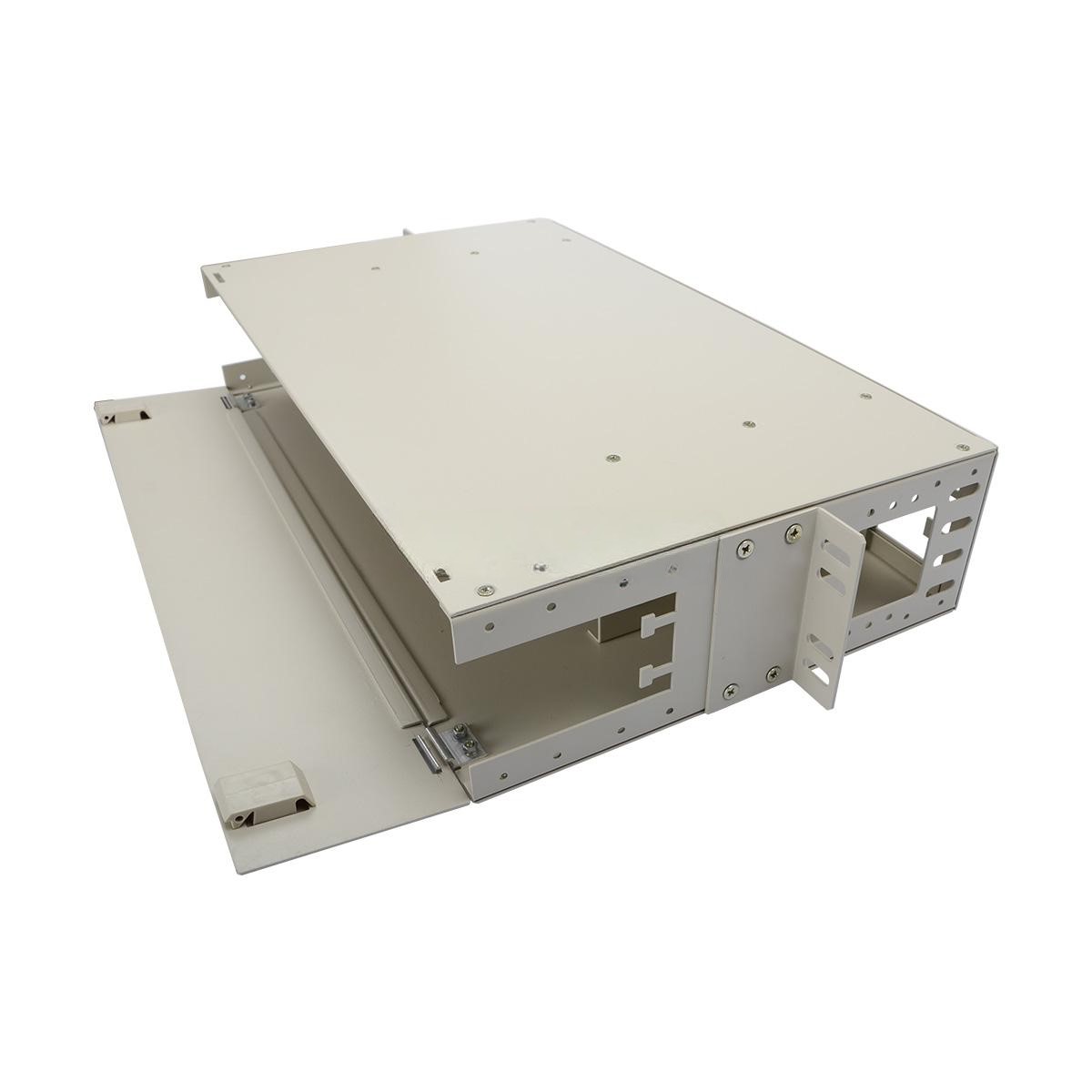

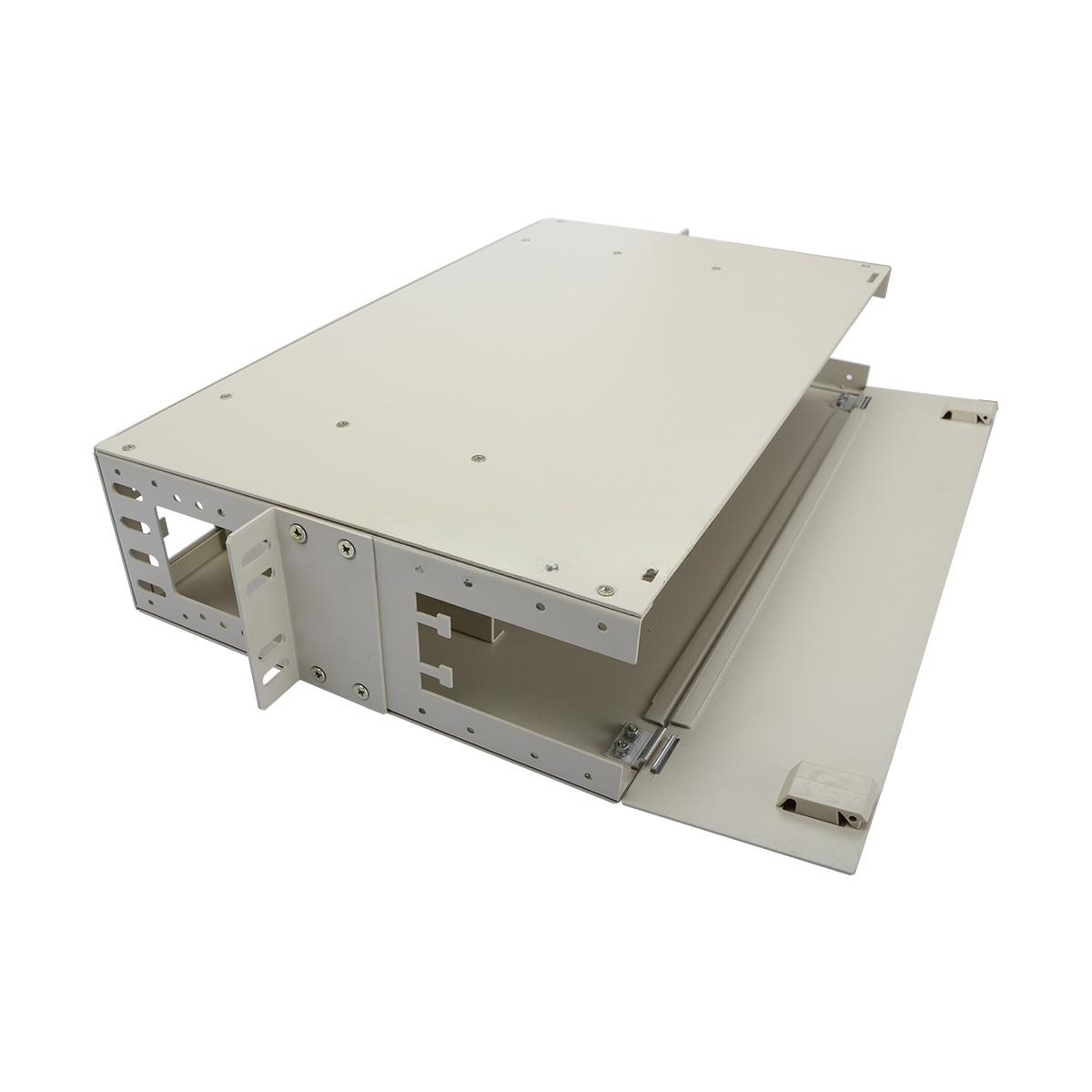

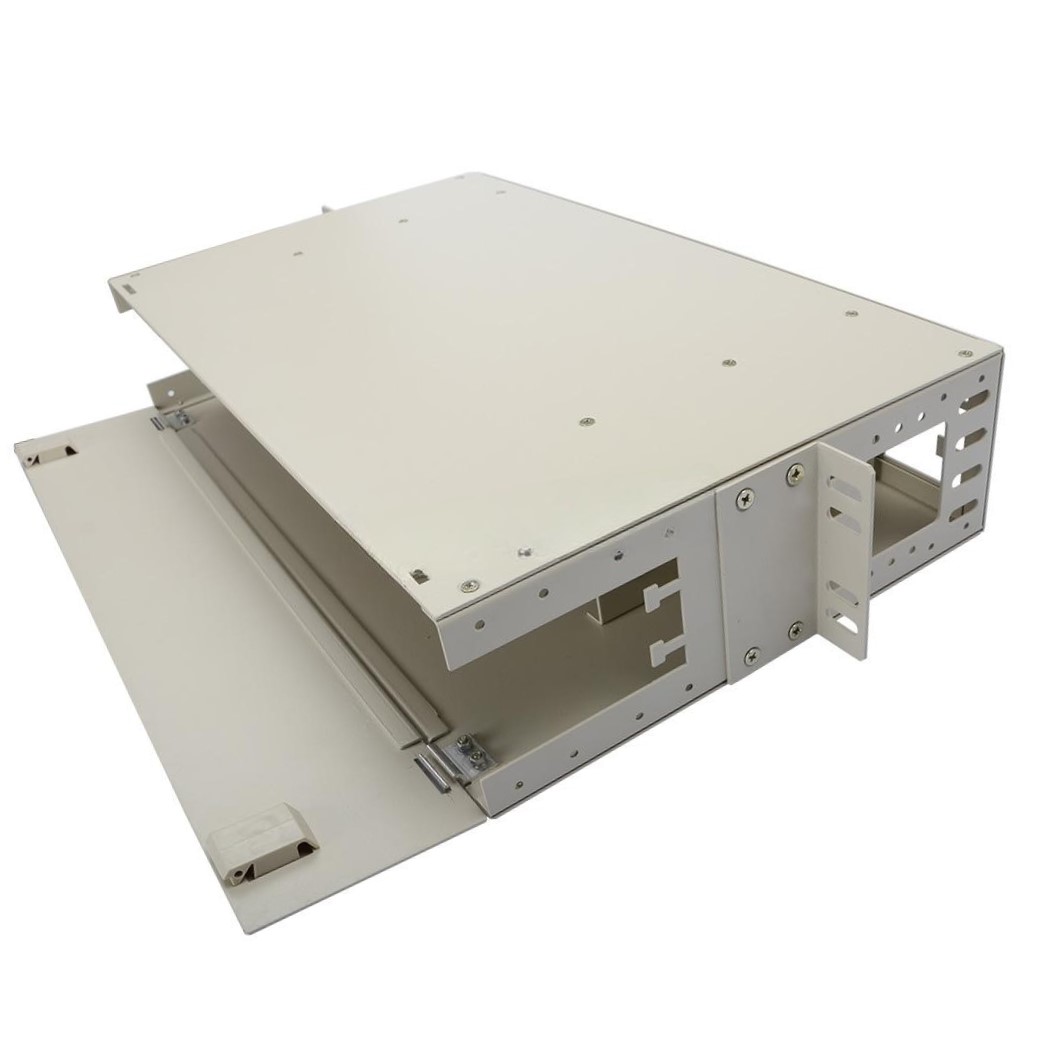

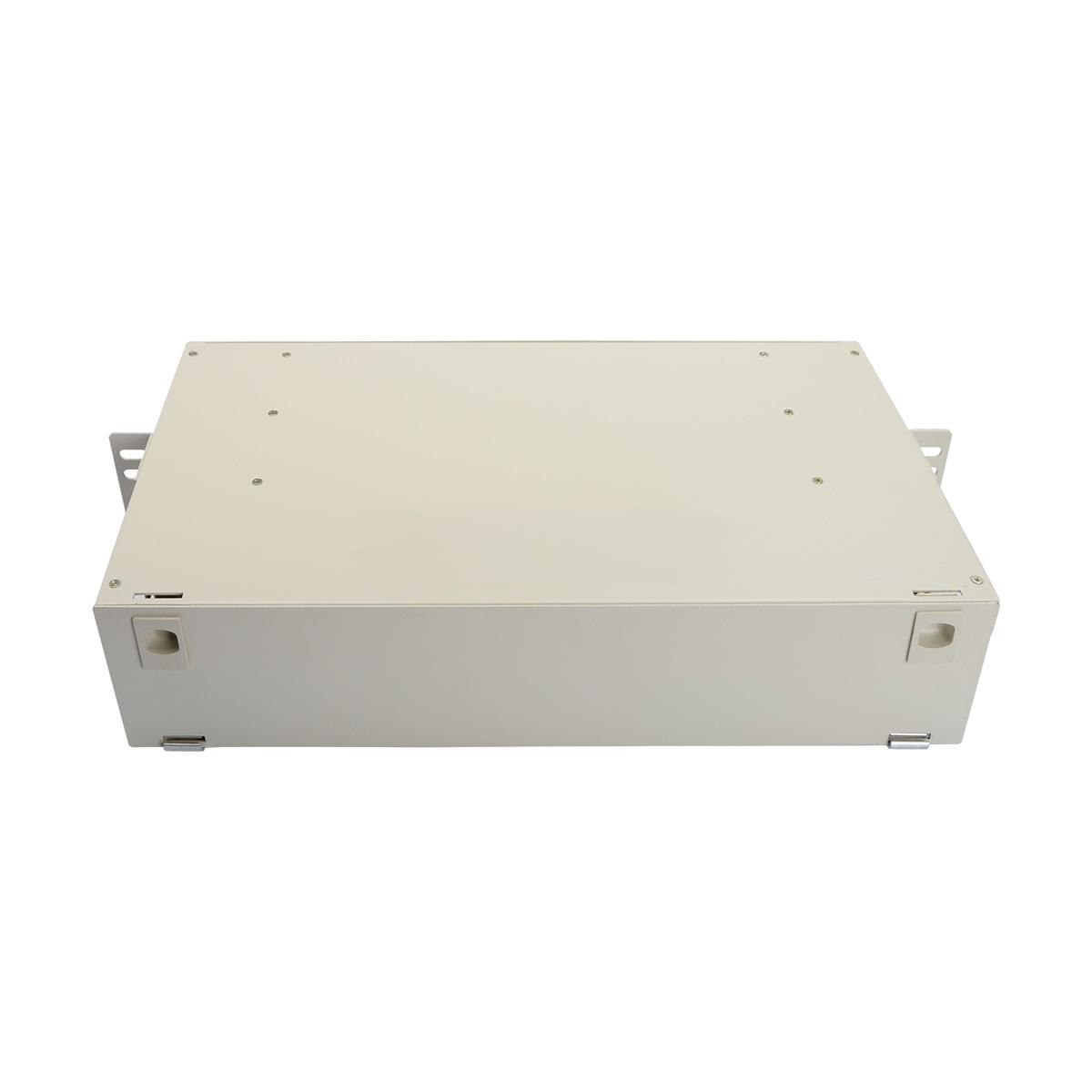

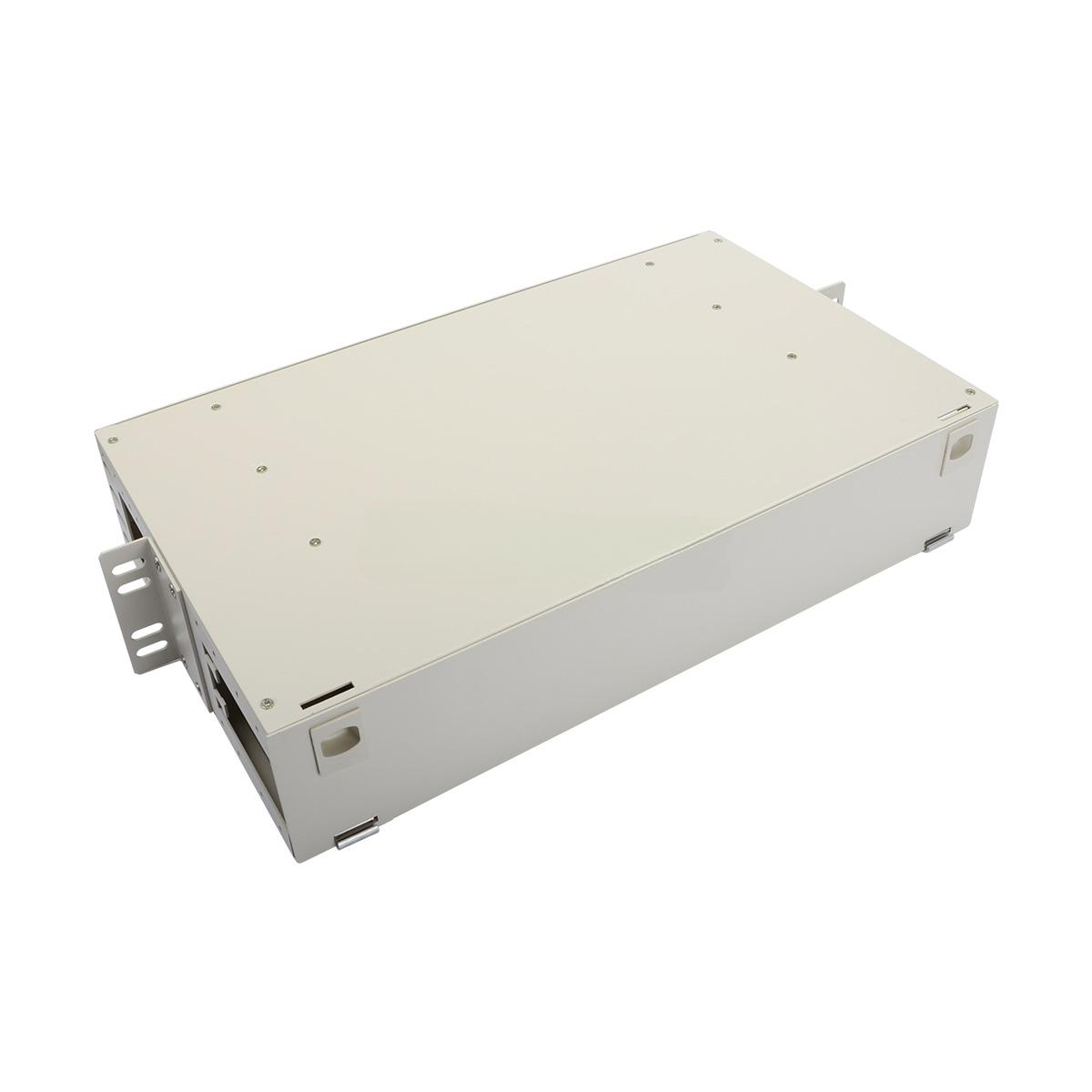

24-Fiber ODF Rack Mount Distribution Box – Brand New | Empty Enclosure for Fiber Termination
Product Overview
The 24-Fiber ODF Rack Mount Distribution Box is a compact and efficient optical distribution frame, purpose-built to accommodate up to 24 fiber cores using SC, LC, FC, or ST adapters. Designed for rack-mount integration in standard 19-inch cabinets, this brand-new empty box provides a reliable platform for fiber optic termination, splicing, and cable management in telecom, enterprise, FTTH, and data center environments.
Constructed from durable cold-rolled steel with a smooth powder-coated finish, the enclosure ensures long-term performance, easy installation, and superior protection of optical connections.
Key Features of 24-Fiber ODF Rack
-
✅ Capacity: Supports up to 24 fiber terminations (SC duplex / LC simplex compatible)
-
✅ Mounting Type: 19-inch rack mountable – 1U height standard
-
✅ Enclosure Status: Empty – ready for custom configuration
-
✅ Material: Cold-rolled steel, powder-coated for durability
-
✅ Cable Entry: Rear and side access with protective cable clamps
-
✅ Color: Light gray (RAL 7035) or custom color available
-
✅ Condition: 100% Brand New – Clean, unused, and sealed
-
✅ Standards Compliance: CE, RoHS, ISO9001
24-Fiber ODF Rack Technical Specifications
| Specification | Details |
|---|---|
| Fiber Capacity | 24 fibers |
| Adapter Compatibility | SC/LC/FC/ST – simplex or duplex (customizable) |
| Material | Cold-rolled steel |
| Finish | Electrostatic powder coating |
| Mounting Style | 19-inch rack mount (1U height) |
| Dimensions (Typical) | 430mm × 250mm × 44mm |
| Cable Entry Ports | Rear and/or side access |
| Splice Tray Support | Optional – up to 1 tray (12 or 24 fibers) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -45°C to +85°C |
24-Fiber ODF Rack Applications
-
🌐 FTTH & FTTx Termination Points
-
📡 Telecom Room & Equipment Rack Fiber Management
-
☁️ Data Center & Server Rack Connectivity
-
🏢 Enterprise LAN/WAN Fiber Distribution
-
🔬 Optical Testing or Monitoring Workstations
Customization Options
We offer full OEM/ODM customization for brand alignment and project needs:
-
🔧 Adapter Panel Options: SC, LC, FC, ST – simplex or duplex
-
🔧 Logo & Branding: Laser engraving, printed labels, or OEM branding
-
🔧 Color Finishes: Black, gray, white, or any RAL color code
-
🔧 Tray Configuration: With or without splice tray
-
🔧 Preloaded Option: Available with adapters, pigtails, and cable kits
-
🔧 Packaging: Bulk box, foam tray, retail-ready box
Let us know your fiber layout requirements — we’ll configure it accordingly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 24 Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 89 mm |
| Weight | 5.8 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Included | 1 unit 24 Fiber Distribution Box |
| Port Capacity | 24 Ports |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Port Count | 24 |
Wholesale & Bulk Supply Support
Perfect for distributors, telecom contractors, and system integrators:
-
📦 Factory Direct Pricing & Discount Tiers
-
📦 Flexible MOQs for OEM Projects or Stock Refill
-
📦 Custom Barcoding & Export-Compliant Labeling
-
📦 Fast Production & International Shipping Support
-
📦 Documentation: CE, RoHS, COO, and full test reports
Why Choose Our 24-Fiber Rack Mount ODF?
-
✔️ Space-Saving & Ideal for Small-Scale Fiber Termination
-
✔️ Rugged Build for Long-Term Rack Use
-
✔️ Clean and Organized Cable Management
-
✔️ Compatible with All Major Adapter & Patch Cord Types
-
✔️ OEM-Ready & Scalable for Expansion Projects
Order Now
Choose the 24-Fiber ODF Rack Mount Distribution Box for a compact, customizable, and future-ready solution to your fiber optic management needs. Available with OEM branding, preloading kits, and wholesale bulk pricing.
