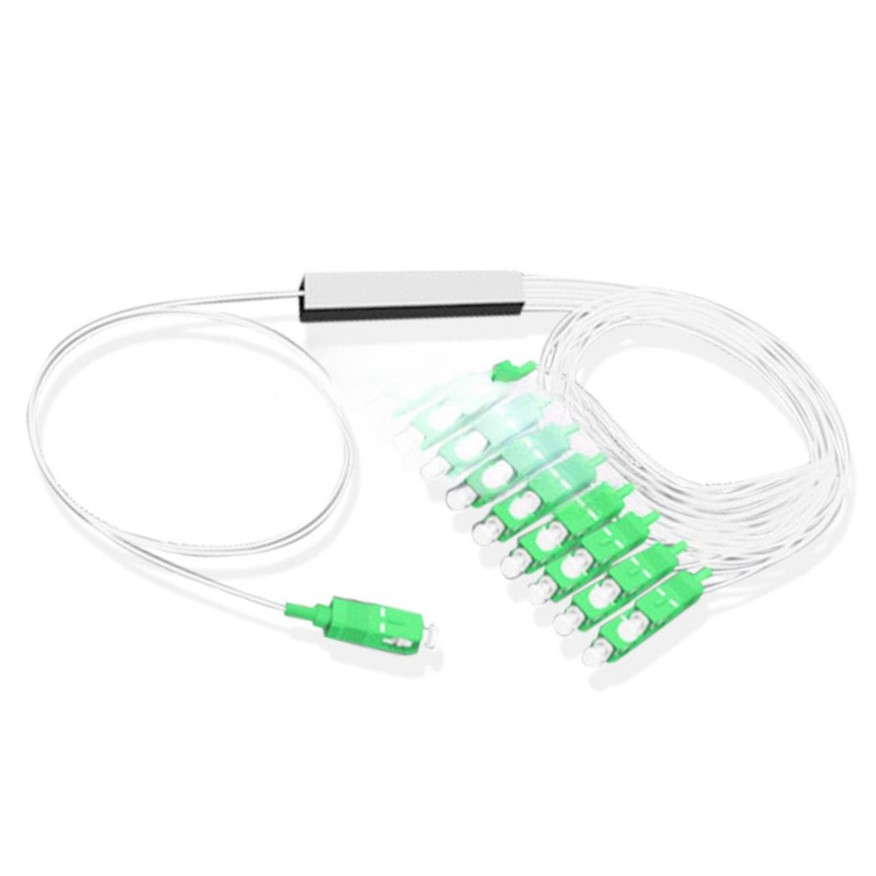

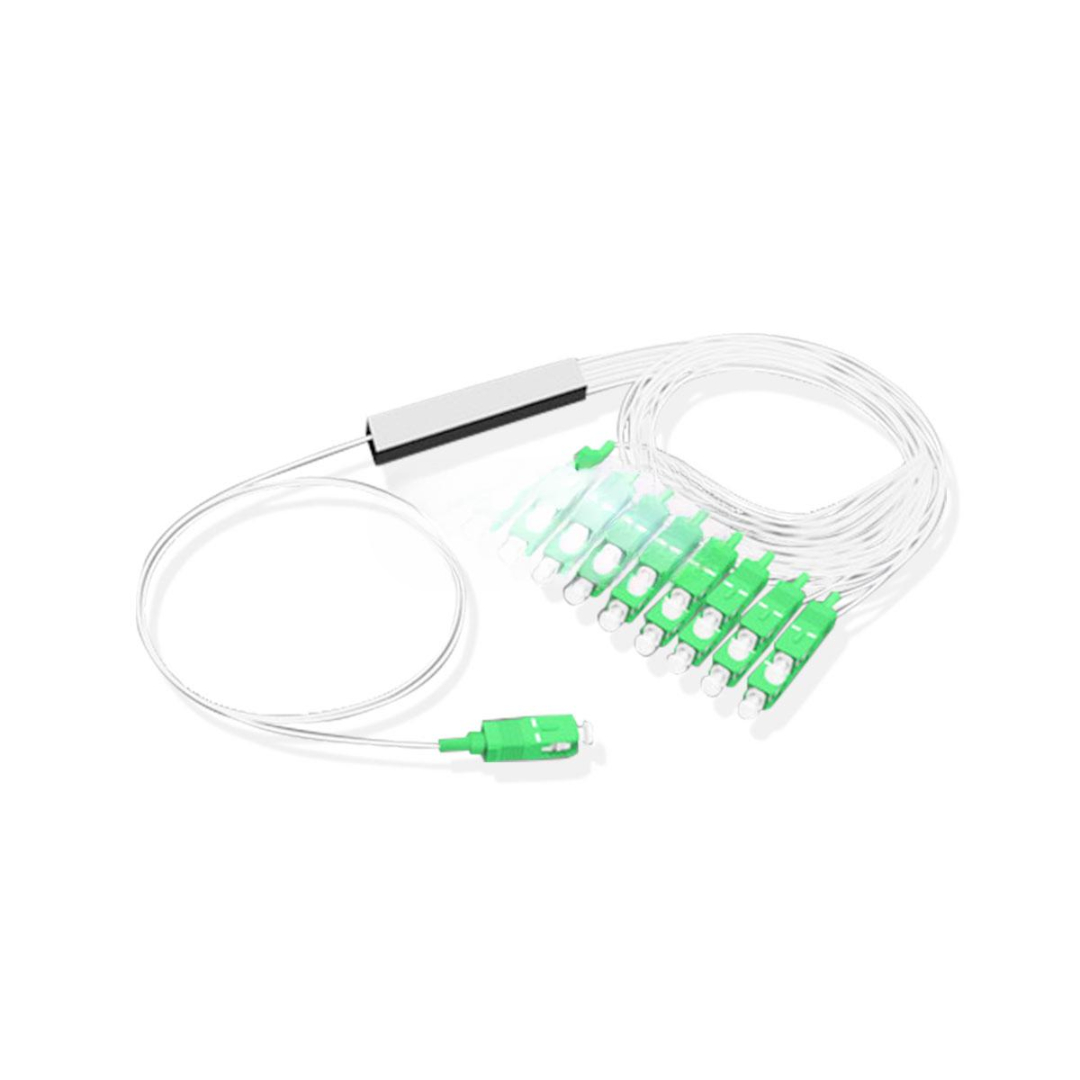

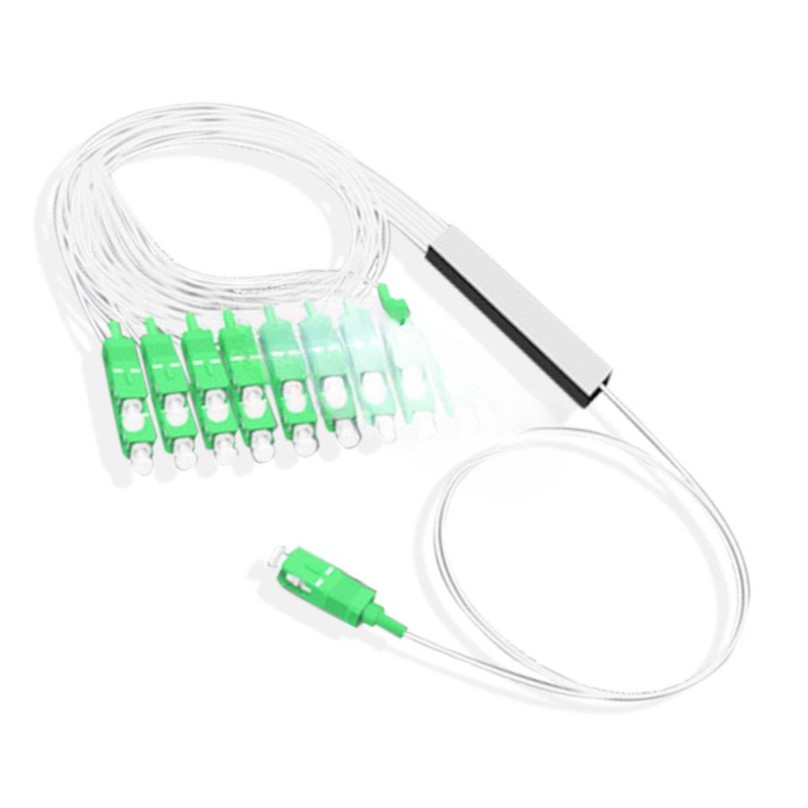

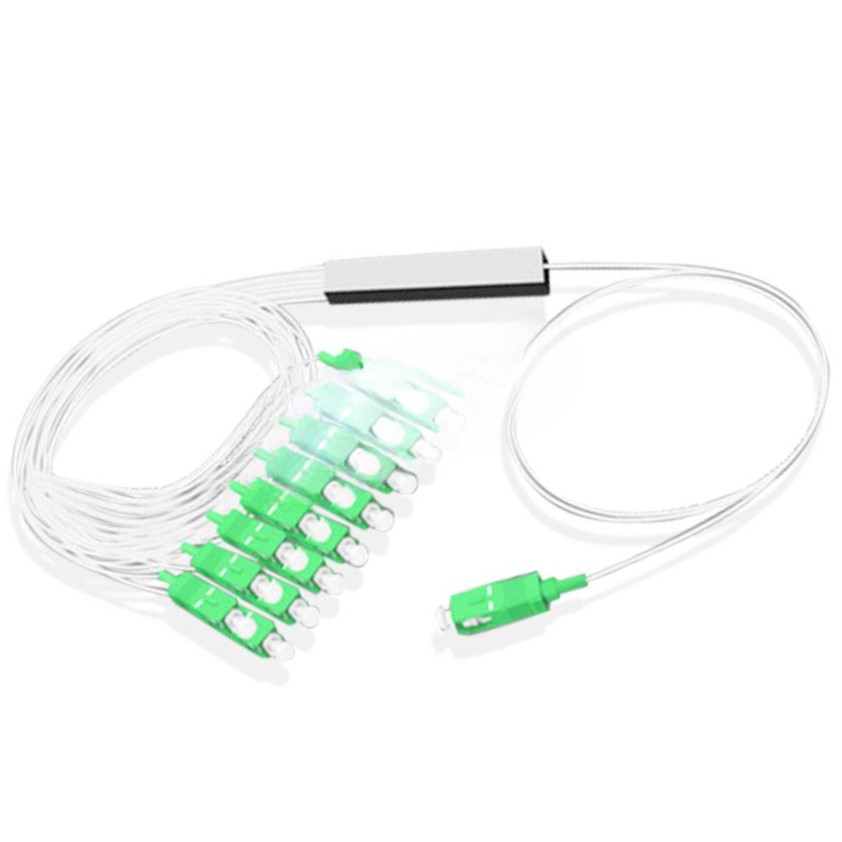

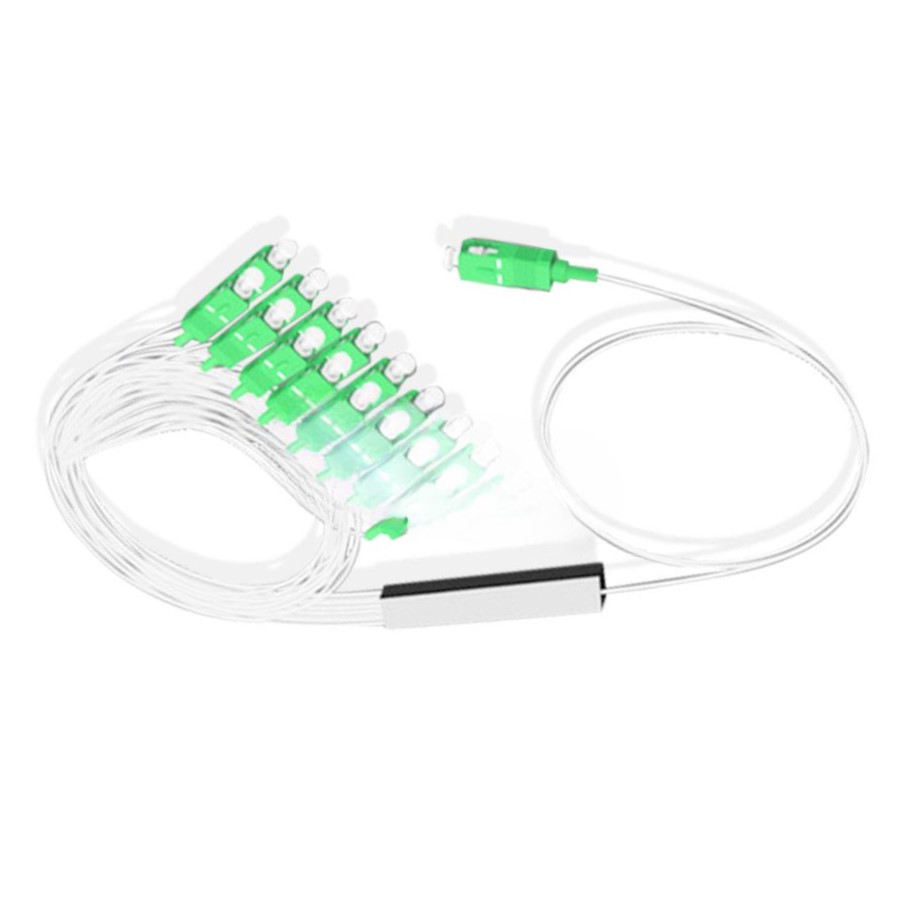

SC/APC 1×16 Fiber Splitter Brand New Blockless Type 250um
The SC/APC 1×16 Fiber Splitter is a premium PLC splitter designed to divide a single optical input into 16 balanced output signals with low insertion loss and excellent uniformity. Its blockless structure with 250µm bare fibers provides maximum flexibility for splicing in fiber distribution boxes, closures, and patch panels, making it ideal for modern FTTH, PON, CATV, and LAN applications.
Key Features
-
Configuration: 1 input × 16 outputs
-
Connector: SC/APC for low back reflection and high signal quality
-
Fiber Type: G657A1 or G652D with 250µm bare fiber
-
Compact Blockless Design: Saves space, easy to handle and install
-
Low Insertion Loss: Ensures uniform signal distribution
-
High Return Loss: ≥ 55 dB with SC/APC polish for stable connections
-
Wide Operating Wavelength: 1260–1650 nm
-
Reliable Performance: Excellent environmental and mechanical stability
-
Fully Tested: 100% factory-tested for insertion loss, return loss, and uniformity
Technical Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | PLC Blockless 1×16 |
| Connector Type | SC/APC |
| Fiber Type | 250µm bare fiber |
| Insertion Loss | ≤ 13.5 dB (typical) |
| Uniformity | ≤ 1.2 dB |
| Return Loss | ≥ 55 dB |
| Operating Wavelength | 1260 nm – 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209/1221, RoHS compliant |
SC/APC 1×16 Fiber Splitter Applications
FTTH/FTTx Networks: Distribute fiber signals efficiently to multiple endpoints
PON Networks (GPON/EPON): Split OLT signals to ONUs/ONTs with uniform output
CATV Systems: High-quality signal distribution for residential and commercial use
Test & Measurement: Portable use in field tests and network troubleshooting
LAN & Data Centers: Cost-effective passive optical signal splitting
Customization & OEM Services
Connector & Fiber Options: Available with SC/UPC, LC/APC, LC/UPC; custom lengths
Private Labeling: OEM packaging and custom branding for resellers and system integrators
Pre-Termination: Customized fan-out length and protection tube options
Extended Testing: Additional burn-in and certification for critical projects
SC/APC 1×16 Fiber Splitter Wholesale & Bulk Supply
Factory-Direct Pricing: Competitive discounts for volume orders
Global Export Logistics: Secure, export-standard packaging for safe transit
Ready Stock: Consistent supply for phased rollouts or urgent tenders
Full Warranty: Guaranteed 100% brand new and fully compliant with industry standards
Why Choose Our SC/APC 1×16 Fiber Splitter
High Stability, Low Loss — Consistent performance and minimal signal degradation
Compact & Versatile — Perfect for tight spaces and flexible splicing
Quality Assured — 100% tested, fully compliant, and RoHS certified
Ideal for Any Network — From residential FTTH to large-scale PON deployments
Contact Us for Best Pricing
Expand your fiber network efficiently with the SC/APC 1×16 Fiber Splitter Brand New Blockless Type 250um — the smart choice for your next fiber deployment or wholesale project.
