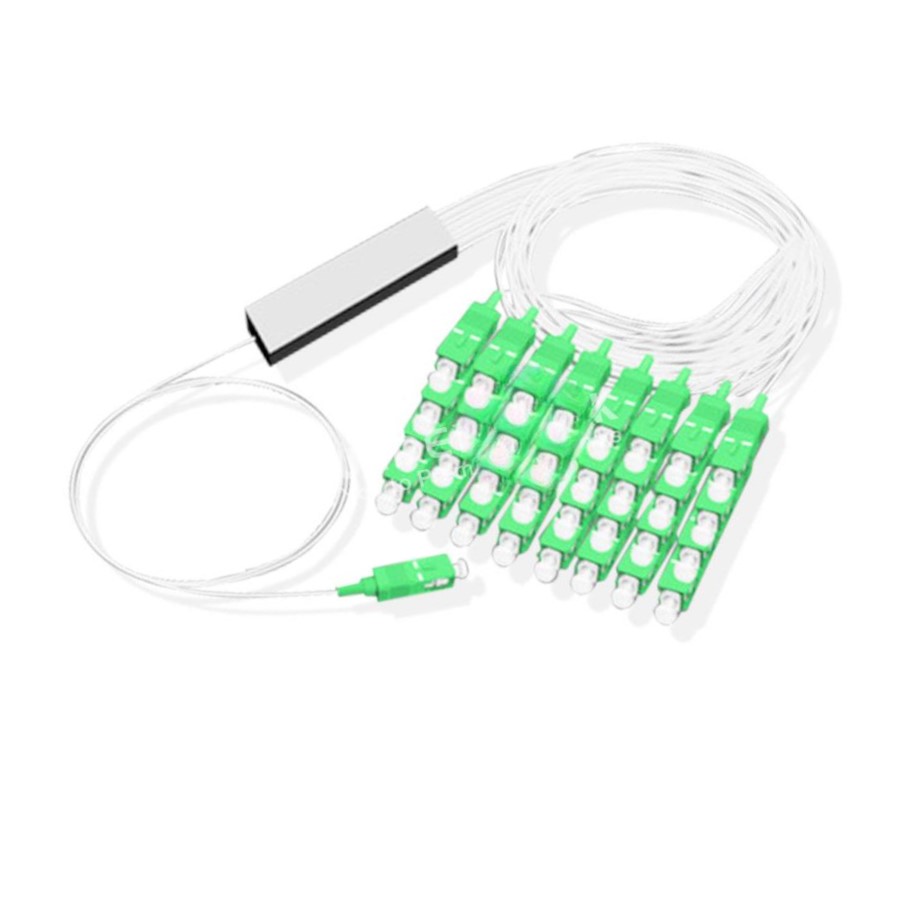

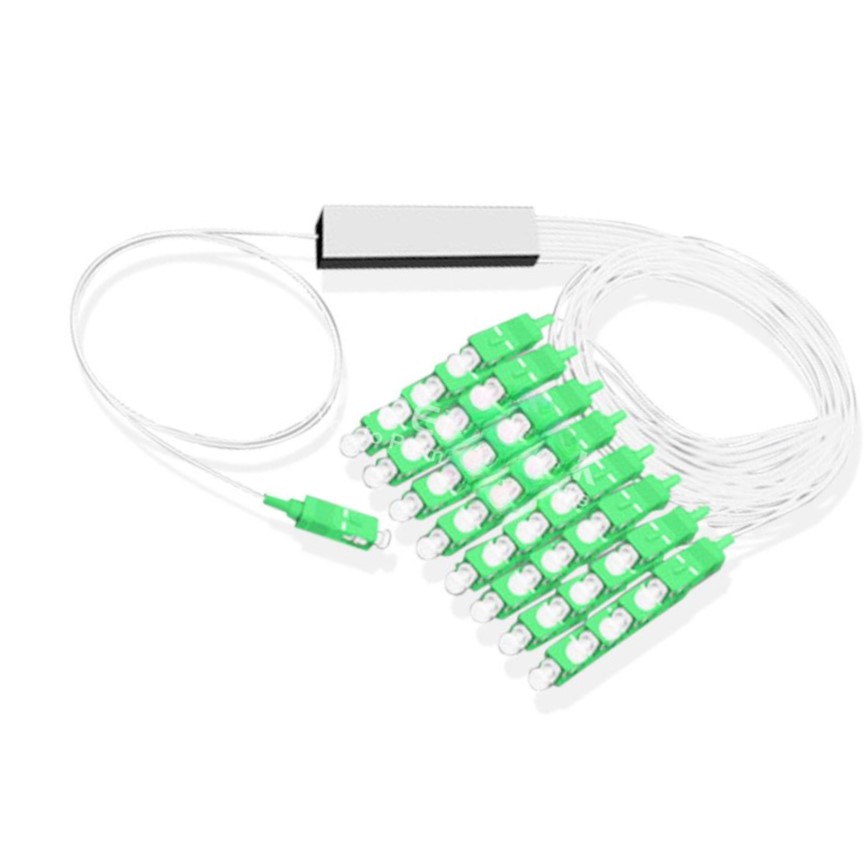

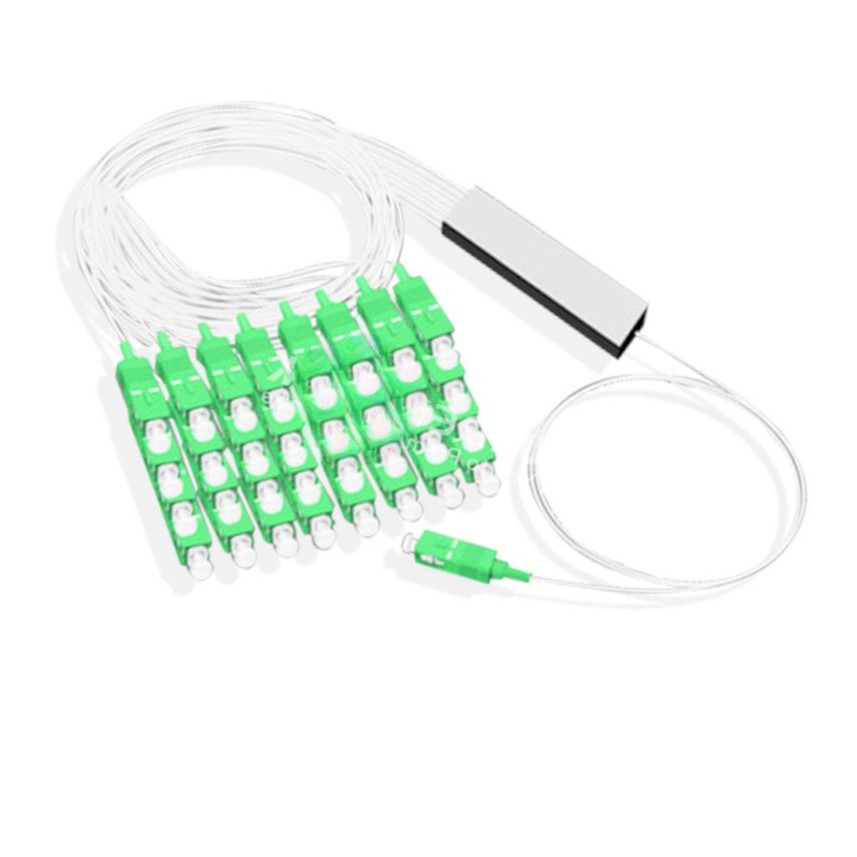

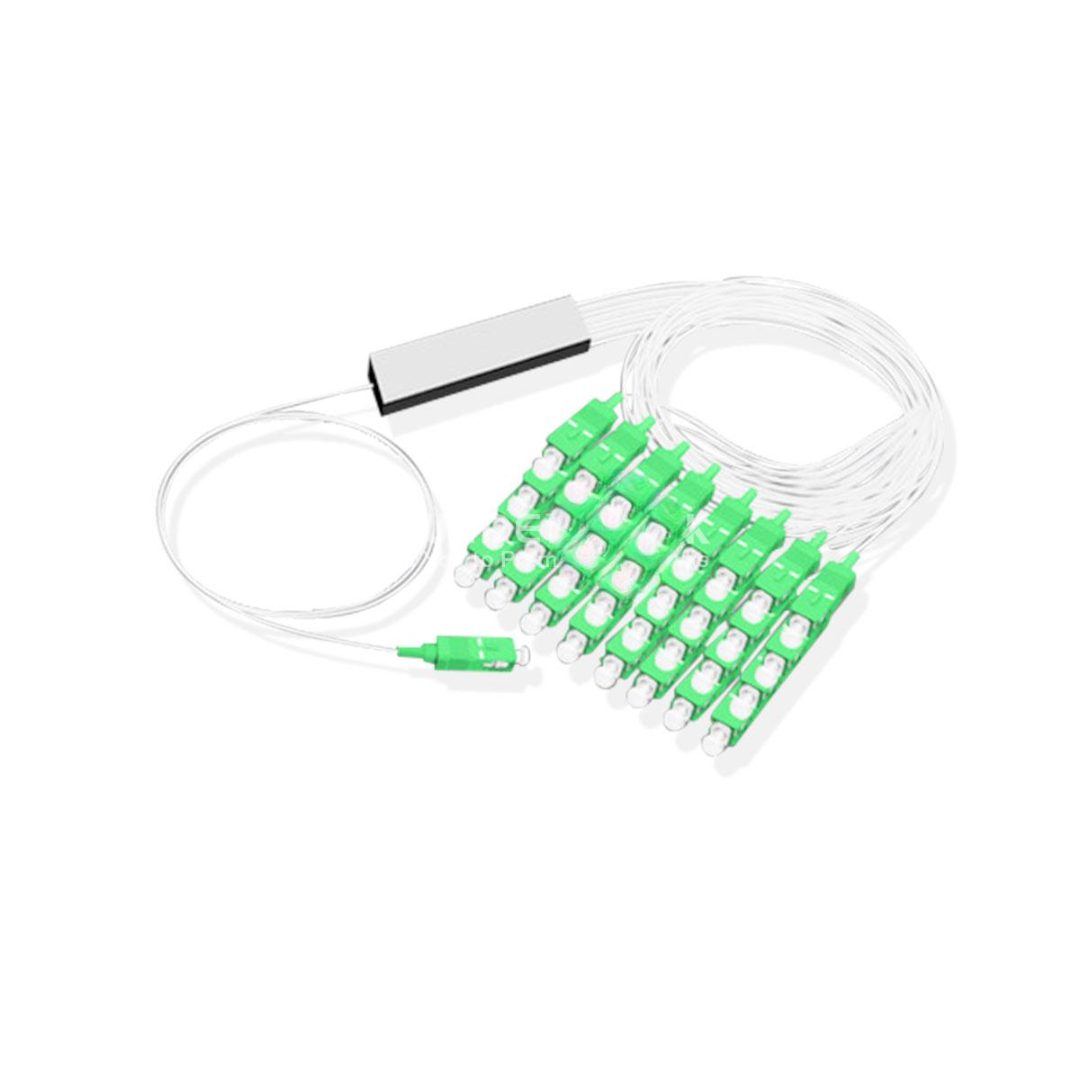

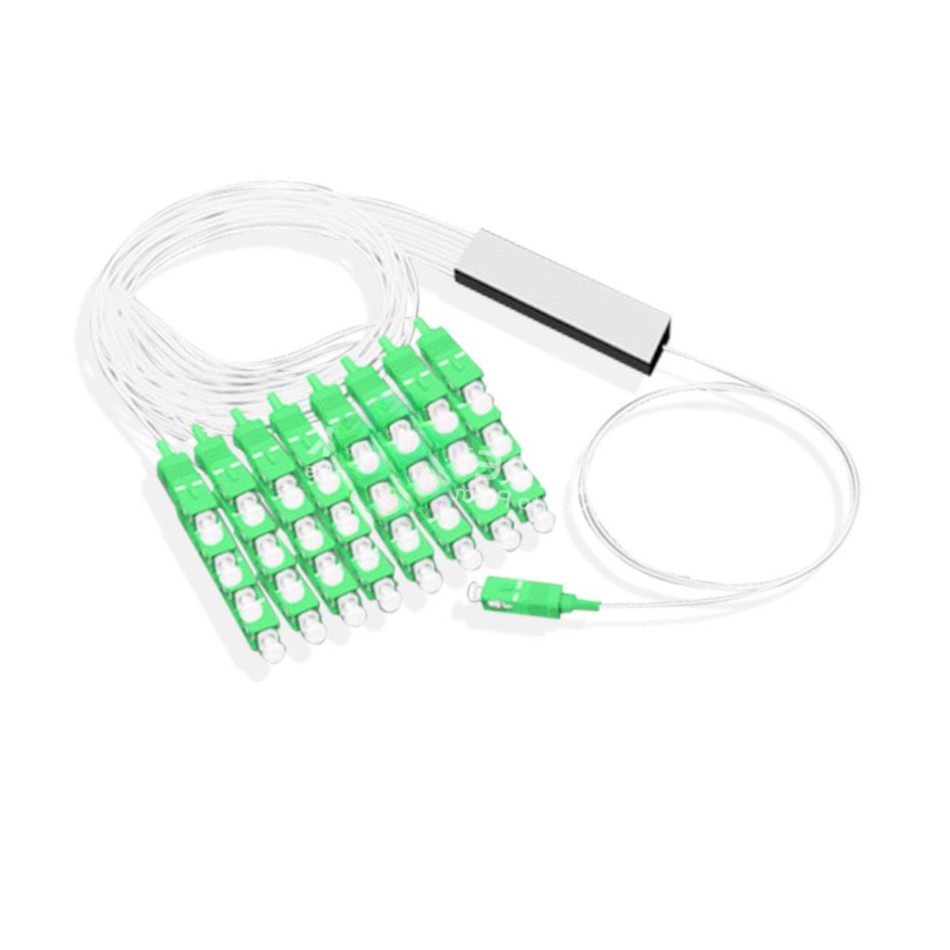

SC/APC 1×32 Fiber Splitter Brand New Blockless Type 250um
The SC/APC 1×32 Fiber Splitter is a high-quality, passive optical device designed to split one input fiber signal into 32 uniform output signals. With its blockless, compact design and 250µm bare fiber, this splitter is ideal for FTTx, PON, CATV, and optical network test applications where space-saving and flexible installation are required.
Key Features
-
Type: Blockless PLC Splitter, 1×32 configuration
-
Connector Type: SC/APC on all outputs and input
-
Fiber Type: 250µm bare fiber, easy for splicing in closures or trays
-
Low Insertion Loss: Uniform optical power distribution with minimal signal loss
-
Excellent Uniformity: Consistent performance across all 32 output channels
-
High Return Loss: ≥ 55 dB with SC/APC connectors for superior signal integrity
-
Compact & Lightweight: Blockless design reduces footprint for easy installation
-
Wide Operating Range: Supports -40°C to +85°C for indoor or outdoor environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Configuration | 1 input × 32 outputs |
| Connector Type | SC/APC |
| Fiber Type | G657A1 or G652D (250um bare fiber) |
| Insertion Loss | ≤ 17.0 dB typical |
| Uniformity | ≤ 1.5 dB |
| Return Loss | ≥ 55 dB |
| Operating Wavelength | 1260 nm – 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Compact blockless module |
SC/APC 1×32 Fiber Splitter Applications
FTTH/FTTx Networks: Distribute optical signals from OLT to multiple ONUs/ONTs
PON (GPON/EPON) Systems: Reliable optical power splitting for access networks
CATV Networks: Efficient signal distribution with low insertion loss
Test & Measurement: Portable use for lab, field testing, and troubleshooting
Customization & OEM Services
Pre-terminated Options: Choose connector type, fiber length, and fiber type
Custom Labeling: Private labeling for distributors and ISPs
Kit Assembly: Available with splice trays, fiber management accessories, and closures
Burn-In & Testing: 100% tested for insertion loss and uniformity before dispatch
SC/APC 1×32 Fiber Splitter Wholesale & Bulk Supply
Factory Direct Pricing: Discounts for bulk orders and project rollouts
Secure Global Shipping: Export-standard packaging for safe transport
Warranty & Support: Covered by full manufacturer warranty with testing report
Flexible Supply: Consistent stock availability for large tenders or phased deployments
SC/APC 1×32 Fiber Splitter Why Choose Our SC/APC 1×32 Fiber Splitter
High Stability & Low Loss — Ensures consistent optical performance
Blockless Design — Lightweight, flexible installation for tight spaces
Certified Quality — Telcordia GR-1209/1221 and RoHS compliant
Perfect for Any Network Size — Suitable for residential, business, or campus fiber networks
Contact Us for Best Pricing
Upgrade your fiber optic distribution with our SC/APC 1×32 Fiber Splitter Brand New Blockless type 250um — the compact, reliable solution for your next FTTH or PON project.
