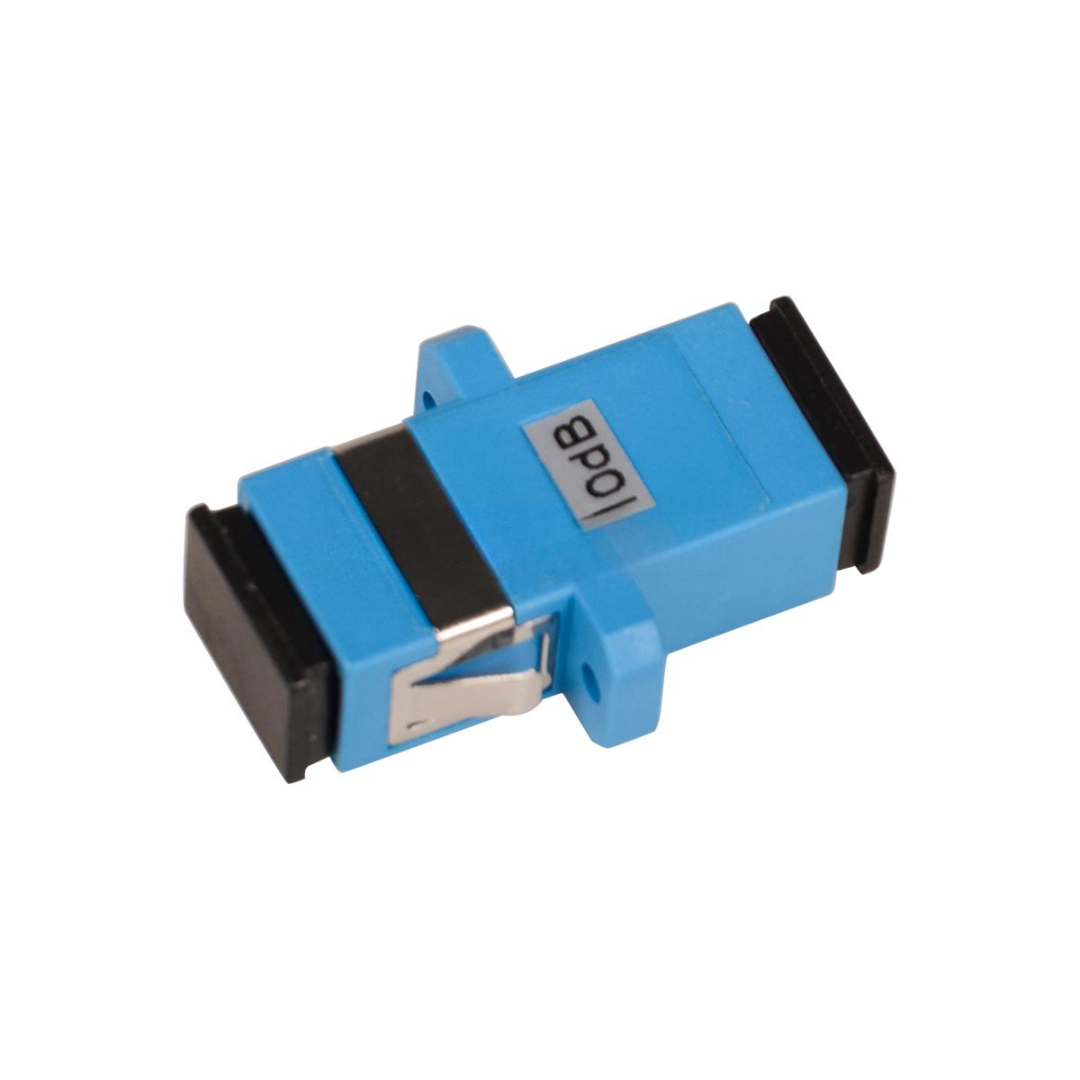

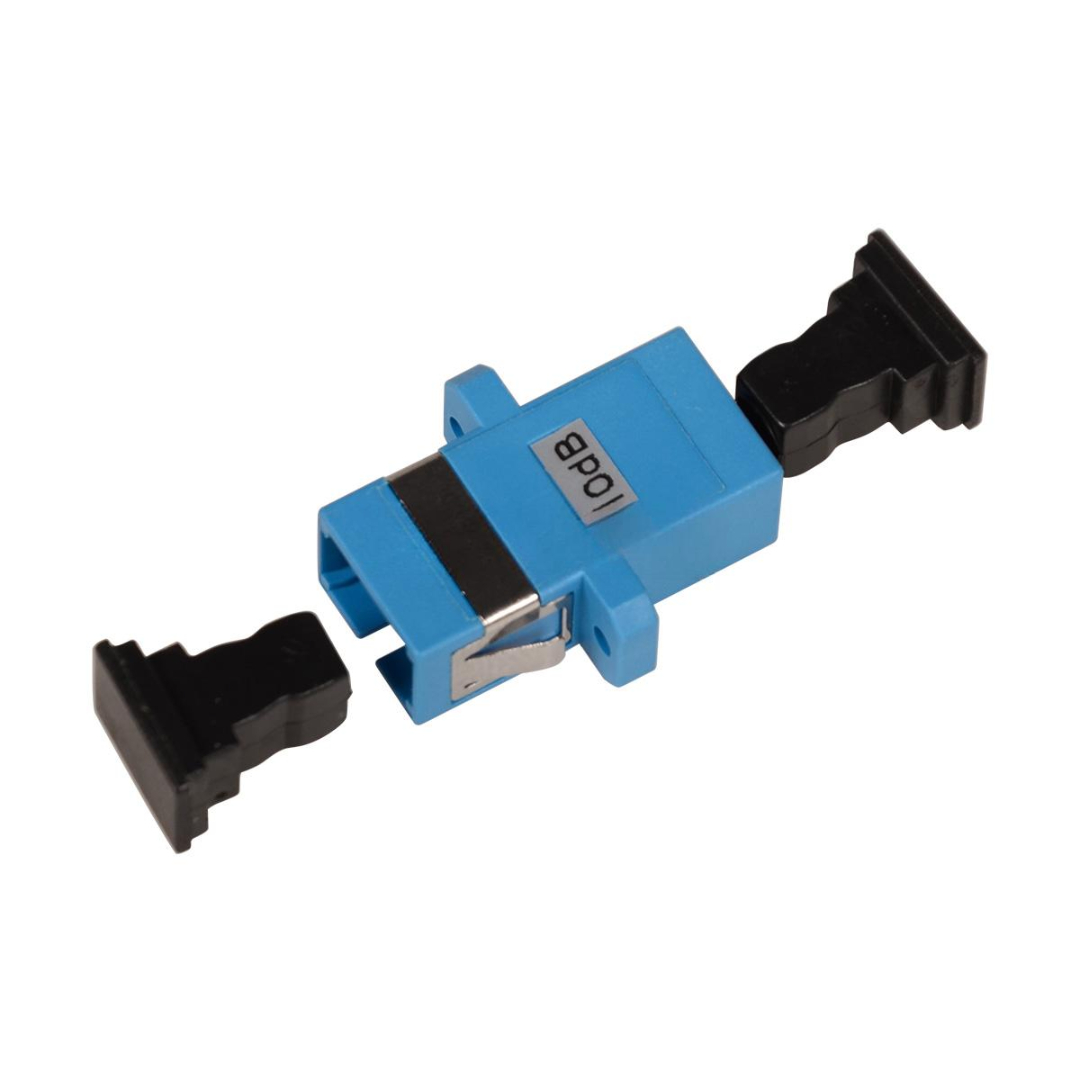

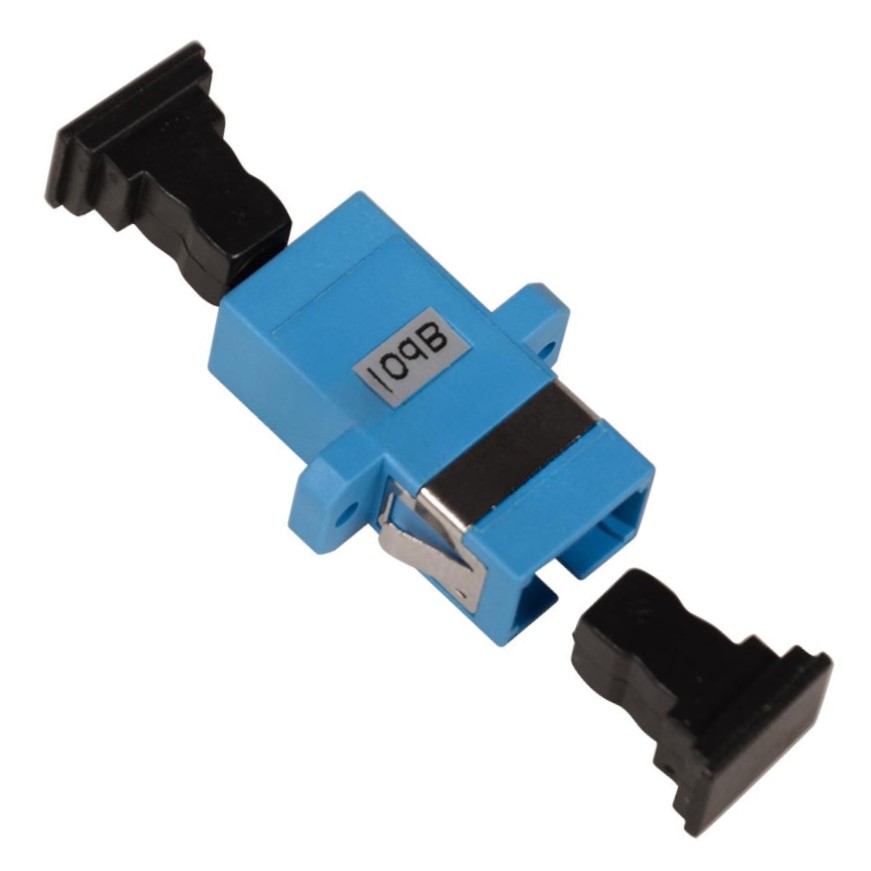

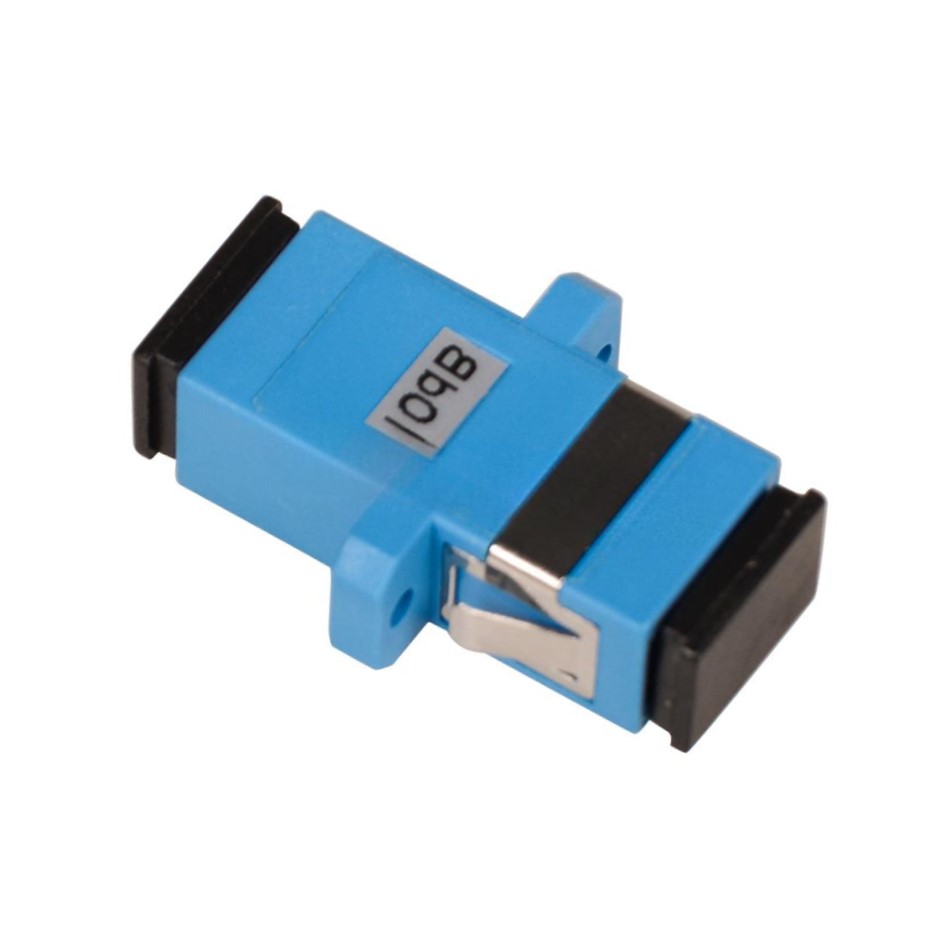

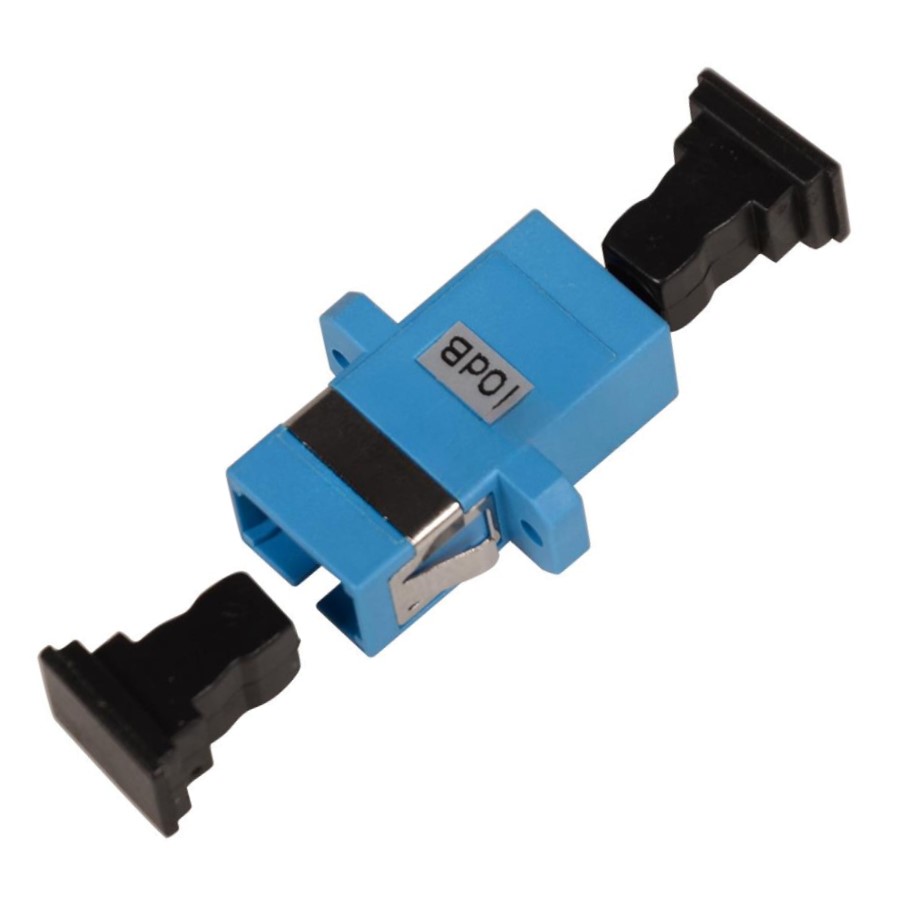

SC/UPC 10dB Female-Female High Quality Fiber Optical Attenuator
The SC/UPC 10dB Female-Female Fiber Optical Attenuator is a precision passive device designed to reduce optical signal power levels in fiber optic communication systems. Featuring a fixed 10dB attenuation level, this SC/UPC adapter-style attenuator ensures high accuracy and low insertion loss, making it suitable for both lab and field applications. It is commonly used in data centers, telecom networks, CATV systems, and FTTH deployments where signal power must be controlled or balanced.
Key Features
-
Type: Female-to-Female Fixed Optical Attenuator
-
Interface: SC/UPC to SC/UPC
-
Attenuation Level: 10dB (fixed)
-
Connector Gender: Female–Female (inline coupler type)
-
Fiber Type: Single-mode (9/125μm)
-
Return Loss: ≥55dB (UPC polish)
-
Wavelength Range: 1260–1620nm
-
Insertion Loss: ≤0.6dB (excluding attenuation)
-
Durability: >1000 mating cycles
-
Precision: Accurate attenuation tolerance (±0.5dB)
-
Body Material: Metal housing with ceramic ferrule
-
Operating Temp: -40°C to +85°C
-
Compliance: RoHS, Telcordia GR-910-CORE, IEC standards
Technical Specifications
| Specification | Details |
|---|---|
| Connector Type | SC/UPC Female–Female |
| Attenuation Value | 10dB ± 0.5dB |
| Operating Wavelength | 1260nm to 1620nm |
| Fiber Type | Single-mode 9/125μm |
| Return Loss | ≥55dB (UPC polish) |
| Insertion Loss | ≤0.6dB (not including attenuation) |
| Mating Durability | ≥1000 cycles |
| Temperature Range | -40°C to +85°C |
| Storage Temp Range | -40°C to +85°C |
| Standards Compliance | RoHS, Telcordia, IEC |
| Application | Inline attenuation for SC/UPC networks |
SC/UPC 10dB Applications
-
Telecom & ISP Networks – Signal balancing in OLT, ONU, DWDM, and GPON systems
-
FTTH/FTTB Deployments – Attenuation control in high-sensitivity fiber links
-
Data Centers & Enterprises – Managing power levels across optical switches
-
Test Labs & Field Use – Controlled signal reduction for equipment testing
-
CATV Networks – Optical signal conditioning in video transmission lines
Customization & OEM Options
-
Attenuation Levels Available: 1dB to 30dB (increments of 1dB)
-
Connector Options: SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC
-
Logo & Label Customization: Company branding, barcodes, and part numbers
-
Color Coding: Custom body colors for attenuation value identification
-
Packaging: Bulk or individual packaging with custom labeling
-
Calibration Certification: Available upon request for precision needs
Wholesale & Global Supply Information
-
Bulk Availability: High-volume stock for telecom projects and distributors
-
OEM Factory Direct: Competitive pricing with consistent quality
-
Fast Delivery: Express shipping options for urgent global orders
-
Secure Packaging: Anti-static bag with shock-proof foam and OEM box
-
International Compliance: RoHS/CE certified, customs-ready documentation
-
Technical Support: Specification sheets and usage guidance on request
Why Choose the SC/UPC 10dB Fiber Optical Attenuator
-
High Precision – Accurate 10dB attenuation for signal integrity
-
Easy Integration – Plug-and-play SC/UPC interface for quick deployment
-
Excellent Durability – Long lifecycle and low return loss
-
Flexible Customization – Multiple connector types and attenuation levels
-
Global Ready – Ideal for telecom operators, ISPs, and infrastructure builders
Request Bulk Pricing, Samples, or Datasheets Today
Control your optical network with confidence using the SC/UPC 10dB Female-Female Fiber Optical Attenuator — engineered for performance, precision, and reliability.
Contact us now for bulk orders, OEM branding, and fast international delivery.
