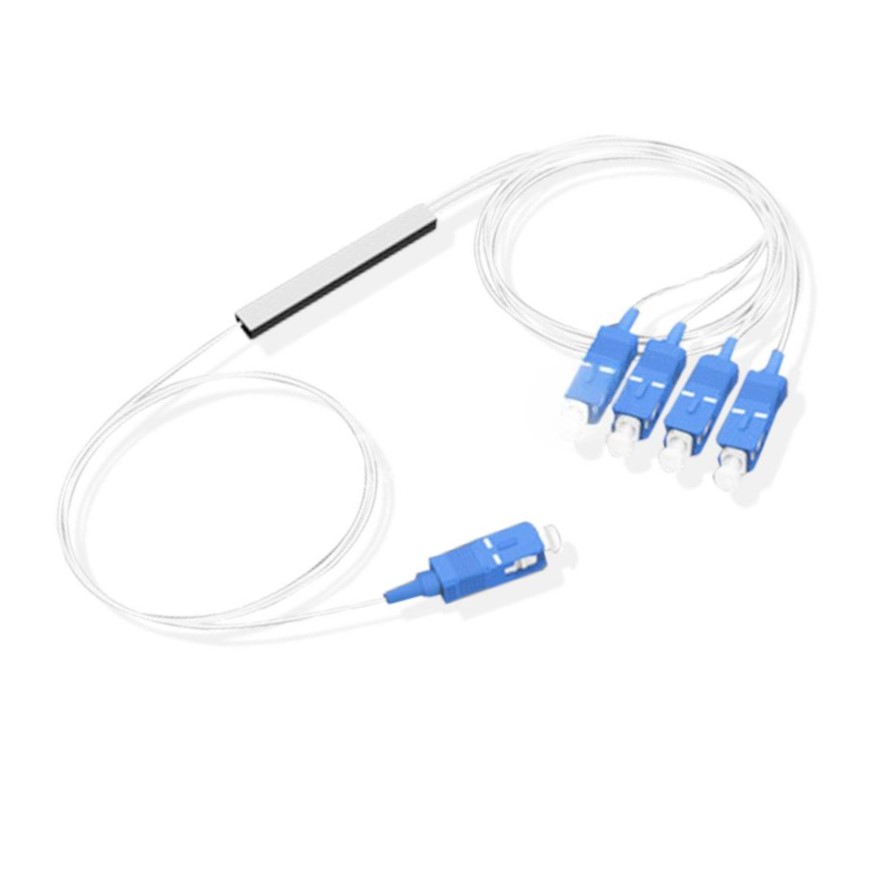

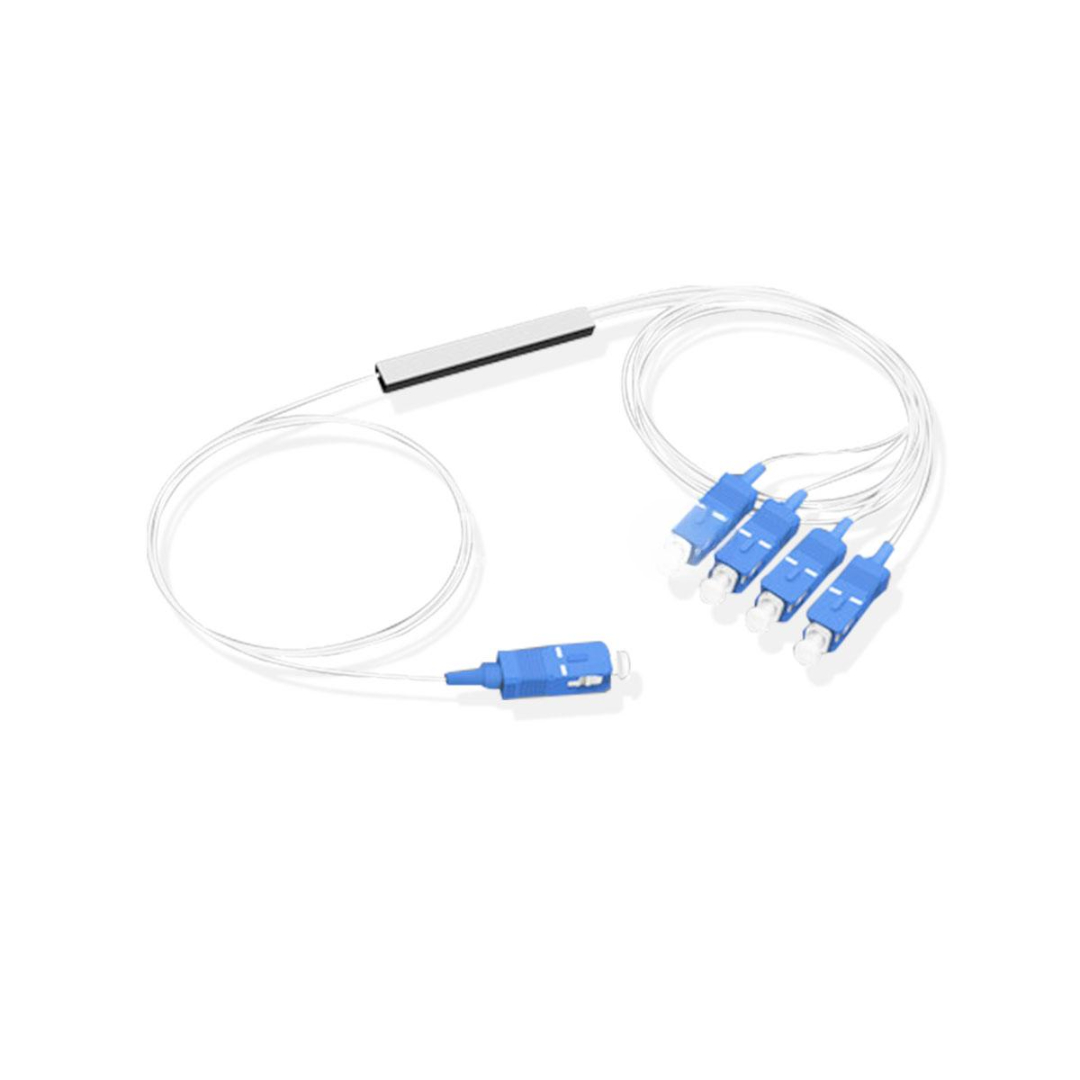

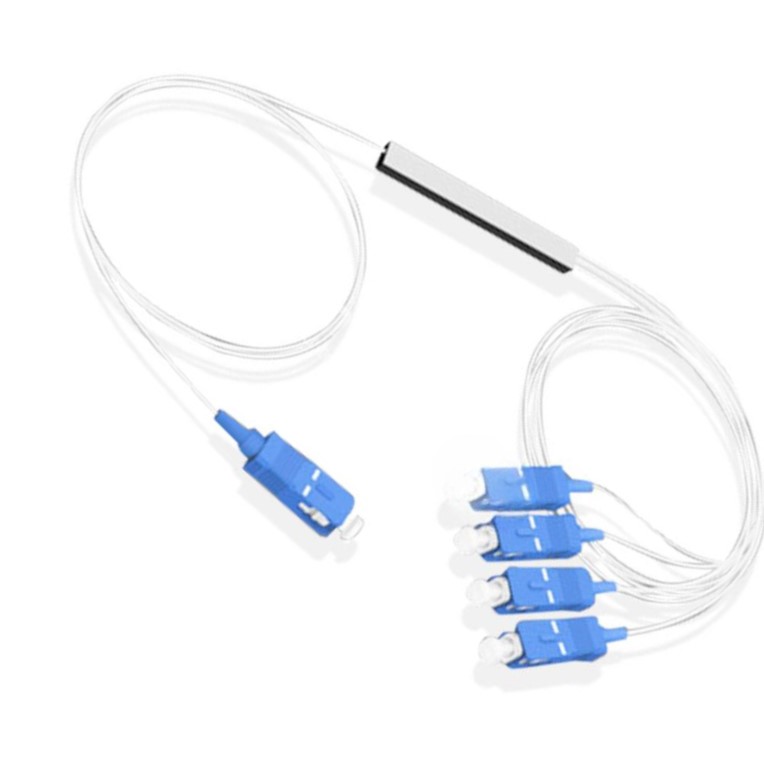

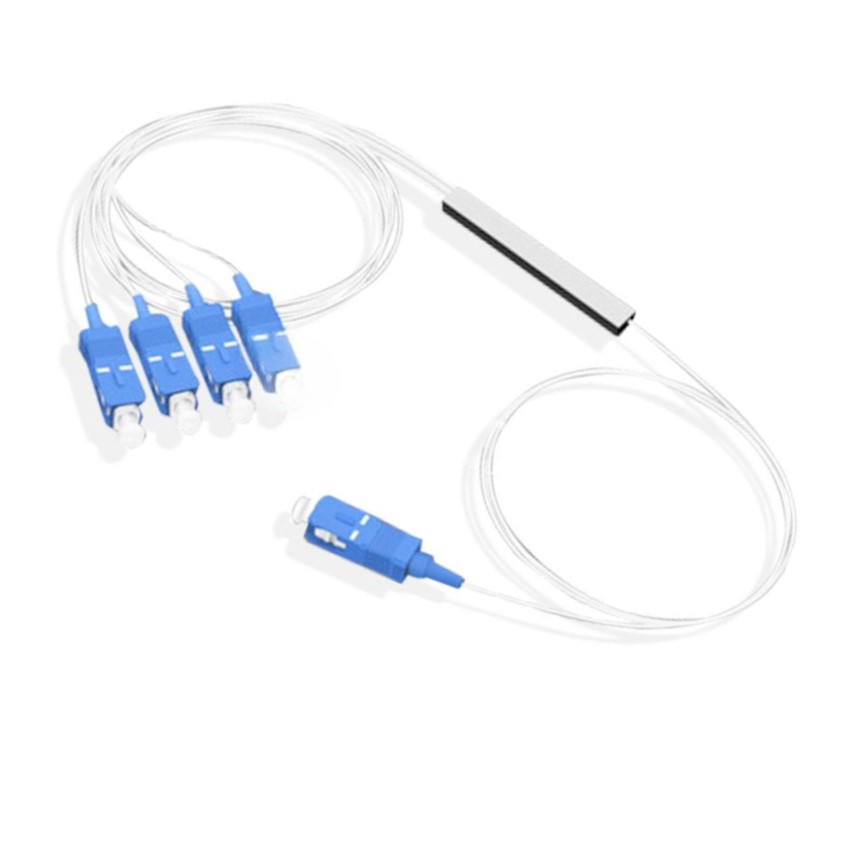

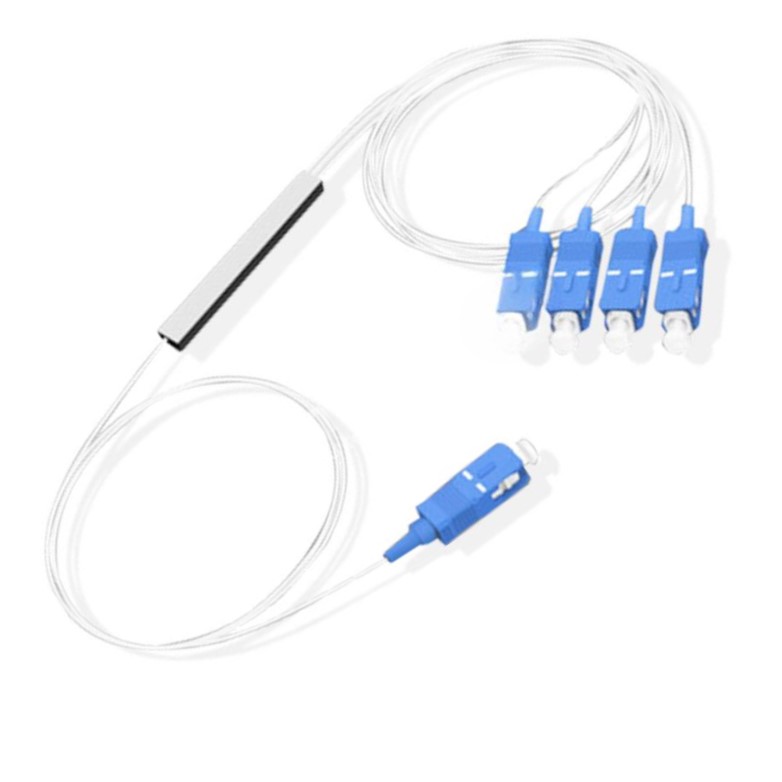

SC/UPC 1×4 Blockless Brand New Type 250um Fiber Splitter
The SC/UPC 1×4 Blockless Fiber Splitter is a high-performance passive optical device designed for reliable and stable signal distribution in FTTH, FTTx, PON, and other fiber optic network applications. With its compact blockless design and 250um bare fiber construction, it offers maximum installation flexibility while saving space in closures, splice trays, or wall-mount enclosures.
This 1×4 PLC (Planar Lightwave Circuit) splitter precisely divides a single optical input signal into four output signals with low insertion loss, excellent channel uniformity, and stable performance over a broad wavelength range.
Key Features
-
Splitter Type: 1×4 PLC Splitter
-
Design: Compact blockless with 250um bare fiber for easy splicing
-
Connector Type: SC/UPC connectors on input and outputs for plug-and-play deployment
-
Operating Wavelength: 1260~1650nm for full PON compatibility
-
Low Insertion Loss: Minimal signal loss and high uniformity across channels
-
High Quality: Compliant with Telcordia GR-1209 and GR-1221 standards for optical reliability
-
Condition: 100% Brand New, factory-tested and certified
Technical Specifications
| Category | Specification |
|---|---|
| Splitter Type | PLC (Planar Lightwave Circuit) |
| Configuration | 1×4 |
| Fiber Type | Singlemode, 250um bare fiber |
| Connector Type | SC/UPC |
| Operating Wavelength | 1260–1650nm |
| Insertion Loss | ≤ 7.2 dB |
| Uniformity | ≤ 0.6 dB |
| Return Loss | ≥ 55 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.2 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209, GR-1221, RoHS |
SC/UPC 1×4 Blockless Applications
TTH/FTTx Networks: Split optical signals to 4 endpoints/subscribers
PON & Passive Optical LANs: Efficient signal distribution in fiber access networks
CATV Networks: Distribute RF signals over fiber
Testing & Labs: Useful in lab and field optical testing environments
Compact Deployments: Fits seamlessly into splice trays, closures, or distribution boxes
Customization & OEM Services
Custom Fiber Lengths: Input/output pigtails can be made to your exact length
OEM Branding: Private label and customized packaging for resellers and distributors
Bulk Kits: Deployment-ready splitter kits for large rollouts
QC Data: Test reports for insertion loss and uniformity included
SC/UPC 1×4 Blockless Wholesale & Bulk Supply
Factory-Direct Pricing: Competitive discounts for large quantity orders
Global Export: Secure export packaging and fast worldwide shipping
Dedicated Support: Personal account managers to handle your projects smoothly
Full Warranty: Genuine, brand new splitters backed by warranty
SC/UPC 1×4 Blockless Why Choose Us
Fully Tested & Certified Fiber Optic Components
Flexible Customization & OEM Branding
Attractive Wholesale Rates for ISPs, Installers & System Integrators
Reliable Export Logistics Worldwide
Expert Technical Support from Planning to Deployment
Contact Us for Best Pricing
Upgrade your network infrastructure with the SC/UPC 1×4 Blockless Brand New Type 250um Fiber Splitter — your go-to solution for efficient, space-saving, and cost-effective optical signal distribution.
