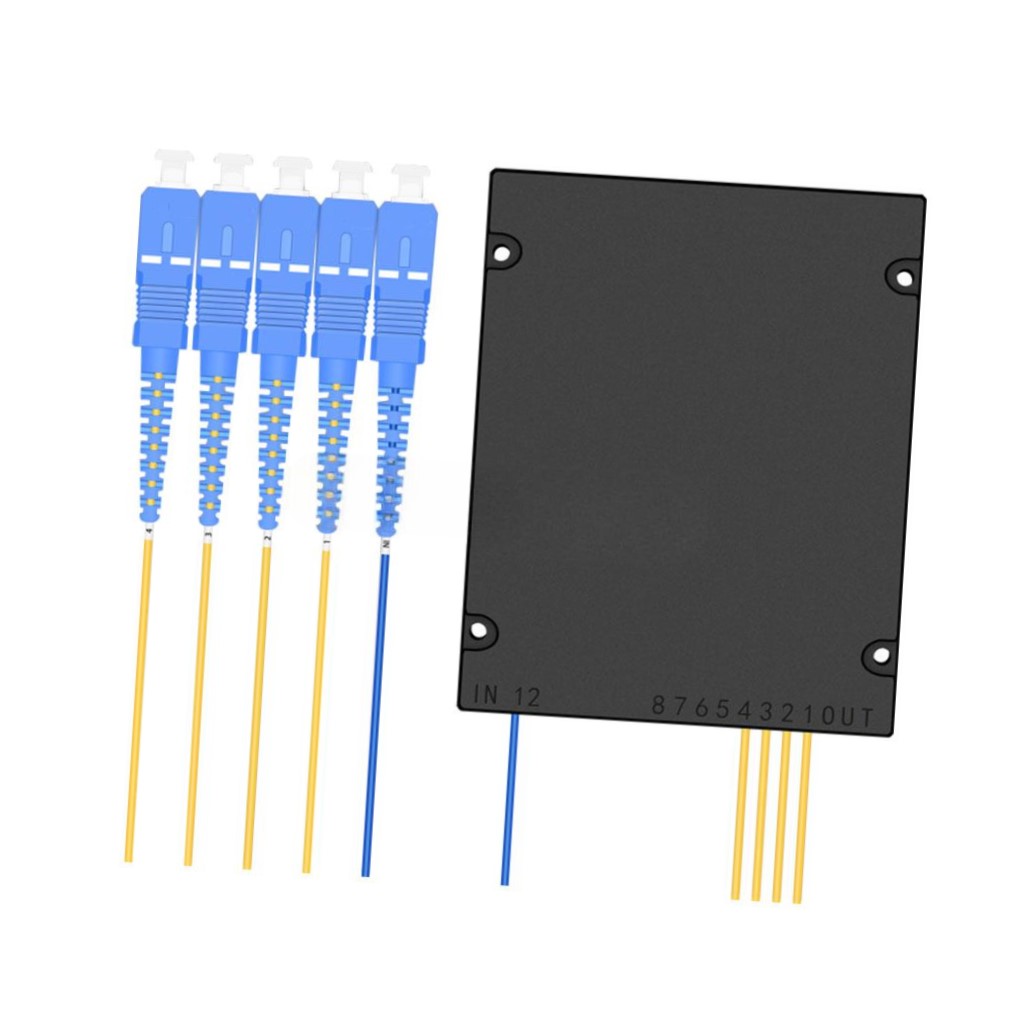

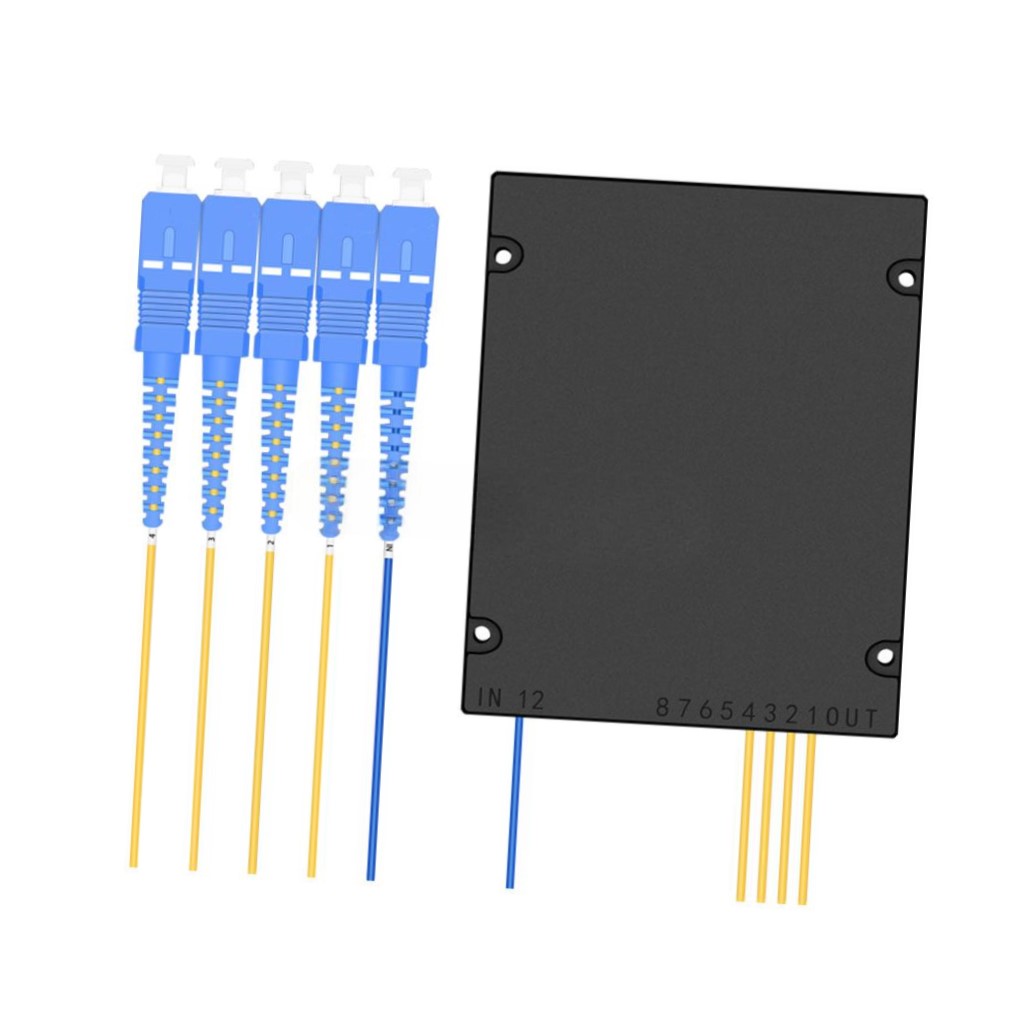

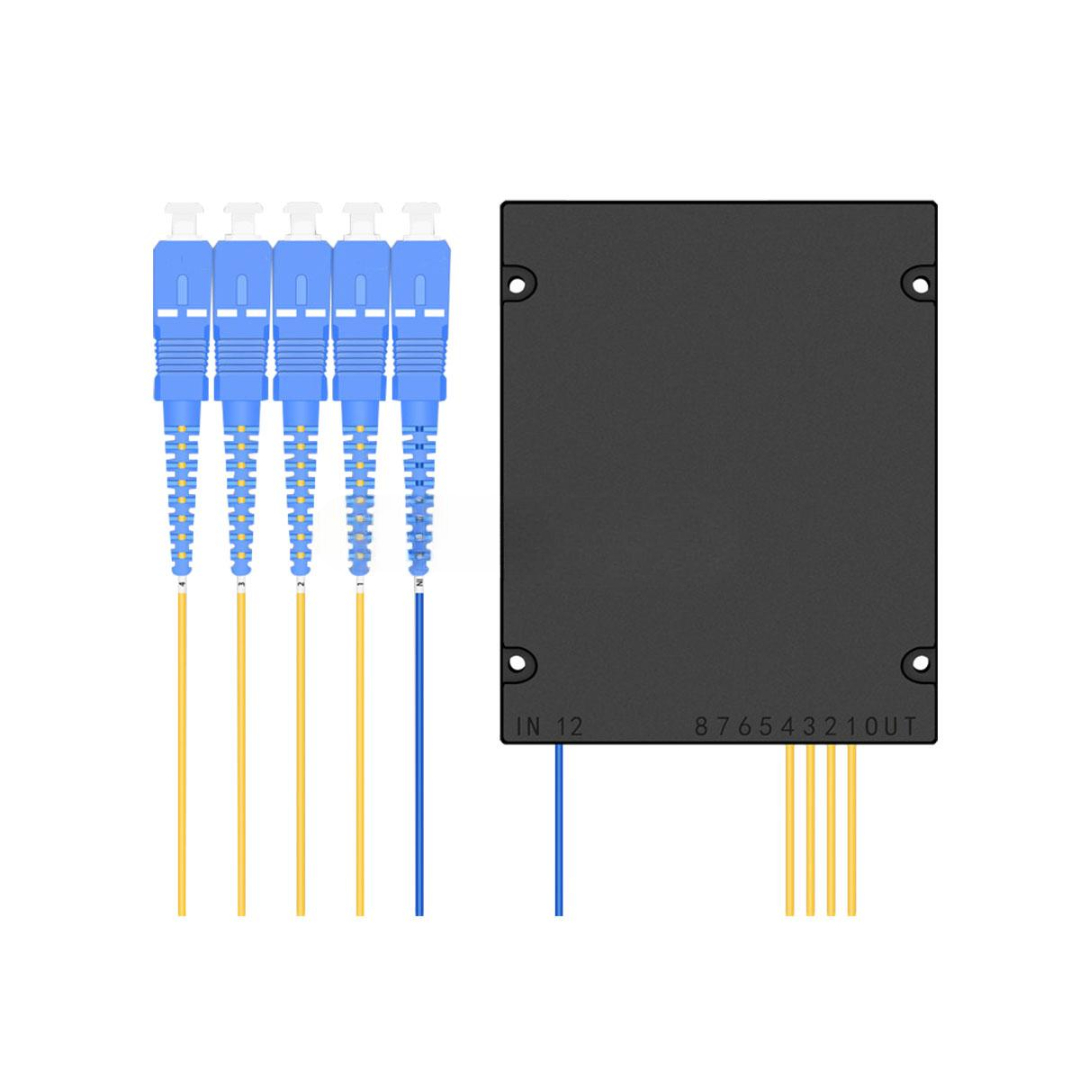

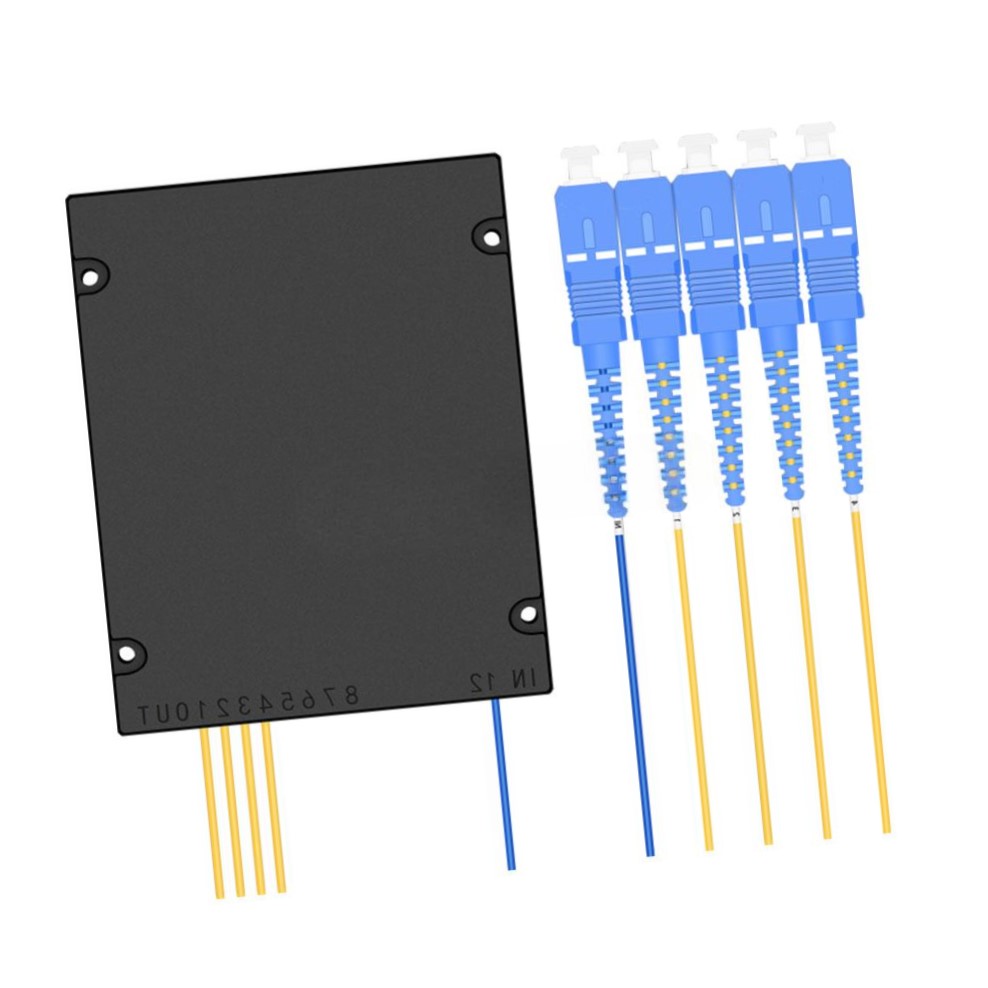

SC/UPC 1×4 Fiber Splitter Brand New Pigtail Type (SC/UPC)
The SC/UPC 1×4 Fiber Splitter is a high-precision passive optical component used to divide a single optical input into four balanced outputs. Designed with pre-terminated SC/UPC connectors and 1.5-meter G.657A1 single-mode pigtail fibers, this splitter ensures low insertion loss, excellent uniformity, and superior reliability—ideal for FTTH, GPON/EPON, CATV, and LAN/WAN applications.
Compact, easy to install, and compliant with industry standards, this 1×4 splitter offers robust performance across a wide temperature range and high-density environments.
Key Features
- Model: SC/UPC 1×4 Pigtail Fiber Splitter
- Connector Type: SC/UPC on input and outputs
- Splitter Type: PLC (Planar Lightwave Circuit)
- Fiber Type: G.657A1 bend-insensitive single-mode
- Fiber Length: 1.5 meters per leg (customizable)
- Insertion Loss: ≤ 7.2 dB (typical ≤ 7.0 dB)
- Return Loss: ≥ 55 dB (UPC polish)
- Uniformity: ≤ 0.6 dB
- Operating Temperature: -40°C to +85°C
- Packaging Options: Bare fiber, ABS module, mini steel tube (on request)
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×4 |
| Connector Type | SC/UPC |
| Fiber Type | G.657A1 Single-mode |
| Fiber Length | 1.5 meters (custom lengths available) |
| Insertion Loss | ≤ 7.2 dB |
| Return Loss | ≥ 55 dB |
| Uniformity | ≤ 0.6 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.2 dB |
| Wavelength Range | 1260–1650 nm |
| Directivity | ≥ 55 dB |
| Operating Temp. | -40°C to +85°C |
| Storage Temp. | -40°C to +85°C |
| Standards Compliance | Telcordia GR-1209, GR-1221, RoHS |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×4 Fiber Splitter Applications
- FTTH/FTTx Networks – Signal splitting from central office to multiple endpoints
- Passive Optical Networks (GPON/EPON) – OLT to multiple ONU connection
- CATV Systems – Multichannel signal distribution
- Local Area Networks (LANs) – Balanced optical signal distribution
- Test & Measurement Labs – Simultaneous optical testing on multiple paths
Customization & OEM Options
- Connector Types: SC/APC, LC/UPC, LC/APC, FC, ST (custom on request)
- Fiber Lengths: Available in 0.5m, 1m, 2m, 3m, or customer-specified lengths
- Packaging Styles: Bare fiber, ABS box, LGX module, mini steel tube
- Color Coding: Optional colored fiber jackets or standard yellow
- Labeling: Custom brand logo, serialized IDs, barcode labeling
- Mixed Connector Options: UPC input with APC output or vice versa
SC/UPC 1×4 Fiber Splitter Wholesale & Global Supply
- Bulk Stock Available: Large quantities ready for immediate shipment
- OEM Factory Direct: Reliable supply with strict quality control
- Export-Compliant Packaging: Anti-static, shock-resistant, moisture-sealed
- Fast Global Delivery: Supports urgent deployment schedules
- Full Documentation: Test reports, certificates, and datasheets included
- Dedicated Support: Technical integration help and logistics coordination
Why Choose the SC/UPC 1×4 Fiber Splitter
- Stable, Low-Loss Splitting – Uniform distribution across all ports
- Plug-and-Splice Ready – 1.5m SC/UPC pigtails simplify installation
- Bend-Insensitive Fiber – Flexible routing without signal degradation
- Fully Customizable – Connector, length, polish, and packaging options
- Ideal for All Network Types – From telecom to enterprise deployments
Contact Us Now for Pricing & Bulk Orders
The SC/UPC 1×4 Pigtail Fiber Splitter is your go-to solution for efficient optical signal distribution. Perfect for carrier-grade networks, test beds, and FTTx expansions.
Request a quote today for samples, OEM customization, or volume supply!
