- Use:ftth, FTTX
- Warranty Time:3 years
- Application:Long-haul,Metro and Access System Fiber CATV and Fiber Network System
- Wavelength:1260-1650nm
- Fiber Type:SM
- Dimension:core fiber 0.9mm,jacket 6.0mm
- Material:PVC, LSZH
- Color:Green
- Fiber type:G652D, G657A1
- No. of Fiber:12.
-
- Supply Ability
- 200000 Piece/Pieces per Day
-
- Packaging Details
plastic bag and carton
-
- Port
wuhan, Shanghai, Shenzhen
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)3To be negotiated

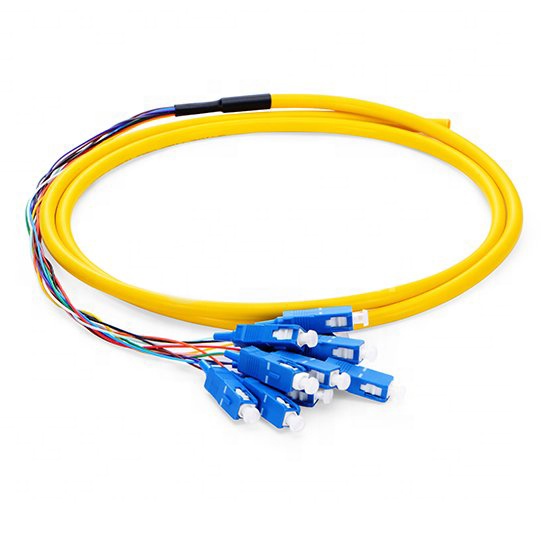

Pigtails are used forsplice applications when terminating outside plant cable. It’s consists ofa connector and a special lengthof fiber cable.Meets Telcordia GR-326 Core and ROHS requirements.All of our pigtails are factory inspected andtested, with available interferometer dataupon request.
Features:
· Low insertion loss,Low back reflectionloss
· Flexible and easy to strip fiber buffering
· Identifiable fiber buffer colors under all lighting conditions
· Reduces installationtime
· Avoids incorrect patching bypossible fiber flipping
· Clean and Scratch-Free End Face
· Proportional geometric test is applied to the normal production.
· 100% interferometercheck is available under special requirement.
Products info
|
Connector A |
SC |
Connector B |
Unterminated |
|
Fiber Category |
Single-mode (G652D) |
Fiber Count |
1 |
|
Polish |
APC |
Cable Diameter |
0.9mm |
|
Jacket Material |
LSZH |
Jacket Color |
12 different colors |
|
Wavelength |
1310nm and 1550nm |
Durability |
>1000 Times |
|
Insertion loss |
≤0.3dB |
Interchangeability |
≤0.2dB |
|
Return loss |
≥60dB |
Vibration |
≤0.2dB |
|
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Length tolerance: 0-5M:+5cm/-0cm ; 5-100m:+10cm/-0cm
We also provides a fullset of OEM services, such as fiber connector, length,color, fiber grade, specification, material, package etc.

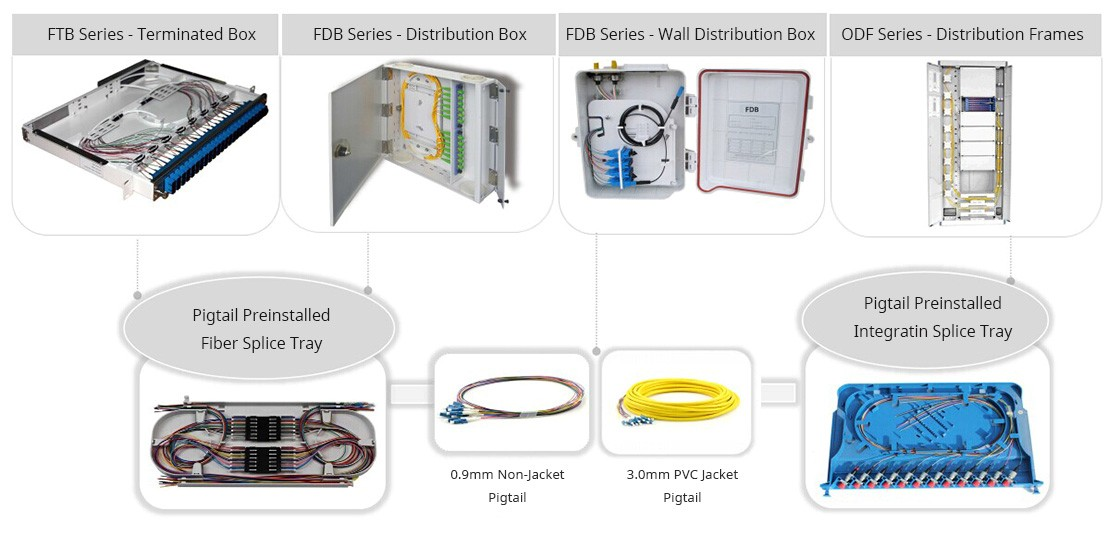

Fiber Optic Pigtail forFusion Splicing
Fiber pigtail cables provide a fast way to make factory terminations in the field.
Fiber pigtail cables provide a fast way to make factory terminations in the field.
How to Choose TheRight Fiber Optic CableType?
PS:The difference of OM4 and OM3fiber mode as the following
1. OM4 wasdeveloped specifically for VSCEL laser transmission and allows10 Gig / secondlink distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patchcable it is4700 MHz.kmwhile for OM3 it is 2000 MHz.km.
|
Designation |
Fiber Dia. (μm) |
Type |
Fast Ethernet 100BAS E-FX |
1 Gigabit Ethernet 1000BASE- SX |
1 Gigabit Ethernet 1000BAS E-LX |
10Gbp s Ethern et 10GBA SE |
40Gbps Ethernet 40GBASE SR4 |
100Gbps Ethernet 100GBAS E SR4 |
|
OM1 |
62.5/125 |
Multimode |
2000
Meters |
275
Meters |
550
Meters |
33
Meters |
Not supporte d |
Not supporte d |
|
OM2 |
50/125 |
Multimode |
2000
Meters |
550
Meters |
550
Meters |
82
Meters |
Not supporte d |
Not supporte d |
|
OM3(Laser Optimized) |
50/125 |
Multimode |
2000
Meters |
550
Meters |
550
Meters |
300
Meters |
100
Meters (SR4) |
100
Meters (SR4) |
|
OM4(Laser Optimized) |
50/125 |
Multimode |
2000
Meters |
550
Meters |
550
Meters |
400
Meters |
150
Meters (SR4) |
150
Meters (SR4) |
|
Singlemod e |
9/125 |
Singlemo de |
2000
Meters |
5km at 1310nm |
5km at 1310nm |
10km at 1310n m |
N/A |
N/A |

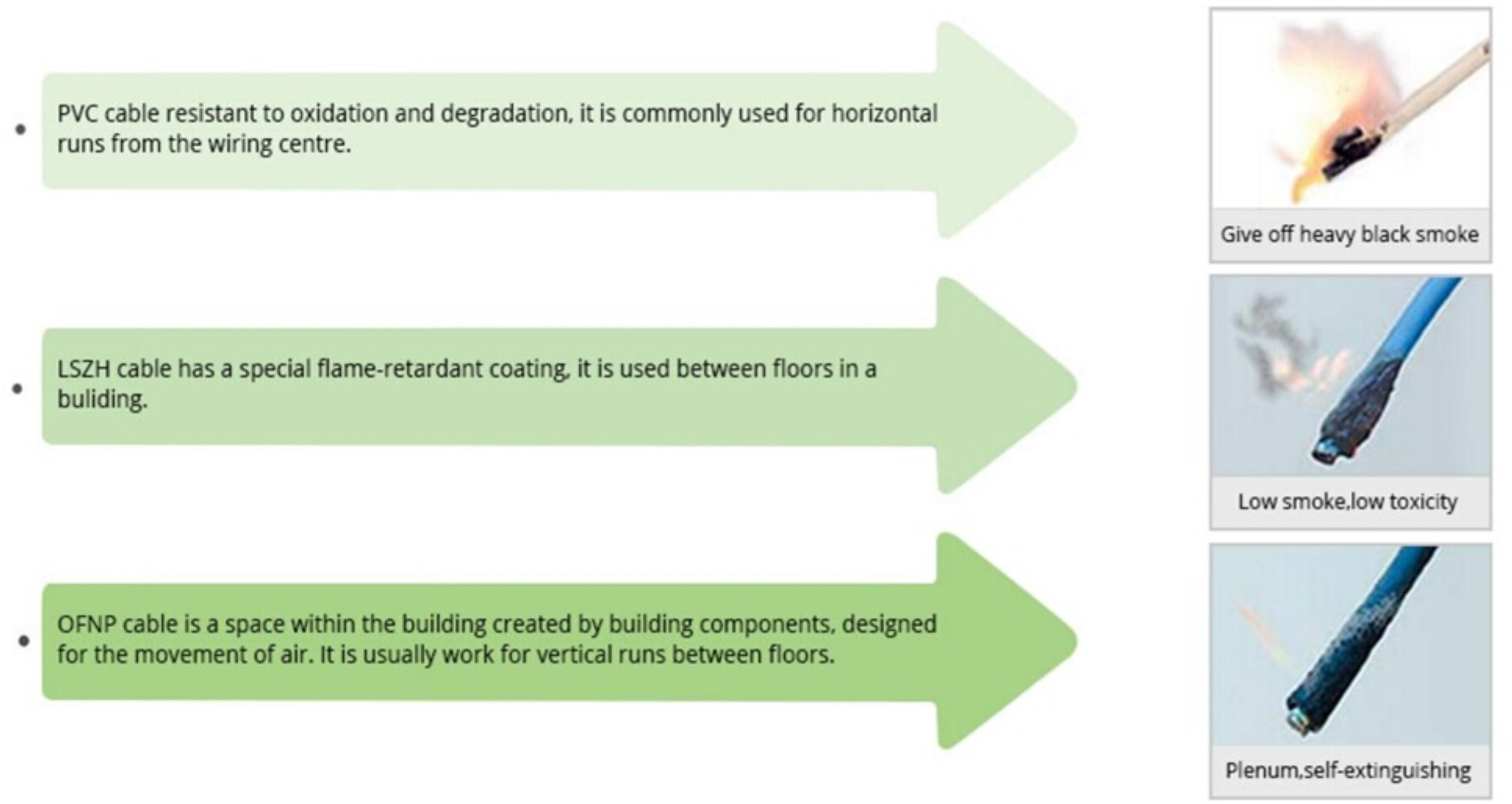

How to correctly choose between PVC, LSZH andOFNP?
Fiber patch cablesare now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you’re going to run the cable.
