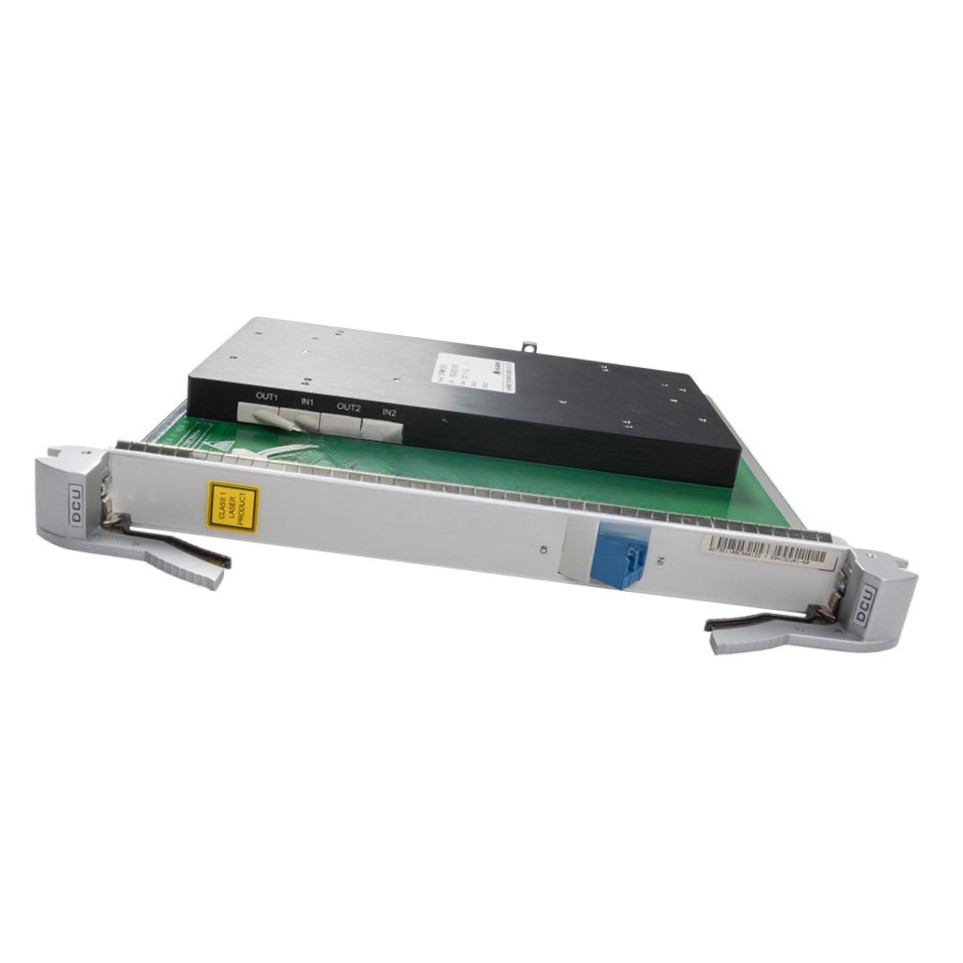

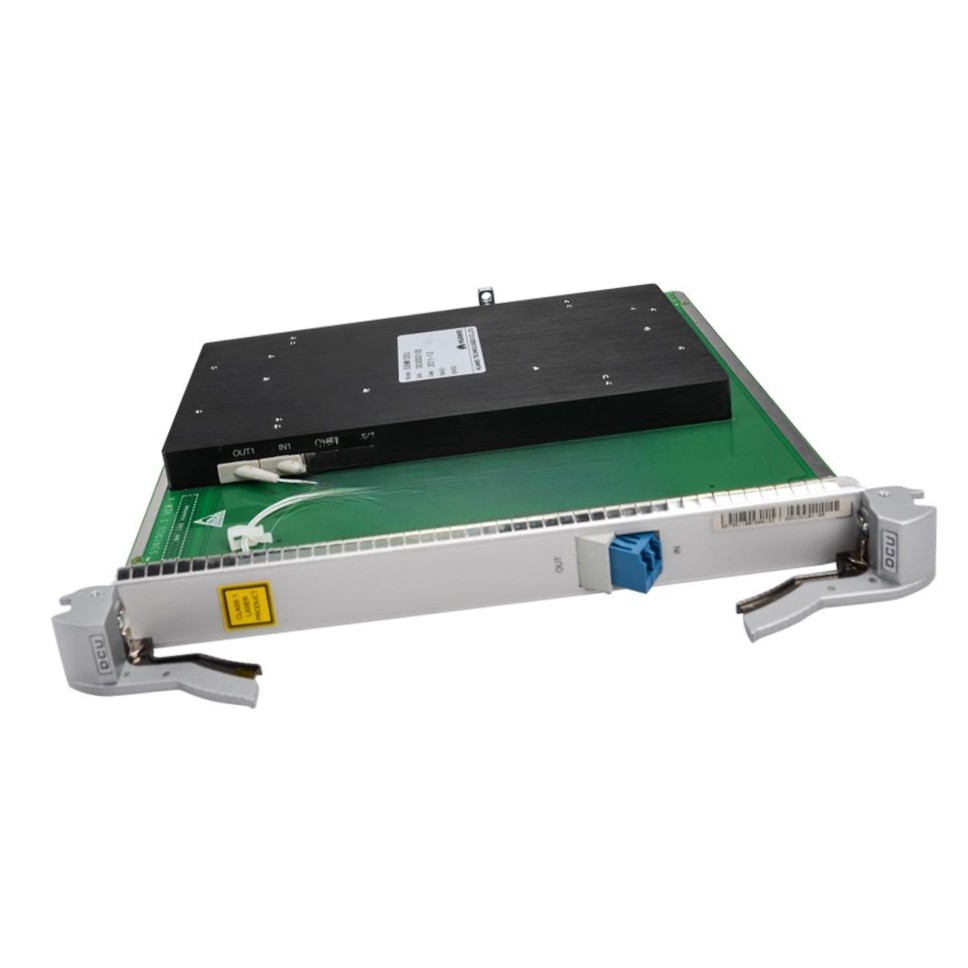

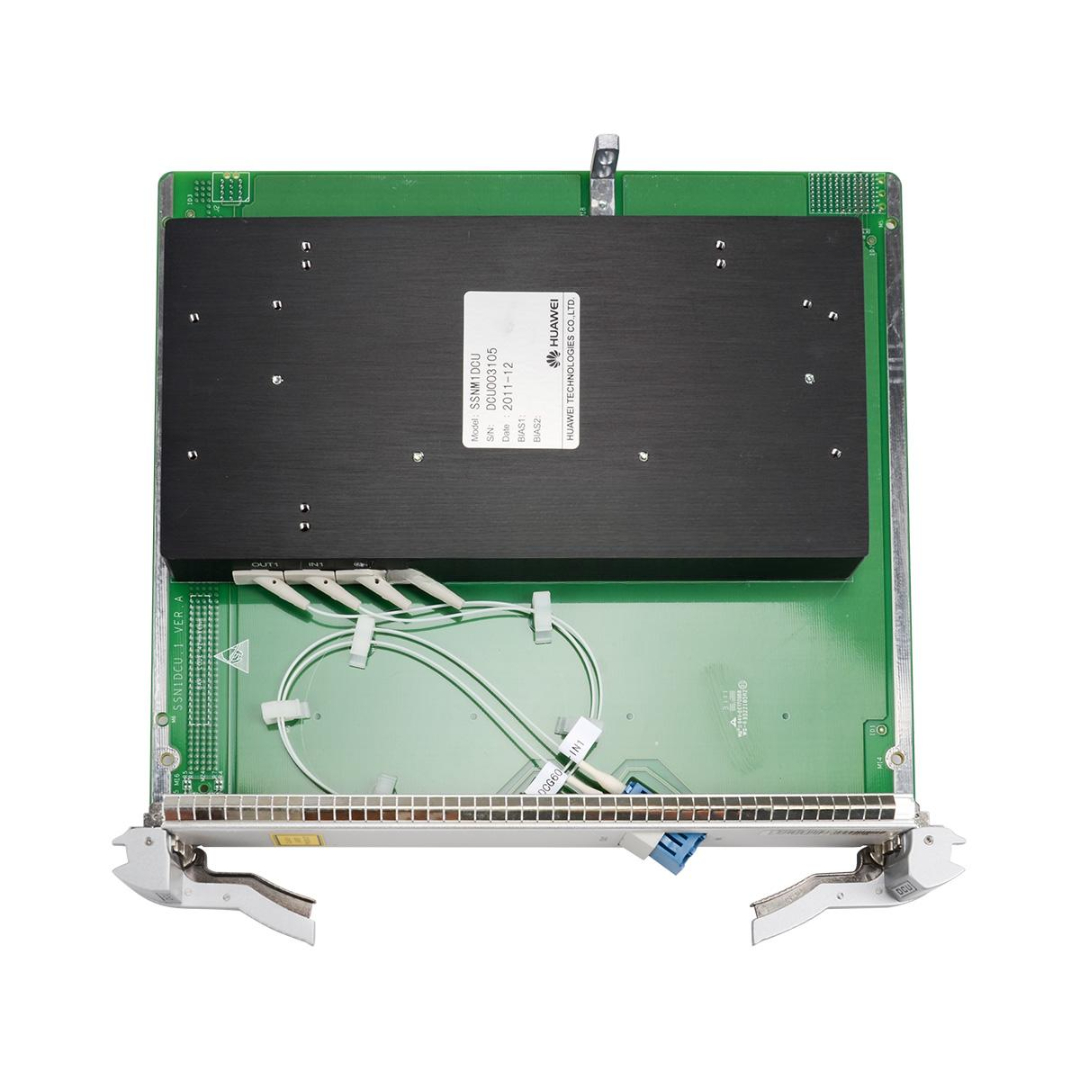

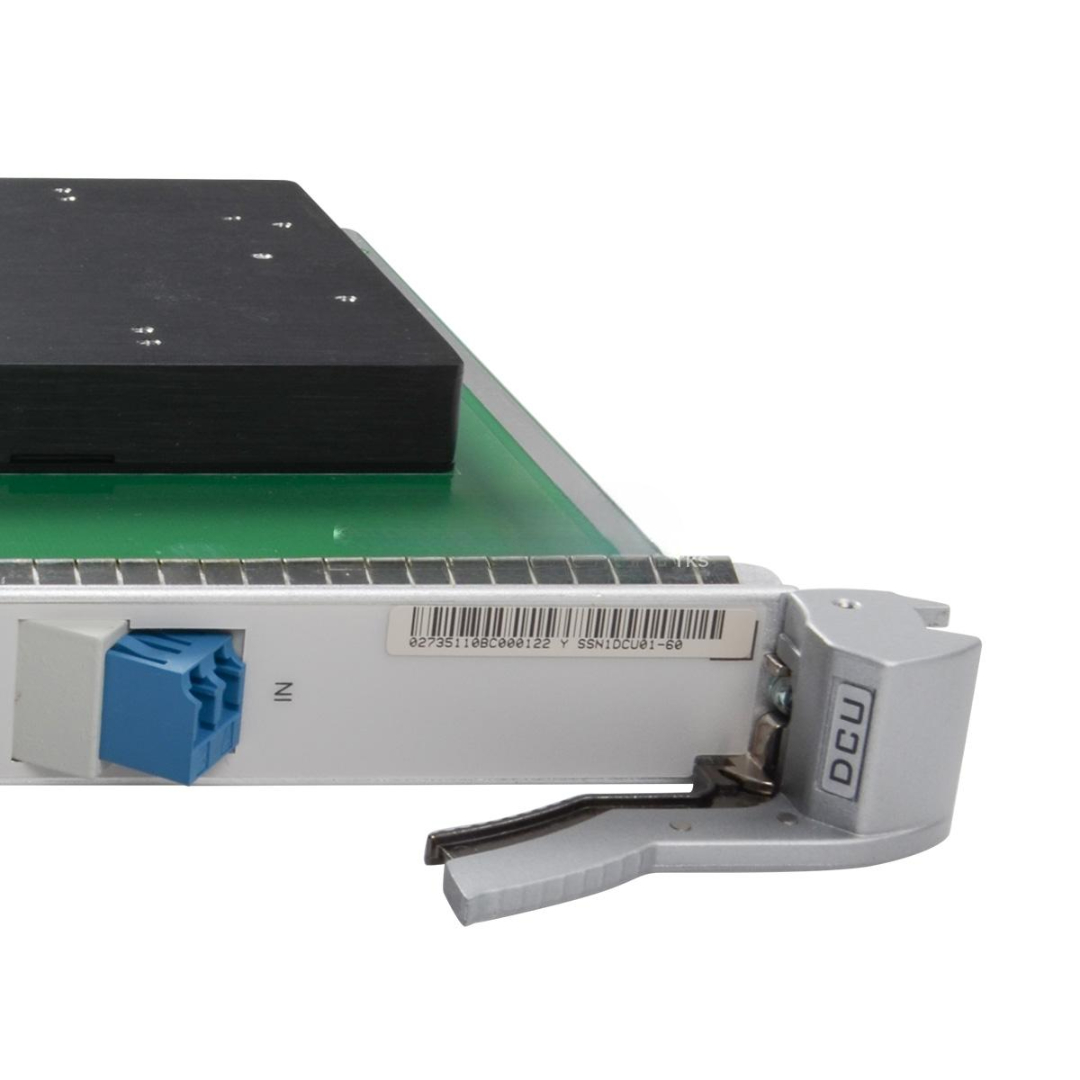

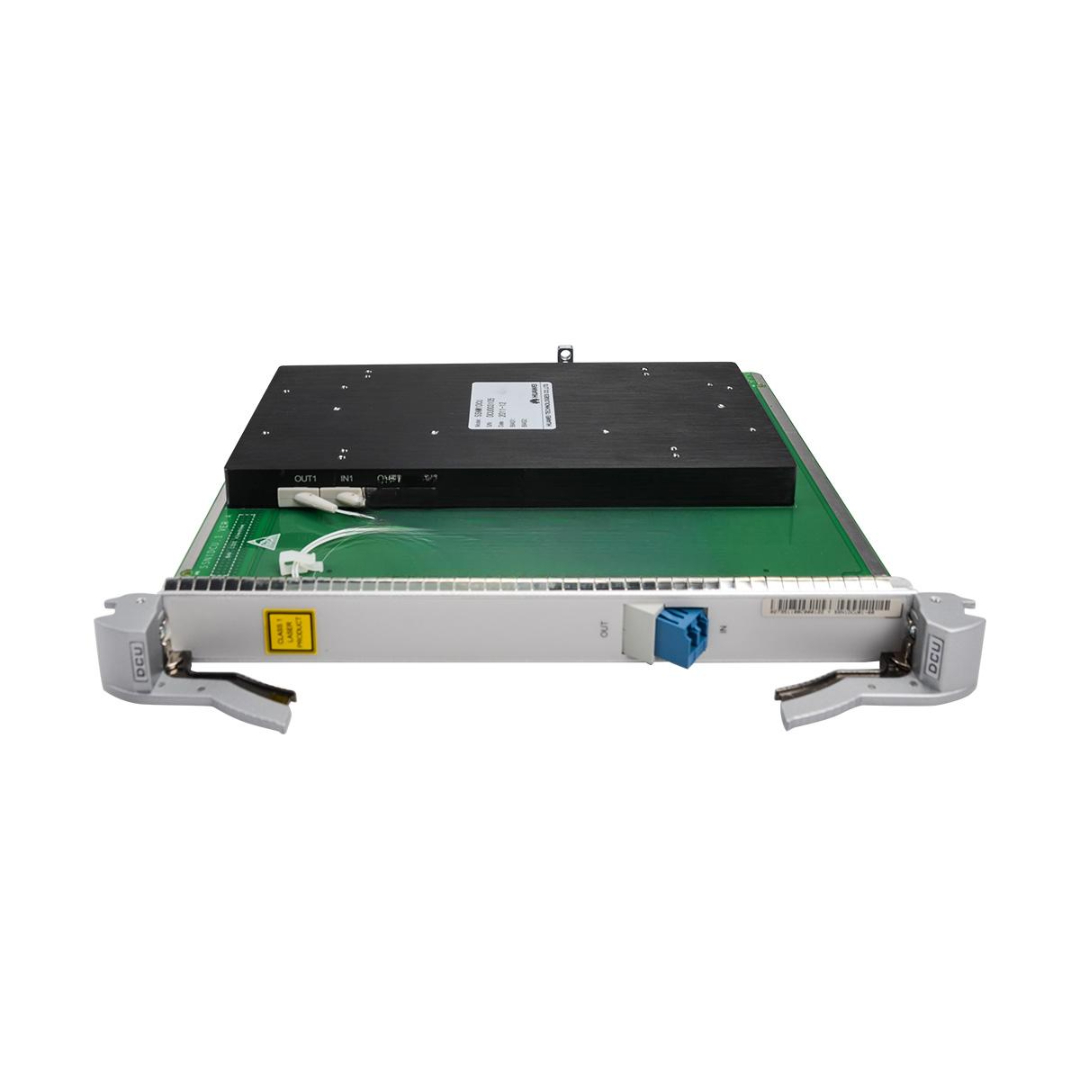

SSN1DCU01 Huawei Brand New Dispersion Compensation Board
The SSN1DCU01 Huawei is a high-quality, brand new dispersion compensation board designed specifically for Huawei OSN series optical transport systems. It is used to compensate chromatic dispersion in G.652 single-mode fiber, effectively maintaining signal quality over long distances. With support for up to 60 km dispersion compensation, the SSN1DCU01 is ideal for long-haul transmission and DWDM/SDH applications in carrier-grade networks.
Key Features
-
Model: SSN1DCU01
-
Condition: 100% Brand New, Original Huawei
-
Function: Optical dispersion compensation for long-distance G.652 fiber
-
Compensation Distance: Up to 60 km equivalent dispersion
-
Fiber Type: ITU-T G.652 standard single-mode fiber
-
Installation: Compatible with Huawei OSN3500 and OSN7500 series
-
Passive Design: No external power required
-
Hot-Swappable: Plug-in module, tool-less installation
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1DCU01 |
| Type | Dispersion Compensation Unit (DCU) |
| Compensation Length | ~60 km G.652 fiber equivalent |
| Wavelength Range | 1528 – 1565 nm (C-band) |
| Insertion Loss | < 6 dB (typical) |
| Return Loss | ≥ 45 dB |
| Polarization Mode Dispersion | ≤ 0.5 ps |
| Connector Type | LC/UPC (factory default) |
| Power Requirement | None (passive component) |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Platform Compatibility | OSN3500, OSN7500 |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1DCU01 Huawei Applications
-
Long-Haul Transmission — Reduces chromatic dispersion for better performance over distances up to 60 km
-
DWDM Systems — Maintains high signal integrity across multiple dense wavelengths
-
SDH/OTN Networks — Ensures bit-error reduction and transmission clarity
-
Metro & Backbone Rings — Optimized for stable and scalable optical architecture
-
Carrier Networks — Ideal for ISPs, telecom operators, and data transport providers
Customization & OEM Options
-
Custom Compensation Lengths — Available in 20 km, 40 km, 80 km, or customer-specified configurations
-
Connector Type Options — SC/APC, SC/UPC, LC/APC custom connectors available
-
Private Label Branding — OEM/ODM support for logos, stickers, and packaging
-
Pre-configured Integration — Shipped with platform slot assignment and labeling for fast deployment
-
Factory QA Report — Optical dispersion and insertion loss test reports available upon request
Wholesale & Global Distribution
-
Huawei Original Equipment — Guaranteed authenticity and version match
-
Bulk Stock Ready — High-volume availability for rollout projects
-
Secure Packaging — Anti-static, shockproof with full transport protection
-
Global Shipping — Fast delivery with export documentation and tracking
-
Expert Support — Technical assistance for installation, NMS, and performance optimization
Why Choose SSN1DCU01 Huawei Dispersion Compensation Board
-
Proven Dispersion Control — Enhances long-haul network quality
-
Passive & Reliable — No energy consumption, long-term durability
-
Easy Integration — Seamlessly fits Huawei OSN optical platforms
-
Low Insertion Loss — Maintains optical power and reduces attenuation
-
Industry-Trusted Solution — Widely deployed in global carrier networks
Contact US
Upgrade your optical transport system with the Huawei SSN1DCU01 — the efficient, maintenance-free solution for dispersion management in modern fiber networks.
