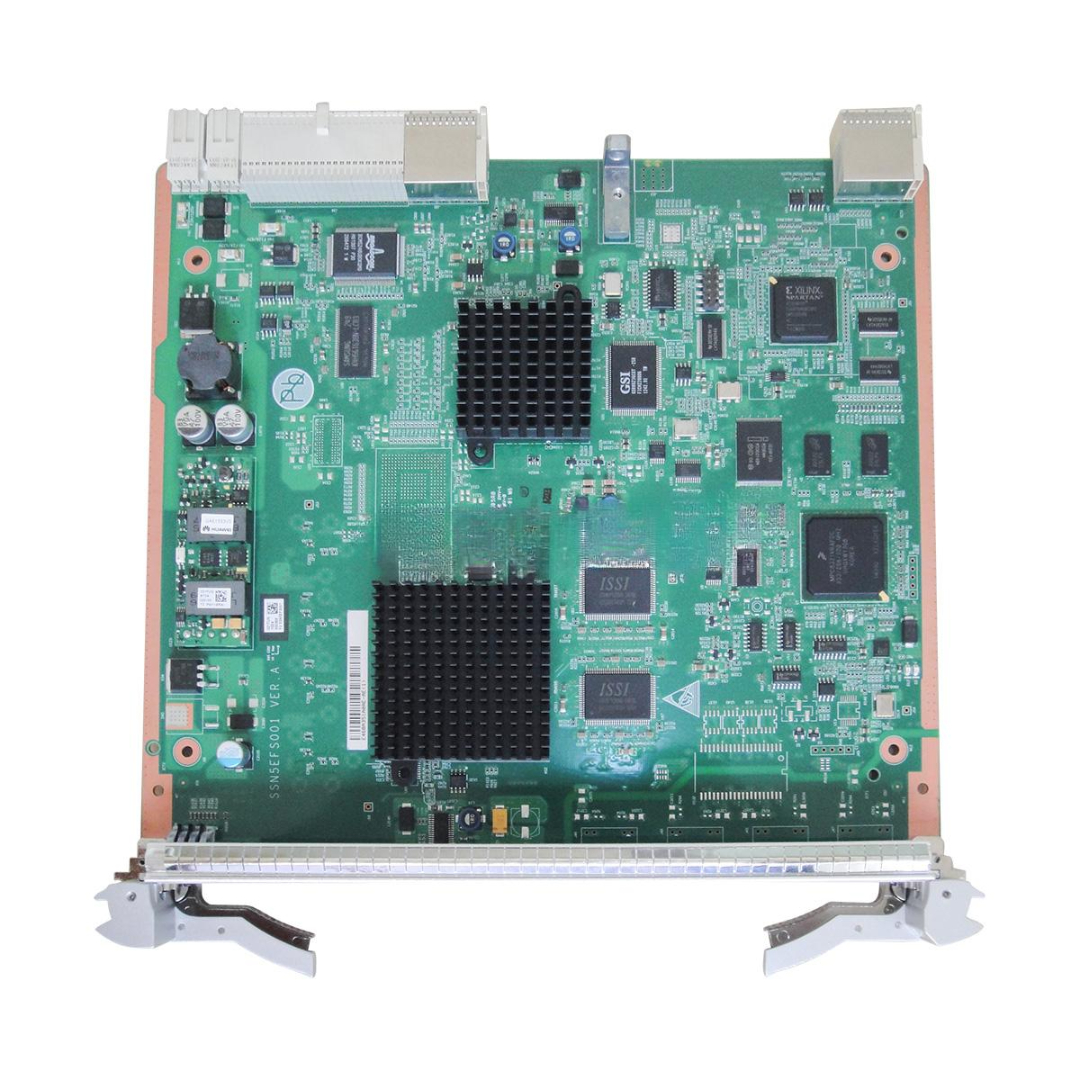

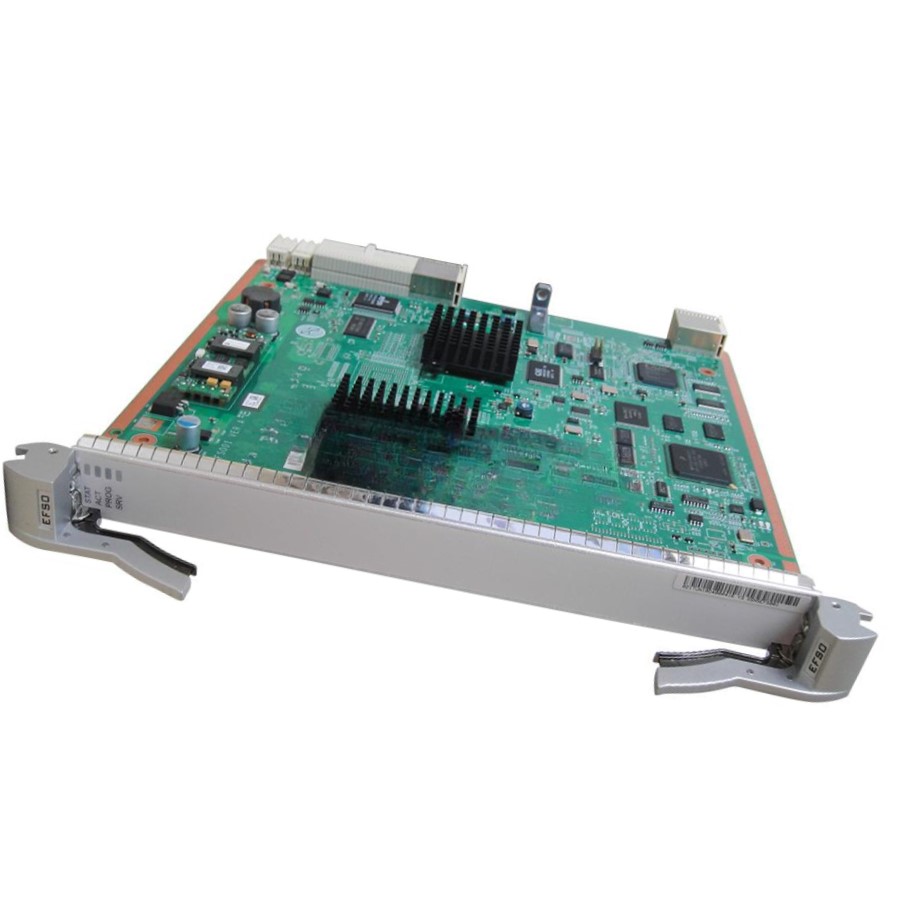

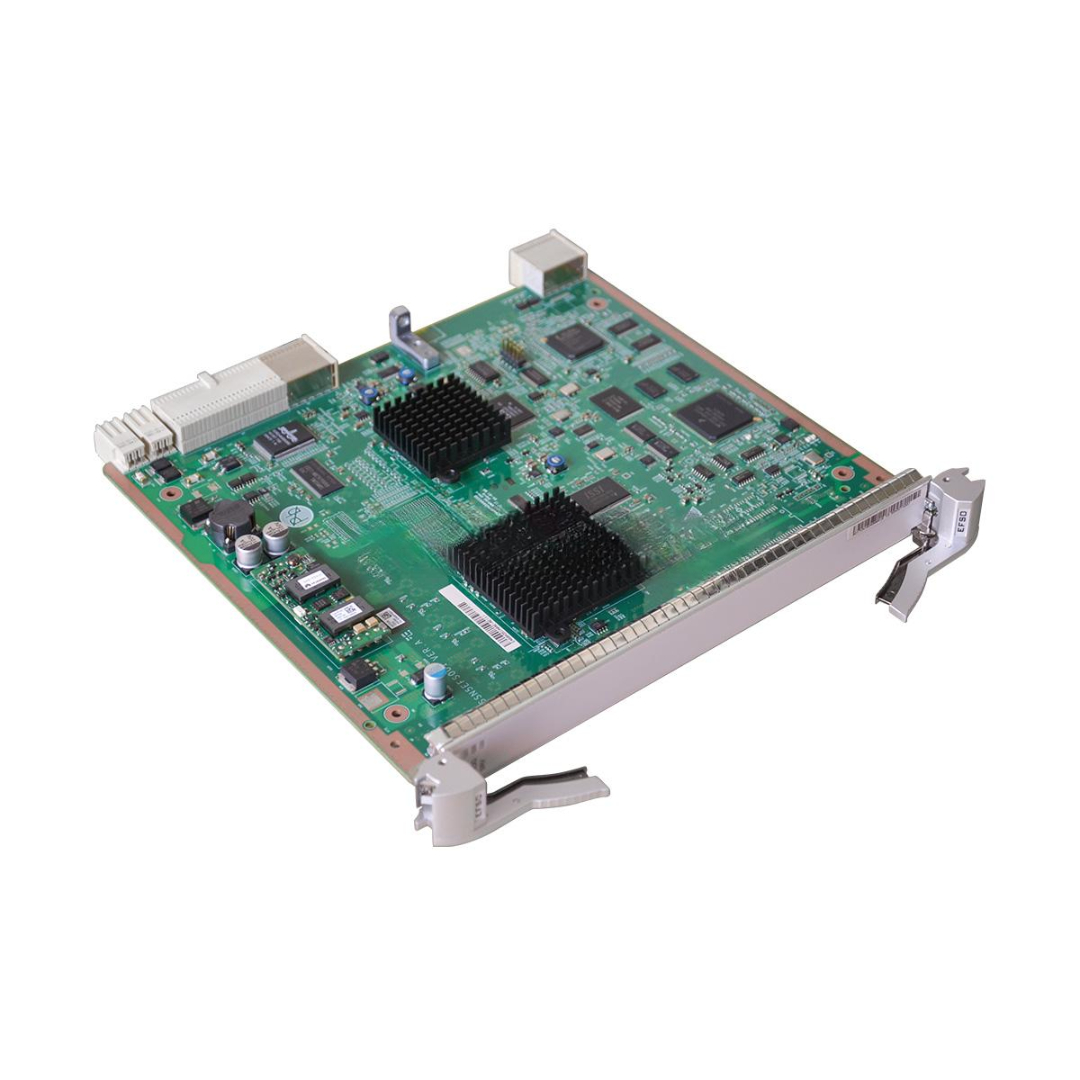

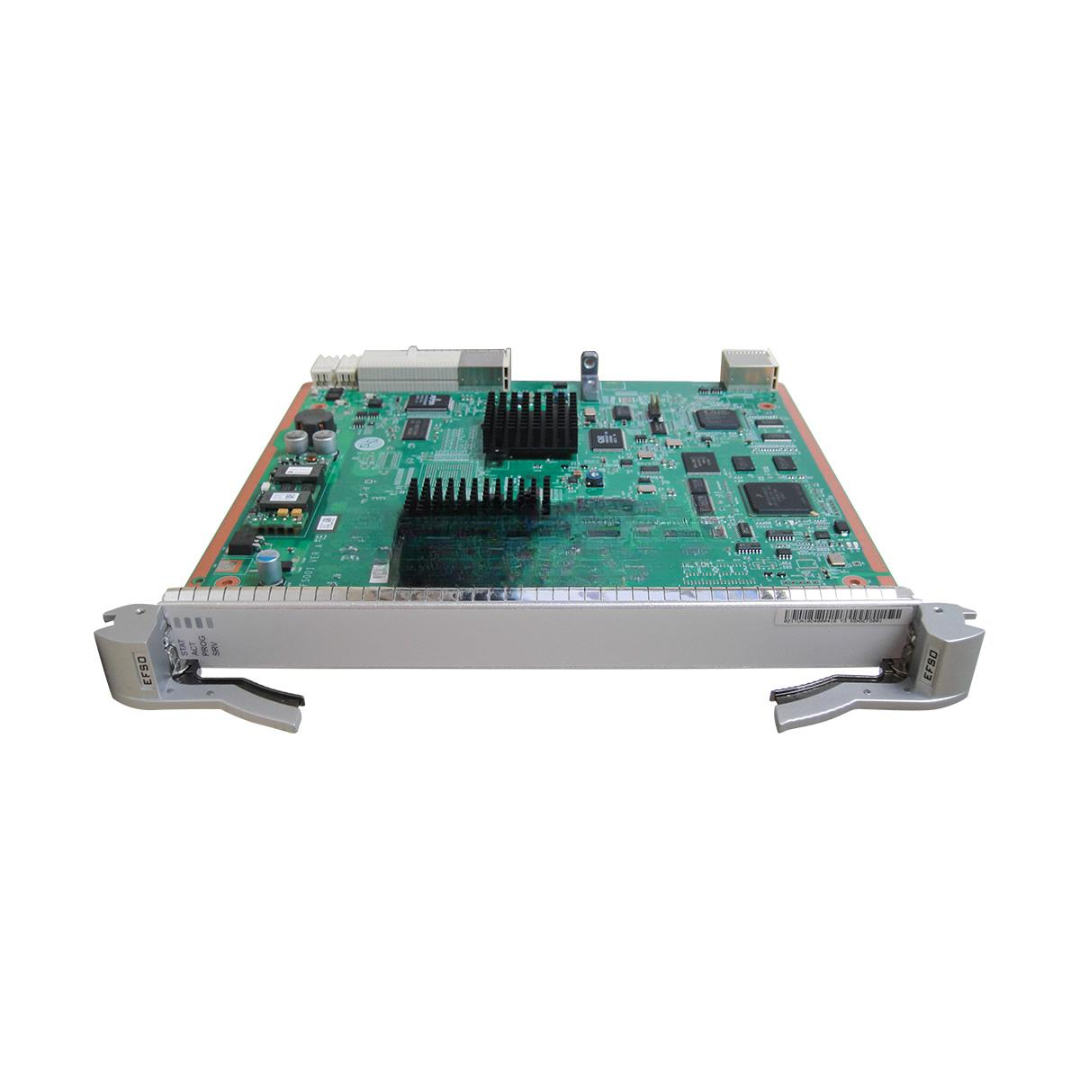

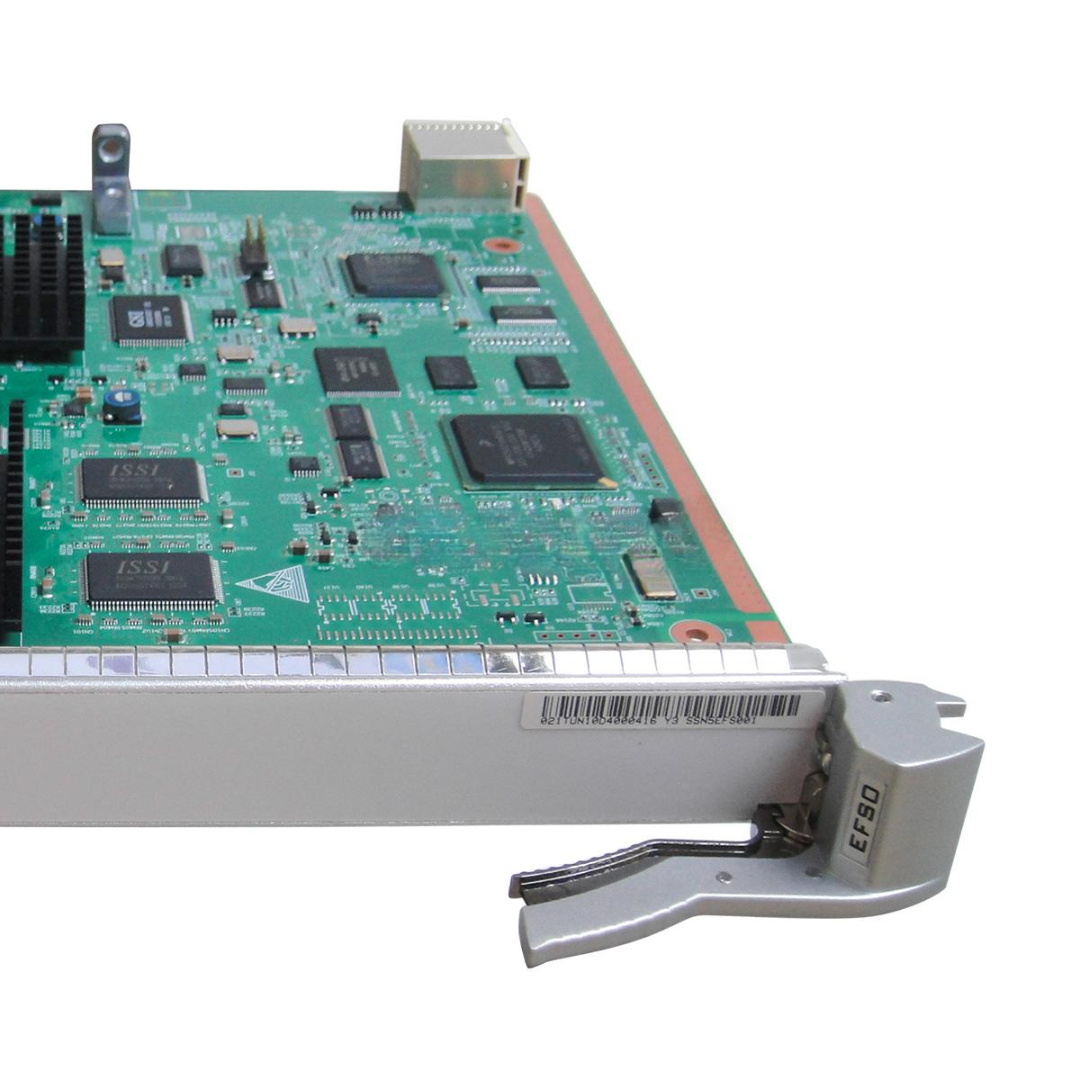

SSN1EFS0A-ETF8 Huawei High Quality 16-Ports Ethernet Processing Board
The SSN1EFS0A-ETF8 Huawei is a high-quality 16-port Fast Ethernet processing board designed for integration with Huawei OSN series SDH transmission systems, such as OSN2500 and OSN3500. Supporting 100 Mbps Ethernet services via electrical interfaces, it enables seamless Ethernet-to-SDH service conversion using GFP encapsulation and VC-based mapping. This board is ideal for applications that require bulk Ethernet access over a reliable optical backbone.
Key Features
-
Model: SSN1EFS0A-ETF8
-
Condition: 100% Brand New, Original Huawei
-
Service Type: Fast Ethernet (100 Mbps) over SDH
-
Interface Count: 16 × 100Base-T Electrical Ethernet Ports
-
Encapsulation: GFP (Generic Framing Procedure)
-
Mapping: VC-12/VC-3/VC-4 (configurable)
-
Compatibility: Huawei OSN2500, OSN3500
-
Network Functions: VLAN support, LCAS, Ethernet OAM
-
Protection Features: Port-based loopback, link protection, flow control
-
Management: Integrated via U2000 NMS
-
Hot-Swappable: Yes
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1EFS0A-ETF8 |
| Service Type | Fast Ethernet over SDH |
| Number of Ports | 16 × 100Base-T RJ45 Ethernet Ports |
| Interface Type | Electrical (Ethernet, RJ45) |
| Transmission Speed | 100 Mbps per port |
| Framing Protocol | GFP (Generic Framing Procedure) |
| Mapping Format | VC-12 / VC-3 / VC-4 |
| Protection | LCAS, Port Protection, Ingress Rate Limiting |
| Protocol Standards | IEEE 802.3, G.7041, G.7042, G.8032 |
| Power Consumption | ≤ 25W (typical) |
| Operating Temperature | -5°C to +45°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1EFS0A-ETF8 Huawei Applications
-
Carrier Ethernet Services — Deliver E-Line and E-LAN services over SDH
-
Enterprise WAN Access — Connect customer Ethernet services via optical backbone
-
Mobile Backhaul Aggregation — Backhaul multiple Ethernet nodes over SDH
-
Metro Access Networks — Mass Ethernet port access with robust SDH reliability
-
Industrial Networks — Rugged service transport using protected SDH circuits
Customization & OEM Options
-
Port Pre-Configuration — VLAN tagging, traffic shaping, and port priority settings
-
OEM Branding — Custom labeling and barcode options available
-
Integration Services — Supply with OSN subrack, power units, and NMS setup
-
Extended Burn-In Testing — Optional stress-tested boards for mission-critical use
-
Private Firmware Loading — Load specific configurations before delivery
Wholesale & Global Supply
-
Huawei OEM Original Parts – Brand new, sealed, and fully certified
-
Available for Bulk Orders – Ideal for telecom expansions and government tenders
-
Secure Global Packaging – Anti-static, foam-padded, export-safe materials
-
Fast Worldwide Delivery – Lead times optimized for project rollouts
-
Full Documentation Support – Includes MIBs, user guides, and deployment diagrams
Why Choose the SSN1EFS0A-ETF8 Huawei
-
High Port Density – 16 Fast Ethernet ports in a single board
-
Efficient Ethernet over SDH Bridging – Legacy and modern service compatibility
-
Carrier-Grade Reliability – Built for 24/7 operation in core and edge networks
-
Huawei OSN Compatibility – Seamless integration with OSN2500/3500
-
Versatile Applications – From access to aggregation and industrial use cases
Contact Us
Empower your SDH network with the Huawei SSN1EFS0A-ETF8 – a powerful 16-port Ethernet board engineered for high-efficiency service delivery in modern telecom infrastructures.
