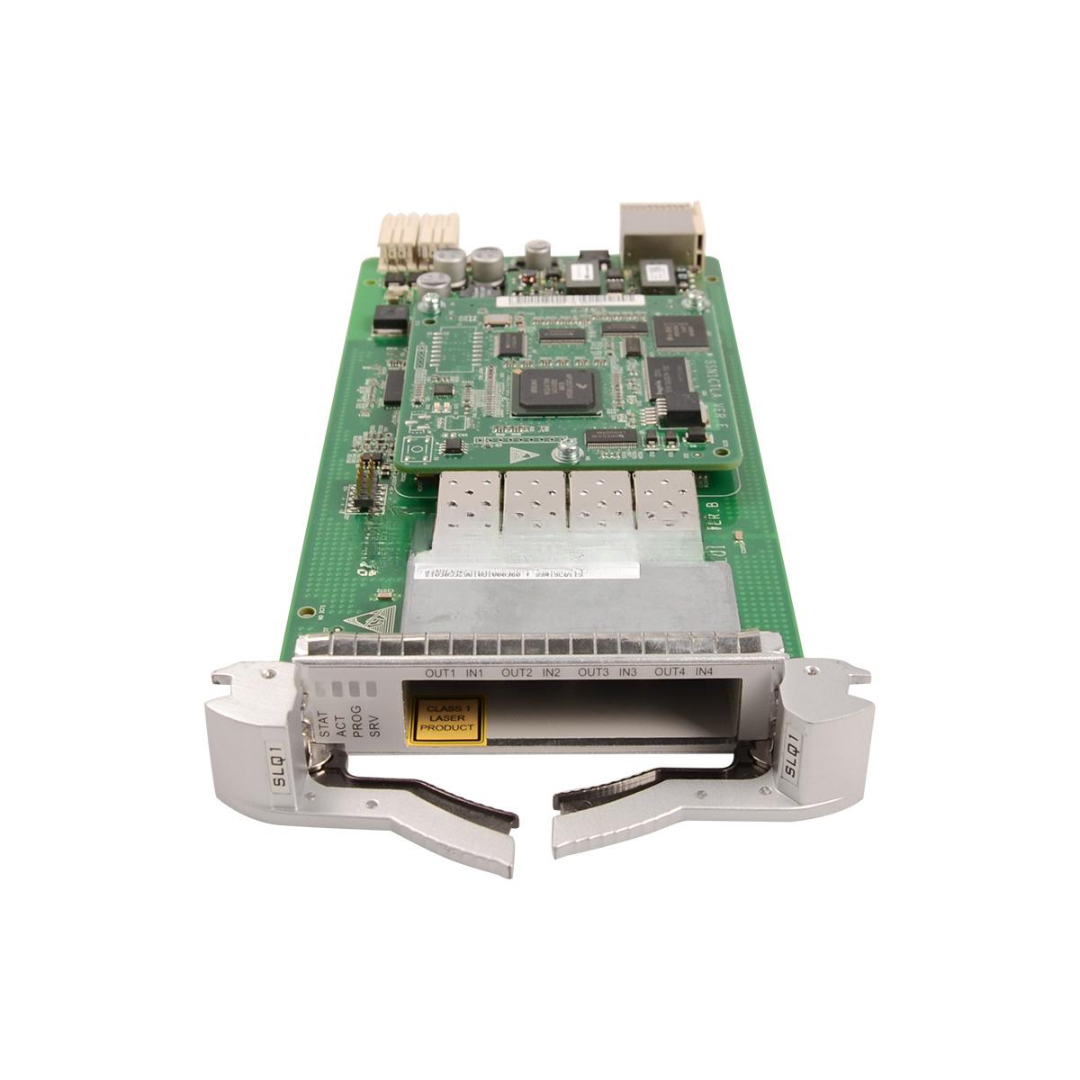

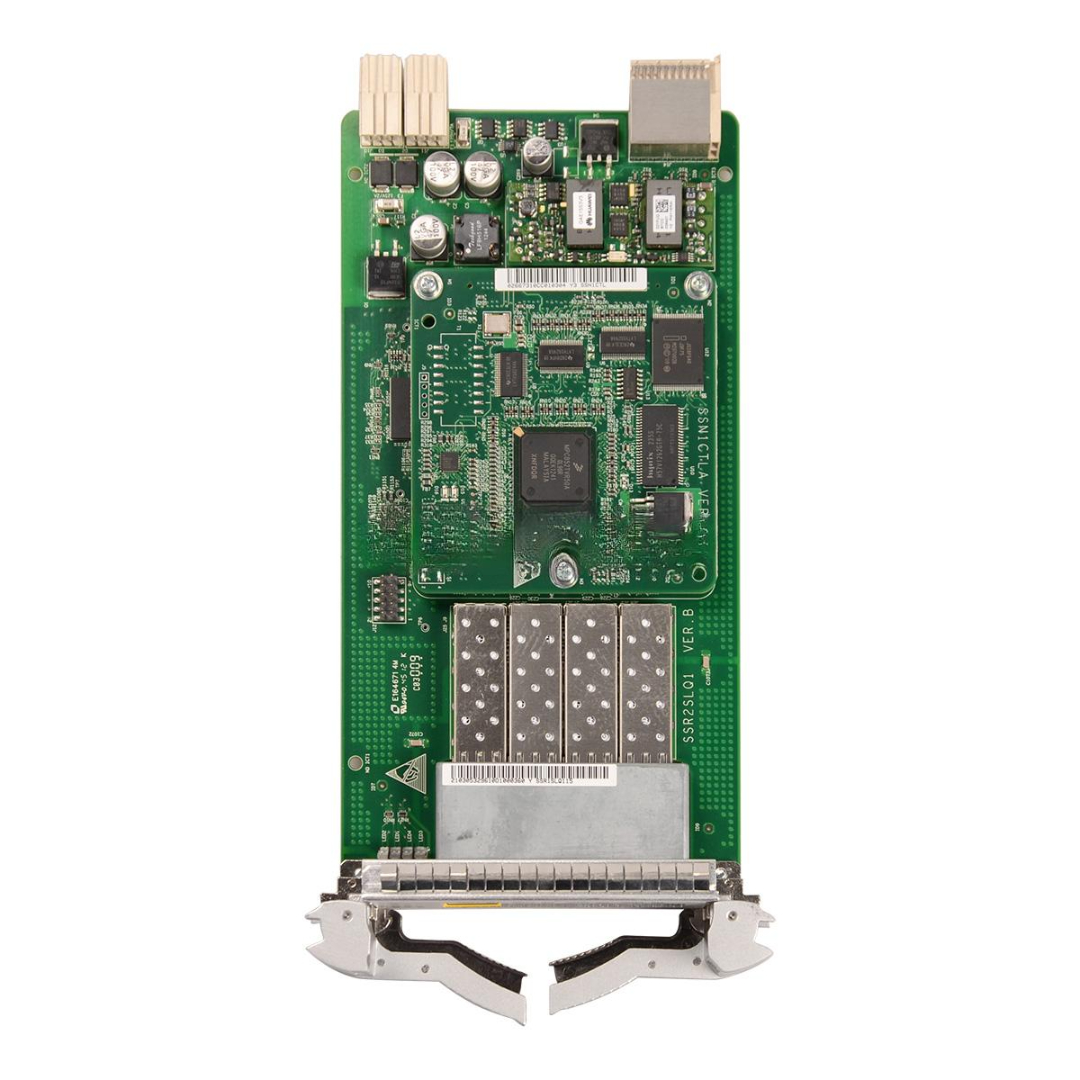

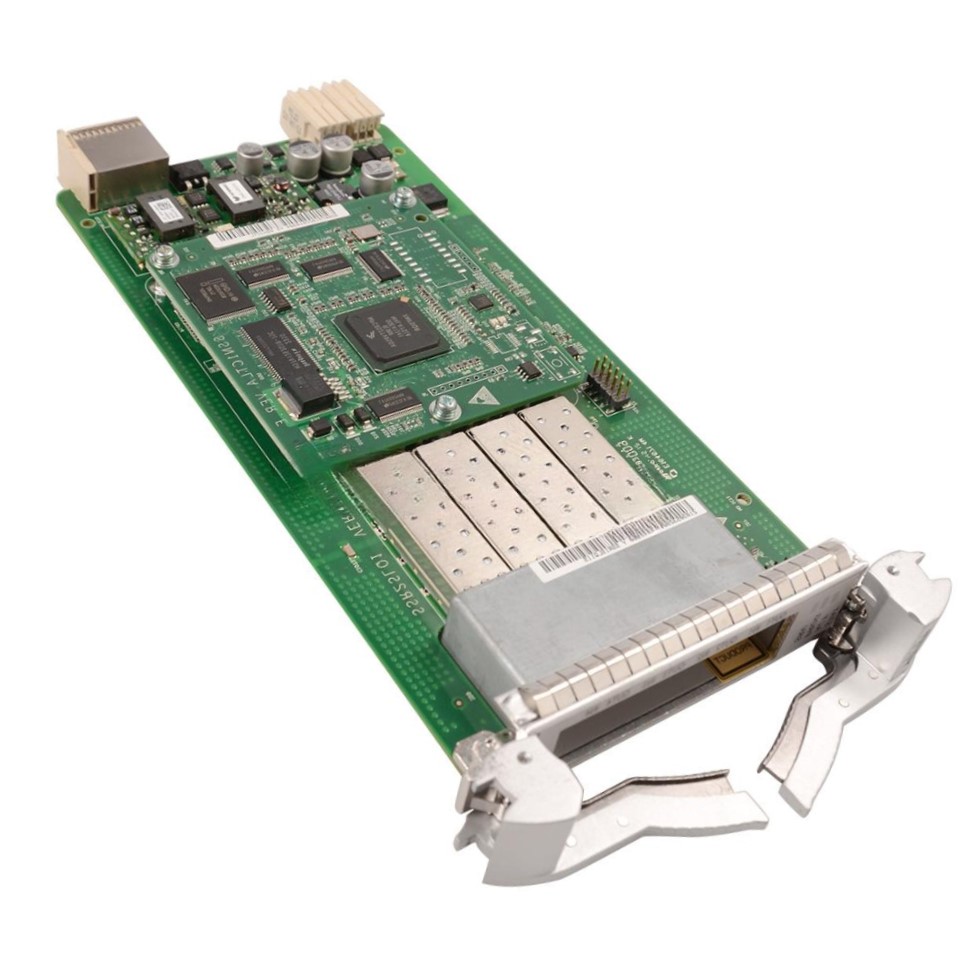

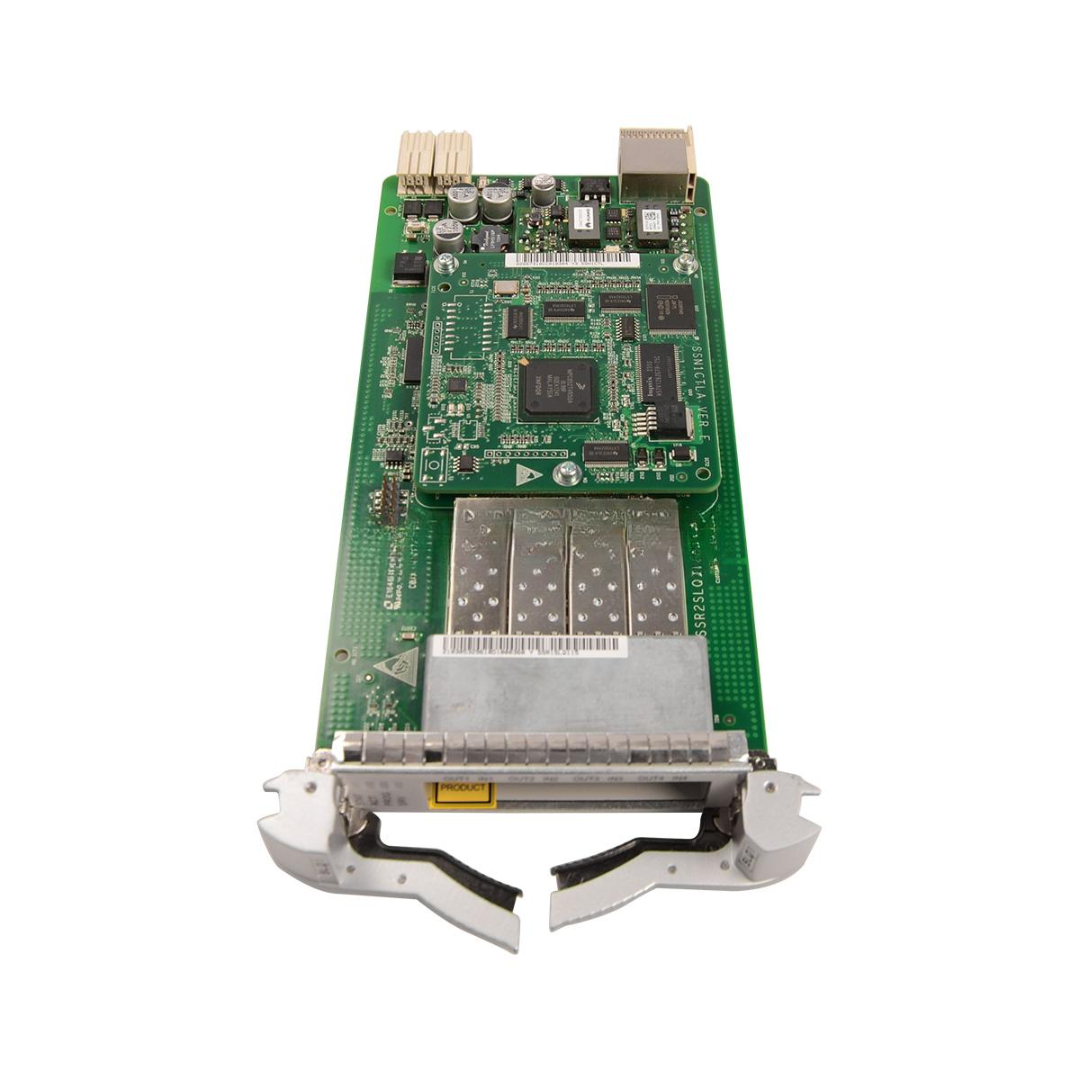

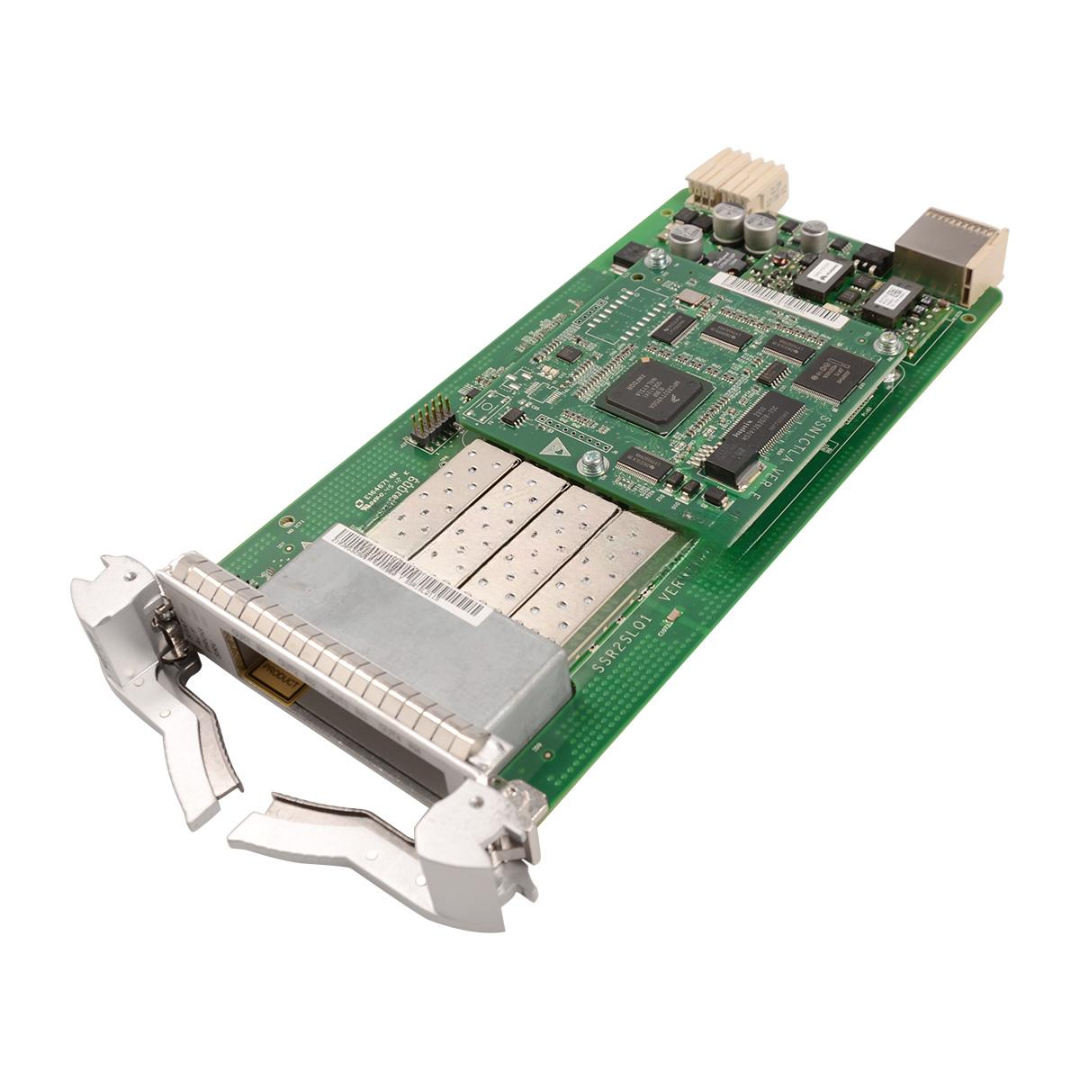

SSR1SLQ1(L-1.2,LC) Huawei Brand New 4-Ports Optical Interface Board
The SSR1SLQ1(L-1.2,LC) Huawei is a brand new 4-port optical interface board designed for Huawei’s OptiX OSN series transmission systems. Engineered for STM-1/STM-4 level SDH/SONET applications, this board provides high-speed optical connectivity using LC connectors with a long-reach optical specification of 1.2 km to 15 km. It is ideal for metro and access-level transmission networks, offering a cost-effective solution with reliable performance and Huawei’s carrier-grade quality.
Key Features
-
Model: SSR1SLQ1(L-1.2,LC)
-
Product Type: Optical Interface Board
-
Port Count: 4 Optical Ports
-
Interface Type: STM-1 / STM-4
-
Connector Type: LC
-
Transmission Distance: Up to 15 km
-
Application: SDH/SONET transport in metro/access networks
-
Compatibility: Huawei OptiX OSN1500 / OSN2500 / OSN3500 series
-
Hot-Swappable: Yes
-
Form Factor: Standard Huawei interface card
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSR1SLQ1(L-1.2,LC) |
| Port Quantity | 4 Optical Ports |
| Port Speed | STM-1 (155 Mbps) / STM-4 (622 Mbps) |
| Connector Type | LC (Simplex) |
| Transmission Distance | Up to 15 km |
| Wavelength | 1310 nm (typical) |
| Line Coding | NRZ |
| Laser Type | FP / DFB laser |
| Operating Voltage | Supplied via system backplane |
| Power Consumption | ≤ 10W |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Compatible Chassis | OSN1500, OSN2500, OSN3500 |
| Compliance | ITU-T G.707, G.957, G.783 |
SSR1SLQ1(L-1.2,LC) Huawei Applications
-
Metro SDH Ring Networks – Provides STM-1/STM-4 optical connectivity for ring topologies
-
Enterprise Backhaul – Reliable transport for enterprise WAN links
-
Access Network Aggregation – Connects customer access nodes to metro core
-
Telecom Infrastructure – Used in government, transport, and utility networks
-
Redundant Protection Links – Suitable for SDH 1+1 linear or ring protection
Customization & OEM Options
-
Label Customization – OEM serial numbers, part codes, or brand identifiers
-
Pre-Provisioning – Configured in advance for rapid deployment
-
Enhanced Testing – Temperature, shock, and signal tests on request
-
Deployment Kits – Available with fiber patch cables, dust caps, and brackets
SSR1SLQ1(L-1.2,LC) Huawei Wholesale & Global Supply
-
Genuine Huawei Hardware – Factory-sealed, new stock
-
Large Quantities in Stock – Ideal for carriers and resellers
-
Fast International Shipping – Customs-ready packaging and documentation
-
Technical Support – Remote setup, software compatibility, and NMS guidance
Why Choose SSR1SLQ1(L-1.2,LC) Huawei
-
Carrier-Grade Reliability – Built for 24/7 telecom operation
-
Multiple Optical Interfaces – Supports diverse metro and edge scenarios
-
Hot-Swappable Design – Enables seamless maintenance and upgrades
-
Full OSN Ecosystem Compatibility – Works across major Huawei SDH platforms
-
Simple Integration – Easily managed via Huawei U2000/T2000 NMS
Contact Us
Upgrade your transmission system with the SSR1SLQ1(L-1.2,LC) 4-Port Optical Interface Board – a compact, high-performance solution for SDH connectivity across metro and enterprise networks.
