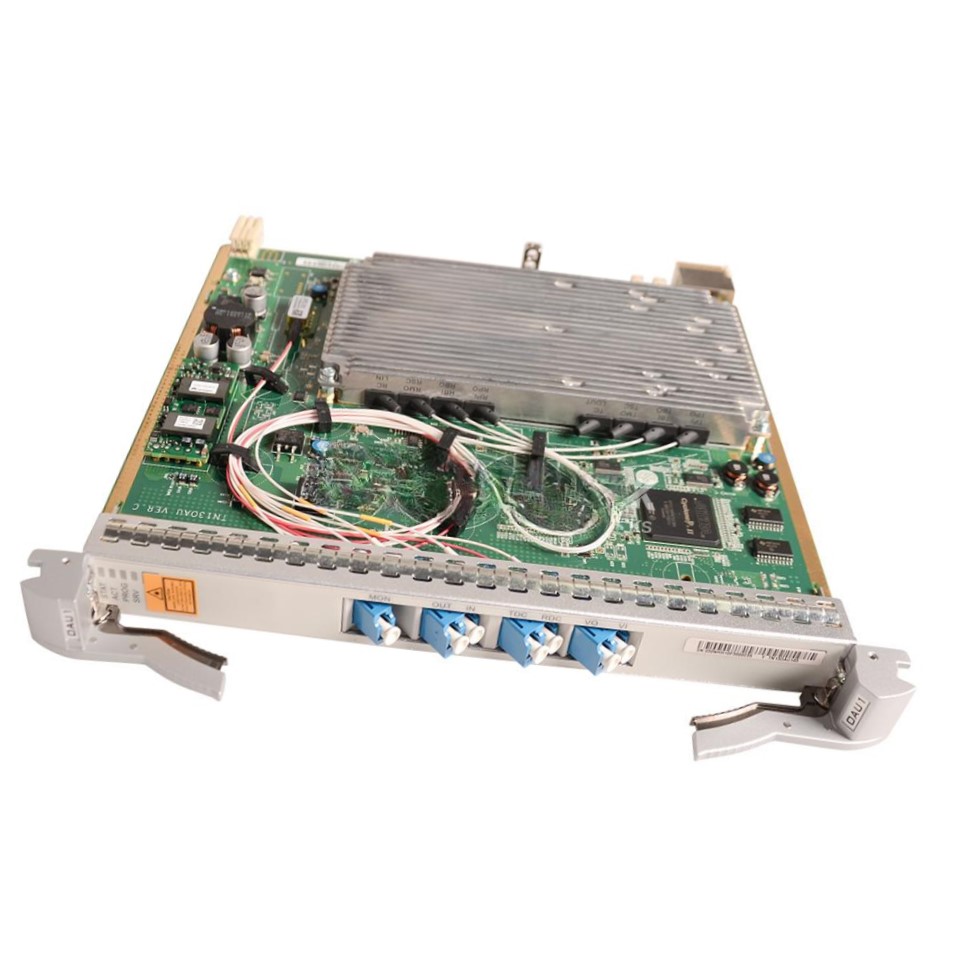

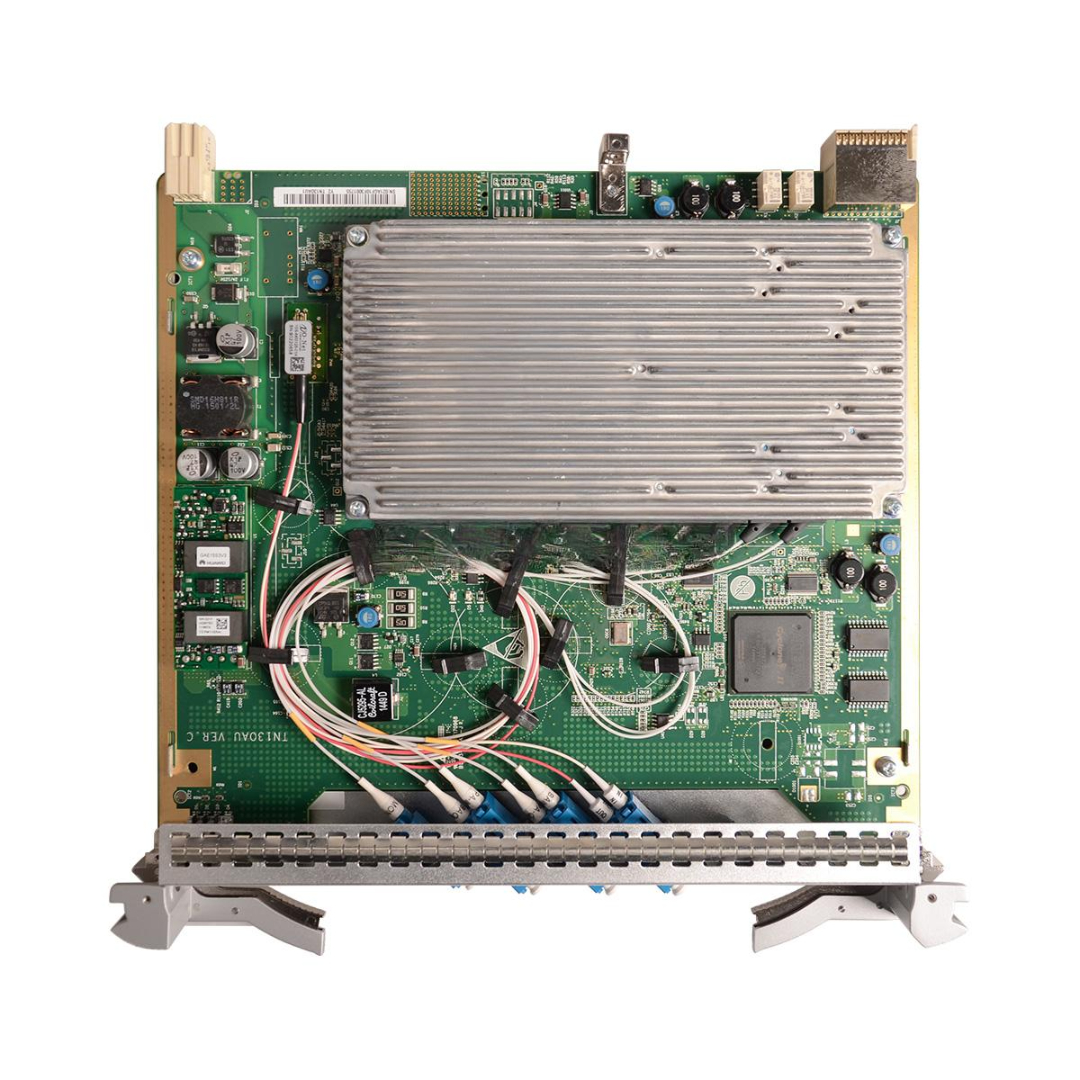

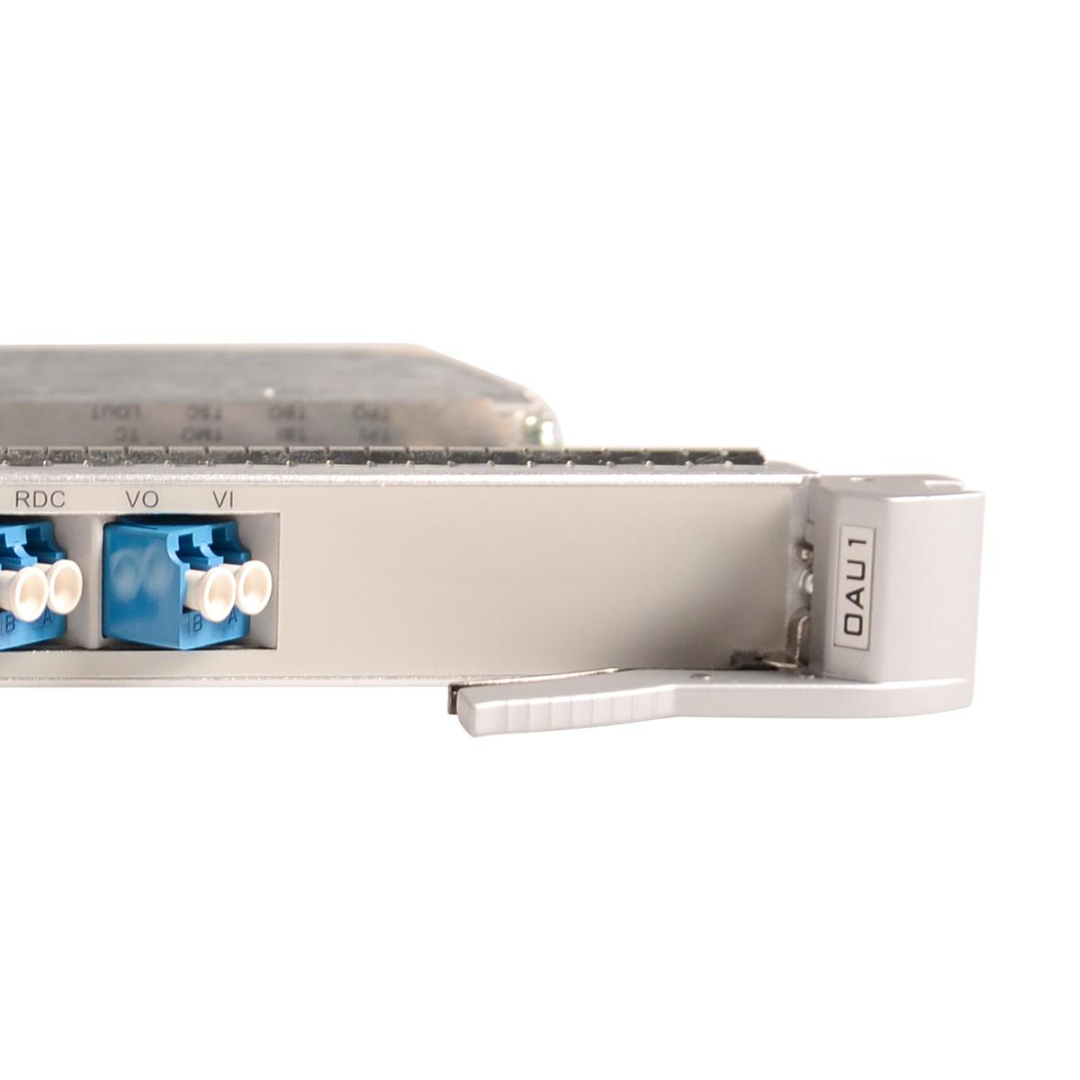

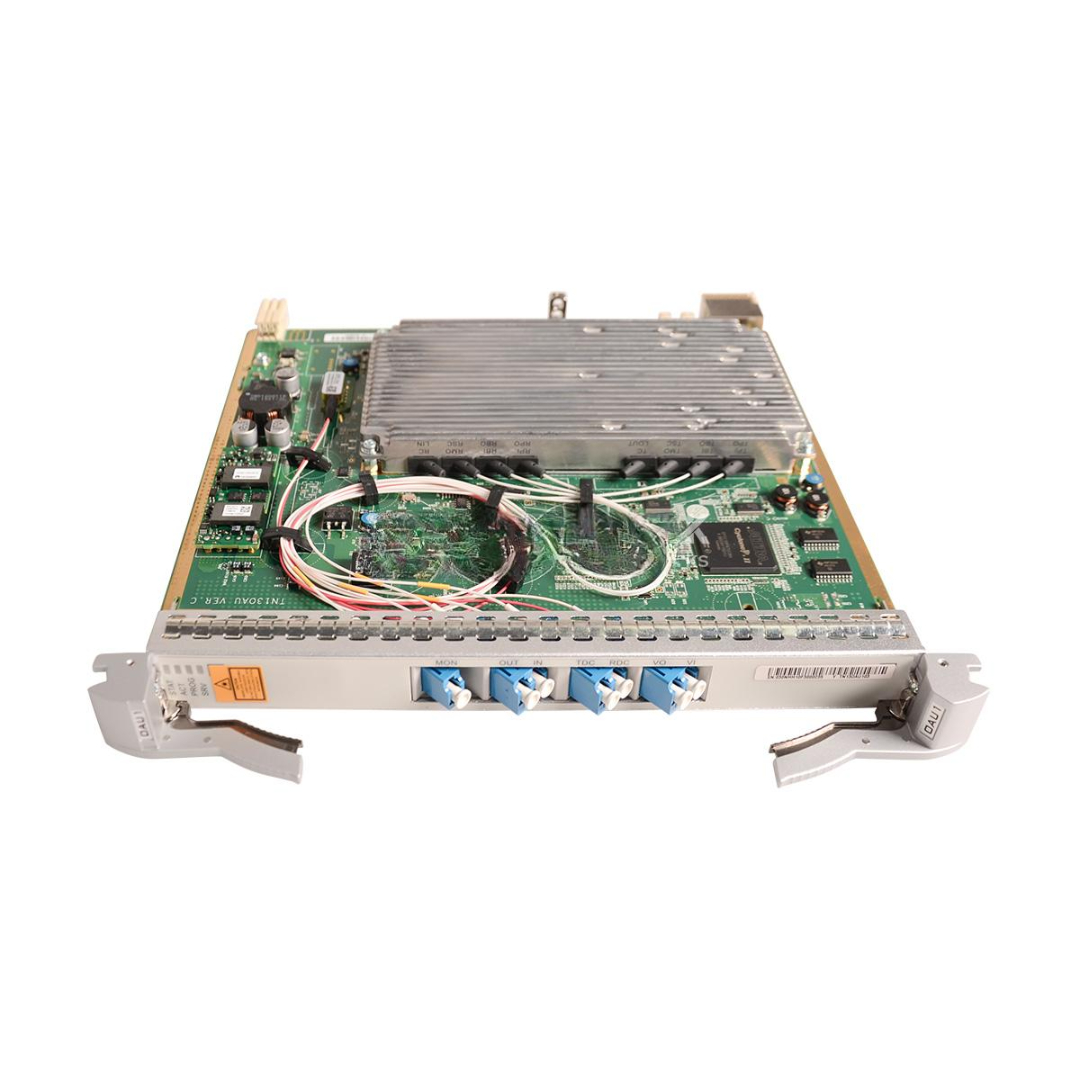

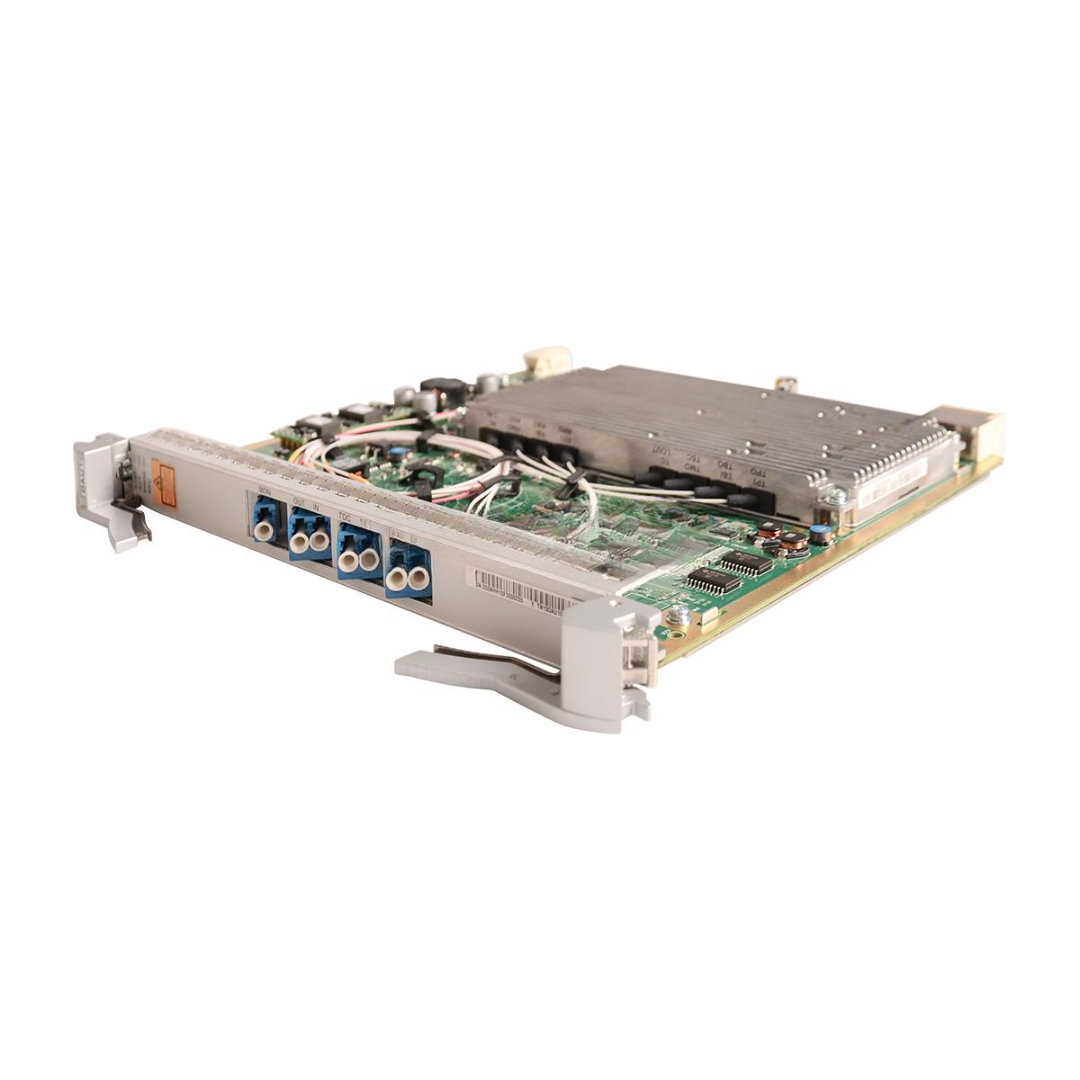

TN13OAU103 Huawei Brand New C-BAND Optical Amplifier Unit
The TN13OAU103 Huawei is a high-quality, brand new C-BAND Optical Amplifier Unit designed to enhance optical signal strength across long-haul and metro optical transport networks. Engineered for compatibility with the Huawei OSN6800 and OSN8800 series, this unit is part of the OAU (Optical Amplifier Unit) family, providing efficient, low-noise amplification for C-band DWDM systems. It plays a critical role in extending transmission distances without signal regeneration.
Key Features
-
Model: TN13OAU103
-
Condition: 100% Brand New, Original Huawei
-
Function: C-BAND optical amplification for DWDM systems
-
Installation: Compatible with OSN6800 & OSN8800 series
-
Amplifier Type: EDFA (Erbium-Doped Fiber Amplifier)
-
Gain Control Mode: Automatic Gain Control (AGC) or Automatic Power Control (APC)
-
Operating Band: C-band (1528–1565 nm)
-
Hot-Swappable Module: Easy insertion without system downtime
-
Low Noise Figure: Ensures high signal integrity
-
Monitoring Support: Optical performance alarms, input/output power, temperature
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN13OAU103 |
| Type | C-BAND Optical Amplifier Unit (EDFA) |
| Wavelength Range | 1528 – 1565 nm (C-Band) |
| Amplification Type | Pre-amplifier / Booster / Inline (based on deployment) |
| Gain Range | 16 dB – 25 dB (AGC mode) |
| Input Power Range | -30 dBm to 0 dBm |
| Output Power | +13 dBm to +17 dBm |
| Noise Figure | ≤ 5 dB (typical) |
| Connector Type | LC/UPC Optical Interface |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Power Consumption | ≤ 25W |
| Platform Compatibility | Huawei OSN6800, OSN8800 series |
| Compliance | ITU-T G.694.1, G.957, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
TN13OAU103 Huawei Applications
-
Long-Haul Optical Networks — Boosts signal power across spans exceeding 80–100 km
-
DWDM Systems — Amplifies multi-wavelength traffic in dense optical environments
-
Metro Core Networks — Ensures signal strength over extended urban transport rings
-
Data Center Interconnects (DCI) — Supports high-capacity links between sites
-
Carrier-Grade Infrastructure — Used by telecom operators for robust backbones
Customization & OEM Options
-
Gain Range Customization — Pre-configured amplification profiles for your network
-
Connector Type Customization — SC/APC or LC/APC available on request
-
Private Label Branding — OEM support for logo, part ID, and packaging
-
Pre-configured Settings — Factory-configured with specific gain/power parameters
-
Performance Testing Reports — Supplied with QA documentation on request
TN13OAU103 Huawei Wholesale & Global Distribution
-
Genuine Huawei Equipment — OEM certified, brand new units only
-
Bulk Availability — Ideal for national rollouts and long-haul deployments
-
Secure Export Packaging — Anti-static and foam-packed for safe global transport
-
Fast Shipping — Global logistics with customs support and tracking
-
Technical Support — Expert assistance for configuration, tuning, and NMS integration
Why Choose TN13OAU103 Huawei Optical Amplifier
-
Efficient Signal Boosting — Extends fiber reach without signal regeneration
-
Low Noise Performance — Maintains signal clarity for DWDM channels
-
Plug & Play Integration — Easily deploys in Huawei OSN platforms
-
Reliable & Robust — Designed for continuous carrier-grade operation
-
Trusted by Operators Worldwide — Installed in backbone and metro systems globally
Contact US
Power up your DWDM network with the Huawei TN13OAU103 Optical Amplifier Unit — the trusted solution for long-distance optical amplification in high-capacity transport systems.
