TNU3UXCS Huawei Description:

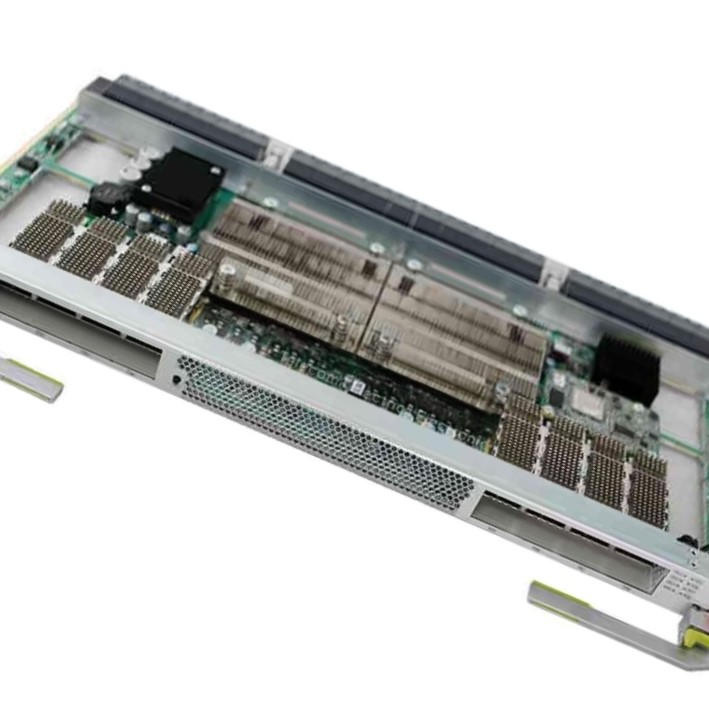

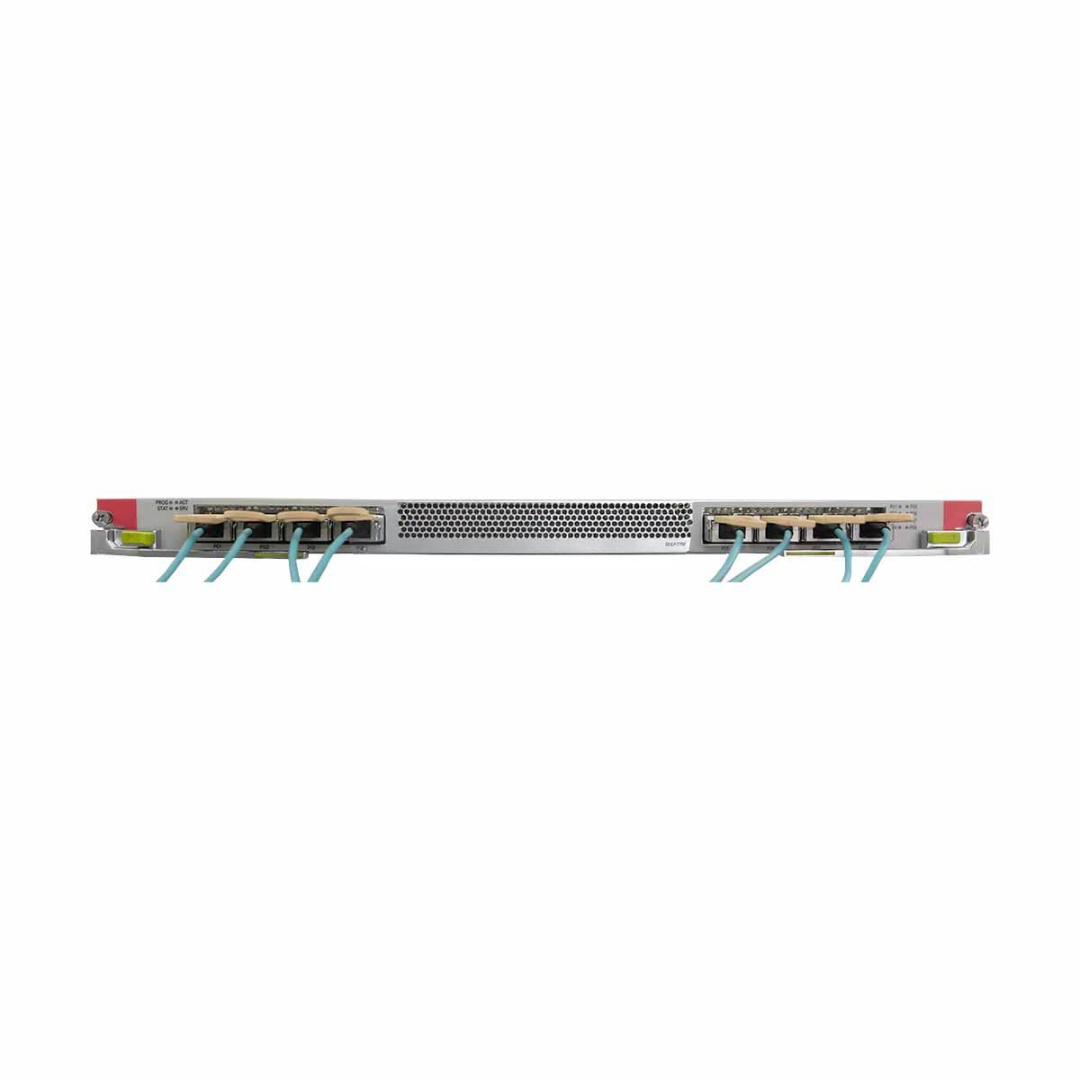

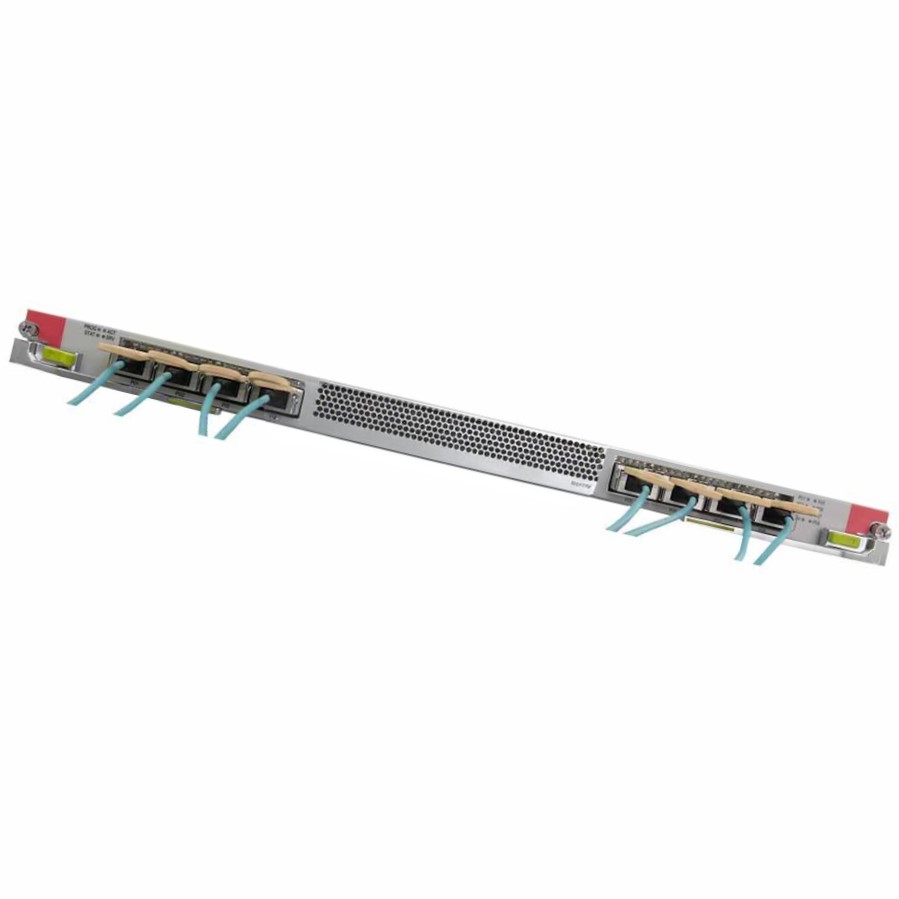

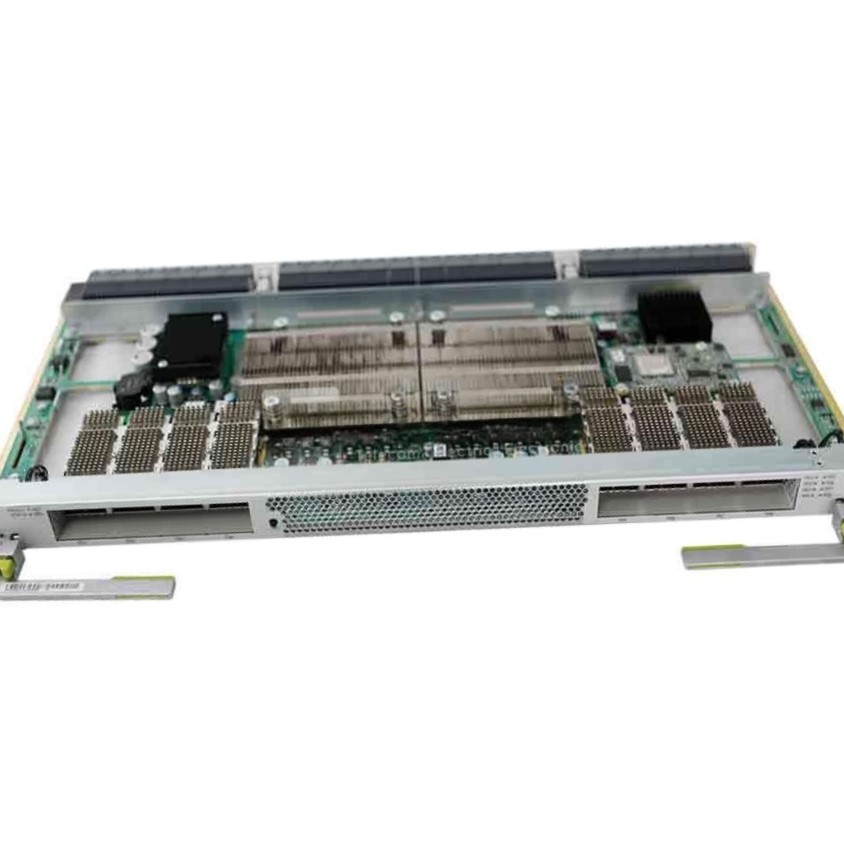

The TNU3UXCS Huawei is a brand new, original Enhanced Universal Cross Connect Board, designed for use in Huawei’s Optical Transport Network (OTN) and SDH platforms. This advanced cross-connect unit plays a critical role in enabling flexible and efficient grooming, switching, and cross-connection of multiple service signals within the transmission network.
With its enhanced switching capabilities, the TNU3UXCS provides high-capacity cross-connect functionality, ensuring optimal resource allocation, improved network efficiency, and reliable service delivery. It supports various protection schemes and advanced traffic grooming, making it ideal for core, metro, and access transport layers.
Huawei’s rigorous quality standards guarantee that this cross-connect board delivers outstanding stability and performance for mission-critical telecom and enterprise environments.
Key Features:
-
Model: TNU3UXCS
-
Condition: 100% Brand New, Original Huawei
-
Type: Enhanced Universal Cross Connect Board
-
Application: Supports flexible grooming, switching, and cross-connection of multiple services
-
Performance: High-capacity, low-latency switching for efficient network traffic management
-
Protection: Supports multiple protection schemes for resilient service delivery
-
Reliability: Telecom-grade design with robust hardware for 24/7 operation
-
Compatibility: Fully compatible with designated Huawei OSN/OTN series systems
Tech Specs:
Valid Service Slots
| Model | Valid Slots |
|---|---|
| OSN 9800 U32 Enhanced | IU71 to IU77 |
| OSN 9800 U64 Enhanced | IU71 to IU77, IU79 to IU85 |
Cross-Connect Capacity
| Item | OSN 9800 U64 Enhanced | OSN 9800 U32 Enhanced |
|---|---|---|
| ODUk signals | Up to 25.6 Tbit/s total (ODU0/1/2/2e/3/4/flex) 400 Gbit/s per slot |
Up to 12.8 Tbit/s total 400 Gbit/s per slot |
| Ethernet Packet Switching | Up to 25.6 Tbit/s total 400 Gbit/s per slot |
Up to 12.8 Tbit/s total 400 Gbit/s per slot |
| VC-4 Signals | Up to 10.24 Tbit/s total 160 Gbit/s per slot |
Up to 5.12 Tbit/s total 160 Gbit/s per slot |
| OSUflex Signals | Up to 25.6 Tbit/s total 400 Gbit/s per slot |
Up to 12.8 Tbit/s total 400 Gbit/s per slot |
⚙️ Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions (HxWxD) | 477.3 mm × 30.5 mm × 220.0 mm |
| Weight | 3.15 kg |
| Typical Power Consumption | 177 W |
| Maximum Power Consumption | 187 W |
TNU3UXCS Huawei Applications:
The TNU3UXCS Enhanced Universal Cross Board is ideal for:
-
Optical Transport Networks (OTN)
-
Synchronous Digital Hierarchy (SDH) transport networks
-
Metro and core backbone transmission layers
-
Carrier-grade telecom infrastructure
-
Enterprise and ISP data transport networks
-
Network upgrades and capacity expansions
TNU3UXCS Huawei Customization & OEM Services:
We understand that each network build is unique. We offer customization and OEM services, including:
-
Pre-configuration and compatibility checks for your existing system
-
Private labeling and branding for resellers or system integrators
-
Burn-in testing and extended quality checks for mission-critical deployments
-
Custom packaging and logistics support for large rollouts
-
Technical support for multi-vendor integration
TNU3UXCS Huawei Wholesale & Bulk Orders:
Trusted by telecom operators and system integrators worldwide, we support wholesale supply and bulk procurement:
-
Factory-direct pricing and volume discounts for large orders
-
Consistent inventory and reliable lead times
-
Export-compliant, protective packaging for secure global shipping
-
Dedicated account managers for smooth order processing
-
Comprehensive warranty and after-sales technical support
Why Choose Us:
-
100% genuine Huawei hardware with verified test reports
-
Flexible supply and customization options
-
Competitive pricing for resellers and integrators
-
Reliable international shipping and tracking
-
Expert support for installation, commissioning, and troubleshooting
Contact Us for a Quote:
Upgrade your network with the TNU3UXCS Huawei Brand New Enhanced Universal Cross Board. Contact us today for detailed technical specifications, tailored configuration options, and competitive wholesale pricing.
Our expert team is ready to help you build a high-performance, future-ready transport network with Huawei’s trusted solutions.
