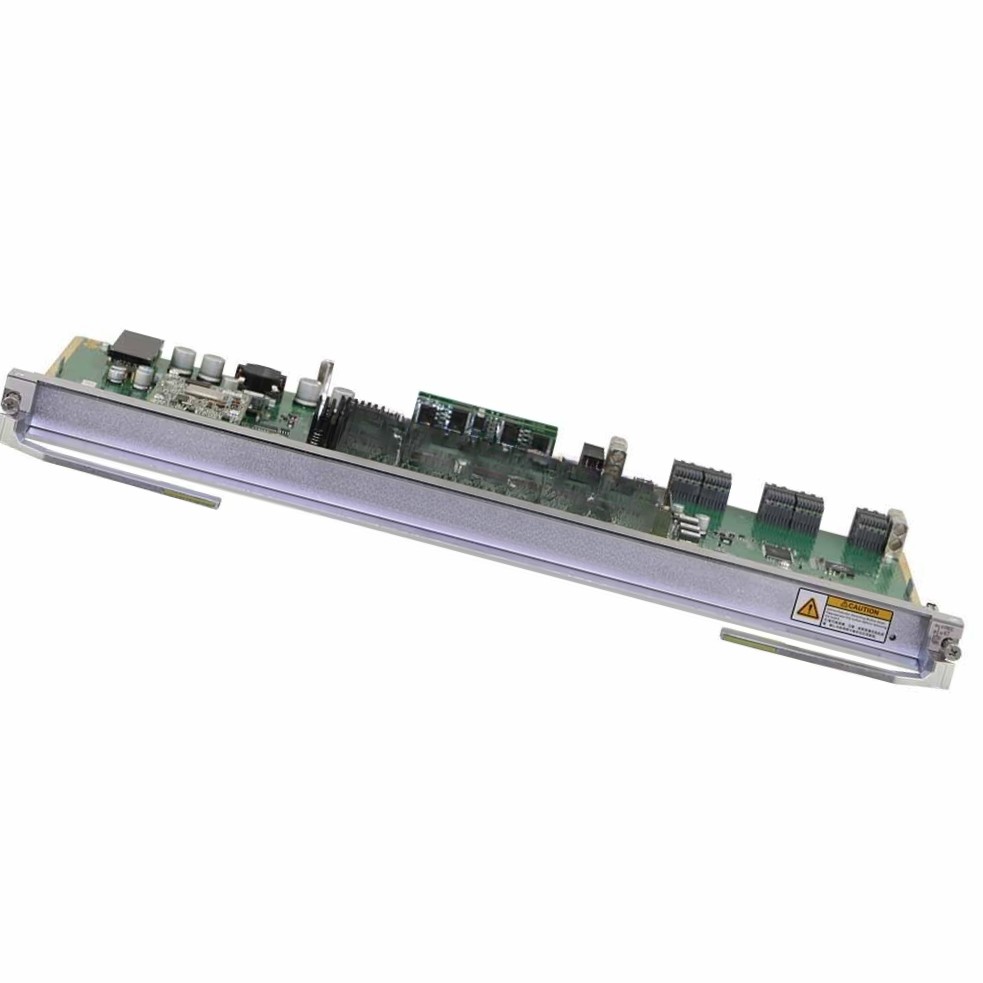

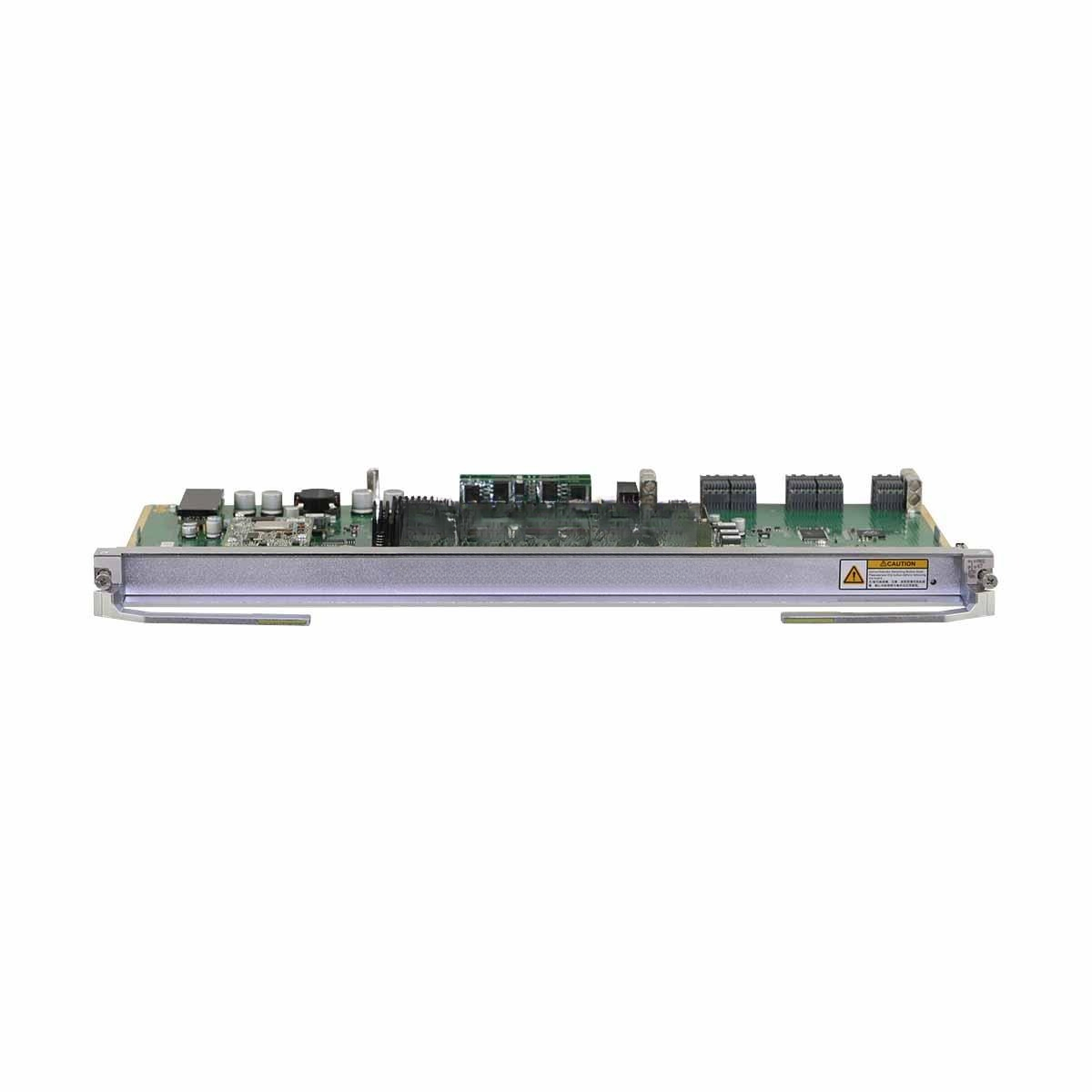

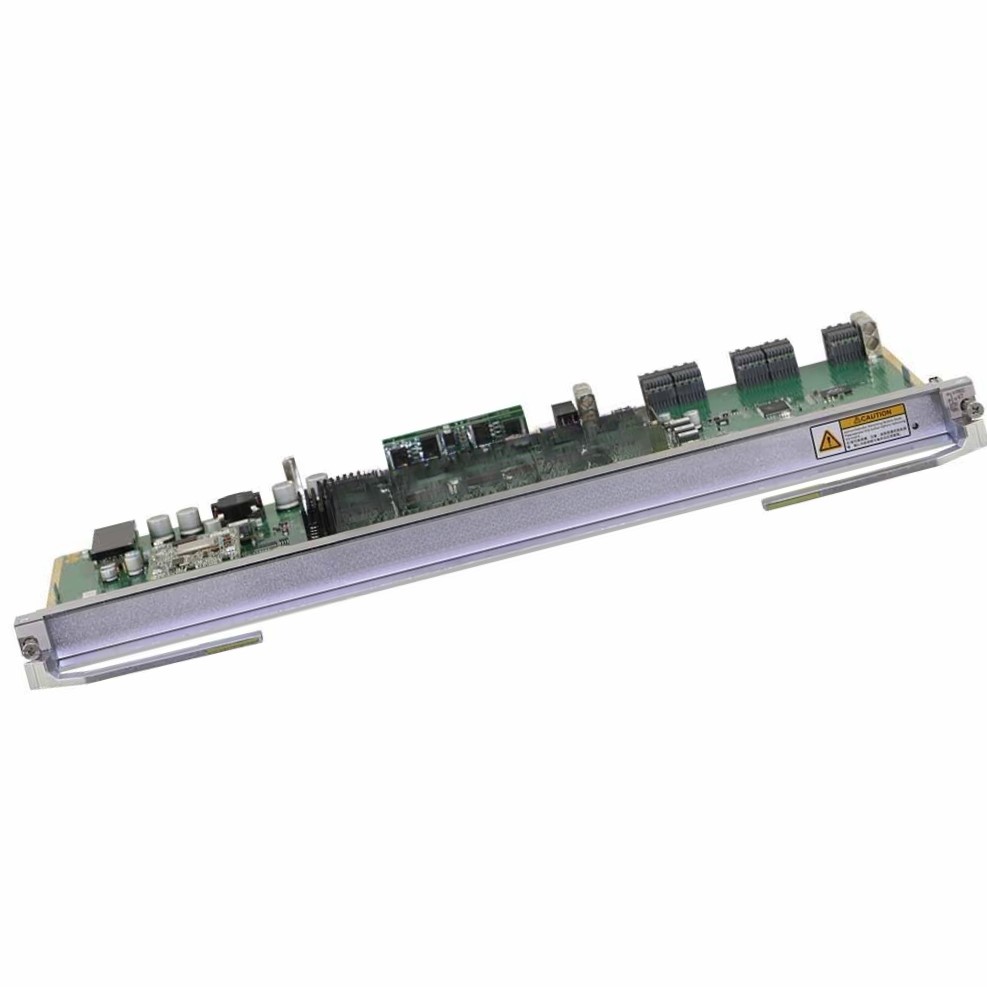

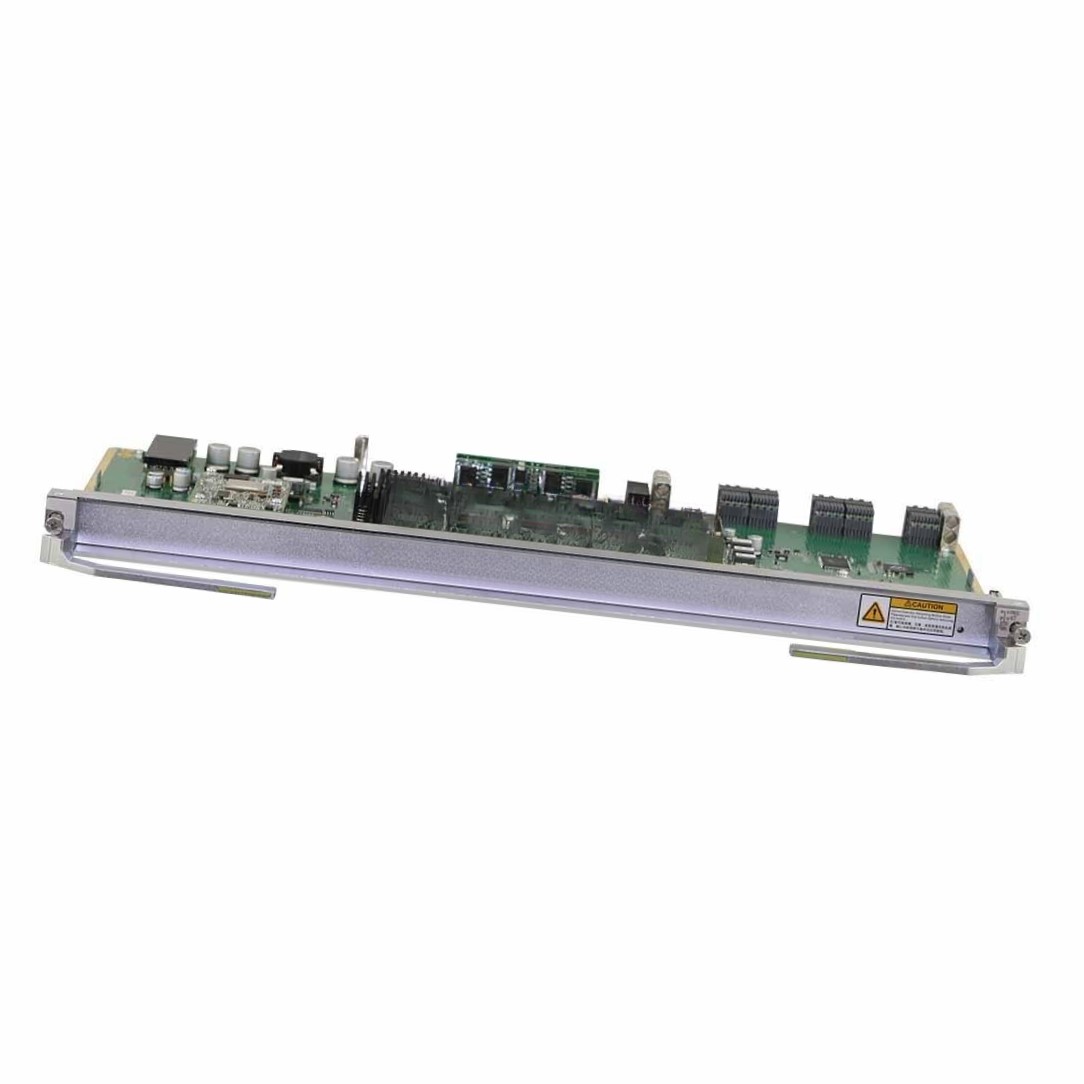

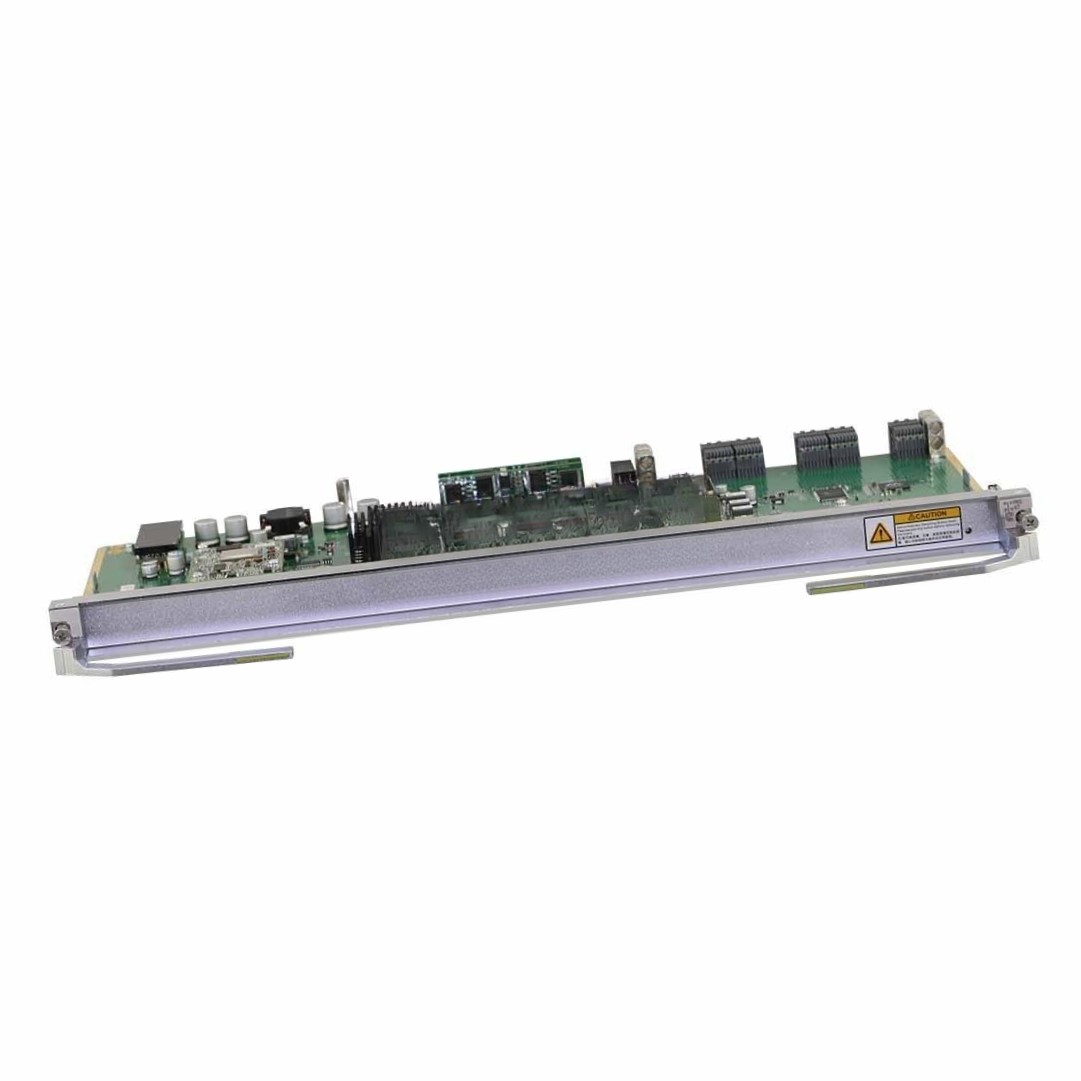

TNV2SXCL Huawei Product Description:
The TNV2SXCL Huawei is a brand new, original Universal Cross-Connect Board, designed for use in Huawei Optical Transport Network (OTN) and SDH systems. This board provides robust, flexible grooming and switching of multiple service signals within your transport network, enabling optimized bandwidth usage and streamlined signal management.
With its advanced cross-connect capabilities, the TNV2SXCL enhances traffic routing efficiency, improves resource allocation, and supports multiple protection schemes to maintain stable and reliable service delivery. Its telecom-grade design ensures consistent 24/7 performance for mission-critical backbone and metro transmission networks.
Fully compliant with Huawei’s stringent quality standards, the TNV2SXCL delivers dependable performance in diverse carrier and enterprise environments.
Key Features:
-
Model: TNV2SXCL
-
Condition: 100% Brand New, Original Huawei
-
Type: Universal Cross-Connect Board
-
Function: High-capacity grooming, switching, and cross-connection for various service signals
-
Performance: Low-latency switching and efficient bandwidth management
-
Protection: Supports diverse traffic protection schemes for uninterrupted service
-
Reliability: Telecom-grade hardware designed for round-the-clock operation
-
Compatibility: Fully compatible with designated Huawei OSN/OTN series equipment
Tech Specs:
Specifications
Valid Slots
-
OptiX OSN 9800 U32 Enhanced: IU1 to IU32
-
OptiX OSN 9800 U32 Standard: IU1 to IU32
-
OptiX OSN 9800 U64 Enhanced: IU1 to IU64
-
OptiX OSN 9800 U64 Standard: IU1 to IU64
Function and Feature
| Item | Description |
|---|---|
| Basic Function | Performs centralized grooming of VC-3/VC-12 signals in a subrack. |
| Cross-connect Capacity | Cross-connects a maximum of 160 Gbit/s VC-3/VC-12 signals. |
| Backup Mode | 1+1 backup. |
| Switching Mode | Automatic switching, manual switching, and forced switching by pressing the active switching button or turning on micro switches are supported. Non-revertive switching is supported. |
NOTE
When a board works in active state, do not perform a cold reset or remove the board.
You must switch the board to the standby state before removing it.
You can use Manual Switching on the NMS to configure the board as the standby board or press the active switching button or turn on the micro switches on the front panel to switch the board to the standby state.
Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions (HxWxD, mm) | 477.30 × 30.50 × 220.00 |
| Weight (kg) | 2.85 |
| Typical Power Consumption (W) | 162 |
| Maximum Power Consumption (W) | 171 |
TNV2SXCL Huawei Applications:
The TNV2SXCL Universal Cross-Connect Board is ideal for:
-
Optical Transport Networks (OTN)
-
Synchronous Digital Hierarchy (SDH) transmission networks
-
Metro and backbone network layers
-
Carrier-grade telecom infrastructure
-
Enterprise and ISP data transport backbones
-
Network upgrades, expansions, and multi-service grooming
TNV2SXCL Huawei Customization & OEM Services:
To support unique project requirements, we provide customization and OEM services, including:
-
Pre-configuration and compatibility verification for your existing network
-
Private labeling and branding for distributors and integrators
-
Burn-in testing for mission-critical environments
-
Custom packaging and phased shipping for large-scale deployments
-
Technical assistance for multi-vendor system integration
TNV2SXCL Huawei Wholesale & Bulk Orders:
We support wholesale and bulk procurement for telecom operators, system integrators, and resellers worldwide:
-
Factory-direct pricing with volume discounts
-
Reliable stock availability and consistent delivery timelines
-
Export-compliant, protective packaging for safe global shipping
-
Dedicated account managers for smooth transaction handling
-
Comprehensive warranty and after-sales technical support
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Flexible supply options and project-specific solutions
-
Competitive pricing for resellers and partners
-
Global shipping with secure packaging
-
Expert technical support from planning through post-deployment
Contact Us for a Quote:
Boost your transport network’s efficiency with the TNV2SXCL Huawei Brand New Universal Cross-Connect Board. Contact us today for detailed specs, compatibility support, and competitive wholesale pricing.
Our team is ready to help you build a high-capacity, reliable optical transport network with Huawei’s trusted solutions.
