- Model Number:GFBN
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTH FTTB FTTX Network
- Warranty Time:1 year
- Network:POE
-
- Supply Ability
- 10000 Piece/Pieces per Year
-
- Packaging Details
Retail Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated

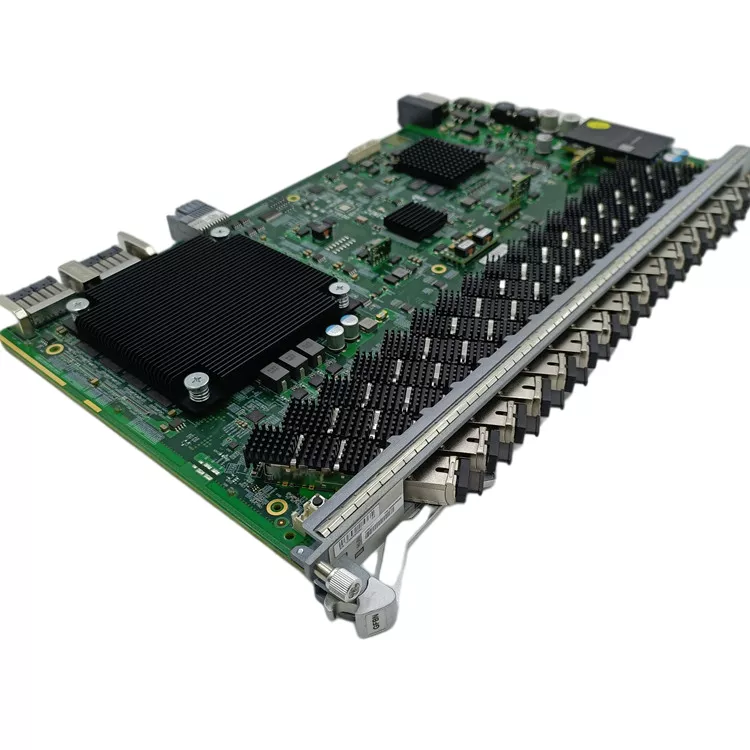

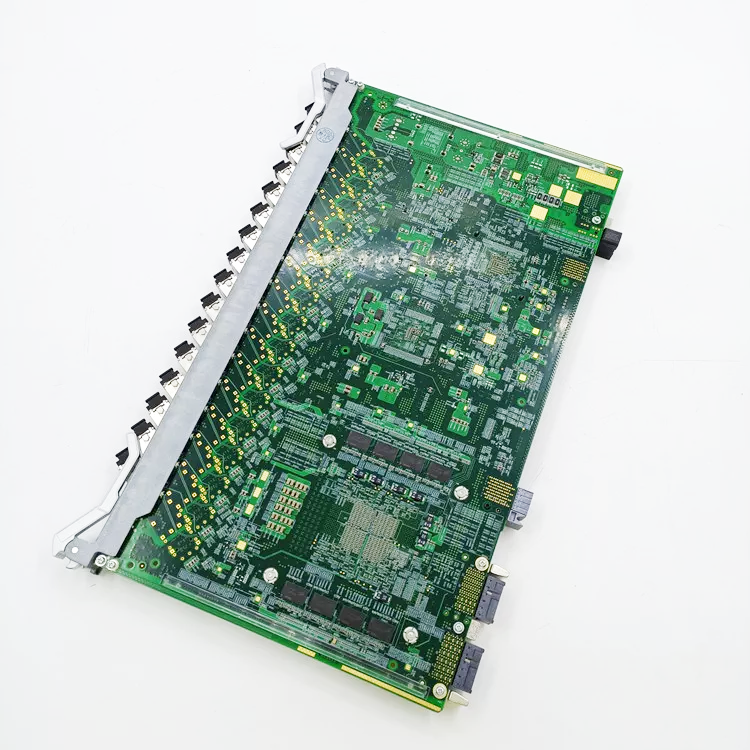

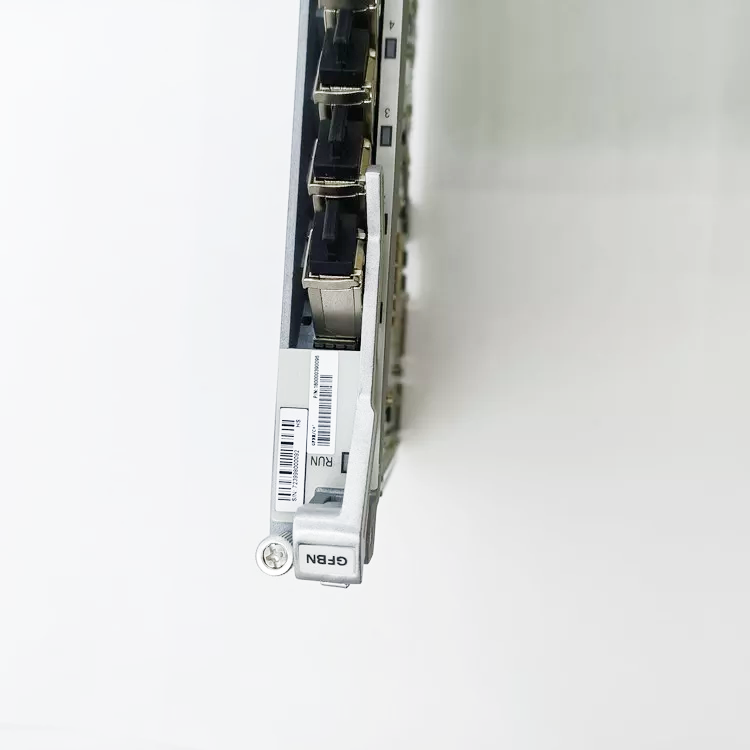

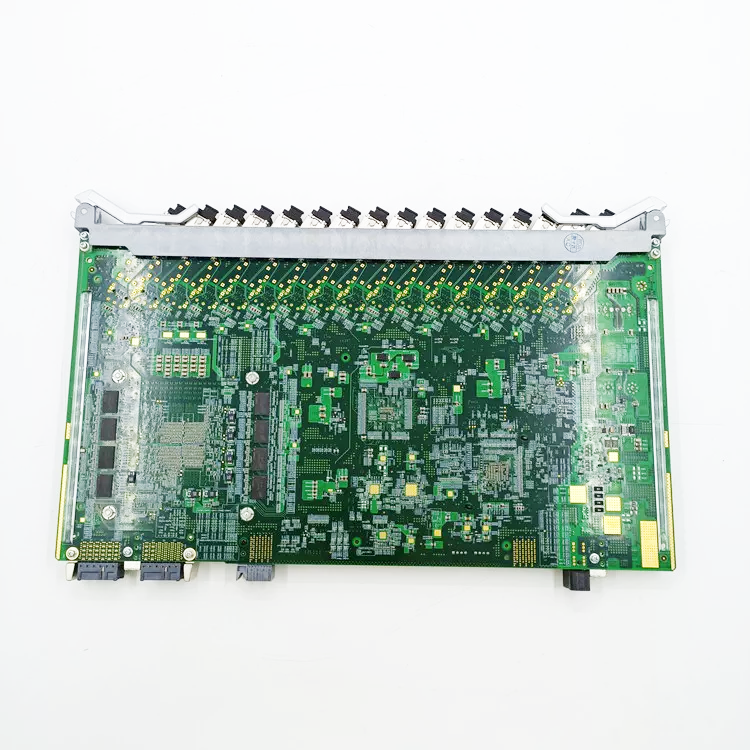

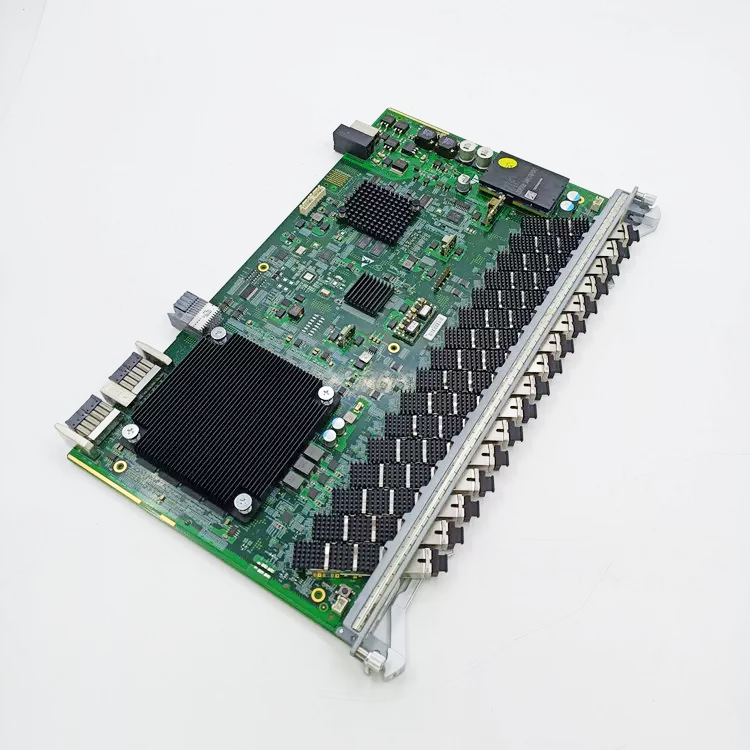

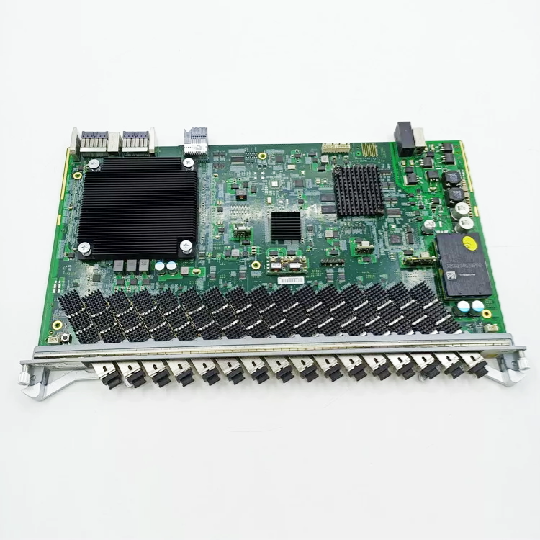

ZTE GFBN Service Board is 16 port GPON & XG-PON Combo connect to C board, suitable for C600
Product Overview
ZTE GFBN Service Board is 16 port GPON & XG-PON Combo connect to C board, suitable for C600 C680 OLT devices.
ZXA10 C680 is an ultra-large capacity optical access OLT equipment based on TITAN platform. It can meet the needs of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconfiguration, and carrier-grade QoS and security assurance.
ZXA10 C680 is a 60S high optical access convergence device, 36 line card slot, the industry’s most, can provide 576 GPON/10G PON ports.
ZXA10 C600 is a large-capacity optical access OLT equipment based on TITAN platform. It can meet the needs of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconfiguration, and carrier-grade QoS and security assurance.
ZXA10 C600 is an 11U high-optical access device with 17/15 line card slots and can support 272/240 GPON/10G PON ports.
Product Specification
|
item
|
value
|
|
Model Number
|
GFBN
|
|
Port
|
16-port
|
|
Interface
|
XG-PON & GPON Combo
|
|
Function
|
XG-PON & GPON service access
|
|
Specification
|
XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
|
|
Management and control module
|
Configures, controls, and manages the card.
|
|
PONMAC module
|
Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T
G.987.3. |
|
NP module
|
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user
needs to meet the SLA requirements. The data processing function complies with TR156. |
|
Optical module
|
Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T
G.9807. |
|
Clock module
|
Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
|
|
Weight
|
1.72 kg
|
|
Dimensions (L x H x W)
|
393.1 mm x23.9 mm x 214 mm
|
|
Card Type
|
Card Model
|
Description
|
|
GPON
|
GFGH
|
16-port GPON subscriber card
|
|
10G GPON
|
GFTH
|
16-port XGS-PON subscriber card
|
|
GFXH
|
16-port XG-PON subscriber card
|
|
|
GFBH
|
16-port XG-PON & GPON Combo subscriber card
|
|
|
GFCH
|
16-port XGS-PON & GPON Combo subscriber card
|
|
|
10G-EPON
|
EFTH
|
16-port 10G-EPON subscriber card
|
