ZTE F623 GPON ONU Terminal Overview:
The ZTE F623 GPON ONU Terminal serves as a robust network gateway, offering a range of functionalities suitable for establishing a smart home network environment.
ZTE F623 Description:
The F623 is designed to support various L3 functions, making it an ideal choice for creating a smart home network setup. It ensures a high-quality broadband connection through its GPON optical interface, ensuring stable operation for services like VoIP and IPTV.
ZTE F623 Specifications:
- Model: ZTE ZXHN F623 GPON ONU
- Ports:
- 1 x Gigabit Ethernet (GE)
- 3 x Fast Ethernet (FE)
- 1 x POTS
- 1 x USB
- Connectivity: GPON optical interface
- Wireless: Wi-Fi interface
- Additional Features: No SFP modules, no dual-band Wi-Fi, support for IP address
Stable Connection:
The ZTE F623 ensures a high-quality broadband connection through its GPON optical interface, maintaining stability for essential services like VoIP and IPTV.
Wireless Network:
Equipped with a Wi-Fi wireless network interface, the ZTE F623 facilitates easy sharing of internet connections with other devices, eliminating the need for additional cables.
Connections:
- Ethernet Ports: 4 x Ethernet ports, including 1 with Gigabit Ethernet support, ensure stable connectivity for wired devices.
- POTS Port: The 1 x POTS port allows phone connectivity without requiring additional cable splitting.
- USB Port: With 1 x USB port, the F623 enables connection to storage devices for network file sharing.
- Model Number: ZTE ZXHN F623
- Type: ONU
- Place of Origin: Guangzhou
- Brand Name: Huawei
- Use: FTTH
- Warranty Time:1 year
- Network: Wired LAN, wifi
- Supply Ability1000 Piece/Pieces per Week
- Packaging Details
- Lead time: Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Details:
ZTE F623 FTTH is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. ZTE GPON ONU F623 comes1GE+3FE ports+1 phone port and WIFI with 2 antennas high gain wireless function
ZTE F623 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Specifications:
| Brand | ZTE |
| Model | F623 |
| Optical port | 1 x GPON interface (SC/APC) |
| Transmission Distance | 0-20KM |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 1 Ge Port and 3 Fe Port |
| 1 x Wi-Fi interface | |
| 1 x USB host interface | |
| 1x POTS interfaces | |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <10W |
| Dimensions | 220mm(W) x 44mm(H) x 160mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 380G |
| Power supply | 12V DC |
Features:
- Supported service: Internet, IPTV
- GPON: 8 T-CONTs, 32 GEM Ports
- VLAN: 802.1Q, 802.1P, 802.1ad
- MAC address table: 256
- Multicast: IGMP v1/v2 Snooping
- Multicast group per user port: 256
- QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping

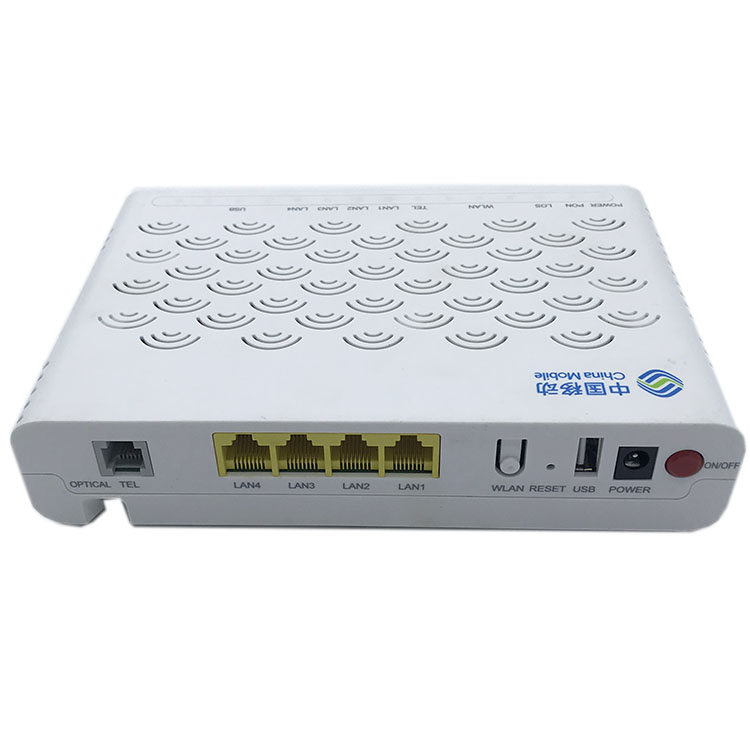

Product Pictures:
