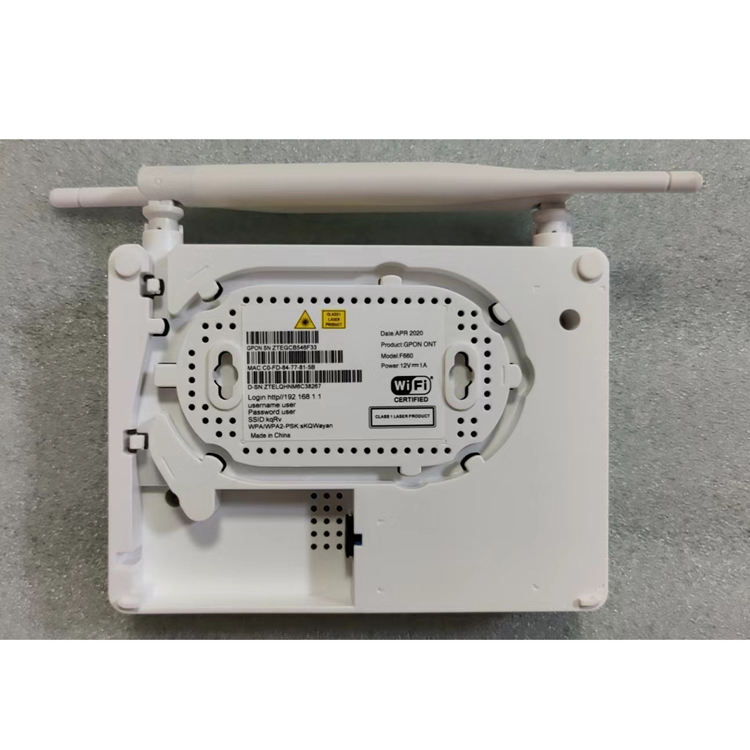

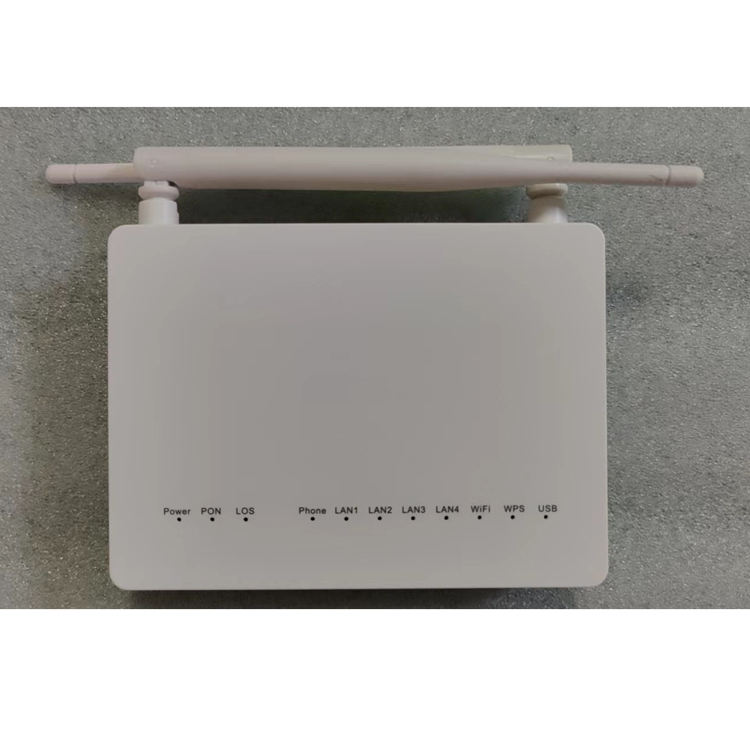

Name: ZTE F660 V9.0 1GE+3FE+1TEL ONU ONT FTTH 5DBI
SKU: 1600597259591
Price: 208.00 USD
Availability: InStock

ZTE F660 V9.0 1GE+3FE+1TEL ONU ONT FTTH 5DBI

$208.00

Model Number:F660 V9.0
Type:ONU ONT
Place of Origin:Guangdong, China
Brand Name:HUAWEI
Use:FTTX
Warranty Time:5 YEARS
Network:Wired LAN, POE, wifi
item:F660 V9.0
Supply Ability

5000 Piece/Pieces per Week
Packaging Details

FTTH 4 8 16 32 Output Port 2u 1550nm EDFA Variable Gain Optical Amplifier EDFA Model Wdm Edfa Indoor CATV 1550nm for gpon
Port

shenzhen
Picture Example:
Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)5To be negotiated

Product Description

Model	Configuration	Dimension/pcs
LAN	Telephone	Wifi	PPPOE	Firmware
F660 v9.0	1GE+3FE+1TEL	1POTS	5DBI	YES	English	17613828
Remarks	Power plug:EU,AU,AM,UK etc
Noted: with Chinese manual
Optional:1GE+3FE+1TEL

Features:

1 .Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance

Hardware Specifications

PON Interface	Interface Type	SC/PC, CLASS B+
Rate	Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface	110/100/1000BASE-T;110/100BASE-T;1*RF interface
Size (Mm)	167(L)×118(W)×30(H)
Maximum Power Consumption	<8W
Weight	120g
Operating Environment	Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% (no condensation)
Power Supply	External Power Adapter 12V/1A
Power Adapter Input	100-240V AC, 50/60Hz
Power Interface Size	metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module	External dual antenna, antenna gain 5db, antenna power 16~21dbm
Support 2.4GHz, 300M transmission rate
