ZTE GPON EPON SPUF SPUFS AC or DC Power PRSF PFAF ZTE ZXA10 C620 OLT

Model Number:ZTE ZXA10 C620
Type:OLT
Place of Origin:Guangdong, China
Brand Name:ZTE
Use:FTTx
Warranty Time:1 year
Network:None
Supply Ability7 Piece/Pieces per Week
PortShenzhen
Lead time:Quantity(pieces)1 – 10>10Lead time (days)15To be negotiated

Configurations

1. AC Power

Dual Control boards (2*SFUF or 2 SFUFS) + Dual power boards ( 1*PRAF)

2.DC Power

Dual Control boards (2*SFUF or 2 SFUFS) + Dual power boards ( 2*PRSF)

Overview

ZTE ZXA10 C620 is a piece of 2U high compact optical access equipment. It provides two service slots and is ideal for efficient and flexible FTTx deployment, satisfying ultra-high speed and ultra-low latency access requirements, and suiting diverse scenarios including limited room space, remote coverage and low-density area scenarios.

State-of-the-art architecture and capabilities meet future requirements

Provides flexible access options including GPON, XG(S)-PON, Combo PON, and P2P.
Fully distributed architecture. Separated control and forwarding planes.
Large system switch capacity supports non-blocking switch.

Specifications

Slot	Dimension	Card Type
1~2	388.4 mm × 23 mm (Length × Width)	Service cards, including PON interface cards and Ethernet interface cards
4~5	128.9 mm × 36.5 mm (Length × Width)	Switching and control card
6~7	65.3 mm × 36.5 mm (Length × Width)	DC power card
6	132.9 mm × 36.5 mm (Length × Width)	AC power card
3	2 U × 129 mm (Height × Width)	Fan unit

The fan unit is configured with two fans to provide forced air cooling through air suction. Air goes into the fan unit from the right and goes out from the left. The rotational speed of fans can be adjusted based on the system temperature to reduce the equipment noise and extend the service life of the equipment. The fan unit is hot swappable.

Features

Largest capacity: switching capacity of 28.8T,
– Highest integration: support 16-port 10G PON and Combo PON access, It is also the industry’s first to support 16-port 25G PON and 4-port 100G PON high-density accesses.
– Strongest access capability: provides up to 36 service slots. Under the same bandwidth condition, it provides four times as much as user access capacity (or the number of access users). It is used to significantly reduce the number of device types and NEs, and hence it can simplify networking and lower TCO.
Compact design reduces room space and TCO
Provides two service slots and supports high-density PON cards.
Compact design suits diverse deployment scenarios including co-site, co-station, and outdoor cabinets. Easy to install and maintain.
Universal service cards of TITAN series dramatically reduce spare part costs.
Saves on investments in infrastructures including trunk fibers, ducts, AOs, power supplies and air conditioners, and reduces TCO.

Industry’s first 3-in-1 Combo PON
The WDM1r is embedded the optical module without affecting existing GPON services.
Supports on-demand deployment of GPON and 10G-GPON ONUs according to service development.

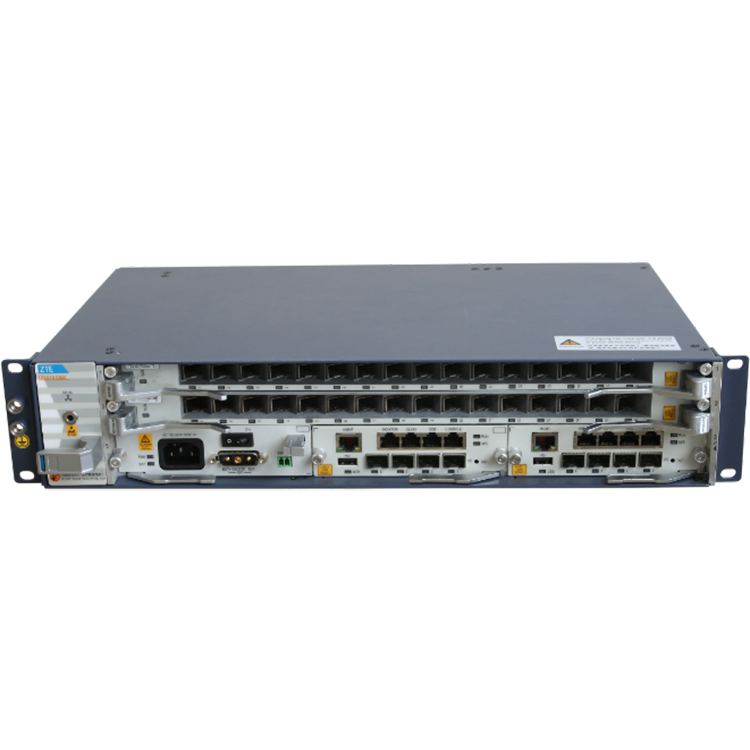

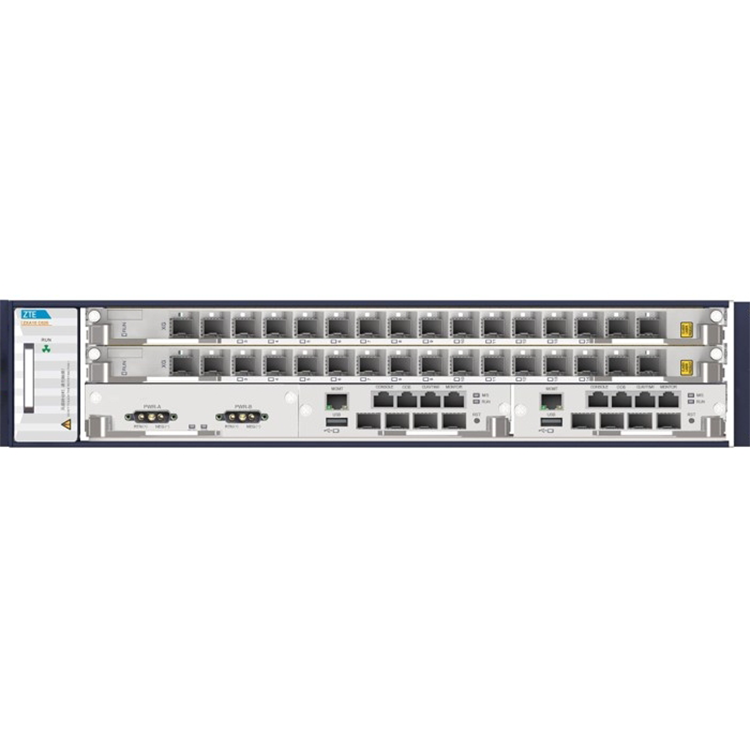

Pictures
