- Model Number:zte c300
- Type:OLT, gpon epon support
- Place of Origin:Zhejiang, China
- Brand Name:ZTE
- Use:Home.school,hotel….
- Warranty Time:1 year
- Network:Wireless Lan, Ip, POE, wifi, 4g
- uplink ports:support 1g or 10g
- Original ZTE:yes
- volt:AC DC support
- pon ports:max 240 ports
- PowerSupply:-48V+/-20%,-60V+/-20%;
- sample:yes
- Dimensions:60X60X50 cm
- Environment:Operating temperature: –40°C ~65°C
- PONFeatures:GPON compliant with ITU G.984.x
- Supply Ability100 Carat/Carats per Day
- Packaging Details1pcs 1 carton
- Portshanghai ningbo shenzhen
- Picture Example:
- Lead time:Quantity(carats)1 – 1>1Lead time (days)5To be negotiated
Product Description
ZTE C300
FTTH Network ApplicationThe C300 supports the fiber to the home (FTTH) network application.It can be connected to the ONT in the user’s house through the PON port or provide the P2P optical access service through the FE or GE port.· FTTB Network ApplicationThe C300 supports the fiber to the building (FTTB) network application,and is connected to the ONU (MDU or ONT) that is deployed in the corridor through the PON port.· FTTC Network Application
Configurations Options for ZXA10 C300

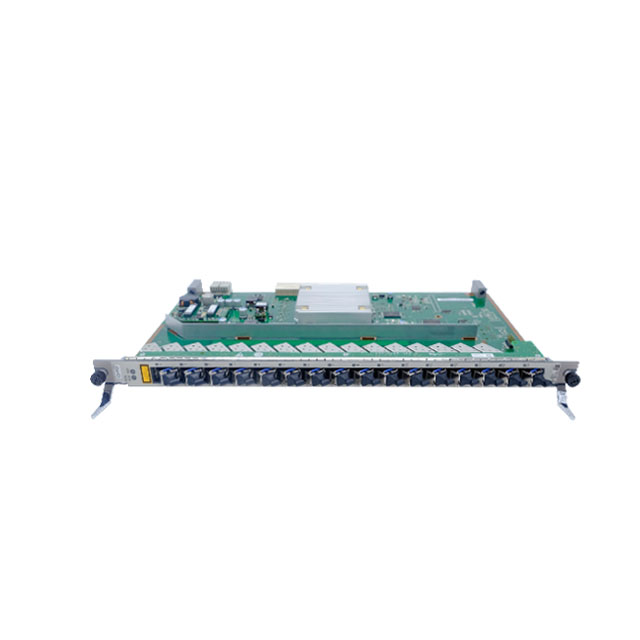

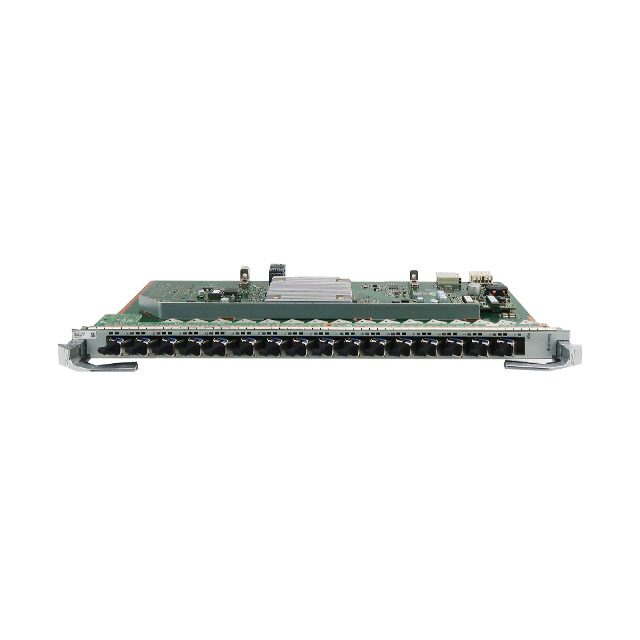

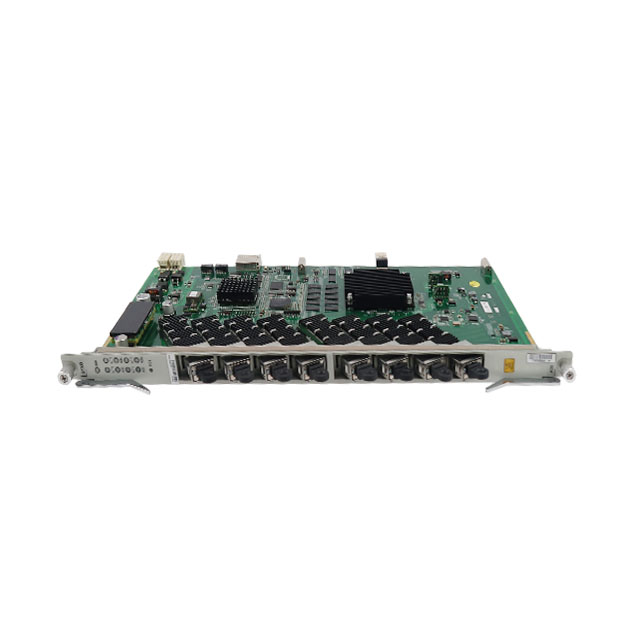

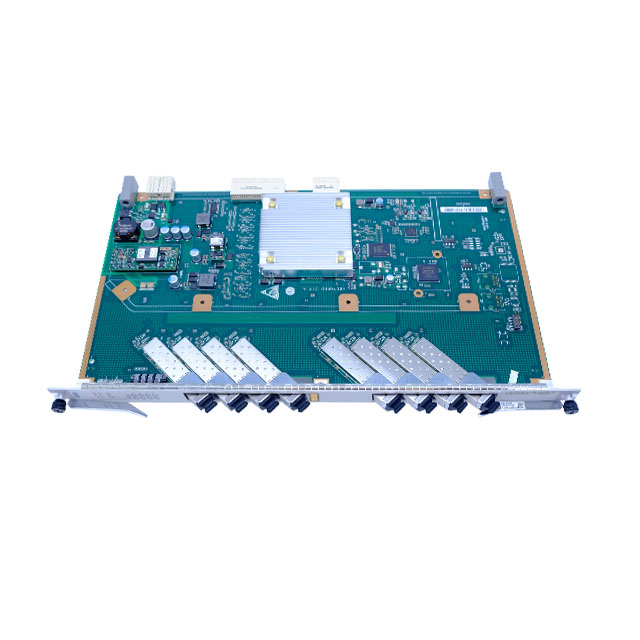

GPON / EPON OLT ZXA10 C300 10U with 14 Slot for Pon BoardConfiguration options ZXA10 C300 Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+GUFQ; accessoriesZXA10 C300 Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+2*GUFQ; accessoriesZXA10 C300 Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+HUTQ(or HUVQ); accessoriesZXA10 C300 Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+2*HUTQ(or HUVQ); accessoriesZXA10 C300 Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+HUTQ(or HUVQ)+GUFQ; accessoriesZTE OLT Option Part(Service boards)GTGO 8 ports GPON board with 8 B+ modules.GTGO 8 ports GPON board with 8 C+ modules.GTGO 8 ports GPON board with 8 C++ modules.GTGH 16 ports GPON board with 16 B+ modules.GTGH 16 ports GPON board with 16 C+ modules.GTGH 16 ports GPON board with 16 C++ modules.GTTO 8 ports 10G GPON board with 8 10G GPON modulesGTXO 8 ports 10G GPON board with 8 10G GPON modulesETGO 8 ports EPON board with 8 modules.ETGH 16 ports EPON board with 16 modulesETTO 8 ports 10G EPON board with 8 10G EPON modulesGUSQ 2*GE optical + 2*GE/FE RJ45 uplink cardGUFQ 4*GE/FE optical interface Ethernet uplink cardHUTQ/HUVQ 2 ports 10GE and 2 ports GE optical interface Ethernet uplink cardSMXA/1 Tri-functional card for C320 , the switching, control card & GE uplinkSMXA/3 Tri-functional card for C320 , the switching, control card & 10GE uplink
Specification
|
Parameter
|
ZTE ZXA10 C300
|
|
|
Capacity and Performance
|
Backplane Capacity(bps)
|
3.2T
|
|
Exchange Capacity(bps)
|
800G
|
|
|
MAC address capacity
|
MAX512K
|
|
|
Main control exchange board
|
2(main and spare)
|
|
|
Service board
|
14
|
|
|
EPON capacity
|
single board:8*PON;single chassis:112*PON
|
|
|
typical configuration:224*PON/chassis
|
||
|
Uplink interface
|
GE
|
Single board: 4*GE(4 optical);
|
|
4*GE(4 electric);
|
||
|
2*GE(optical)+2*10M/100M/1000M(electric);
|
||
|
Chassis:8*GE,MAX 136*GE
|
||
|
10GE
|
Per board:4*10GE(optical);
|
|
|
Chassis:8*10GE
|
||
|
User interface
|
PTP
|
Per board:16*FE or GE
|
|
Chassis:16 services slots,256*FE or GE
|
||
|
TDM interface
|
E1/T1
|
Per card:32*E1/T1;
|
|
Chassis:16 service slots,512*E1/T1
|
||
|
STM-1/STM-4
|
Per board:2*STM-1or 1*STM-4;
|
|
|
Chassis:16 service slots,32*STM-1 or 16*STM-4
|
||
|
BITS interface
|
BITS
|
2input/1output or 1input/2output
|
|
Power
|
2lineDC(-48V)
|
|
|
DC:-38V~-57V
|
