CR8DSFUIK0C0 Huawei Description

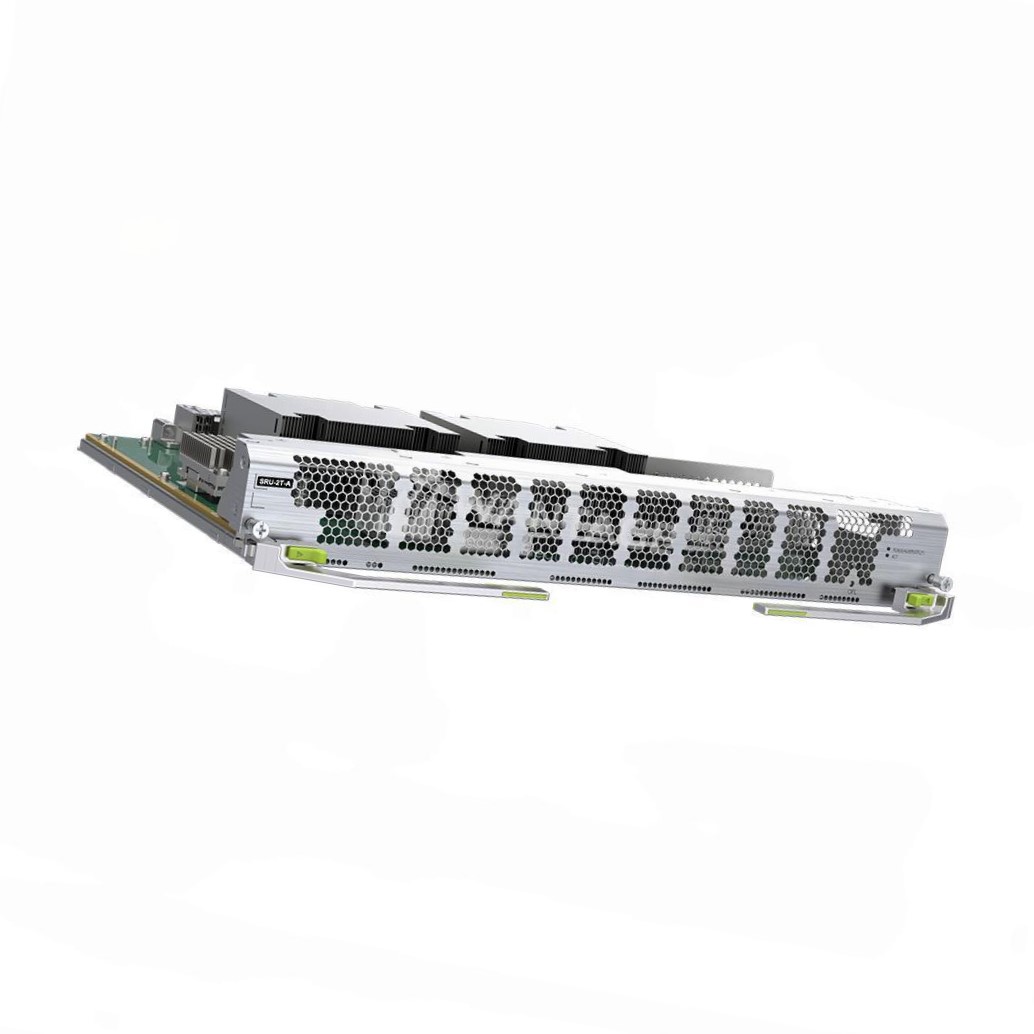

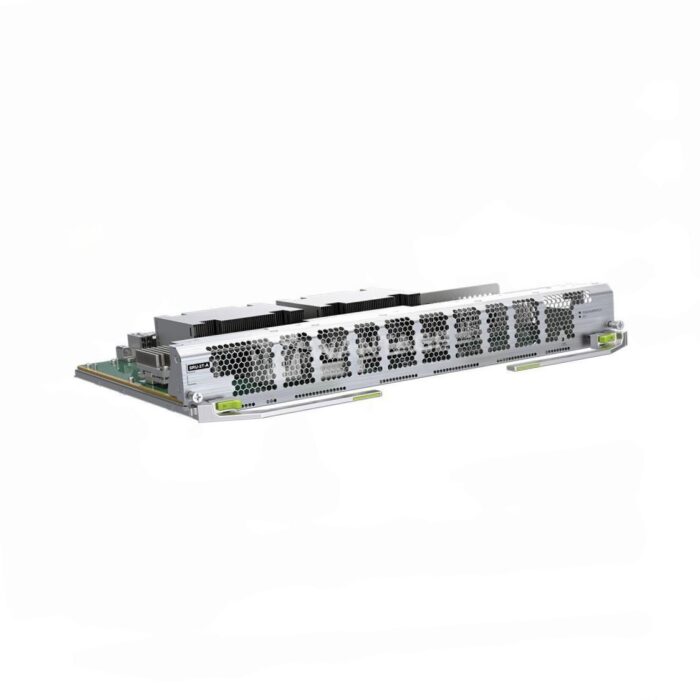

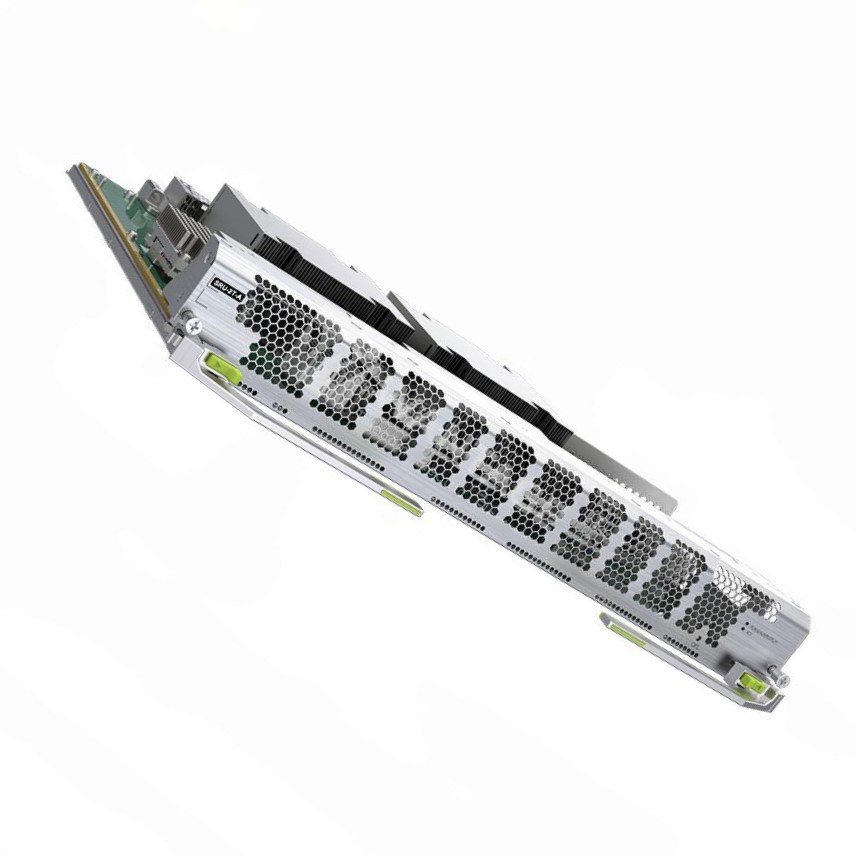

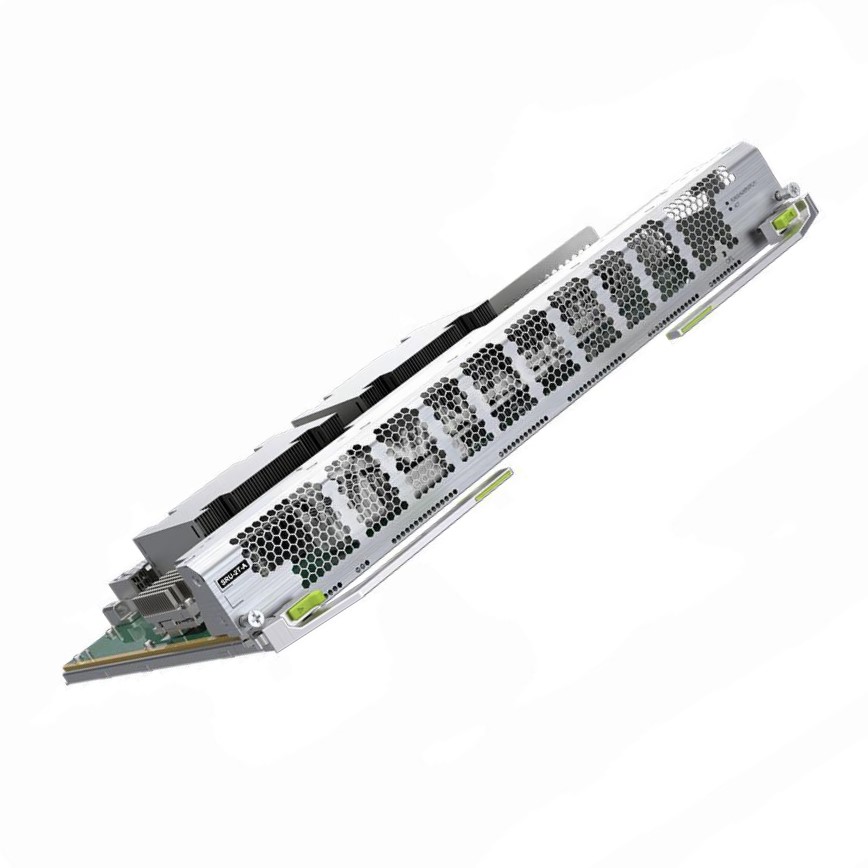

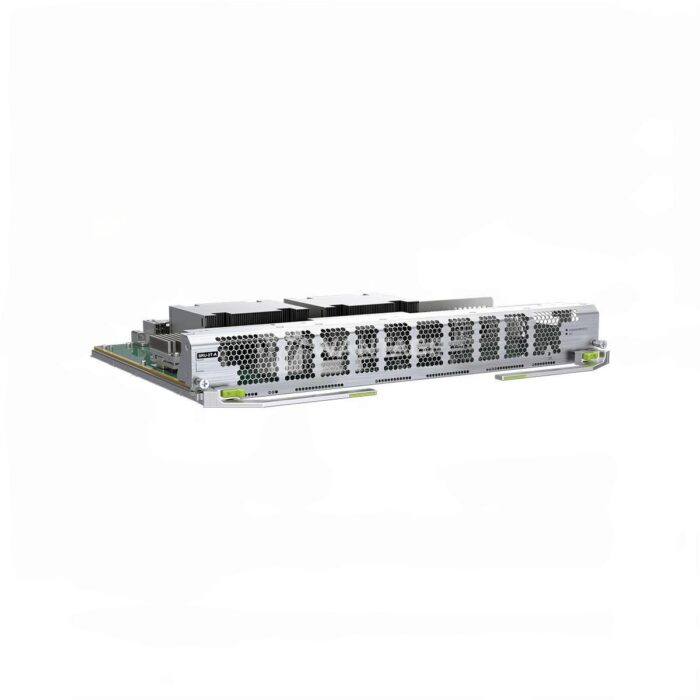

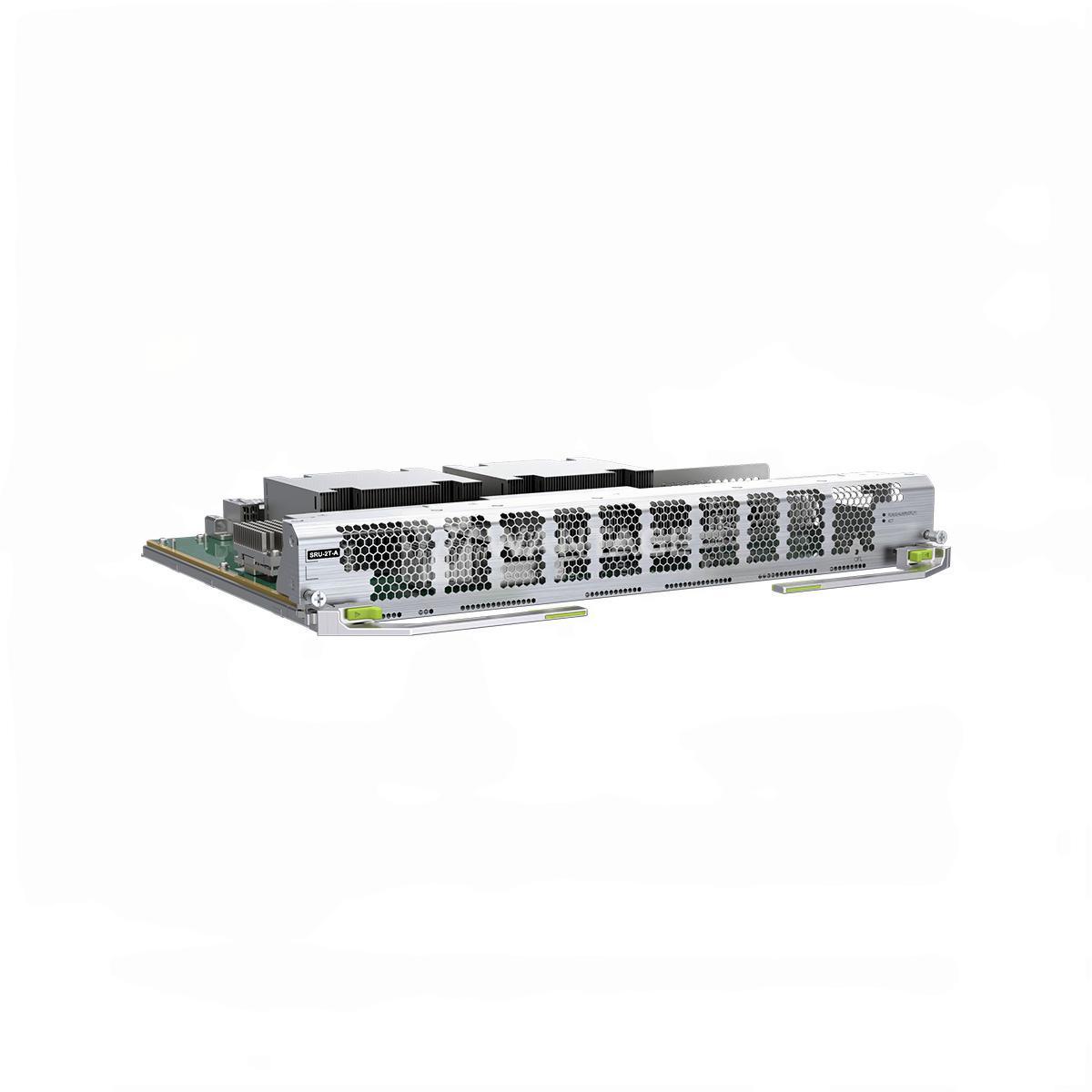

The CR8DSFUIK0C0 Huawei is an original, brand new NetEngine 8000 F8 2T Switch Routing Unit, purpose-built for Huawei’s high-end NetEngine 8000 series routers. As a high-capacity Switch Fabric & Routing Unit, it delivers up to 2 Terabits per second (2T) switching capability, enabling ultra-fast, efficient data forwarding and stable traffic distribution in carrier-grade networks.
This advanced unit integrates both switching and distributed routing functions, supporting massive bandwidth demands for next-generation IP backbone, large-scale data center interconnects, and ultra-broadband aggregation networks. Engineered for high reliability, the CR8DSFUIK0C0 features hot-swappable design, ensuring non-disruptive maintenance and upgrades with minimal impact on live network operations.
Key Features
-
Model: CR8DSFUIK0C0
-
Condition: 100% Brand New, Original Huawei
-
Type: NetEngine 8000 F8 2T Switch Fabric & Routing Unit (SFU)
-
Switching Capacity: Up to 2 Tbps high-speed switching
-
Function: Provides core switching fabric and distributed routing for scalable network architecture
-
Performance: High throughput, low latency, and carrier-grade stability
-
Hot Swappable: Supports live replacement and upgrades without downtime
-
Compatibility: Fully compatible with Huawei NetEngine 8000 F8 router chassis
Tech Specs
| Function | Description |
|---|---|
| Basic Function | 1. Switches and forwards packets in the system (Forwarding spec: 2T@256B). 2. Provides system control and management via management channels between the main control board and the SRU, allowing routing protocol data transmission. |
| Reliability and Availability | Boards work in 1:1 backup mode. If one board fails or is replaced, the other takes over to switch services, ensuring uninterrupted data transmission and improved system reliability. |
| Restrictions and Remarks | On F8 chassis: 1. Slots 3–6 support 400G/slot; Slots 1, 2, 7, and 8 support 200G/slot. 2. PIC1/3 in slots 1, 2, 7, and 8 do not support 10 Gbit/s or higher-speed subcards. |
| Breakout Supported | – |
| Interface Rate Auto-Sensing Supported | – |
| Link Protocol | – |
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions (with packaging) | 190 mm (H) x 590 mm (W) x 470 mm (D) |
| Weight (without packaging) | 5.05 kg |
| Weight (with packaging) | 7.3 kg |
| Typical Power Consumption | 380 W |
| Typical Heat Dissipation | 1232.9 BTU/hour |
| Long-term Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Short-term Operating Temperature | –5°C to +55°C (23°F to 131°F) |
| Switching Capacity | 2 Tbps |
| CPU | 16-core @ 2.0 GHz |
| SDRAM | 16 GB |
CR8DSFUIK0C0 Huawei Applications
The CR8DSFUIK0C0 Switch Routing Unit is ideally suited for:
• Carrier and ISP IP backbone network expansion
• Metro and core network aggregation
• 5G transport network and ultra-broadband projects
• Data center interconnect (DCI) solutions requiring massive capacity
• Large-scale enterprise WAN and MAN deployments
• Network upgrades for high bandwidth, low latency, and high availability
CR8DSFUIK0C0 Huawei Customization & OEM Services
We offer comprehensive customization and OEM services for the CR8DSFUIK0C0 to meet your project’s unique requirements:
• Pre-configuration and testing for plug-and-play deployment
• Private labeling and branding for partners and system integrators
• Custom packaging for bulk shipments and project rollouts
• Enhanced burn-in and stress testing for mission-critical use
CR8DSFUIK0C0 Huawei Wholesale & Bulk Orders
Source with confidence when you partner with us for bulk supply and wholesale distribution:
• Factory-direct pricing with attractive volume discounts
• Consistent stock and reliable lead times for large deployments
• Global shipping with safe, export-compliant packaging
• Dedicated account managers for smooth project handling
• Full technical support and comprehensive after-sales service
CR8DSFUIK0C0 Huawei Why Choose Us
100% Original Huawei Hardware — authentic, tested, and certified for carrier-grade performance
High-Capacity, Future-Ready — powerful 2T switching for next-gen network demands
Flexible Solutions — tailored to diverse carrier and enterprise requirements
Competitive Pricing & Bulk Discounts — ideal for ISPs, telecom operators, and system integrators
Professional Packaging & Logistics — safe global delivery with tracking
Expert Support — from planning to after-sales service
Contact Us for a Quote
Empower your network with the CR8DSFUIK0C0 Huawei NetEngine 8000 F8 2T Switch Routing Unit — the trusted choice for building robust, high-capacity, future-ready core network infrastructures. Contact our team today for technical specs, bulk pricing, or customization options. We’re ready to support your project with original Huawei solutions that keep you ahead.
