- Model Number:C300
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:ZTE
- Use:FTTH
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- model:C300
- brand name:ZTE
- Dimensions:10U (443.7 *482.6 *70 mm)
- Management interfaces:CLI, SSH, SNMP, telnet
- Switching capacity:800 Gb / s
- Power supply:48V DC
- service board:ETGO GTGO ETGH GTGH
- Fiber port:8~240 ports
- maximum differential distance:20 km
- Cable type:Optical fiber
-
- Supply Ability
- 100 Piece/Pieces per Month
-
- Packaging Details
1pcs/ctn
-
- Port
Shanghai/Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description
As an OLT system, the ZTE C300 offers a lot of space for expansion cards, allowing you to build a fast network based on fiber optic cables and GPON / EPON technologies . The device guarantees high performance, which is ideal for “triple-play” applications- VoIP , IPTV and CATV .
![](http://s.alicdn.com/@sc04/kf/H22281d495ff346f1b24c3d8f617afd37A/258088691/H22281d495ff346f1b24c3d8f617afd37A.png?quality=close)
Model
|
ZTE C300
|
Mounting plate capability
|
5.76 Tb/s
|
Switching capacity
|
800 Gb/s
|
Number of slots for service cards
|
14 (GPON / P2P / XG-PON1)
|
Number of places for control cards
|
2
|
Number of slots for power cards
|
2
|
Number of Uplink card slots
|
2 (10 GE / GE / FE / E1 / T1)
|
Dimensions
|
10U (443.7 mm x 482.6 mm x 270 mm)
|
Power supply
|
48 V (DC)
|
Downstream wavelength
|
1490 nm
|
Upstream wavelength
|
1310 nm
|
CATV wavelength
|
1550 nm
|
Air pressure
|
70 kPa – 106 kPa
|
Working conditions
|
Temperature: -25°C to 55°C
|
Humidity: 5%-95%
|

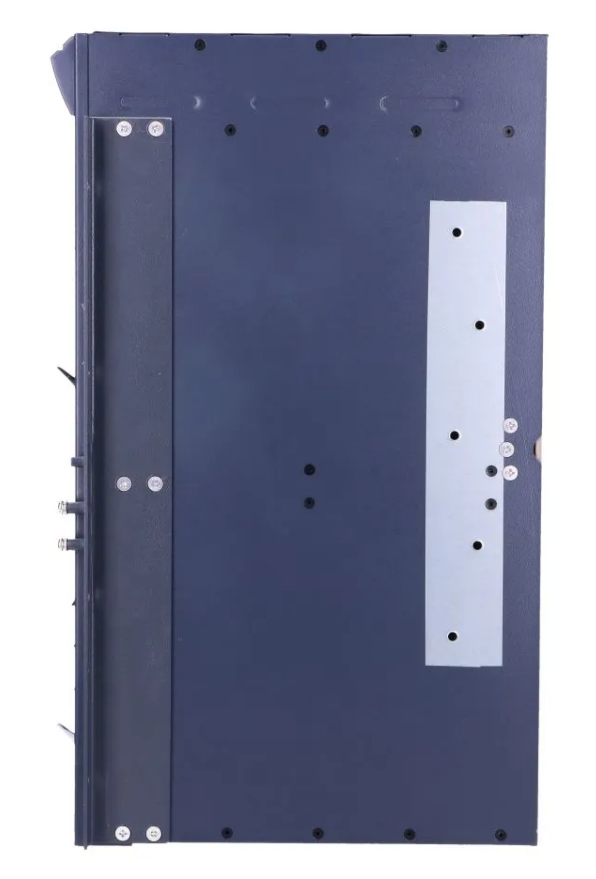

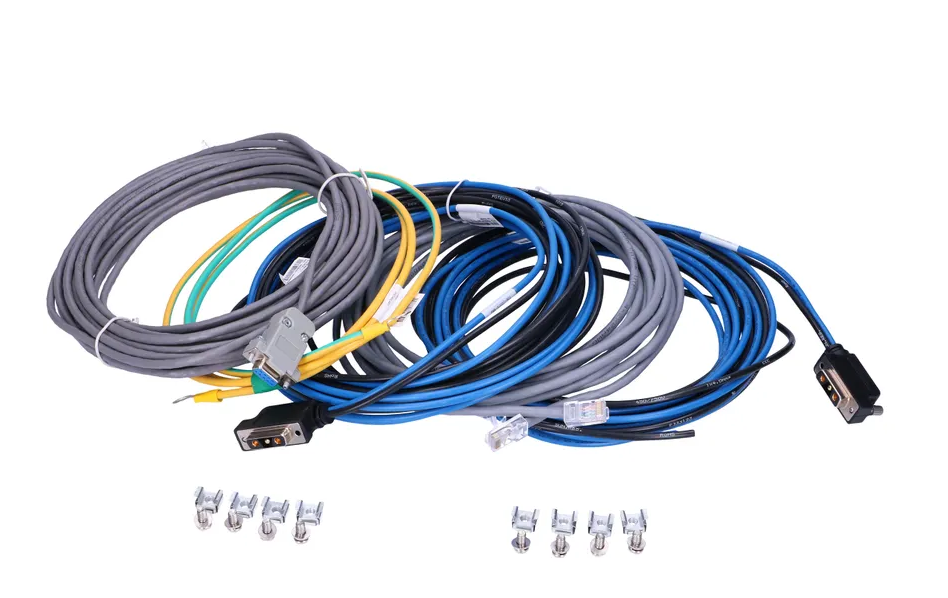

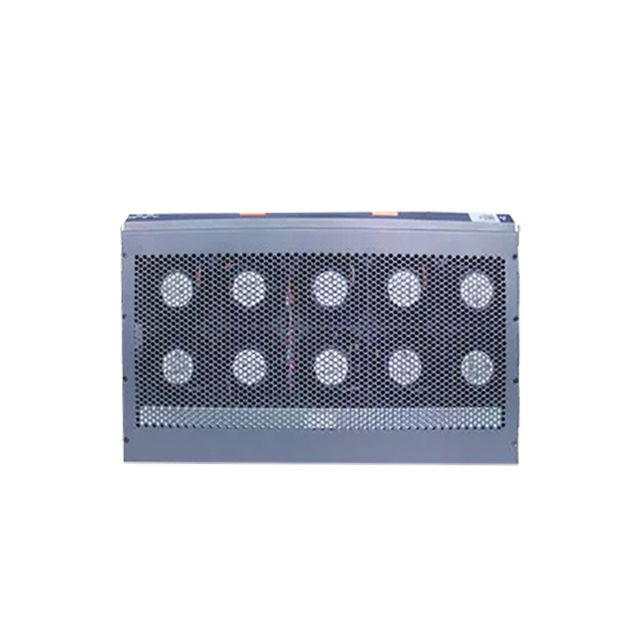

Details Images
![](http://s.alicdn.com/@sc04/kf/H4bc5992892b04aa8a0699732f4922bd53/258088691/H4bc5992892b04aa8a0699732f4922bd53.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H45290010dbca432fb1843e5f3c7e77a9J/258088691/H45290010dbca432fb1843e5f3c7e77a9J.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H22281d495ff346f1b24c3d8f617afd37A/258088691/H22281d495ff346f1b24c3d8f617afd37A.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H1a87cb6d4615419ca33e883c9ce4903fm/258088691/H1a87cb6d4615419ca33e883c9ce4903fm.png?quality=close)
Multiple configuration
![](http://s.alicdn.com/@sc04/kf/H9b95043743644f9ea71ecb2dcfc83878L/258088691/H9b95043743644f9ea71ecb2dcfc83878L.jpg?quality=close)
Application
![](http://s.alicdn.com/@sc04/kf/Hf064daab5a6a4c3db4d7edfb4358e371e/258088691/Hf064daab5a6a4c3db4d7edfb4358e371e.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H2ffa90c6903240adb6eac34788873085W/258088691/H2ffa90c6903240adb6eac34788873085W.png?quality=close)
