• Model Number:FS-02C
  • Type:Fiber fusion splicer
  • Place of Origin:Zhejiang, China
  • Use:engineering
  • Warranty Time:1 year
  • Network:None
  • Product name:FS-02C Fiber Optic Fusion Splicer
  • model:FS-02C
  • Application Fibers:SM,MM,EDF,NZDS
  • Coating Diameter:0.1~1.0mm ,2.0mm ,3.0mm
  • Cladding Diamter:80um~150um
  • Core Quantity:Single mode
  • Operating tem:-10°C~+50°C
  • Heating time:10s~255s
  • Heating Length:≤60mm
  • Shifted fiber:0.04db
  • Supply Ability
    10000 Piece/Pieces per Month
  • Packaging Details

    box

  • Port

    Shanghai/Ningbo

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 10>10Lead time (days)7To be negotiated
Product Description
FS-02C Obtaining 16 patents of invention and 58 technical innovations, a brand-new product—FS02C Optical.Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.02C implements industrial-grade CPU+FPGA structure of high -performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. 02C lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.
Product Paramenters
Model
FS-02C
Splice loss
SM fiber :0.03dB,MM fiber:0.01db
Shifted fiber
0.04db
Splice time
7s
Monitor
4.3 inch TFT color LCD
USB port
System update and data transmission
Power Supply
Supply External DC power Input
battery
Lithium-ion 11.1V , ≥5.2Ah
Dimension
120*130*154mm

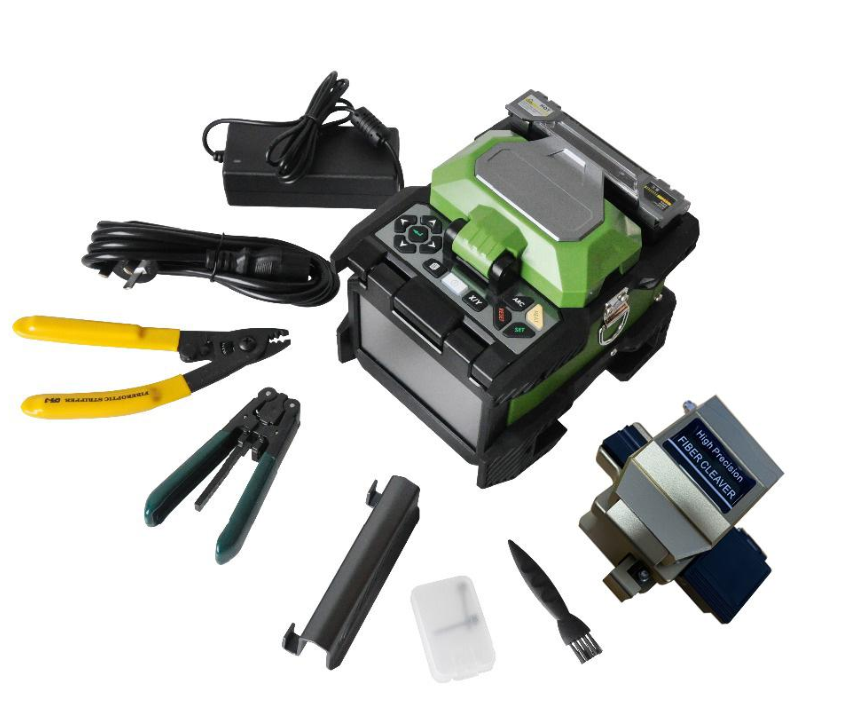

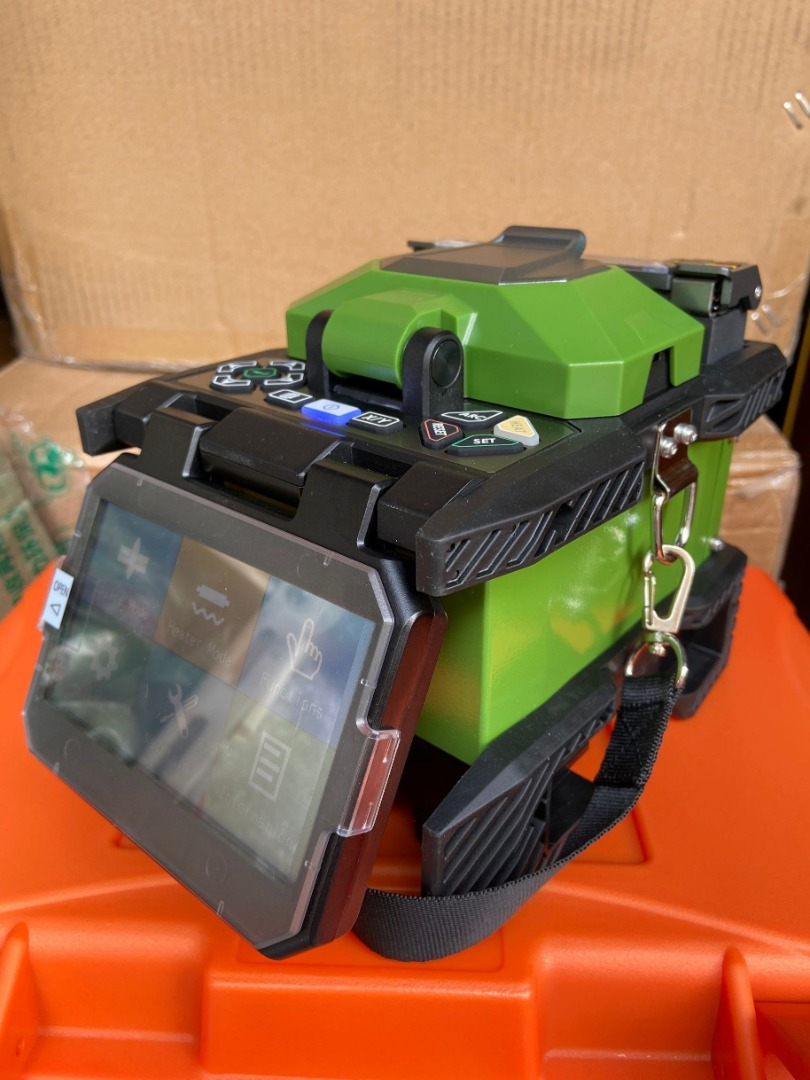

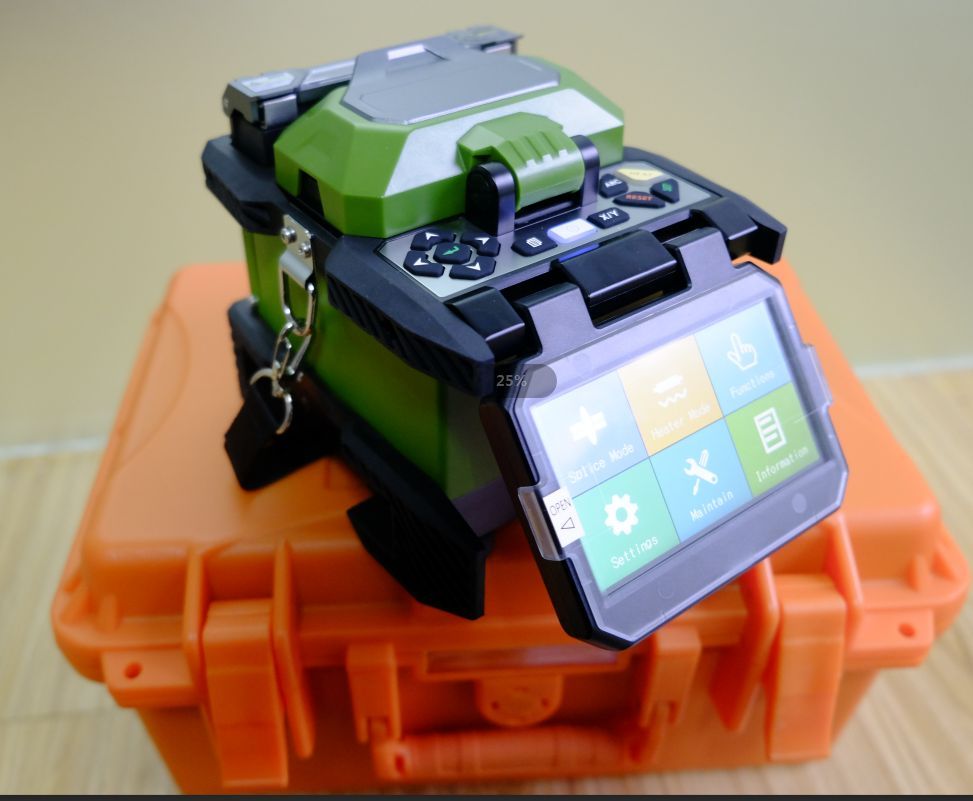

Details Images

Features

1. Precise fiber alignment, ultra-low fiber fusion splicing2. consumption 7s fast fusion splicing, 18s highly3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short4. cutting length300 groups of fusion splicing modes, 100 groups of heating mod5. 10000 groups of fusion records, 64 images storage Ceramic presser foot,6. ceramic V-block, all-in-one fixture7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation8. USB and SD card interfaces, U-disk automatic software upgrade9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles

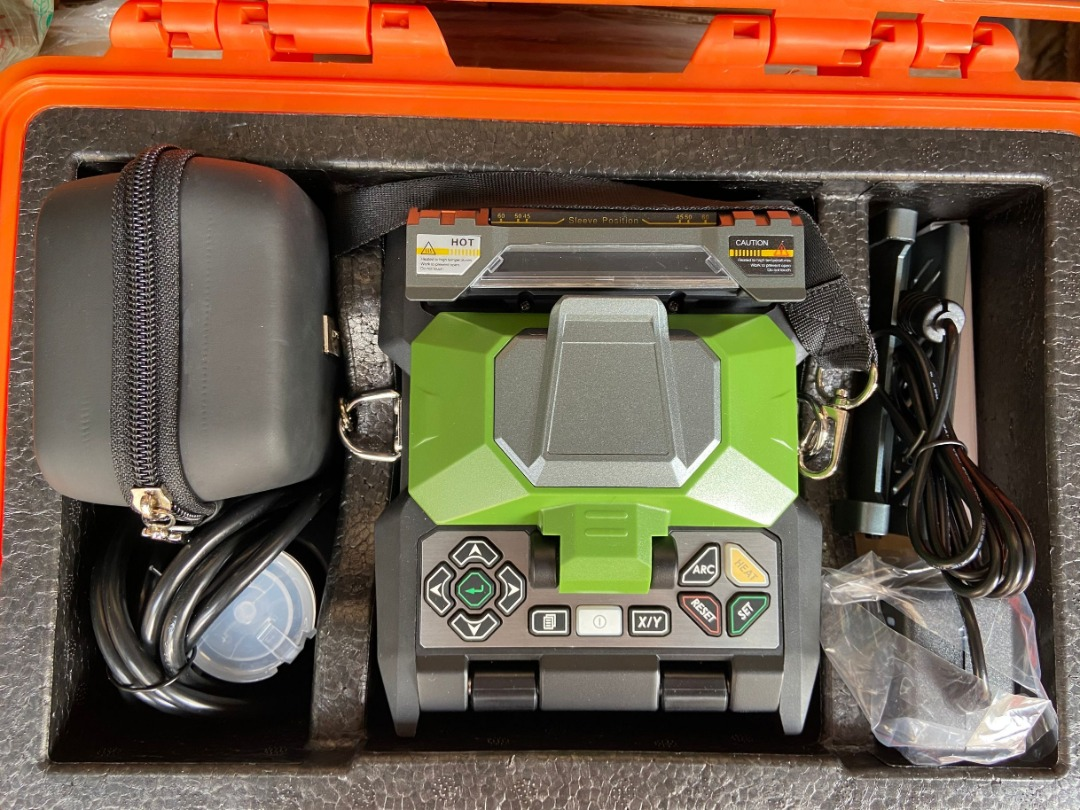

Packing&Shipping
Specification

120*130*154mm
