- Model Number:XGS-PON&GPON-OLT-Class C+
- Type:Other
- Place of Origin:GUA
- Brand Name:Huawei
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Overview
Huawei SFP XGS-PON&GPON-OLT Class C+ Module is Symmetric 10GPON & GPON Combo Optical Module applied to Huawei MA5800 OLT XGS-PON & GPON Combo board, typically CSHF and CSHD.
Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XGS-PON XG-PON and GPON access services. The service board is used for Huawei MA5800 X2, X7, X15, X17 NG OLT system, Supporting XGS-PON, XG-PON and GPON, Max split radio: 1:256. GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: Tx: 9.953Gbit/s, Rx: 9.953/2.488Gbit/s. The MA5800, the multi-service access device, is a 4K/8K/VR ready OLT for the Gigaband era. It employs distributed architecture and supports PON/10G PON/GE/10GE in one platform. The MA5800 aggregates services transmitted over different media, provides an optimal 4K/8K/VR video experience, implements service-based virtualization, and supports smooth evolution to 50G PON.
Specifications
Brand | Huawei |
Model | XGS-PON&GPON-OLT Class C+ |
Extinction Ratio | 8.2dB |
Type | Class C+ |
Optical Connector Type | SC |
Encapsulation Type | SFP+ |
Optical Fiber Type | Single-mode |
Operating Wavelength | GPON Channel: Tx:1490nm Rx:1310nm XGS-PON Channel: Tx: 1577nm Rx:1270nm |
Port Rate | GPON Channel: Tx: 2.488Gbit/s Rx: 1.244Gbit/s XGS-PON Channel: Tx: 9.953Gbit/s Rx: 9.953/2.488Gbit/s |
Minimum Output Optical Power | GPON Channel: 3dBm XGS-PON Channel: 5dBm |
Maximum Output Optical Power | GPON Channel: 7dBm XGS-PON Channel: 8dBm |
Maximum Receiver Sensitivity | GPON Channel:-32dBm XG-PON Channel: -30.5dBm XGS-PON Channel:-29dBm |
Overload Optical Power | GPON Channel:-12dBm XG-PON Channel: -10dBm XGS-PON Channel: -8dBm |

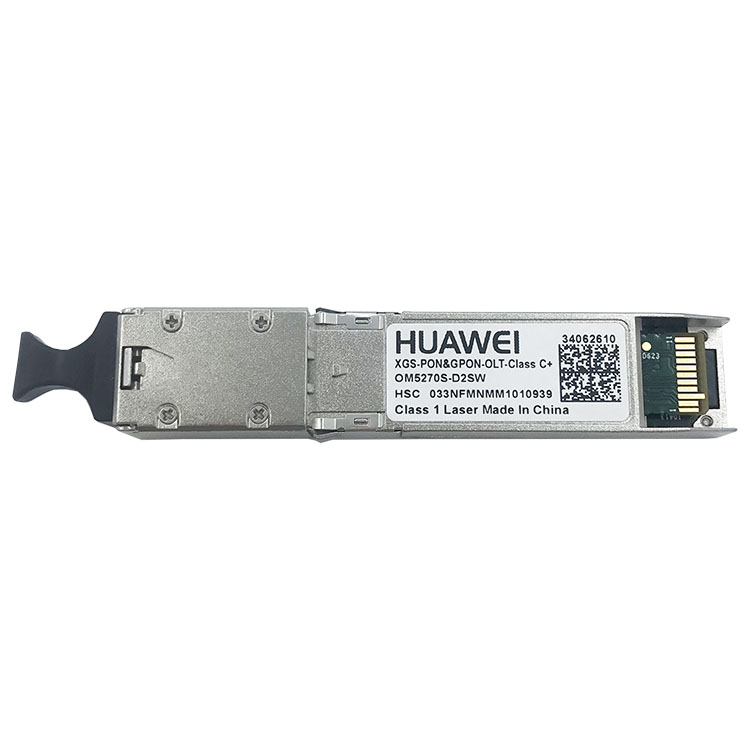

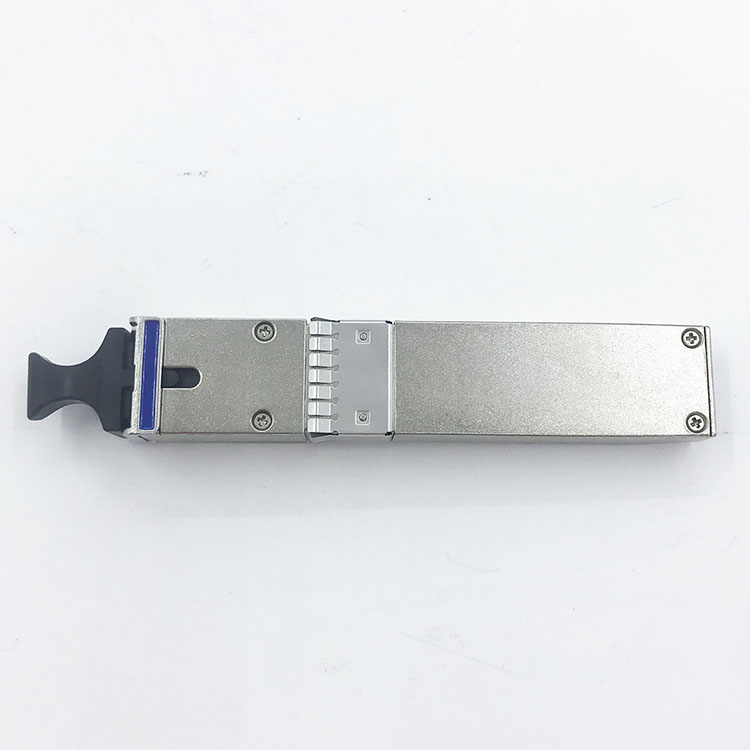

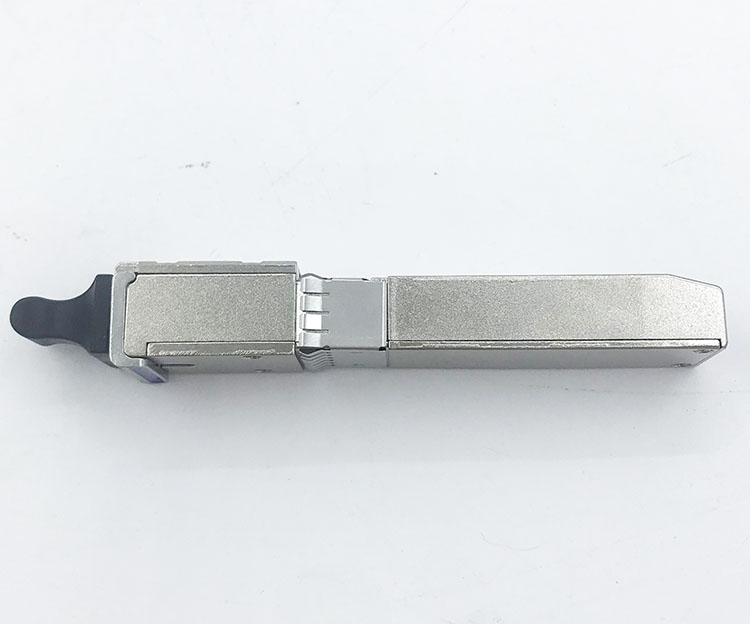

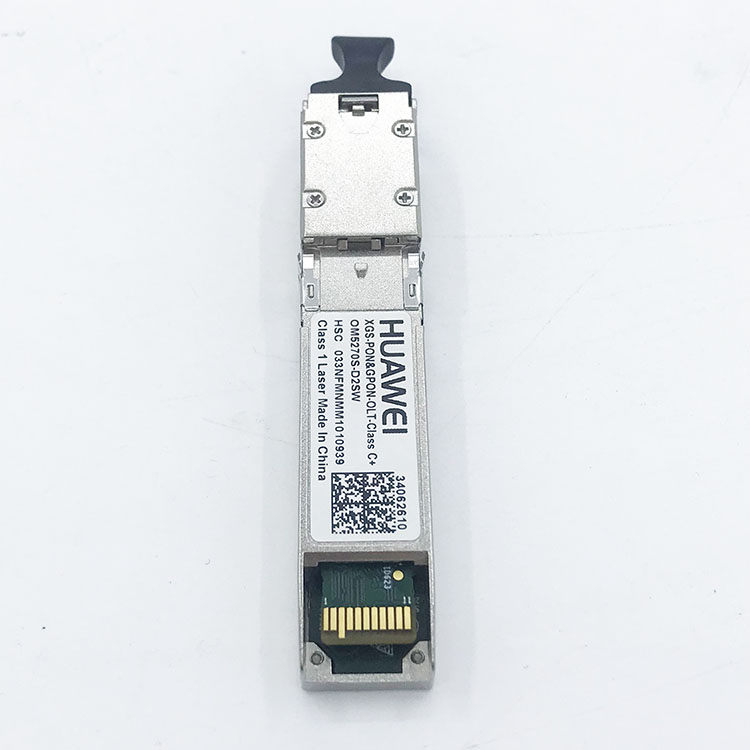

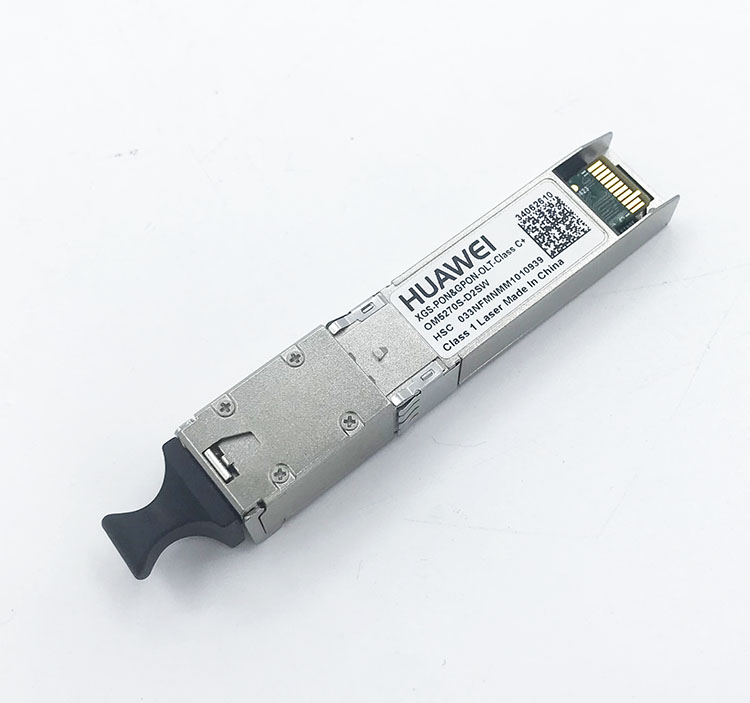

Product Pictures
