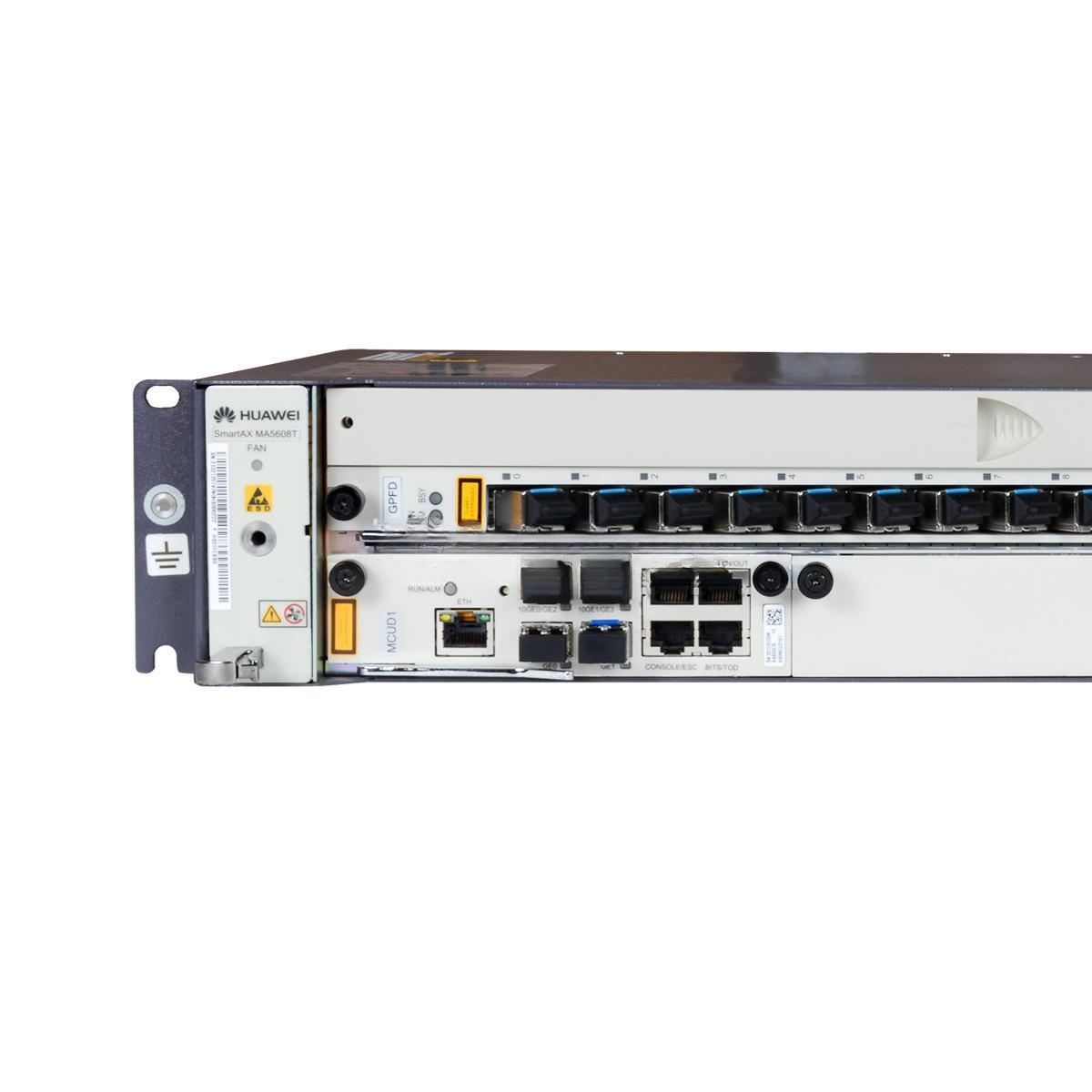

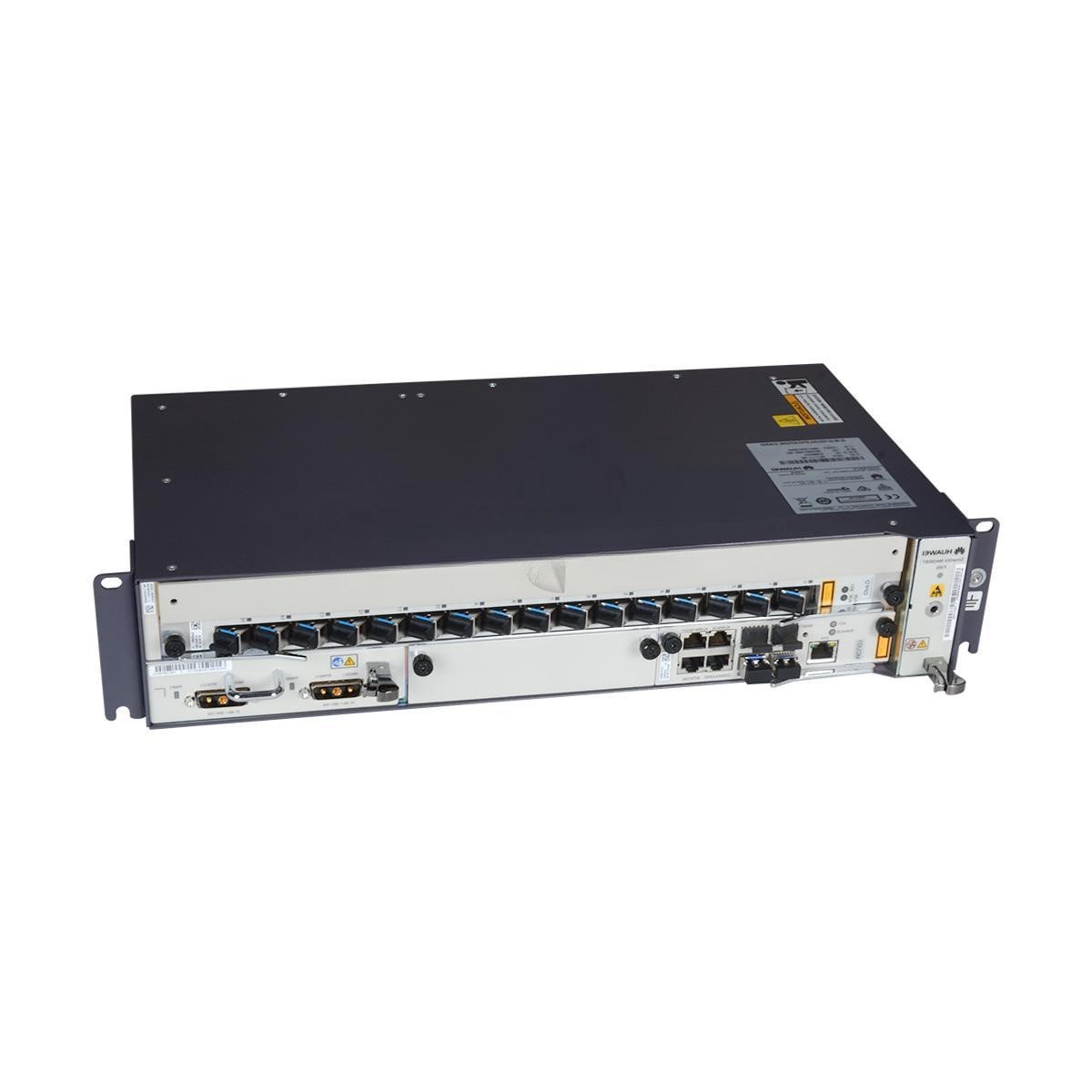

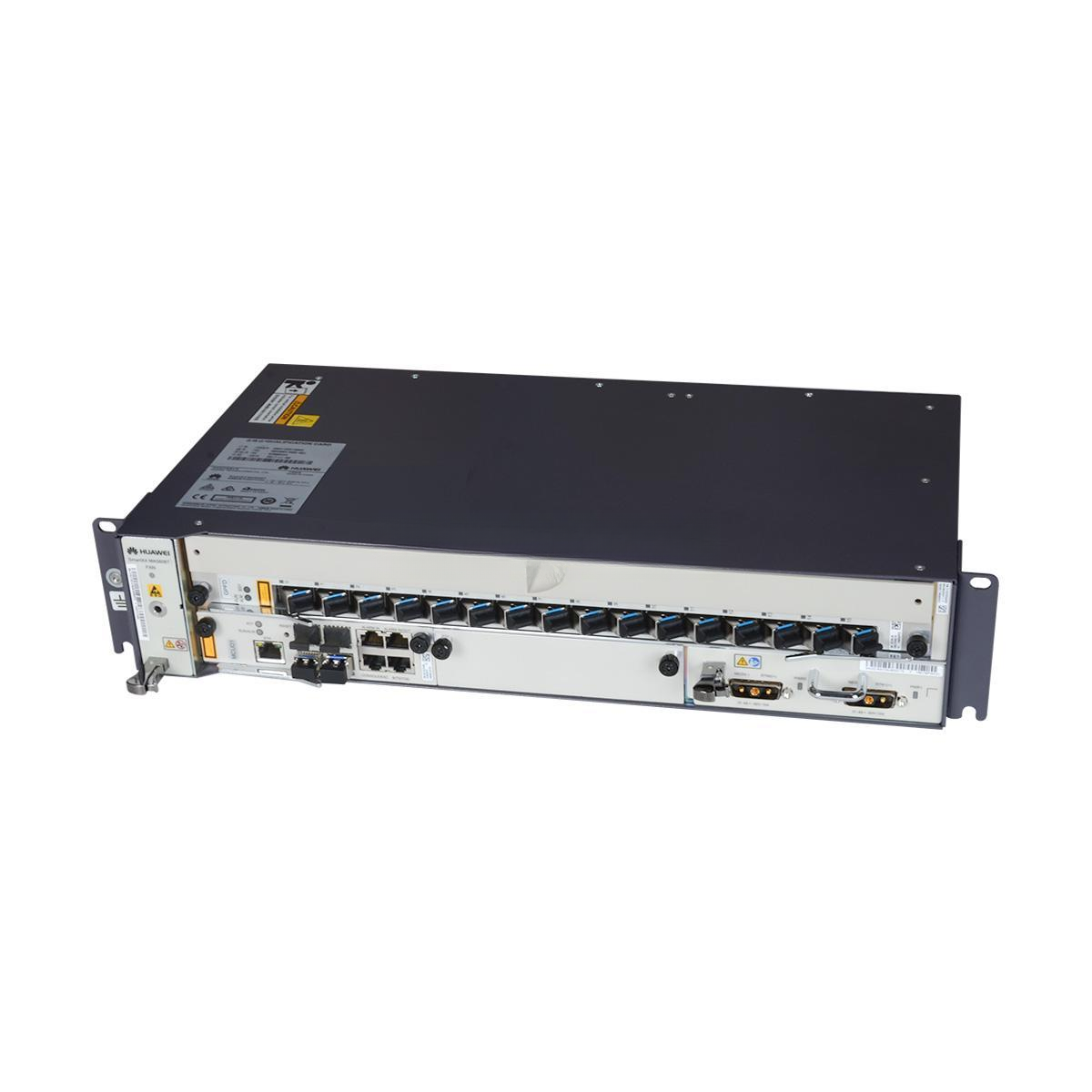

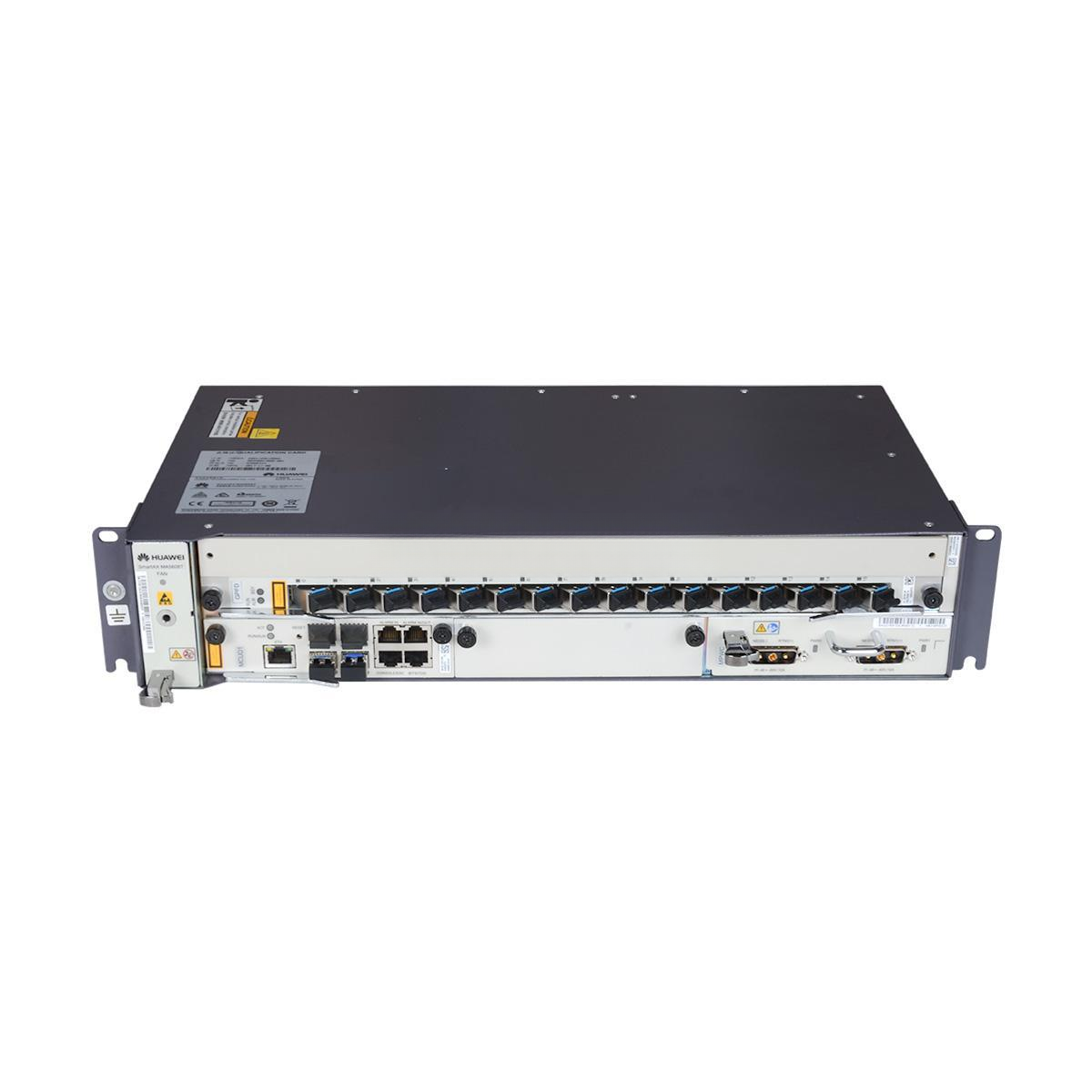

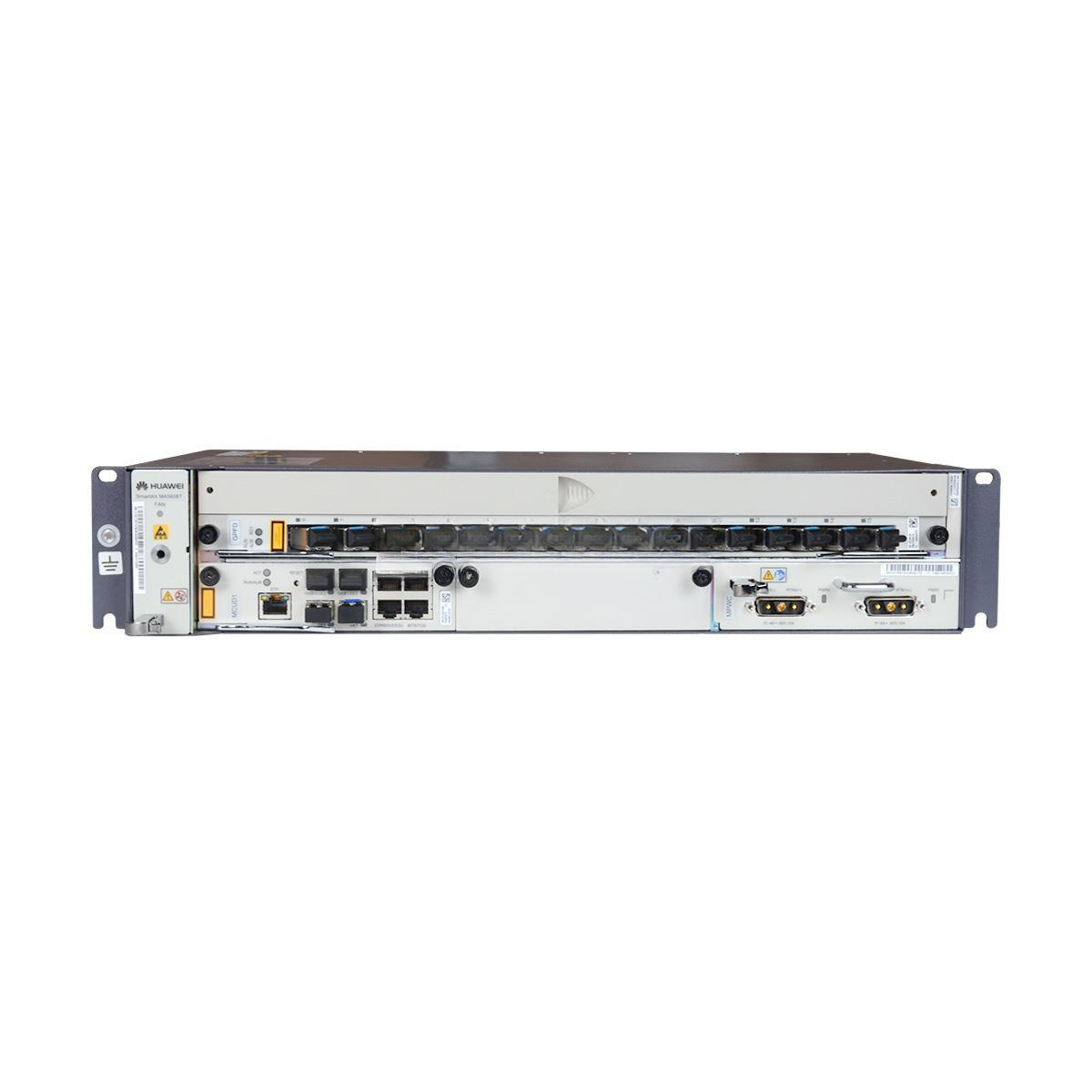

Huawei MA5608T – New 10GE Compact GPON OLT | 16GPON C+ Ports + DC Power + Main Control Board
Product Overview
The Huawei MA5608T is a carrier-grade mini Optical Line Terminal (OLT) designed for cost-effective and high-density FTTH/FTTx access scenarios. This specific configuration includes a Single 10GE uplink interface, 16-port GPON C+ service board, DC power input, and main control board, making it a ready-to-deploy solution for ISPs, telecom providers, and rural broadband projects.
Compact and modular, the MA5608T supports smooth migration to 10G PON, full OMCI/CLI/SNMP management, and reliable Layer 2/3 service capabilities. It ensures stable delivery of Triple-Play (Internet, VoIP, IPTV) services over passive optical networks.
Included Configuration of Huawei MA5608T
| Component | Details |
|---|---|
| OLT Model | Huawei MA5608T – New, Branded |
| Uplink Interface | 1 × 10GE SFP+ |
| Service Ports | 1 × 16-Port GPON C+ Board (Class C+ optics) |
| Main Control Board | Integrated SCUN/SRU (Main CPU & Management) |
| Power Supply | DC (-48V) input, carrier-grade terminal block |
| Enclosure | 19” Rack-Mountable, Compact 1U Design |
| Condition | Brand New, Huawei Original, Factory Sealed |
Huawei MA5608T Technical Specifications
| Specification | Value |
|---|---|
| Switching Capacity | 480 Gbps total |
| Forwarding Performance | 192 Mpps |
| GPON Port Specs | 16 × GPON C+ (2.5G downstream / 1.25G upstream) |
| Split Ratio Supported | Up to 1:128 per port |
| Uplink Interface | 1 × 10GE (SFP+) |
| Subscriber Capacity | Up to 2048 ONUs supported |
| Management Interfaces | CLI, SNMP, OMCI, Web GUI |
| Fiber Type | Singlemode (SC/PC or SC/APC) |
| Power Supply | DC -48V (Dual feed optional) |
| Operating Temperature | -40°C to +65°C |
| Dimensions | 442mm × 220mm × 43.6mm (1U height) |
| Weight | Approx. 4.5 kg (fully loaded) |
| Compliance | ITU-T G.984, G.988, CE, RoHS, GR-1089, GR-3108 |
Huawei MA5608T Applications
-
🏘️ FTTH (Fiber to the Home) & FTTB Access Networks
-
🏢 MDU and Residential Campus Solutions
-
📡 Rural Broadband Projects (Universal Service Funds)
-
☁️ Triple-Play Services: Internet, IPTV, and Voice
-
🔌 Distributed ODN/GPON/XPON Architecture Deployments
Customization & Expansion Options
-
🔧 Service Board Variants: 8P GPON, 16P GPON, XG-PON, Combo PON
-
🔧 Redundancy Options: Dual DC Power, Dual Control Boards (optional)
-
🔧 Uplink Expansion: Add 2nd GE/10GE uplink via combo interface board
-
🔧 Compatible ONUs: EG8145V5, HG8010H, HG8546M, and more
-
🔧 Enclosures: Wall mount, outdoor, or IP-rated field enclosures available
-
🔧 Pre-Loaded Option: With splitters, patch cords, and adapter panels
📦 Tech Specs – GPON OLT Chassis Configuration (H801MCUD1)
⚙️ Configuration
| Component | Specification |
|---|---|
| Main Control Board | H801MCUD1: 1 |
| Upstream Ports | 10GE SFP+: 2 GE SFP: 2 |
| GPON Ports | 16 |
| Service Slots Remaining | 1 |
| Power Supply Mode | DC power supply: -48 V DC |
📐 Device Specifications
| Attribute | Details |
|---|---|
| Dimensions (W × D × H) | 482.6mm × 244.5mm × 88.1mm (IEC cabinet compatible) |
| Weight (Empty Chassis) | 7.5 kg |
Wholesale & Project Supply Advantages
Tailored for telecom contractors, ISPs, OEM solution integrators, and FTTH operators:
-
📦 Volume Discounts & Short Lead Times
-
📦 OEM Branding and Custom Labeling Available
-
📦 Documentation Provided: CE, RoHS, Certificate of Origin, Huawei Test Report
-
📦 Project Kits with ONUs, Splitters, Adapters, and Patch Cords
-
📦 Remote Support for Configuration and Provisioning
Why Choose Huawei MA5608T with 10GE Uplink?
-
✔️ Compact Yet Powerful – Perfect for Space-Constrained Deployments
-
✔️ 10GE Uplink Ready – Smooth Upgrade from GE Backhaul
-
✔️ Integrated 16 GPON Ports – Up to 2048 Subscribers
-
✔️ High Reliability – Supports Dual Power and Redundancy
-
✔️ Easy to Manage – Supports SNMP, CLI, and Web GUI
Order Now
Power your FTTH deployment with the Huawei MA5608T OLT – equipped with 16 GPON C+ ports, 10GE uplink, DC power input, and main control board. A compact, high-efficiency solution trusted by telecom carriers worldwide.
