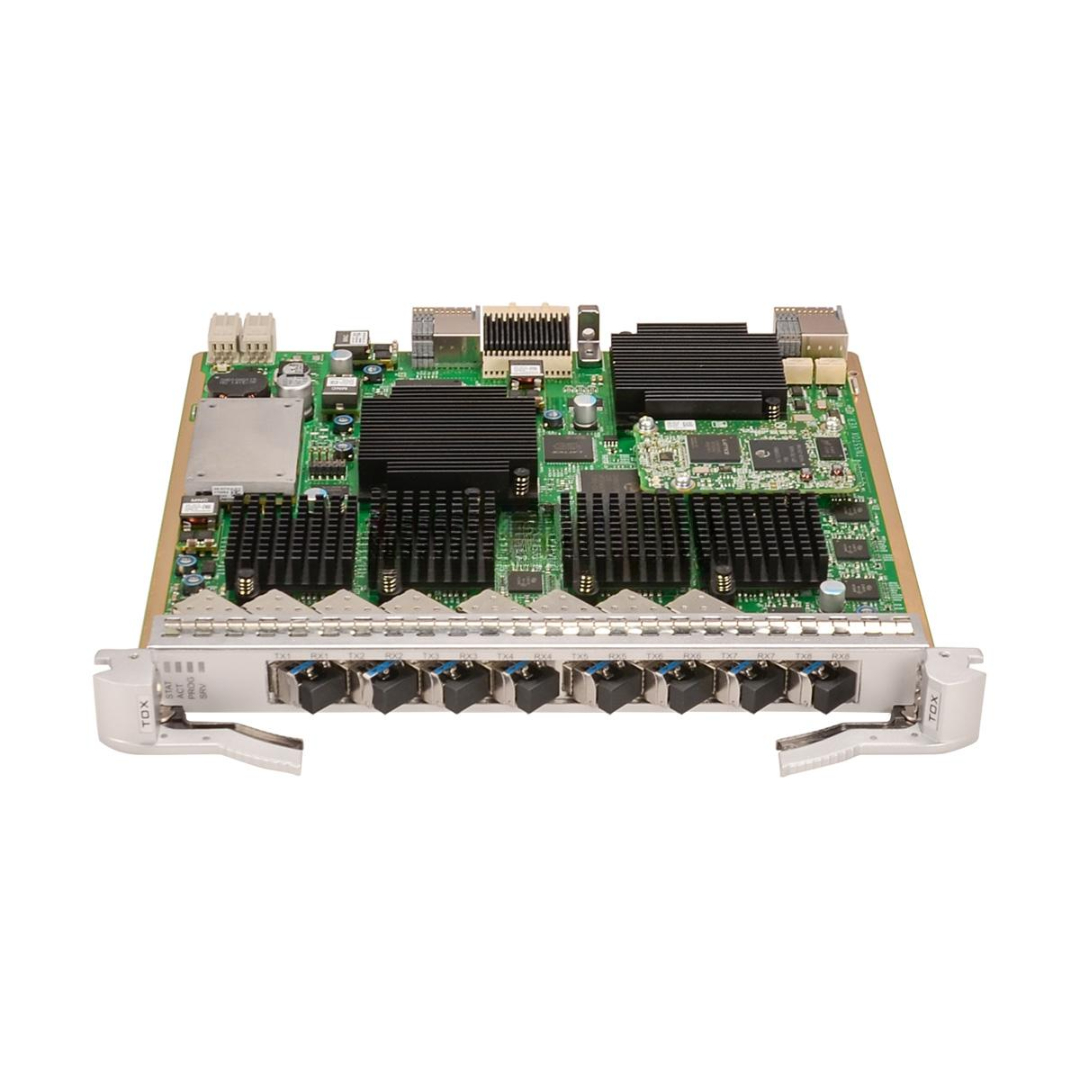

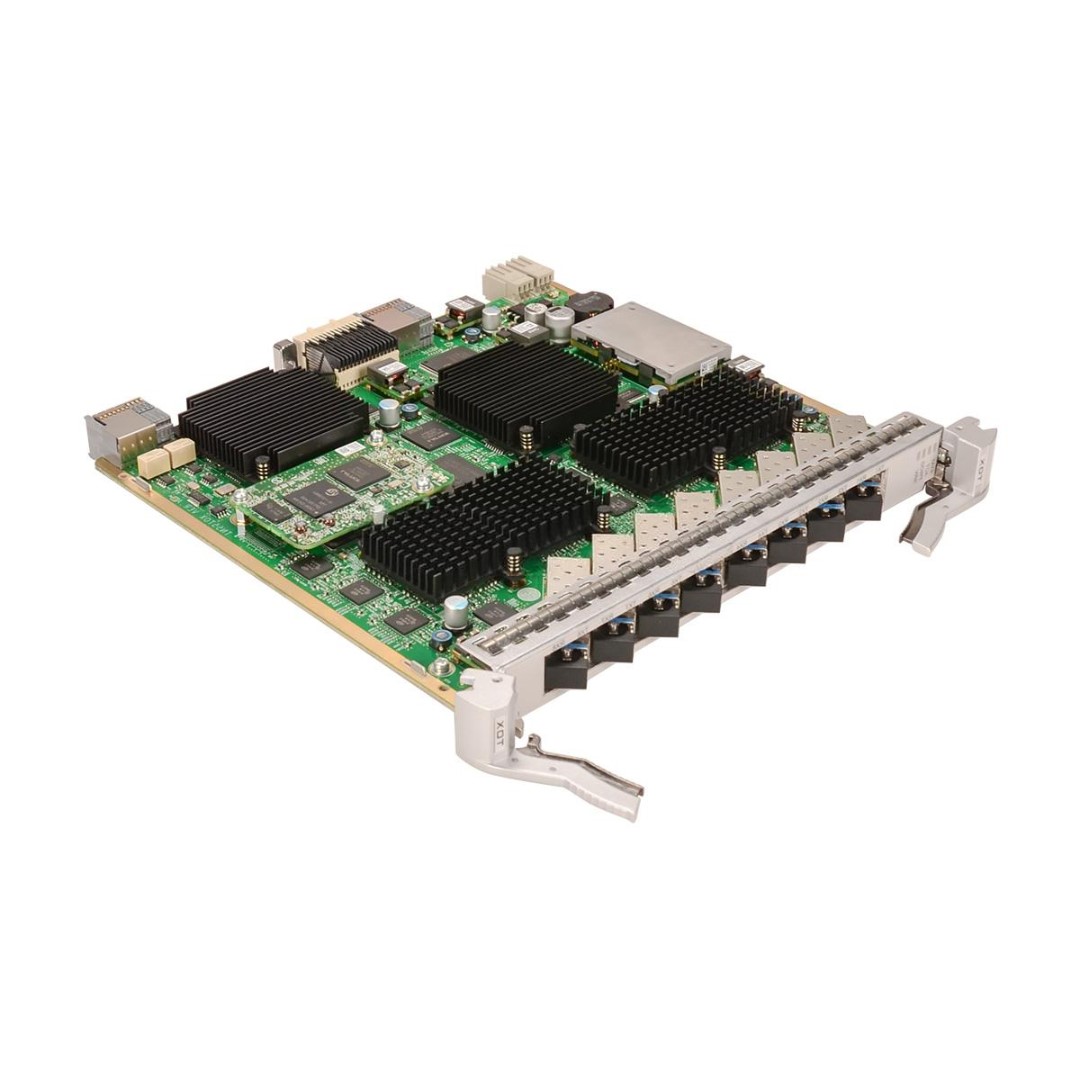

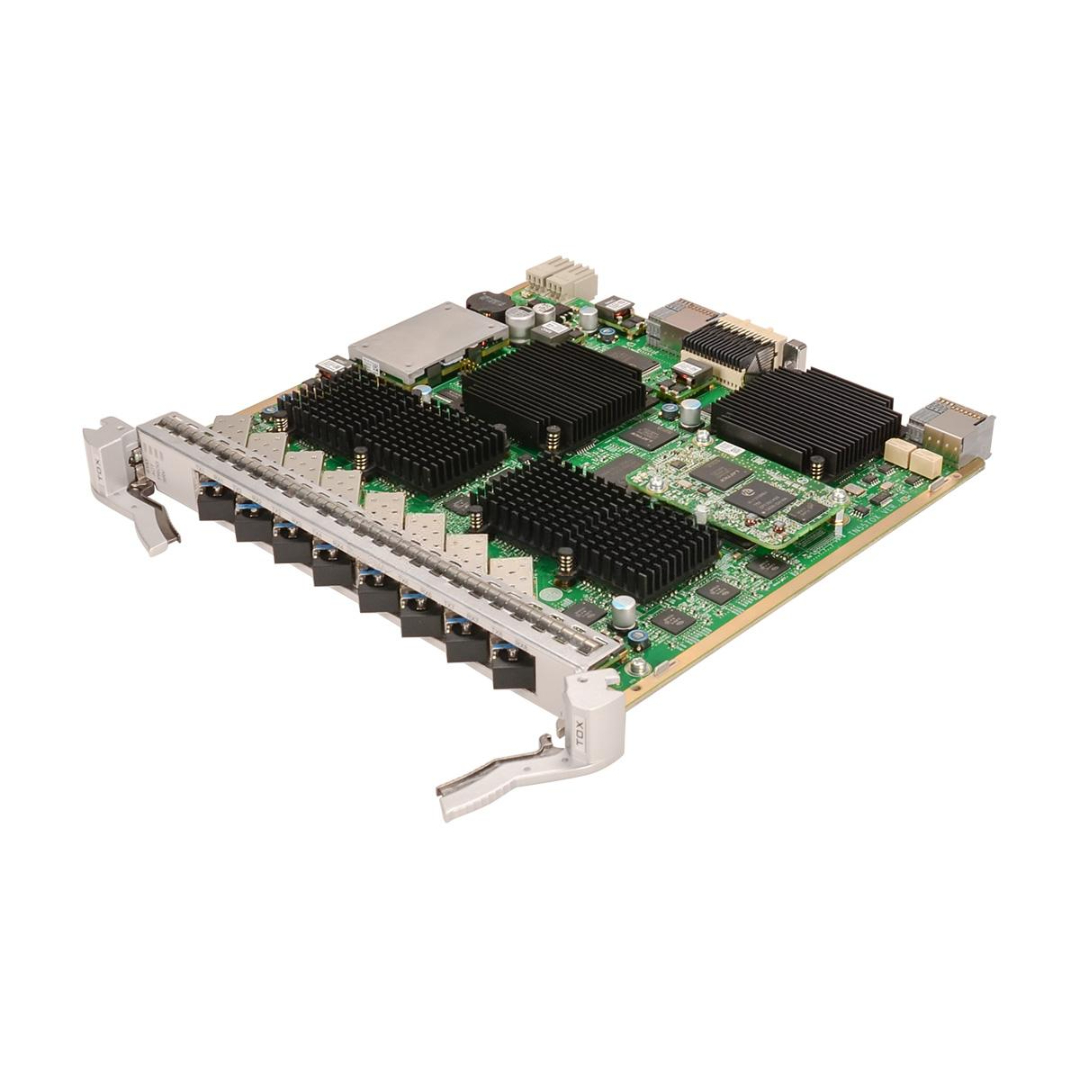

Huawei OSN8800 8×10G Tributary Service Processing Board – High-Capacity Optical Transport Module | Brand New & Original
Product Overview
The Huawei OSN8800 8×10G Tributary Service Processing Board is a high-density optical interface module designed for the OSN8800 series of Optical Transport Network (OTN) equipment. This board provides 8 channels of 10 Gbps optical tributary interfaces, enabling flexible, efficient, and reliable service access for next-generation optical networks.
Ideal for metro core, long-haul transmission, and data center interconnect (DCI) environments, this 8x10G board ensures superior performance in WDM/OTN transmission platforms, supporting multi-service transport over dense wavelength division multiplexing (DWDM) infrastructure.
Key Features of Huawei OSN8800 8×10G Processing Board
-
✅ 8 × 10Gbps Optical Interfaces
-
✅ Supports OTN Mapping (ODU2/ODU2e/ODUflex)
-
✅ Compatible with OSN8800 T16/T32/Universal Subracks
-
✅ Supports Standard & Extended Wavelengths
-
✅ Full-FEC (Forward Error Correction) Capabilities
-
✅ Brand New – Huawei Original Equipment (Sealed)
Huawei OSN8800 8×10G Processing Board Technical Specifications
| Specification | Details |
|---|---|
| Model Type | Tributary Service Processing Board – 8x10G Optical Ports |
| Port Count | 8 Ports × 10Gbps Optical (SFP+/XFP-Based) |
| Interface Type | STM-64/OC-192, 10GE LAN, 10GE WAN |
| OTN Support | ODU2, ODU2e, ODUflex Mapping and Multiplexing |
| FEC Support | Standard GFEC / HFEC for long-distance transmission |
| Line Rate | Up to 8 × 11.1 Gbps per port |
| Transmission Mode | Transparent, Muxponder, and Regenerator Modes |
| Client Compatibility | 10G Ethernet, SDH/SONET, Fibre Channel (10G FC) |
| Compatible Platforms | Huawei OSN8800 T16, OSN8800 T32, and Universal Subracks |
| Operating Temperature | -5°C to +45°C |
| Power Consumption | ≤ 80W (depending on services and optics used) |
| Installation | Hot-Swappable Module |
Huawei OSN8800 8×10G Processing Board Applications
-
🌐 High-Density 10G Client Signal Access in Metro Core Networks
-
☁️ Data Center Interconnection via OTN/WDM
-
📡 Carrier-Grade Optical Transport Over DWDM Infrastructure
-
🔁 Traffic Aggregation for Long-Haul & Cross-Connect Systems
-
🏢 Multi-Service Edge Node and POP Facility Integration

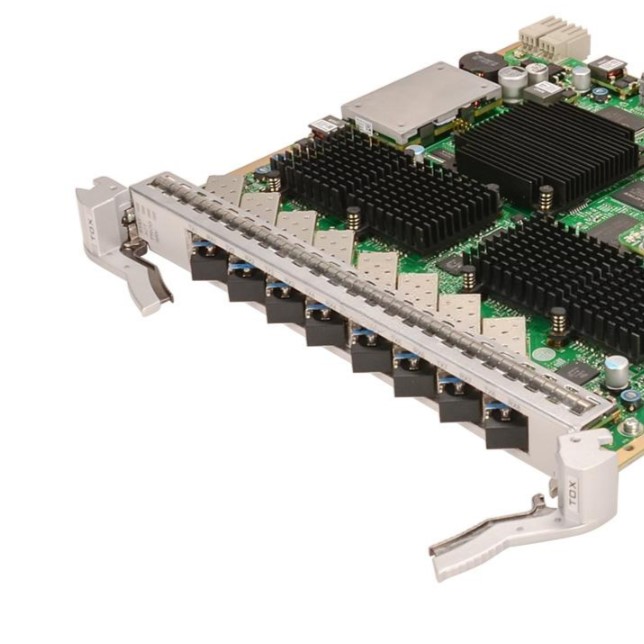

Huawei TOX Board – Technical Specifications
| Category | Details |
|---|---|
| Front Panel | Includes indicators and interfaces. |
| Valid Slots | Enhanced OSN 8800 T64: IU1–IU8, IU11–IU42, IU45–IU68 Enhanced OSN 8800 T32: IU1–IU8, IU12–IU27, IU29–IU36 General OSN 8800 T32: IU1–IU8, IU12–IU27, IU29–IU36 OSN 8800 T16: IU1–IU8, IU11–IU18 |
| Client-side Optical Interface | |
| Optical Module Type | 10G BASE-LR-10 km-SFP+ |
| Optical Service Rate | 10.3125 Gbit/s |
| Optical Source Type | SLM |
| Line Code Format | NRZ |
| Target Transmission Distance | 10 km |
| Transmitter Parameters (Point S) | |
| Operating Wavelength Range | 1260 – 1355 nm |
| Max Mean Launched Power | 0.5 dBm |
| Min Mean Launched Power | –8.2 dBm |
| Min Extinction Ratio | 3.5 dB |
| Laser Shutdown Output Power | ≤ –30 dBm |
| Eye Pattern Mask Compliance | IEEE 802.3z |
| Receiver Parameters (Point R) | |
| Receiver Type | PIN |
| Operating Wavelength Range | 1260 – 1355 nm |
| Receiver Sensitivity | –12.6 dBm (OMA) |
| Receiver Overload | 0.5 dBm |
| Minimum Reflectance | –12 dB |
| Mechanical Specifications | |
| Dimensions (W x D x H) | 25.4 mm × 220 mm × 264.6 mm |
| Weight | 1.42 kg |
Wholesale & Customization Options
-
📦 Bulk Quantity Discounts for Telecom Projects & Distributors
-
📑 Includes Test Reports, COO, CE, and RoHS Certificates
-
🏷️ OEM Labeling, Custom Part Numbers, and Pre-Integration Available
-
🛠️ Service Cards Can Be Pre-Tested & Burned With Specific Configs
-
🚛 Global Dispatch Available for Project Deployments & Rollouts
Why Choose This Huawei OSN8800 8×10G Processing Board ?
-
✔️ Increases Service Density While Reducing Power & Rack Footprint
-
✔️ Enables Scalable 10G Client Signal Aggregation in OSN8800 Systems
-
✔️ Supports Industry-Standard Protocols for Multi-Service Transport
-
✔️ Ideal for SDH, Ethernet, Fibre Channel & Hybrid Transport Environments
-
✔️ Certified Huawei Original Product – Ideal for NOC-Level Reliability
Order Now
Deploy the power of multi-channel 10G optical access with the Huawei OSN8800 8x10G Tributary Service Processing Board — the smart choice for scalable, efficient, and high-performance optical networks.
