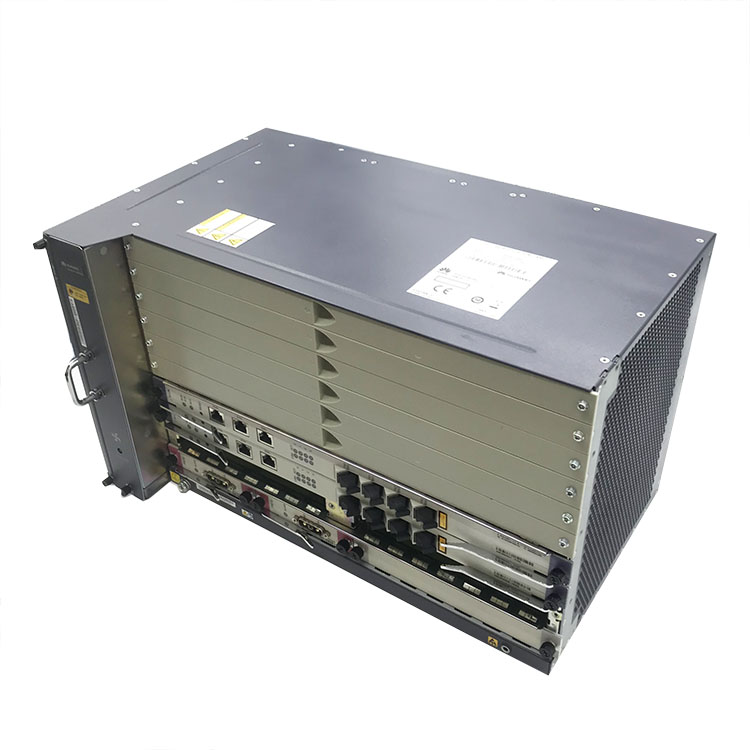

Huawei SmartAX MA5683T High Quality OLT GPON, 10G PON, FTTH

$18,947.00

Huawei SmartAX MA5683T OLT is optical access device functions as an OLT device in a GPON/EPON system. Its function are similar to those of the Huawei MA5680T.

Clear
Compare
Add to wishlist
SKU: 1600598200307 Categories: All Products, HUAWEI OLT, OLT Tags: #GPON, 10G PON, FTTH, FTTH solution, High Quality OLT, Huawei 10G PON OLT, Huawei fiber network, huawei gpon olt, HUAWEI OLT, huawei smartax ma5683t, MA5683T specifications, SmartAX MA5683T features
Share:
  • Description
  • Additional information
Description

Huawei SmartAX MA5683T OLT Description:

Huawei SmartAX MA5683T OLT is optical access device functions as an OLT device in a GPON/EPON system. Its function are similar to those of the Huawei MA5680T. It is a small-to-medium-capacity OLT device. Huawei SmartAX MA5683T OLT is 19inch, with 5U height 6 service slots, supporting EPON, GPON, 10G PON, P2P service; H802MABO subrack equipped with 2xH801SCUN, 2xH801PRTE. MA5683T HUAWEI is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and service boards.



Huawei SmartAX MA5683T OLT Product Features:

Large-capacity shared platform

Huawei SmartAX MA5683T OLT provides the large-capacity shared platform that supports a high-speed switching capacity.

Based on the iMAP hardware platform and the IAS software platform of Huawei, Huawei SmartAX MA5683T OLT adopts advanced architecture and design.

Powerful integrated GPON/EPON access capability

  1. EPON access capability

The point to multi-point (P2MP) architecture is used to support the passive optical transmission over Ethernet. Symmetrical upstream and downstream rates of 1.25 Gbit/s are supported to provide the high-speed broadband services

  1. GPON access capability.

The downstream rate is up to 2.488 Gbit/s and the upstream rate is up to 1.244 Gbit/s. Long-distance is supported. The maximum physical transmission distance of the ONT is 60 km. The physical distance between the farthest ONT and the nearest ONT can be up to 20 km. High split ratio is supported. The 8-port GPON access board supports a split ratio of 1:128.



Good quality huawei OLT MA5683T 19/21 inches GEPON for 5600 series

Specifications:

Index MA5680T(ETSI) MA5680T(IEC) MA5683T
Compatible cabinet Indoor cabinet:N63E-22,N66E-18 Indoor cabinet:N66E-22 Indoor cabinet:N66E-18
outdoor cabinet:F01T500 outdoor cabinet outdoor cabinet:F01S300,F01T500,F01T300
Service Card Main control board: 2 slots Main control board: 2 slots Main control board: 2 slots
Service board: 16 slots Service board: 16 slots Service board: 6 slots
Universal interface board: 1 slot Universal interface board: 1 slot Universal interface board: 1 slot
Uplink interface board: 2 slots Uplink interface board: 2 slots Uplink interface board: 2 slots
Power interface board: 2 slots Power interface board: 2 slots Power interface board: 2 slots
Supportable main control board and switching capacity SCUN/SCUK:480Gbit/s(Active/standby mode),960Gbit/s(Load sharing mode)
SCUH/SCUV:960Gbit/s(Active/standby mode),1920Gbit/s(Load sharing mode)
System Layer 2 packet forwarding rate SCUN/SCUK:726Mpps(Active/standby mode),1452Mpps(Load sharing mode)
SCUH/SCUV:1428Mpps(Active/standby mode),2856Mpps(Load sharing mode)
Exchange forwarding delay Has a lower forwarding delay. The 100Mbit/s Ethernet port sends 64Byte Ethernet packets with a delay of no more than 20μs.
Full load error rate When the port is transmitting at full load, the bit error rate (bit error rate) is <10 e-7.



View More Products

Additional information
Specification

442*283.2*263.9
