- Model Number:MA5800-X17
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:Huawei
- Use:FTTH Network
- Warranty Time:1 year
- Network:wifi, 4g
- Product name:Huawei xpon olt MA5800-X17 21 Inches Original Huawei
- Application:FTTN
- Warranty:12 Months / 1 Year
- Weight:45kg
- Function:FTTN
- Package:Carton
- Power supply:DC -48V
- Supply Ability10000 Piece/Pieces per Day
- Packaging DetailsCarton
- PortNING BO/SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated
Huawei xpon olt MA5800-X17 21 Inches Original Huawei Optical Line Terminal OLT affordable price
Product Description
![](http://s.alicdn.com/@sc04/kf/He636e800aa5c4383996a510a09d4fa86B/258088691/He636e800aa5c4383996a510a09d4fa86B.jpg?quality=close)

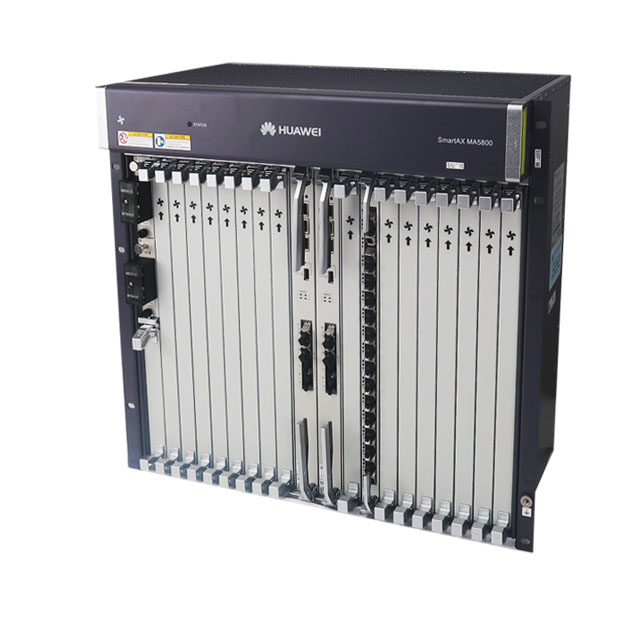

SmartAX MA5800
SmartAX MA5800 Series OLTs The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed MobileConvergence (FMC) services, and smart capabilities, such as SDN-based virtualization. MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.
Specification
Item
|
MA5800-X17
|
Dimensions (W x D x H)
|
493 mm x 287 mm x 486 mm
|
Maximum Number of Ports in a Subrack
|
272 x GPON/EPON
816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1 |
Switching Capacity of the System
|
7 Tbit/s
|
Ambient Temperature
|
-40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
Working Voltage Range
|
-38.4V DC to -72V DC
|
IPv6
|
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
|
Recommend Products
![](http://s.alicdn.com/@sc04/kf/H4c01b74a72ef40b5b6848ee301e97c1b5/258088691/H4c01b74a72ef40b5b6848ee301e97c1b5.jpg?quality=close)

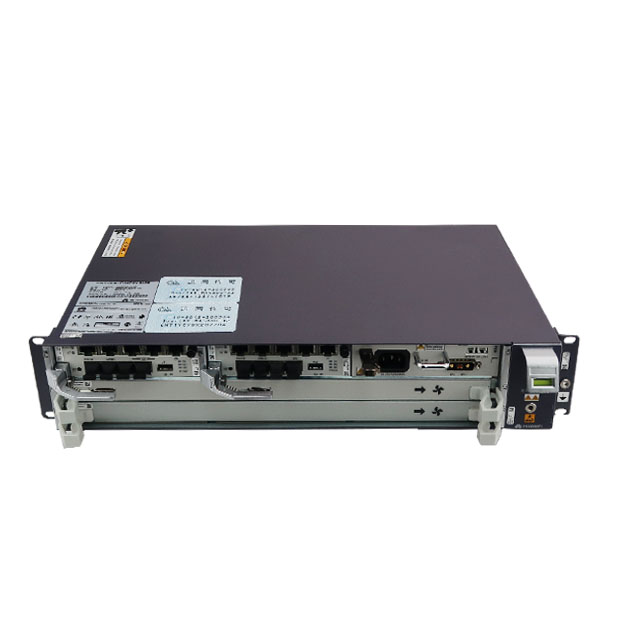

MA5800-X2
![](http://s.alicdn.com/@sc04/kf/H316fb49eedf049b6a838f9db382f8a3aS/258088691/H316fb49eedf049b6a838f9db382f8a3aS.jpg?quality=close)

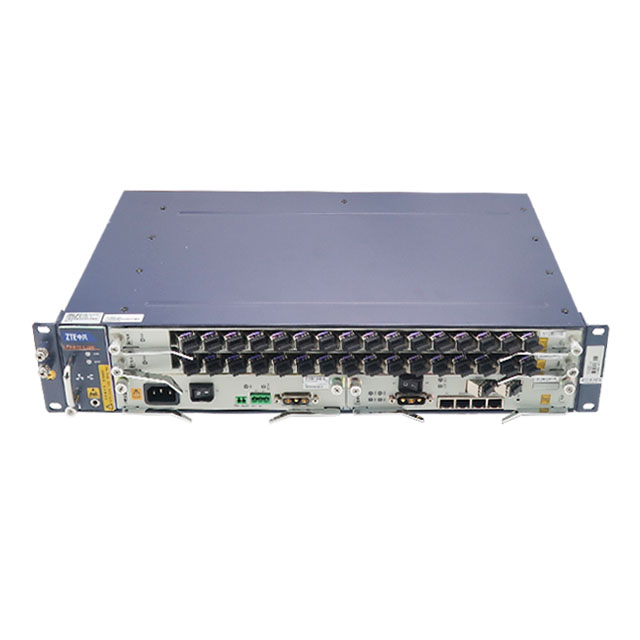

ZTE C300
