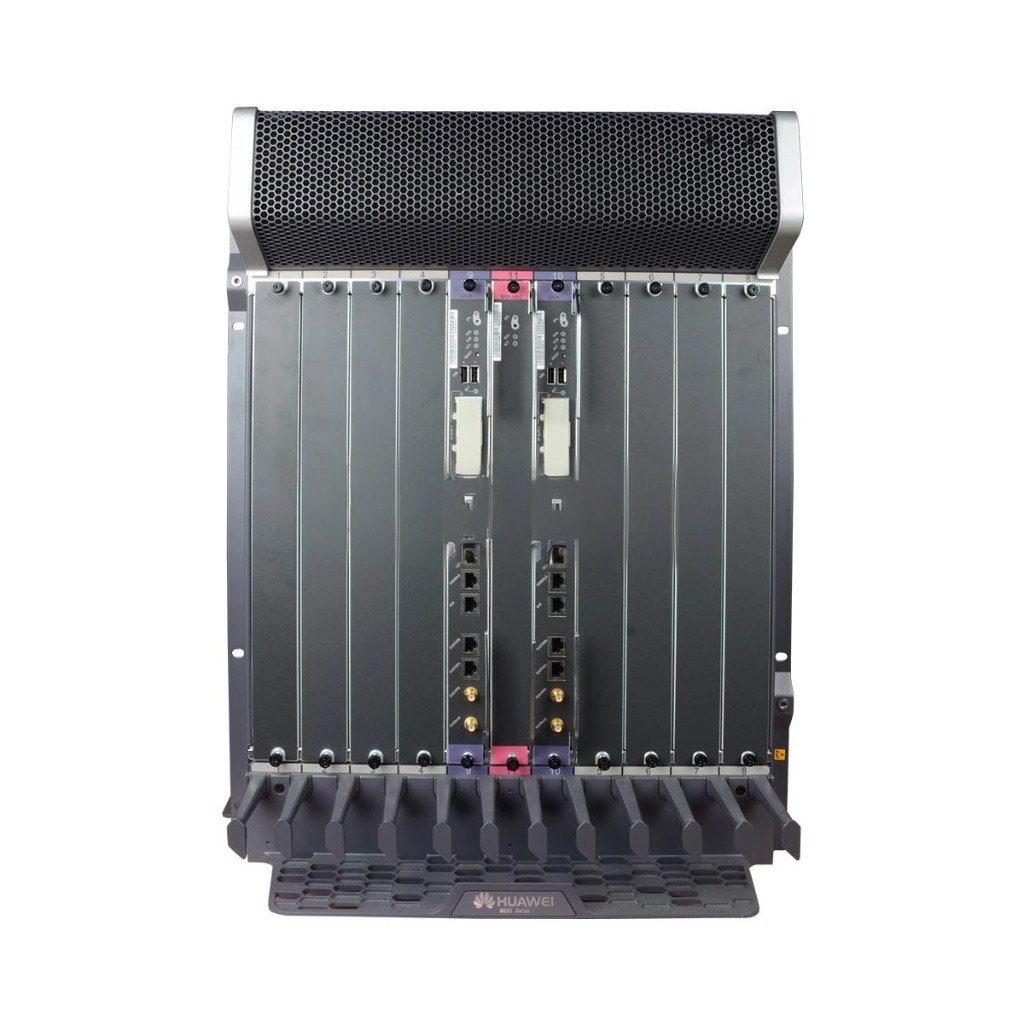

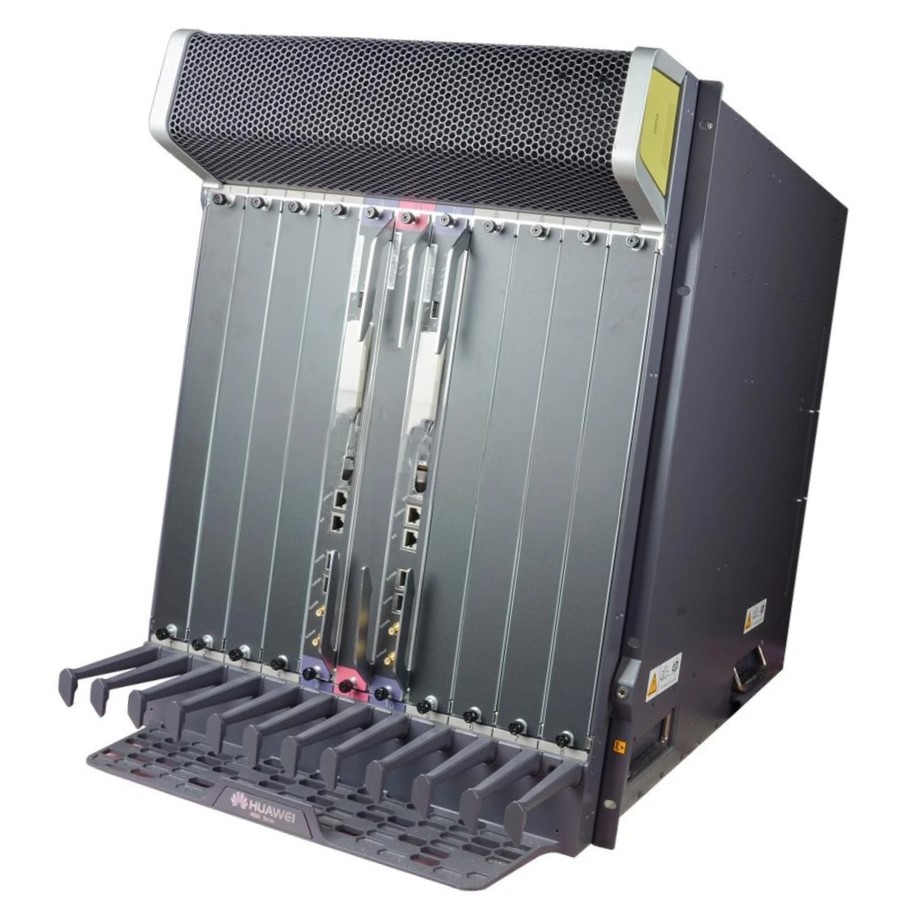

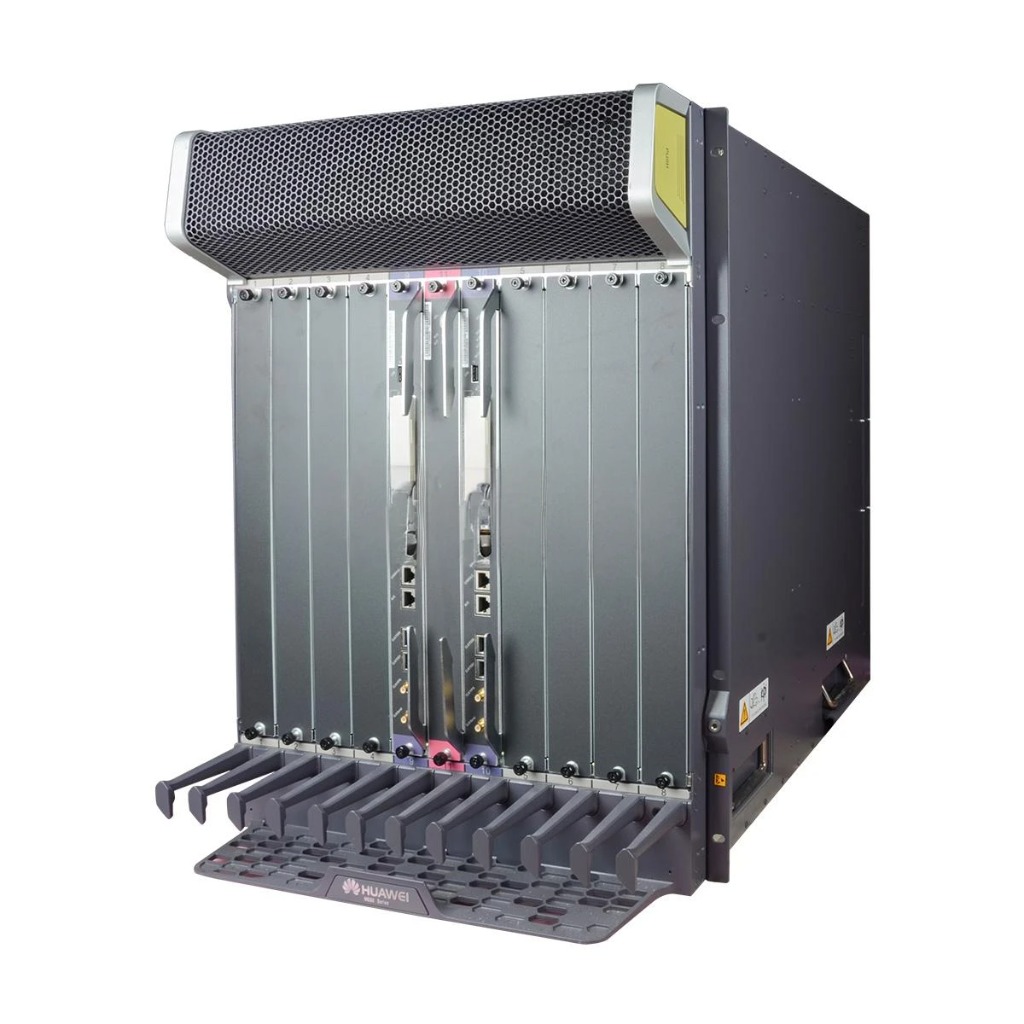

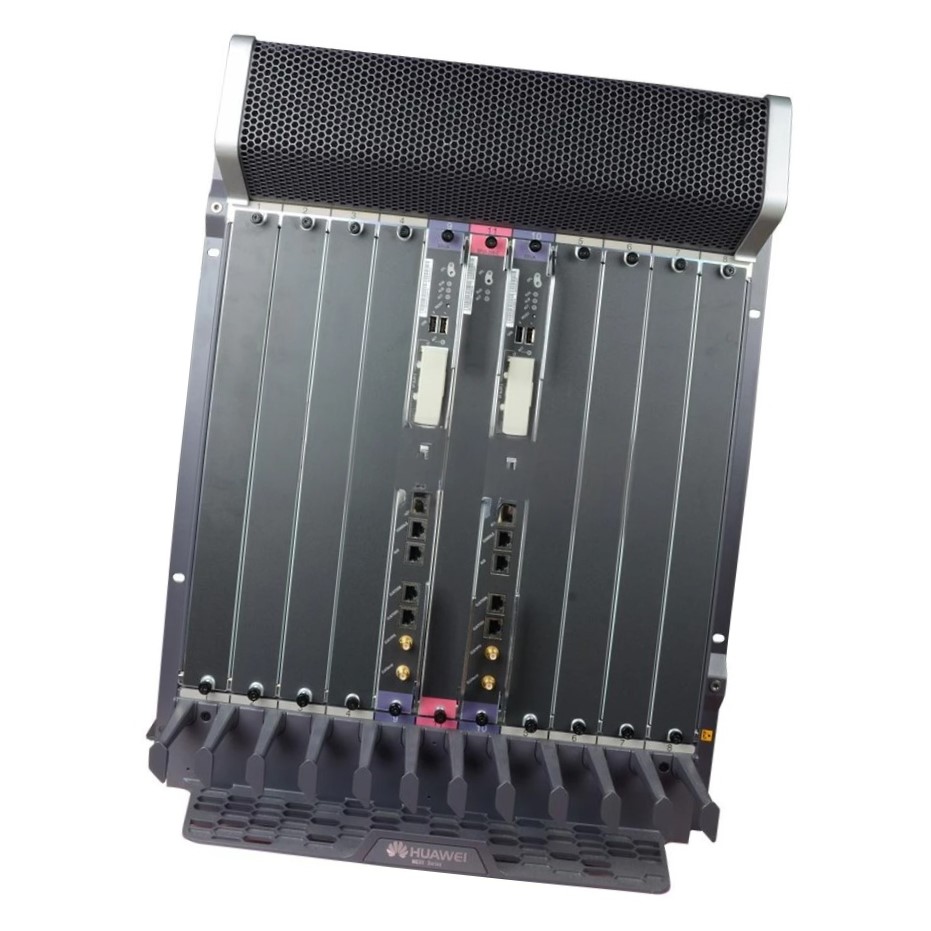

ME60-X8 Huawei Description:
The ME60-X8 Huawei is a powerful multi-service control gateway built for large-scale broadband access and service aggregation scenarios. This brand new DC bundle comes fully equipped with the assembly chassis, making it an ideal solution for telecom operators, ISPs, and large enterprises that require flexible, scalable, and carrier-grade broadband network services.
The ME60-X8 supports a wide range of user access modes, rich service processing capabilities, and advanced IP/MPLS features. Its modular design enables flexible slot expansion and future upgrades while the DC power supply ensures stable and efficient operation in data centers and telecom environments.
Key Features:
-
Model: ME60-X8 DC
-
Condition: 100% Brand New, Original Huawei
-
Type: Multi-Service Control Gateway Router with DC Power Supply
-
Bundle Includes: Fully assembled chassis ready for line cards and modules
-
High Performance: Supports large-scale subscriber management with high forwarding and processing capacity
-
Scalability: Modular design with multiple slots for flexible expansion
-
Reliability: Telecom-grade components for 24/7 carrier-class operation
-

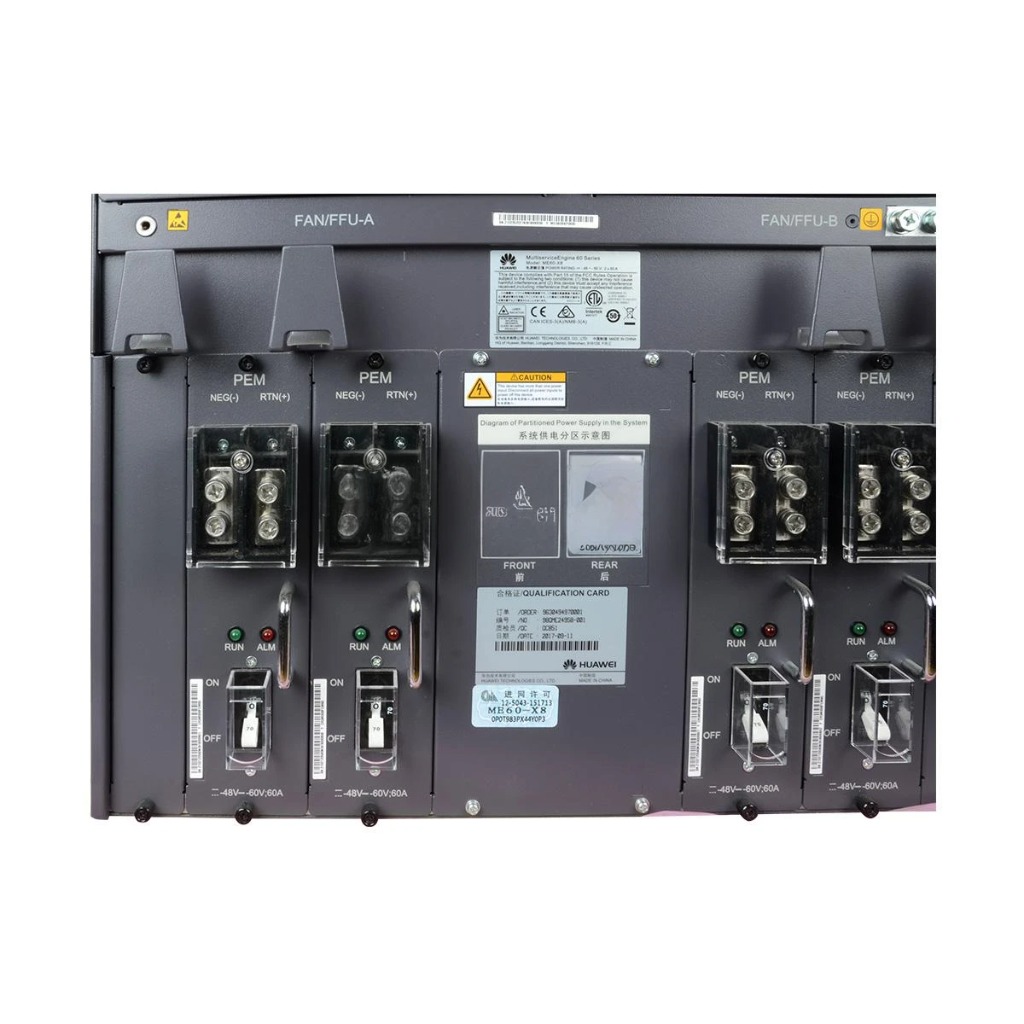

Power Efficiency: Equipped with DC power input for stable, energy-efficient performance
-
Compatibility: Supports various Huawei ME60 series interface boards and service units
Tech Specs:
| Item | Description |
|---|---|
| Switching Capacity | 7.08 Tbit/s |
| Forwarding Performance | 2,880 Mbit/s |
| Number of Slots | 11 slots (8 LPUs, 2 SRUs, 1 SFU) |
| Interface Types | • 100 GE-WAN/LAN • 10 GE-WAN/LAN • GE/FE |
| Processing Unit (GHz) | Main frequency: 1.5 GHz |
| BootROM (MB) | 16 |
| SDRAM (GB) | 4 |
| NVRAM (MB) | 4 |
| Flash (MB) | 32 |
| CF Card (GB) | 2 |
| BRAS | • User access: PPPoE, IPoE, 802.1X, ND • Authentication: PAP, CHAP, MSCHAP, RADIUS, HWTACACS • Billing: RADIUS, HWTACACS, COPS • Authorization: RADIUS, HWTACACS, COPS, COA |
| L2TP | • Max sessions: 64K/slot, 128K/device • Max tunnels: 16K/slot, 16K LAC, 48K LNS |
| IPv4 | • Static & dynamic routing: RIP, OSPF, IS-IS, BGP-4 • All ports support line-rate forwarding even during route flapping |
| IPv6 | • IPv4/IPv6 dual stack • Tunnels: manual, IPv6 over IPv4, GRE, IPv4 over IPv6, 6PE • Routing: static, BGP4/BGP4+, RIPng, OSPFv3, IS-ISv6 • ND, PMTU, TCP6, ping/tracert IPv6, static IPv6 DNS, policy-based routing • NAT64, NAT44, DS-Lite • ICMPv6, UDP6 MIB, TCP6 MIB, IPv6 MIB |
| MPLS/MPLS VPN | • MPLS TE, MPLS/BGP VPN (RFC 2547bis) • Inter-AS Option A/B/C • Martini & Kompella MPLS L2VPN, VPLS, VLL • Multicast VPN, heterogeneous interworking |
| Layer 2 Features | • IEEE 802.1Q, 802.1ad, 802.1D, 802.1w, 802.1s • VLAN aggregation (super VLAN) • MAC & port filtering |
| Reliability | • IP/LDP/VPN/TE/VLL FRR, IP/TE auto rerouting, fast IGP/BGP/multicast convergence, VRRP, IP-Trunk load balancing, BFD, MPLS/Ethernet OAM, route/port/VLAN damping • PW redundancy, E-Trunk, E-APS, E-STP • In-service patching, passive backplane • Redundancy for RP modules, SFUs, power modules • GR, NSF, NSR, ISSU, hot swap for all components • Intra/inter-CGN chassis 1+1 and 1:1 hot backup |
| QoS | • HQoS, advanced scheduling, congestion avoidance • Accurate policing/shaping, fine-grained flow ID • MPLS HQoS for VPN, VLL, PWE3 • DS-TE with 8 CTs, TE-tunnel-based QoS • Up to 768K flow queues per slot |
| Value-added Services | • Destination Address Accounting (DAA) • Enhanced Dynamic Service Gateway (EDSG) for service-based accounting, rate limit, and management |
| Multicast | • IGMP v1/v2/v3, static multicast • PIM-SM, PIM-SSM, MSDP, MBGP • CAC, interoperability between protocols • Multicast policies, multicast QoS • Two-level replication on SFU/LPU |
| Security | • ACL-based filtering, URPF, GTSM, DHCP snooping • ARP & DoS attack defense • MAC address limit, MAC-IP binding • SSH, SSHv2 |
| Typical Power Consumption (W) | 4,100 W |
| Max Power Consumption (W) | 2,340 W (BSUF-100) 3,220 W (BSUF-240) |
| Operating Environment | • Long-term temp: 0°C to 45°C • Short-term temp: –5°C to 55°C • Long-term humidity: 5% to 85% • Short-term humidity: 0% to 100% • Altitude: ≤ 4,000m |
| Dimensions (mm) | • Chassis: 620(H) x 442(W) x 650(D) (14U) • Including assemblies: 620(H) x 442(W) x 770(D) |
| Empty Chassis Weight (kg) | 43.2 kg |
| Full Configuration Weight (kg) | 118 kg (40G platform) 136 kg (200G platform) |
ME60-X8 Huawei Applications:
Suitable for:
-
Broadband remote access servers (BRAS) for ISP networks
-
Large enterprise campus networks and service aggregation
-
Carrier broadband services (xDSL, PON, Ethernet access)
-
Metro Ethernet and MPLS VPN services
-
Fixed-mobile convergence and triple-play deployments
Customization & OEM Services:
We understand that every deployment is unique. We offer:
-
Pre-configuration and assembly to match your specific project needs
-
OEM branding and private labeling for partners and resellers
-
Tailored packaging to support project rollouts and logistics
-
Extended burn-in testing for mission-critical deployments
ME60-X8 Huawei Wholesale & Bulk Orders:
We provide dedicated support for resellers, ISPs, and system integrators, including:
✔️ Factory-direct pricing and attractive discounts for bulk orders
✔️ Reliable global shipping and export-compliant packaging
✔️ Secured inventory and on-time delivery
✔️ Dedicated account managers for smooth order processing
✔️ Comprehensive technical support and warranty services
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Flexible configurations tailored to your network requirements
-
Competitive pricing for volume buyers and partners
-
Professional export packaging and fast worldwide delivery
-
Expert technical support from planning to post-deployment
Request a Quote:
Upgrade your network infrastructure with the Huawei ME60-X8 DC Bundle. Contact us today for detailed technical specifications, customization options, and competitive bulk pricing. Let’s build a future-ready broadband network together with trusted Huawei solutions.
