- Model Number:OLT1008G
- Type:OLT, 1U 19-inch standard box
- Place of Origin:Zhejiang, China
- Use:communication device
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:OLT1008G 10G 8 GPON OLT with 4PCS SPF C++
- model:OLT1008G
- Ports:8
- Application:FTTH FTTB FTTX Network
- power supply:AC110/220V OR DC-48V
- User number:128 per port
- Transmission distance:20KM
- Working temperature:0~50℃
- Maximum powerrs:65W
-
- Supply Ability
- 100 Carton/Cartons per Day
-
- Port
Zhejiang Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)3To be negotiated
Product Description

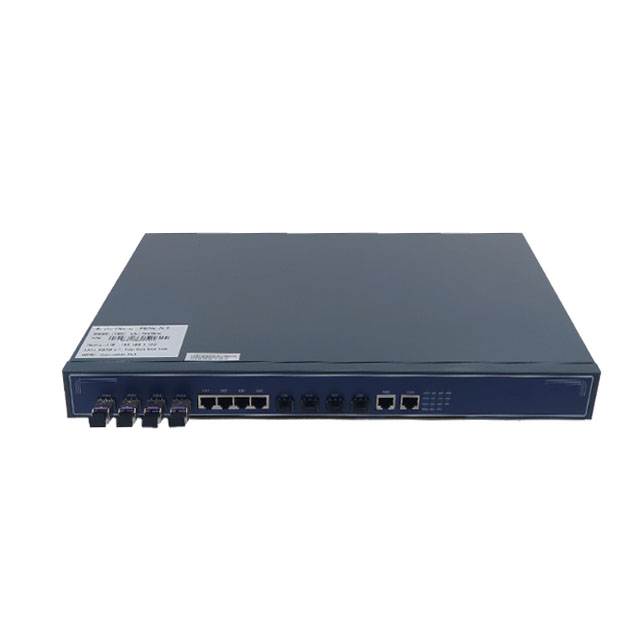

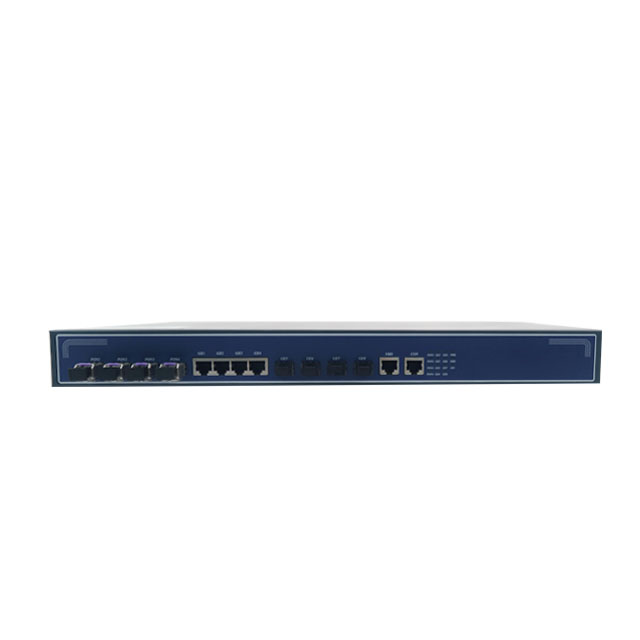

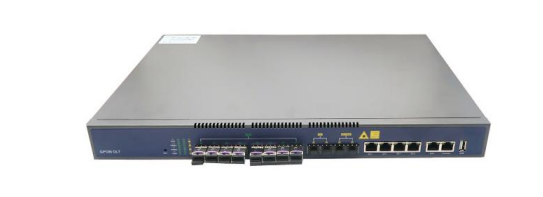

OLT1008G 10G 8 GPON OLT with 4PCS SPF C++
GPON OLT1008G is the optical line terminal equipment .Which is high reliability ,flexible , easy maintain.It can support 8 GPON PON ports ,2.5Gbps bandwidth ,and connect 1024 remote ONU mostly (by 1:128 splitter), and provides 8GEuplink optic ports, 8 GE uplink electric ports.Be Applied to FTTB/FTTP/FTTH access solutions.
Feature
Comply with ITU-T G.984/G.988 standards and China’s Telecom industry GPON standards.Support OMCI remote management of ONT/ONU, compatible with ITU-984.4 OMCI protocol.Standalone 1U 4PON compact design of OLT products.SFU, HGU series ONT products, Meet the needs of the different scenarios of networking.The complete layer 2 switching function.
OLT is with powerful layer 2 switching capacity and complete layer 2 protocol. Supporting with the exchange,isolation and One By One working mode. Supporting port aggregation, VLAN, port speed, queue technology, flow control technology and ACL rich two layer function. Offering the technical support for the development of the multi-service fusion
The QOS security
GPON products is with complete DBA function and excellent ability of QoS service. DBA provides a variety of QoS for the GPON system by means of four types of bandwidth and five types of T-CONT. It can meet different business flow of time delay, jitter and packet loss rate of different QoS requirements.
Easy-to-use
Support CLI and SNMP management. complying with OMCI standard. Realizing the business management through OMCI channel protocol,including the ONT function parameters, type and number of T-CONT business, QoS parameter, configuration request information and performance statistics, automatic notification running event system, the realization of OLT on ONT configuration, fault diagnosis,performance and security management.
Product Paramenters
|
Product name
|
OLT1008G 10G 8 GPON OLT with 4PCS SPF C++
|
|
model
|
OLT1008G
|
|
Type
|
1U 19-inch standard box
|
|
PON Port
|
8
|
|
Max splitting ratio
|
1:128
|
|
Management port
|
1 10BASE-TX out band port
1 CONSOLE local management por
|
|
Transmission Distance
|
20KM
|
|
Port rate
|
Downstream: 2.5Gbps，Upstream: 1.25Gbps
|
|
Wavelength
|
Forwarding: 1490nm，Receiving: 1310n
|
|
Interface type
|
SC/UPC
|
|
Fiber type
|
9/125μm SMF (Single Mode Fiber)
|
|
Light transmission power
|
Class B+ +1.5～+5dBm，Class C+ +3～+7dB
|
|
Receiving sensitivity
|
Class B+ -28dBm，Class C+ -30dB
|
|
Saturation power
|
Class B+ -8dBm，Class C+ -12dBm
|
|
Network management method
|
Support CLI、SNMP、TELNET
|
|
Business capabilities
|
Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user
management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. |
|
PON management function
|
DBA ,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management
|
|
Power supply
|
AC110/220V OR DC-48V
|
|
Maximum power
|
65W
|
|
Working temperature
|
0～50℃
|
|
Storage temperature
|
-40～85℃
|
|
Relative humidity
|
5～90% (Non-condensing）
|
Application
