- Model Number:SCXN
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTH FTTB FTTX Network
- Warranty Time:1 year
- Network:POE
- Supply Ability100 Piece/Pieces per Month
- Packaging DetailsRetail Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated

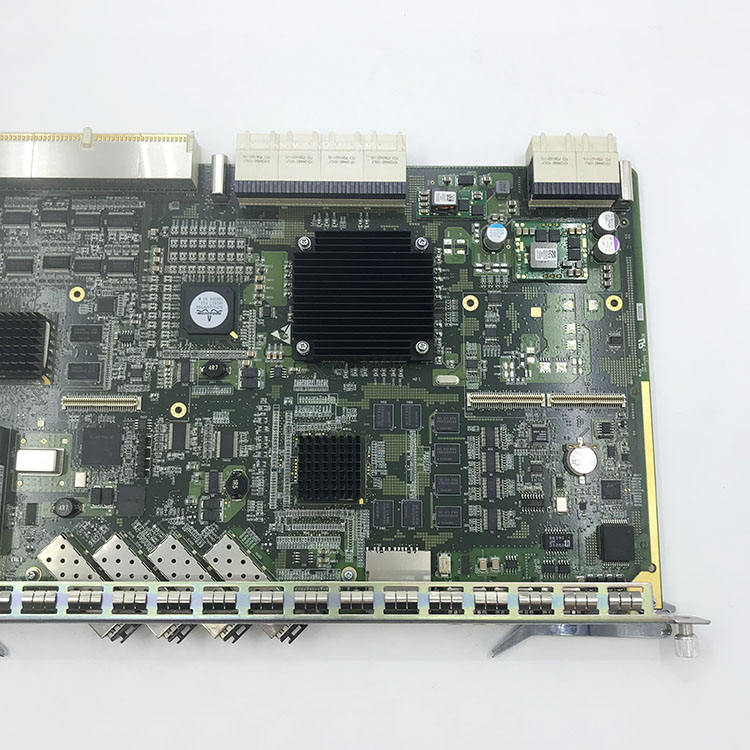

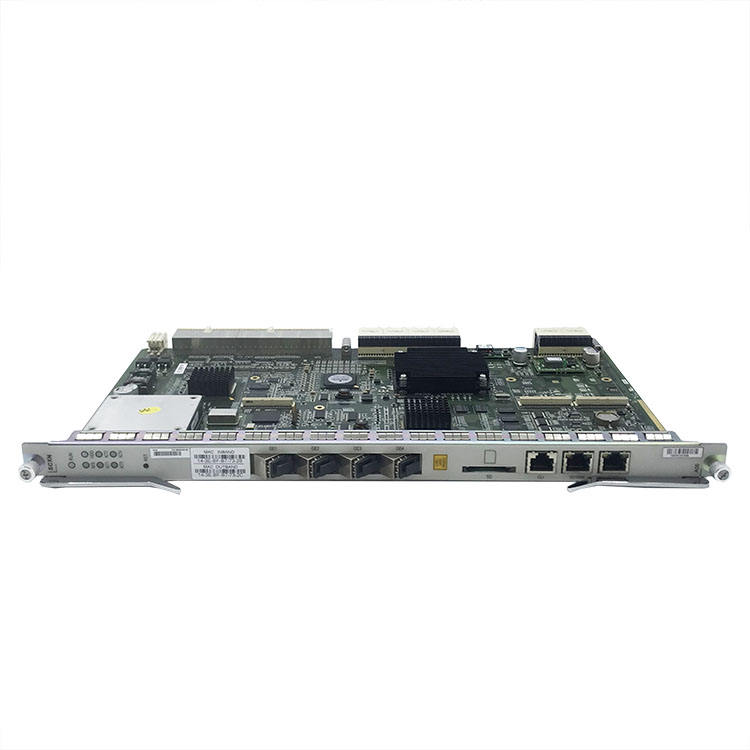

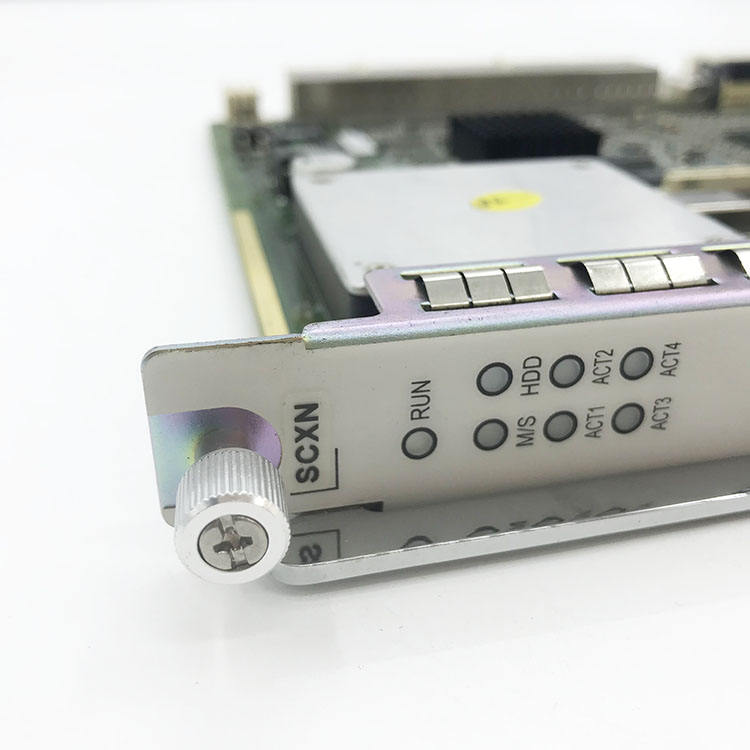

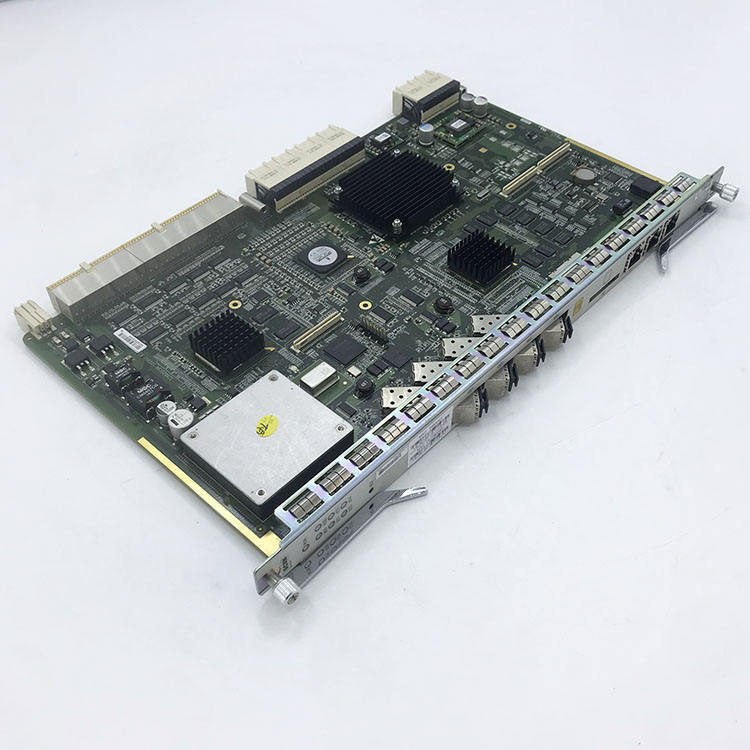

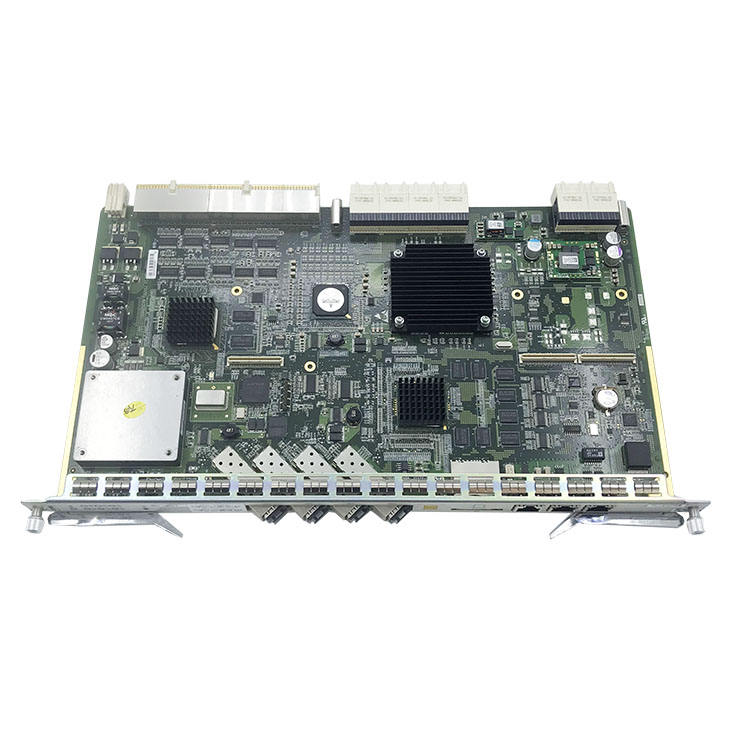

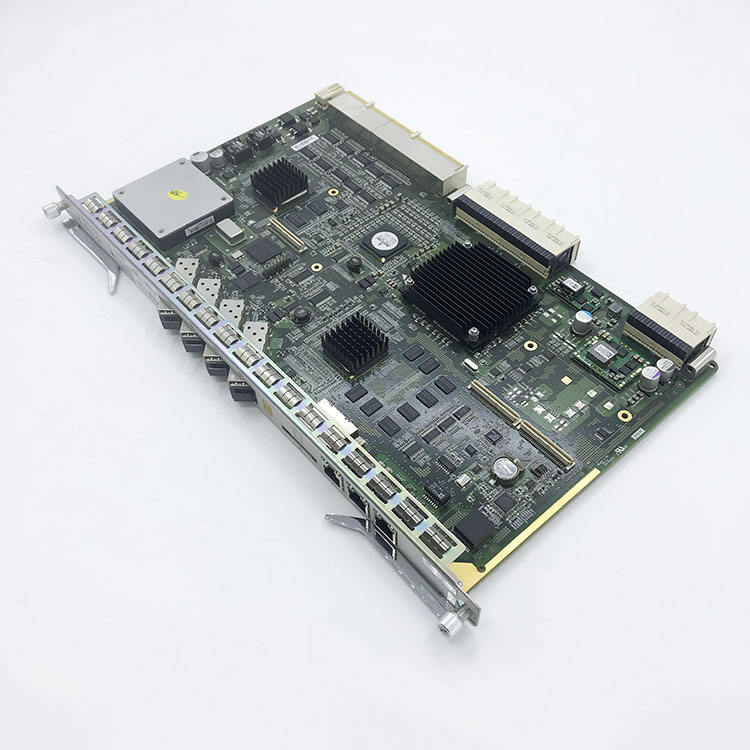

ZTE SCXN Control Card is control and switch card for C300 supporting 16 port GPON cards, 4x GE uplink interface, 2x management interface
Product Overview
ZTE ZXA10 SCXN is the core part for ZXA10 C300, and it monitors and controls the entire system and performs non-blocking switching of all line cards
SCXL: supports 800 Gbps switching capacity and 32 K MAC address table.
SCXM: supports 480 Gbps switching capacity and 32 K MAC address table.
SCXN: supports 480 Gbps switching capacity, 64 K MAC address table, and VoIP function (with VoIP daughter-card).
ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance.
Product Specification
ZTE SCXN Control Card Product Features
- Switching module
The switching centre of data service, implements data switching, Ethernet, VLAN, multicast, IP route, QoS, and security functions.
- Management and control module
Consists of control software, protocol processing software, overhead processing, Ethernet switching chip, and control CPU, provides interfaces for cards to forcedly download versions and reset hardware/software, provides online detection for cards, implements fan detection and control functions.
- Clock/time module
Processes system clock and time, complies with ITU-T G.8262, G.8264, G.781, and RFC 1305.
