SKU 1600613348640 Category Tag
    • Model Number:EG8145V5
    • Type:ONU
    • Place of Origin:Guangdong, China
    • Use:FTTH
    • Warranty Time:1 year
    • Network:Wired LAN, wifi
    • Supply Ability5000 Piece/Pieces per Week
    • PortShenzhen
    • Picture Example:
    • Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)15To be negotiated

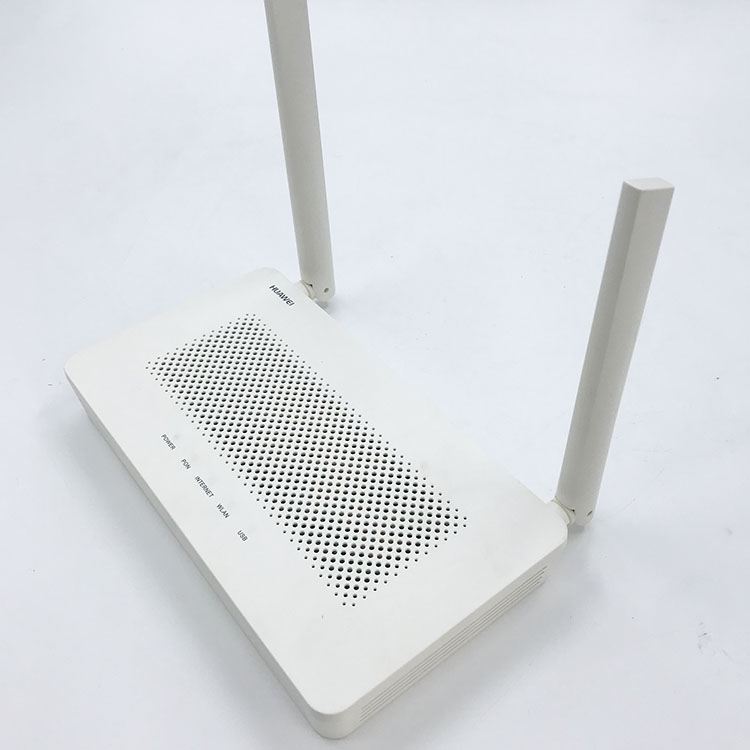

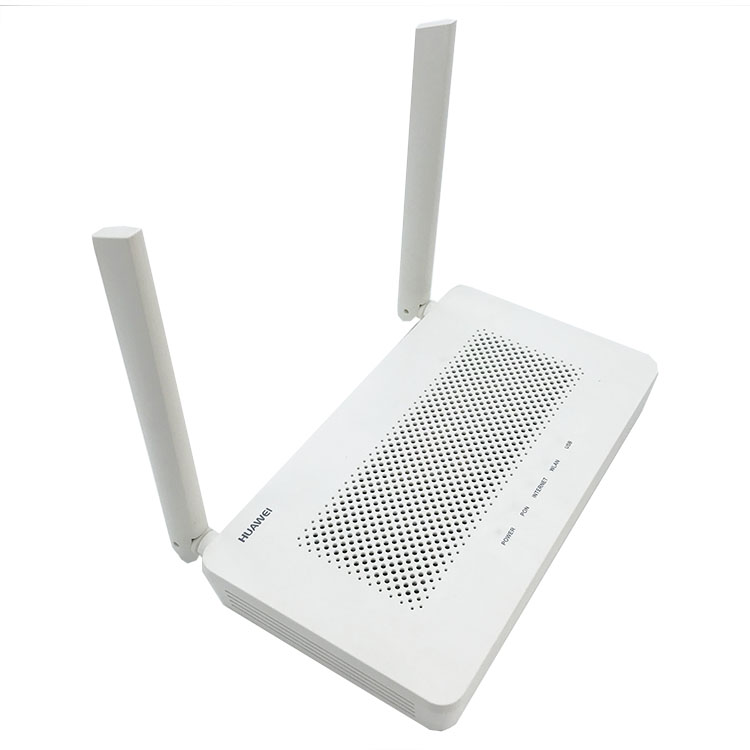

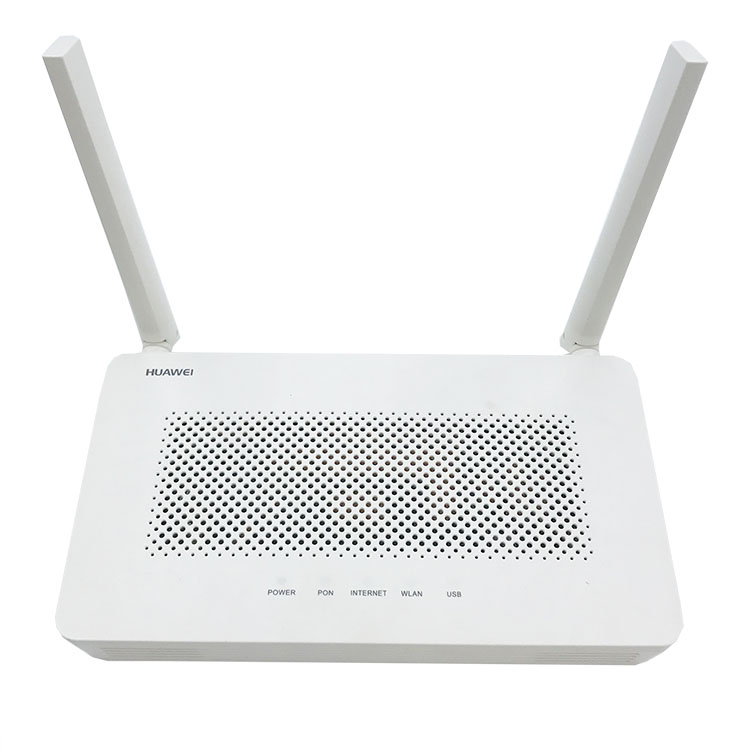

    Huawei EG8145V5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 4 GE+1 POTS+1 USB+2 WiFi(4 GE ports, 1 POTS port, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.


    Huawei EG8145V5 Datasheet

    Brand Huawei
    Model EG8145V5
    Type Routing
    Dimensions (H x W x D) 173 mm x 120 mm x 30 mm (without antenna and pads)
    Operating Temperature 0°C to 40°C
    Operating Humidity 5% RH to 95% RH (non-condensing)
    Power Adapter Input 100V to 240V AC, 50 Hz/60 Hz
    System Power Supply 11V to 14V DC, 2A
    Network-side Ports GPON

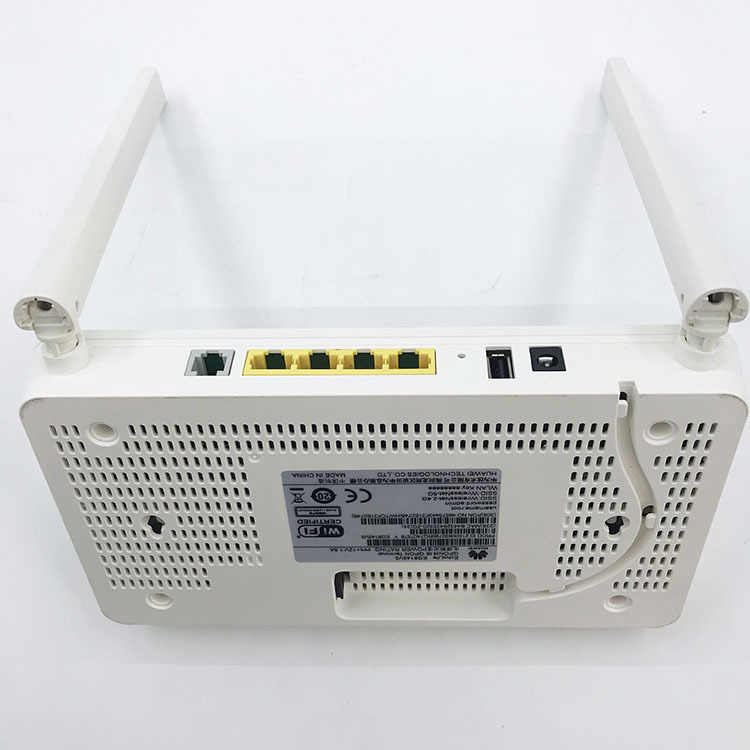

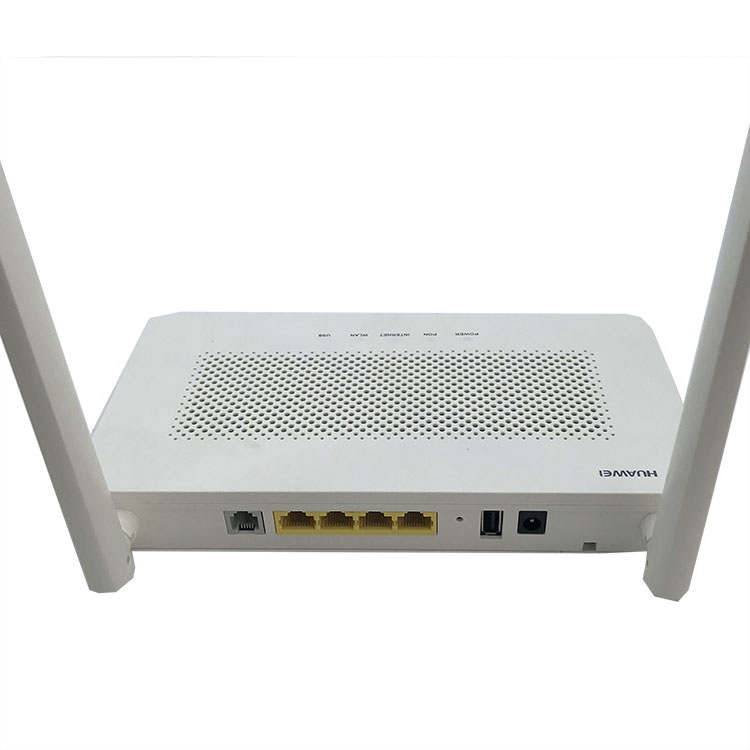

    User-side Ports 1 POTS + 4 GE + Wi-Fi + USB

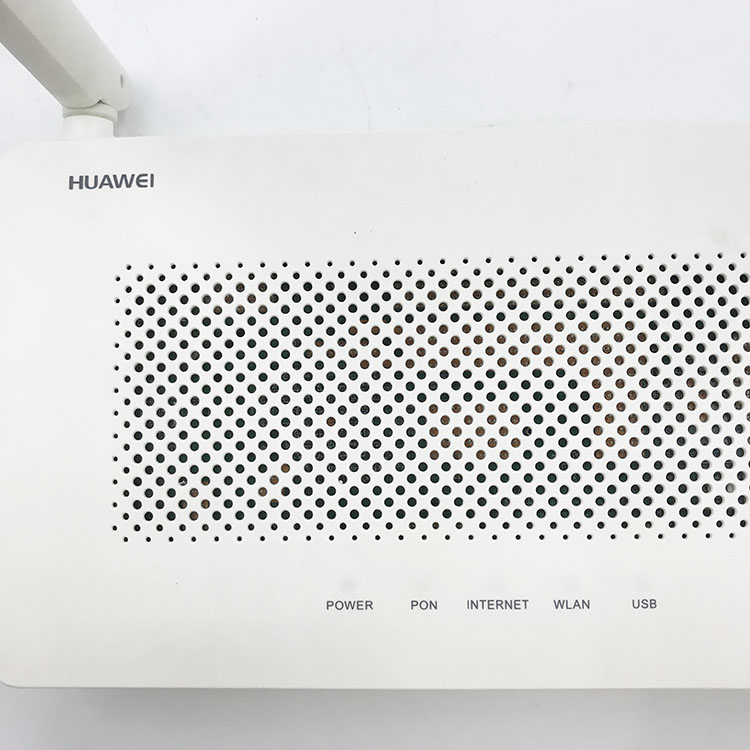

    Indicators POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS




    Smart interconnection

    Smart Wi-Fi coverage

    SIP/H.248 auto-negotiation

    Any port any service

    Parental control

    L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

    Smart service

    Scheduled Wi-Fi shutdown

    Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing

    Layer 3 Features

    PPPoE/Static IP/DHCP


    Port forwarding

    ALG, UPnP

    DDNS/DNS server/DNS client

    IPv6/IPv4 dual stack, DS-Lite, and IPv6 SPI

    Static/Default routes

    Multiple services on one WAN port
