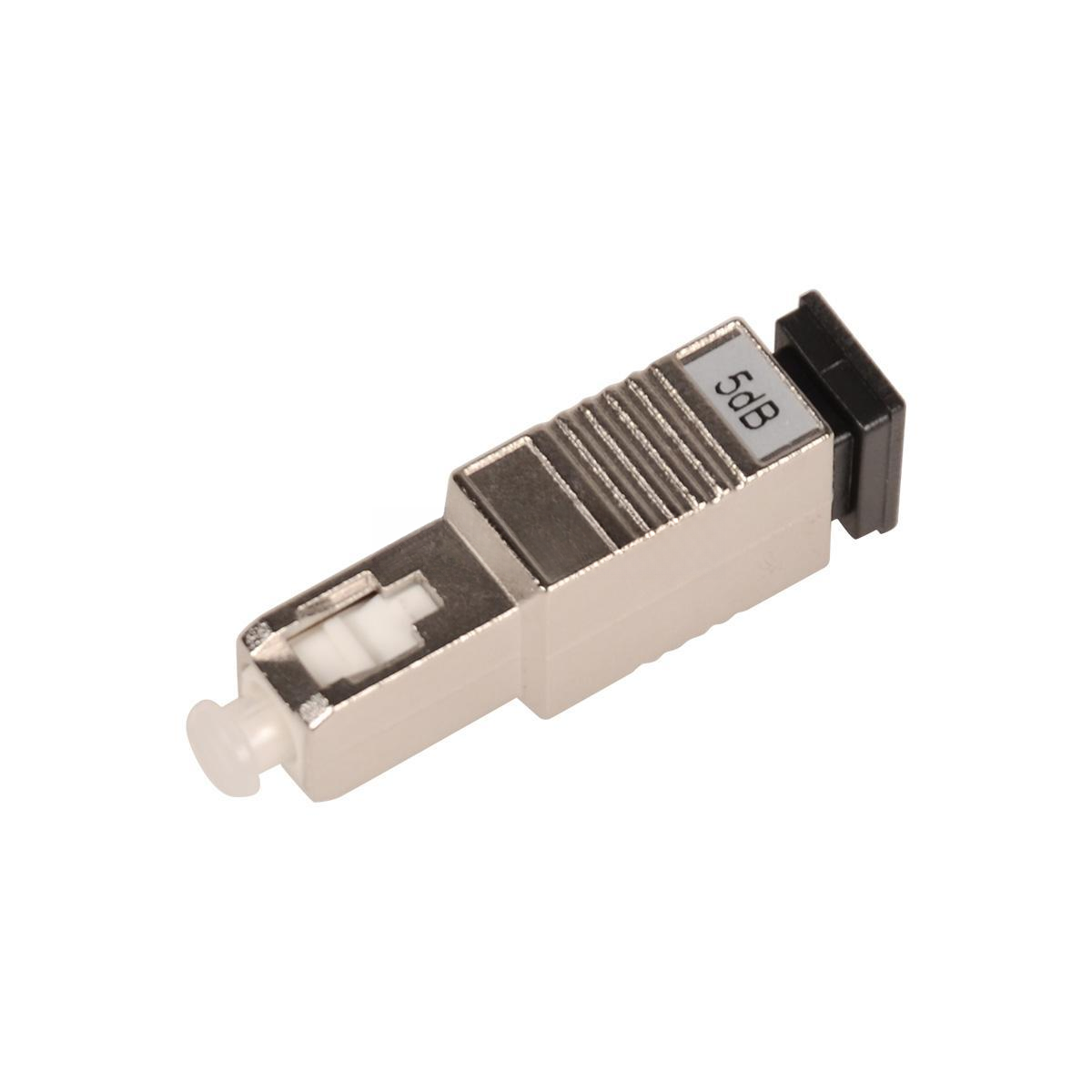

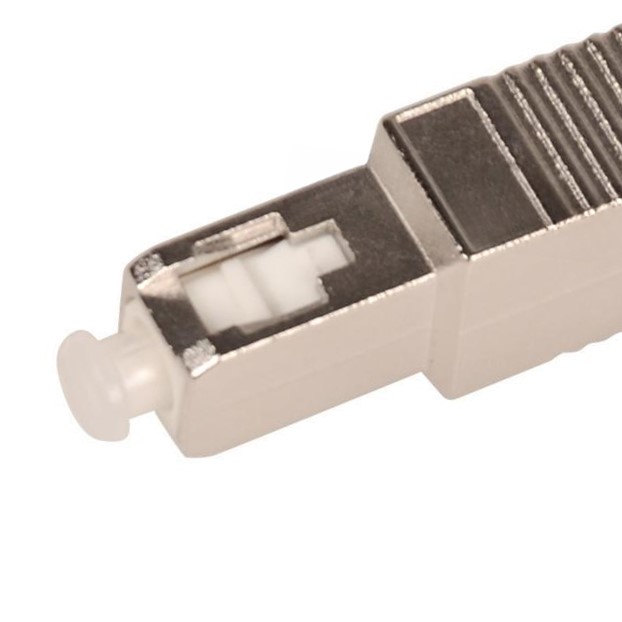

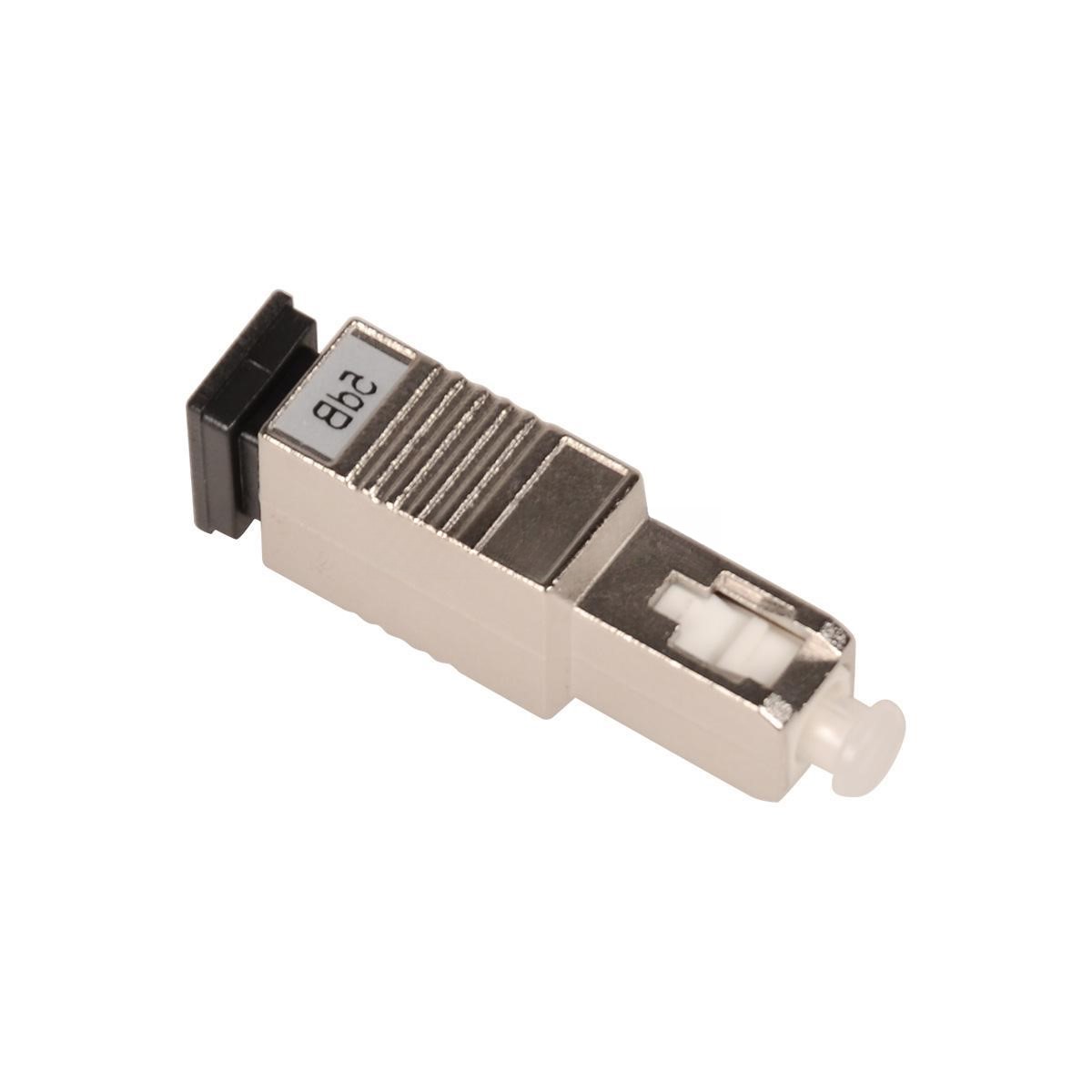

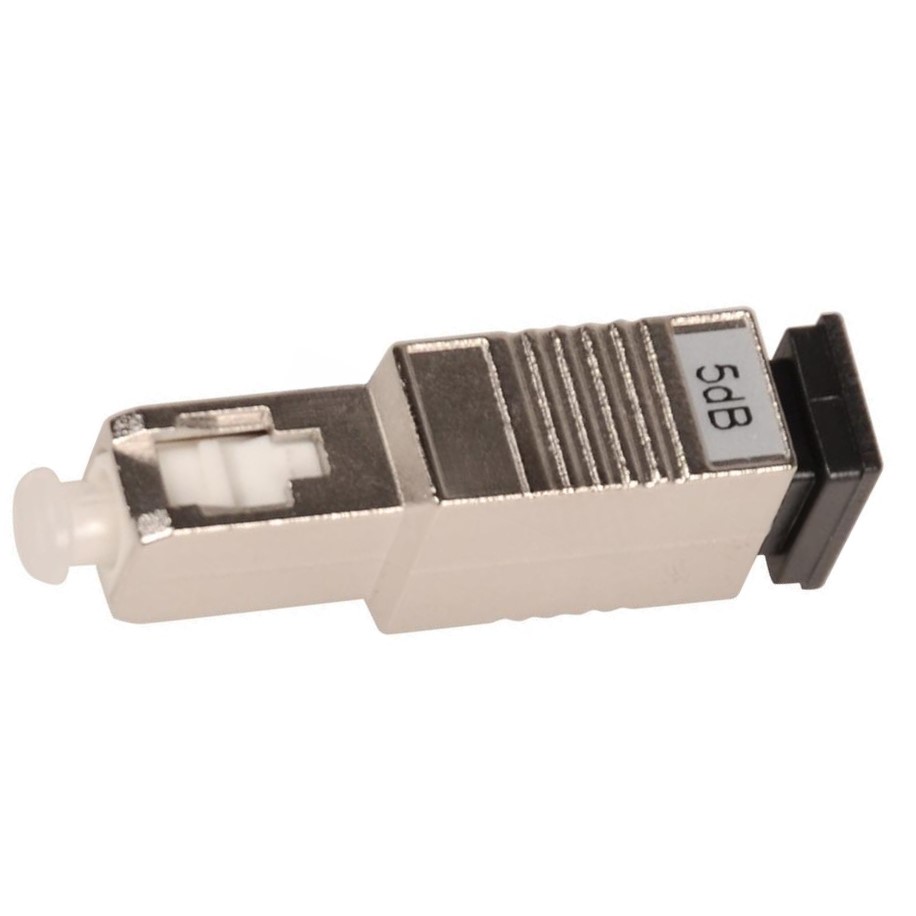

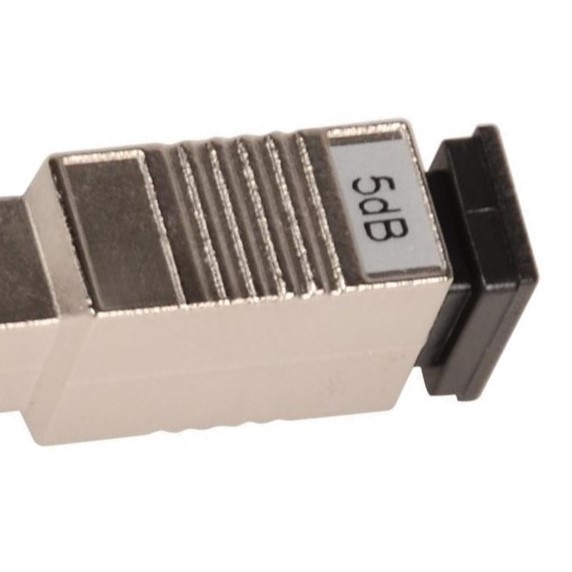

SC 5dB Fixed Fiber Optical Attenuator – Male to Female | Branded, Precision Signal Control for Singlemode Networks
Product Overview
The SC 5dB Male-Female Fixed Fiber Optical Attenuator is a precision passive optical component designed to reduce signal power by 5 decibels, ensuring optimal performance and protection for sensitive optical receivers. Featuring a male-to-female SC interface, this plug-in attenuator is ideal for use in singlemode (SM) 9/125μm fiber networks, especially in telecom, data centers, FTTH, CATV, and testing environments.
This branded attenuator is manufactured with high-quality zirconia ceramic ferrules and offers consistent attenuation, low insertion loss, and high return loss. It’s fully compliant with international standards and ready for global deployment.
Key Features SC 5dB Male-Female Attenuator
-
✅ Attenuation Value: 5dB
-
✅ Connector Type: SC/UPC or SC/APC – Male to Female
-
✅ Fiber Compatibility: Singlemode 9/125μm (OS2)
-
✅ Design: Plug-in type – simple and tool-free installation
-
✅ Construction: Precision ceramic ferrule with durable housing
-
✅ Condition: Brand New – Factory tested and branded
-
✅ Color Coding: Blue for SC/UPC, Green for SC/APC (per IEC standard)
SC 5dB Male-Female Attenuator Technical Specifications
| Parameter | Details |
|---|---|
| Attenuation Level | 5dB ± 0.5dB |
| Connector Interface | SC Male to SC Female |
| Polish Type | UPC (Blue) or APC (Green) |
| Fiber Mode | Singlemode (OS2, 9/125μm) |
| Return Loss (UPC) | ≥ 50dB |
| Return Loss (APC) | ≥ 60dB |
| Insertion Loss | ≤ 0.5dB (typical) |
| Operating Wavelength | 1260nm – 1625nm |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Mating Durability | ≥ 1000 cycles |
| Compliance | RoHS, CE, IEC 60869-1, Telcordia GR-910 |
SC 5dB Male-Female Attenuator Applications
-
📡 Telecommunication Networks
-
🌐 FTTH & Metro Access Networks
-
☁️ Data Center Rack-to-Rack Balancing
-
🧪 Testing & Measurement Equipment
-
📶 Receiver Overload Protection in DWDM/CWDM Systems
Customization Options
Fully customizable for OEM, ISP, or telecom project needs:
-
🔧 Attenuation Levels Available: 1dB to 30dB
-
🔧 Connector Options: SC, LC, FC, ST – UPC or APC polish
-
🔧 Color Customization: Standard or OEM-specific codes
-
🔧 Logo Printing: Custom branding, dB markings, and model codes
-
🔧 Packaging Choices: Bulk trays, labeled bags, or retail kits
-
🔧 Performance Tuning: Tight tolerance options for lab-grade usage
Let us configure units to match your technical and branding requirements.
Technical Specifications – SC/UPC 5dB Attenuator
| Parameter | Specification |
|---|---|
| Product Name | SC/UPC 5dB Male-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | SC/UPC |
| Connector Gender | Male-Female |
| Transfer Mode | Singlemode |
| Material | Metal |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation | 5 dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | > 20 dB |
| Interchangeability | ≤ 0.20 |
| Repeatability | ≤ 0.10 |
| Reliability | > 1000 Plug Cycles |
| Operating Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
| Vibration (Amplitude) | 1.52 mm |
| Vibration (Frequency) | 10 Hz – 55 Hz |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | SC/UPC |
| Attenuation | 5 dB |
Wholesale & Global Supply Support
Designed for fiber optic resellers, telecom installers, and enterprise integrators:
-
📦 Tiered Pricing Based on Volume
-
📦 Low MOQ for Custom Orders
-
📦 Rapid Production & Worldwide Shipping
-
📦 OEM Labeling, Barcodes & Custom Packaging
-
📦 Full Documentation: CE, RoHS, Test Reports, Certificate of Origin
Why Choose Our SC 5dB Male-Female Attenuator?
-
✔️ Stable and Accurate Optical Power Reduction
-
✔️ High Reliability in Harsh Environments
-
✔️ Quick Plug-in Deployment – No Tools Required
-
✔️ Ideal for SC-based SM Optical Systems
-
✔️ OEM-Ready & Trusted by Global Telecom Operators
Order Now
Optimize your optical network with the SC 5dB Male-Female Fixed Fiber Optical Attenuator – a reliable, high-performance solution for signal tuning, power balancing, and receiver protection. Available now with OEM branding, custom packaging, and bulk pricing.
