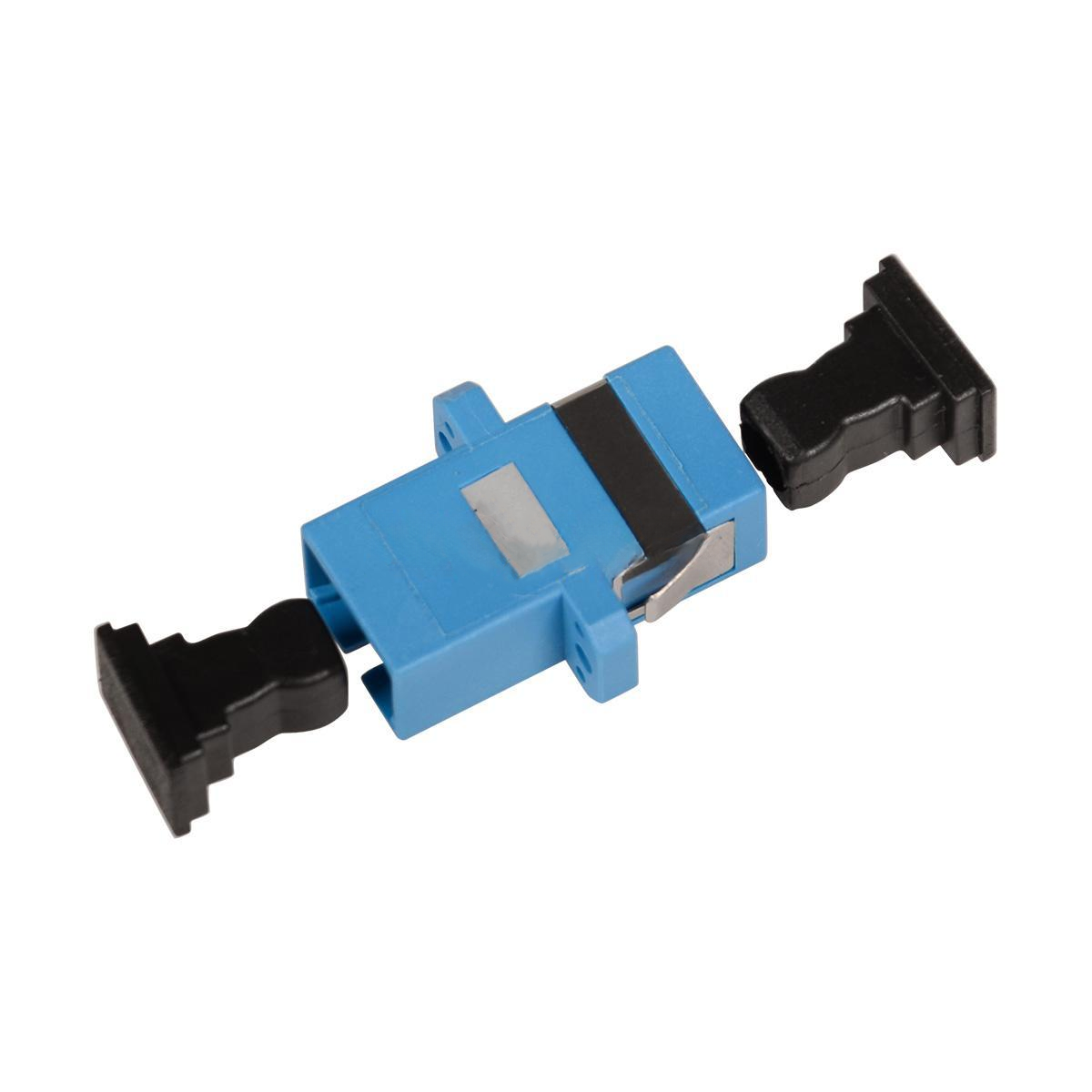

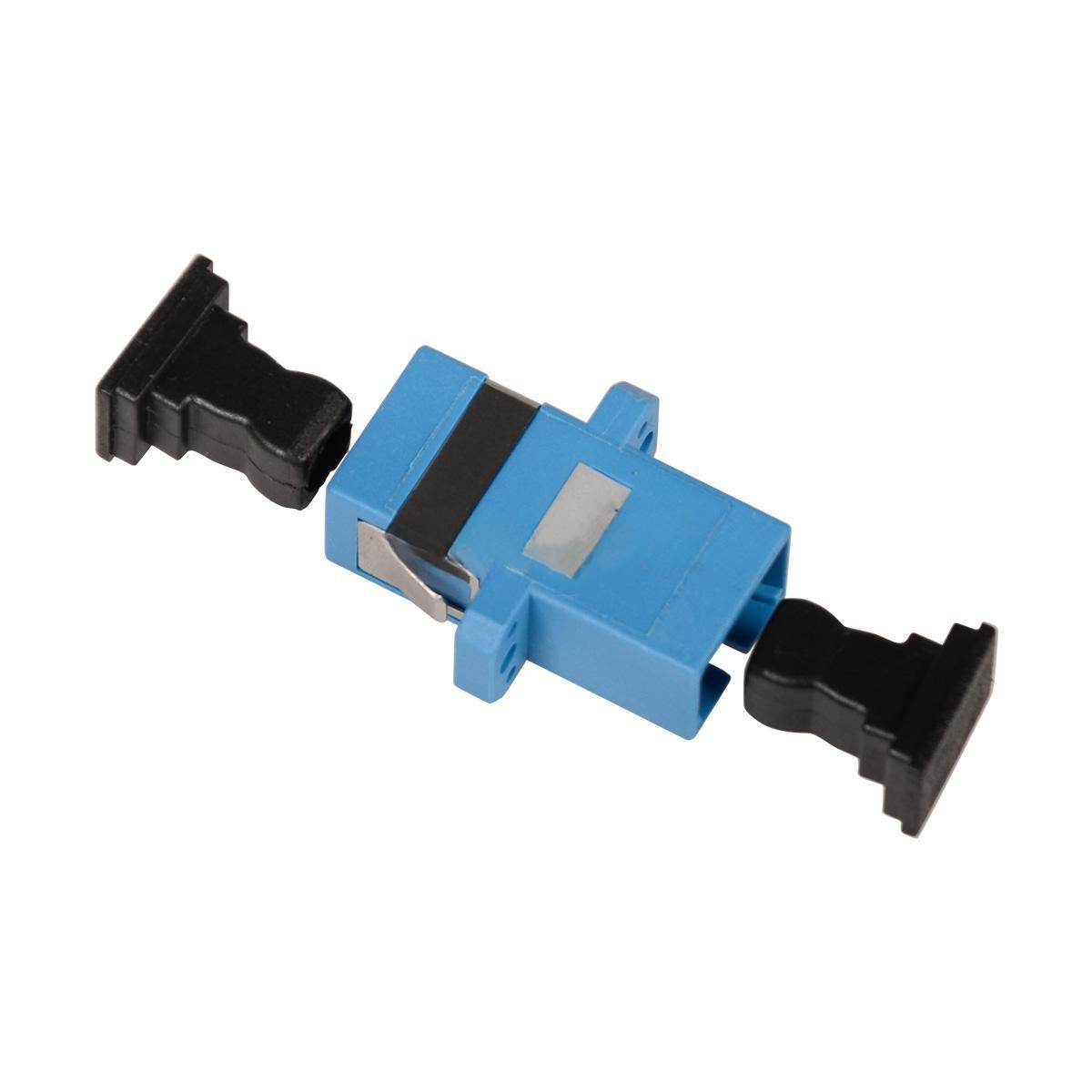

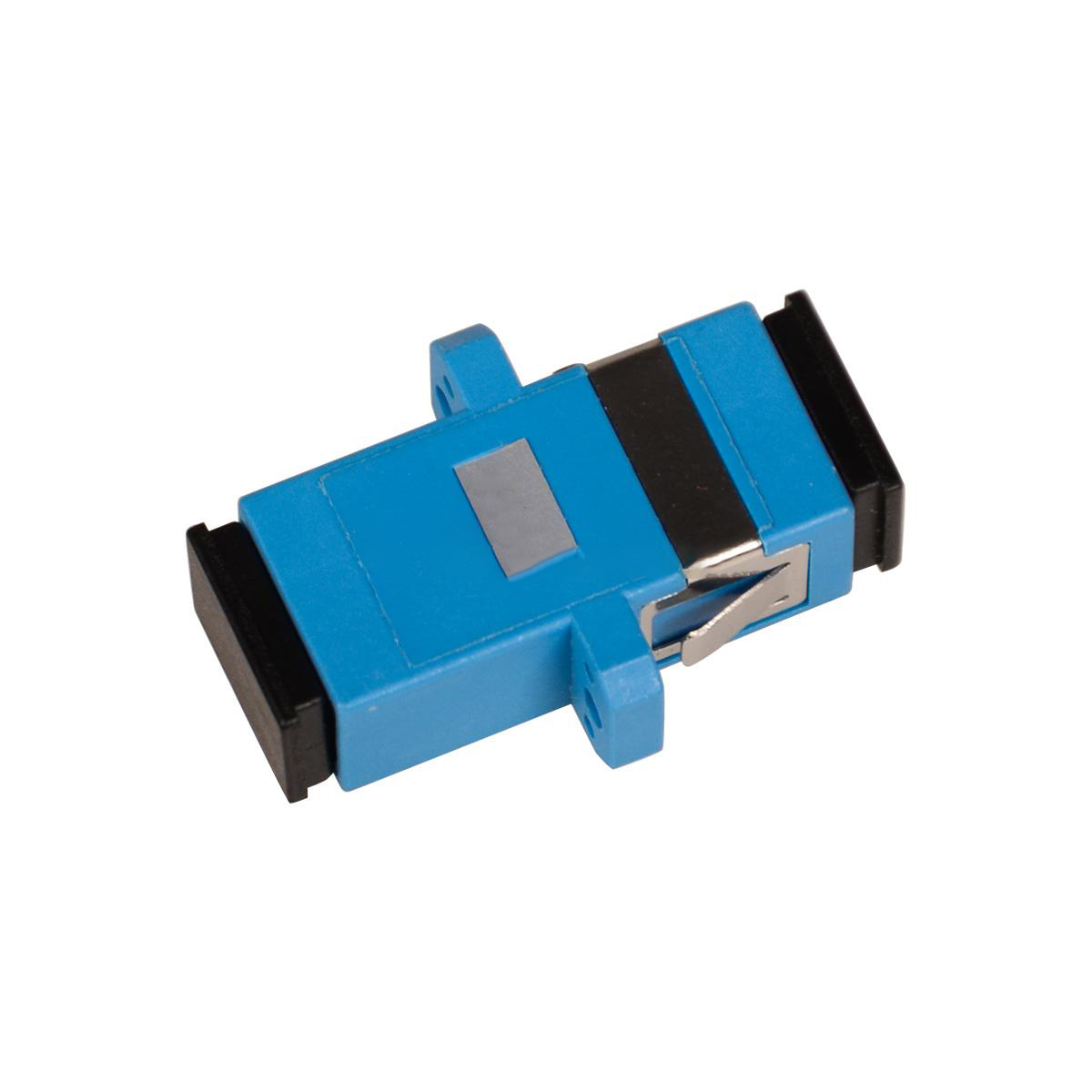

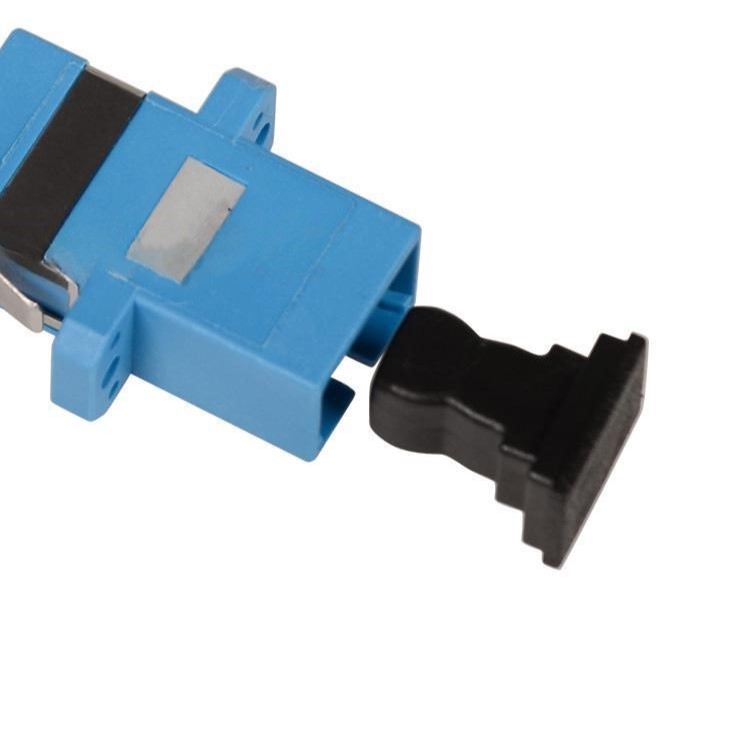

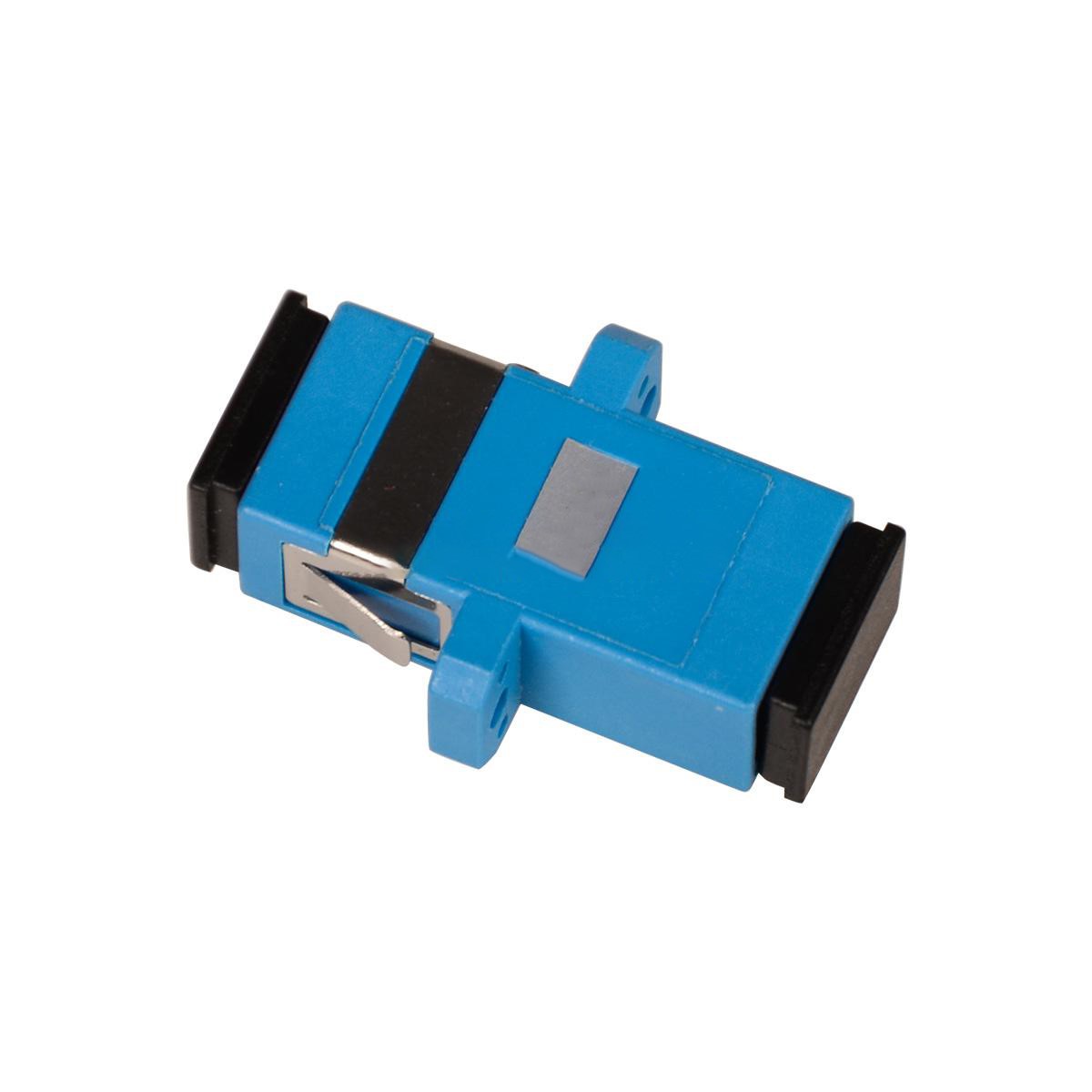

SC 7dB Fixed Fiber Optical Attenuator – Female to Female | Branded Singlemode Attenuation for SC/UPC Ports
Product Overview
The SC 7dB Female-Female Fixed Fiber Optical Attenuator is a high-precision passive optical device used to reduce optical signal power by 7 decibels, protecting sensitive receivers and ensuring balanced signal strength across fiber networks.
This female-to-female SC/UPC inline attenuator is designed for use in singlemode (OS2) optical systems and is suitable for a wide range of applications including telecom networks, data centers, ODNs, CATV, and fiber testing environments. It is brand new, factory-tested, and manufactured under strict compliance with IEC, RoHS, and Telcordia standards.
Key Features of SC 7dB Female-Female Attenuator
-
✅ Attenuation Level: 7dB (Fixed)
-
✅ Connector Type: SC Female to SC Female (UPC polish)
-
✅ Polish Type: UPC – Ultra Physical Contact (flat, blue boot)
-
✅ Compatibility: OS2 9/125μm Singlemode Fiber
-
✅ Design: Compact inline adapter – no power required
-
✅ Condition: Branded, 100% Optically Inspected and Sealed
SC 7dB Female-Female Attenuator Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Value | 7dB ± 0.5dB |
| Connector Style | SC/UPC Female to SC/UPC Female |
| Fiber Compatibility | Singlemode OS2 (9/125μm) |
| Return Loss | ≥ 50dB (UPC) |
| Insertion Loss | ≤ 0.6dB (excluding attenuation) |
| Operating Wavelength | 1260nm to 1625nm |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Mating Durability | ≥ 1000 insertions |
| Certifications | RoHS, CE, ISO9001, Telcordia GR-910 |
SC 7dB Female-Female Attenuator Applications
-
📡 Optical Power Balancing in ODN & GPON Networks
-
🧪 Test Labs & Equipment Calibration
-
☁️ Data Centers – Avoid Overload in Receivers
-
📺 CATV & Broadcast Optical Networks
-
🔌 Patch Panel Interface Attenuation
Customization Options
Tailored for network designers, installers, and OEM partners:
-
🔧 Attenuation Range: 1dB to 30dB (1dB steps)
-
🔧 Connector Options: SC/APC, LC/UPC, LC/APC, FC, ST – Female-Female or Male-Female
-
🔧 Color Coding: Blue for UPC, Green for APC (Custom colors optional)
-
🔧 Private Labeling: Custom logo, dB rating, part number printed
-
🔧 Packaging: Individual polybag, tray-packed, or custom kit
📦 Tech Specs – SC/UPC 7dB Female-Female Fixed Fiber Optical Attenuator
| Specification | Details |
|---|---|
| Product Name | SC/UPC 7dB Female-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | SC/UPC |
| Connector Gender | Female-Female |
| Transfer Mode | Singlemode |
| Material | Ceramic |
| Operating Wavelength | 1200nm – 1600nm |
| Attenuation | 7dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | >20dB |
| Interchangeability | ≤0.20 dB |
| Repeatability | ≤0.10 dB |
| Reliability | >1000 plug cycles |
| Operating Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
| Vibration Amplitude | 1.52mm |
| Vibration Frequency | 10Hz – 55Hz |
Wholesale & Project Supply
Perfect for FTTH installers, telecom operators, system integrators, and fiber distributors:
-
📦 Bulk Pricing with Tiered Discounts
-
📦 OEM & White Label Branding Options
-
📦 Global Delivery with Certification Documents
-
📦 Fast Fulfillment – MOQ & Sample Flexibility
-
📦 Batch Test Reports Available Upon Request
Why Choose Our SC 7dB Female-Female Attenuator?
-
✔️ Reliable and Precise Signal Control at 7dB
-
✔️ Field-Proven SC/UPC Compatibility
-
✔️ Durable Construction for Long-Term Use
-
✔️ Ideal for High-Density Fiber Management
-
✔️ Certified, Branded, and Performance-Tested
Order Now
Ensure stable and accurate signal levels in your fiber network with the SC 7dB Female-Female Fixed Optical Attenuator – a cost-effective and reliable attenuation solution for professional fiber deployments. Now available with OEM branding, bulk discounts, and rapid worldwide shipping.
