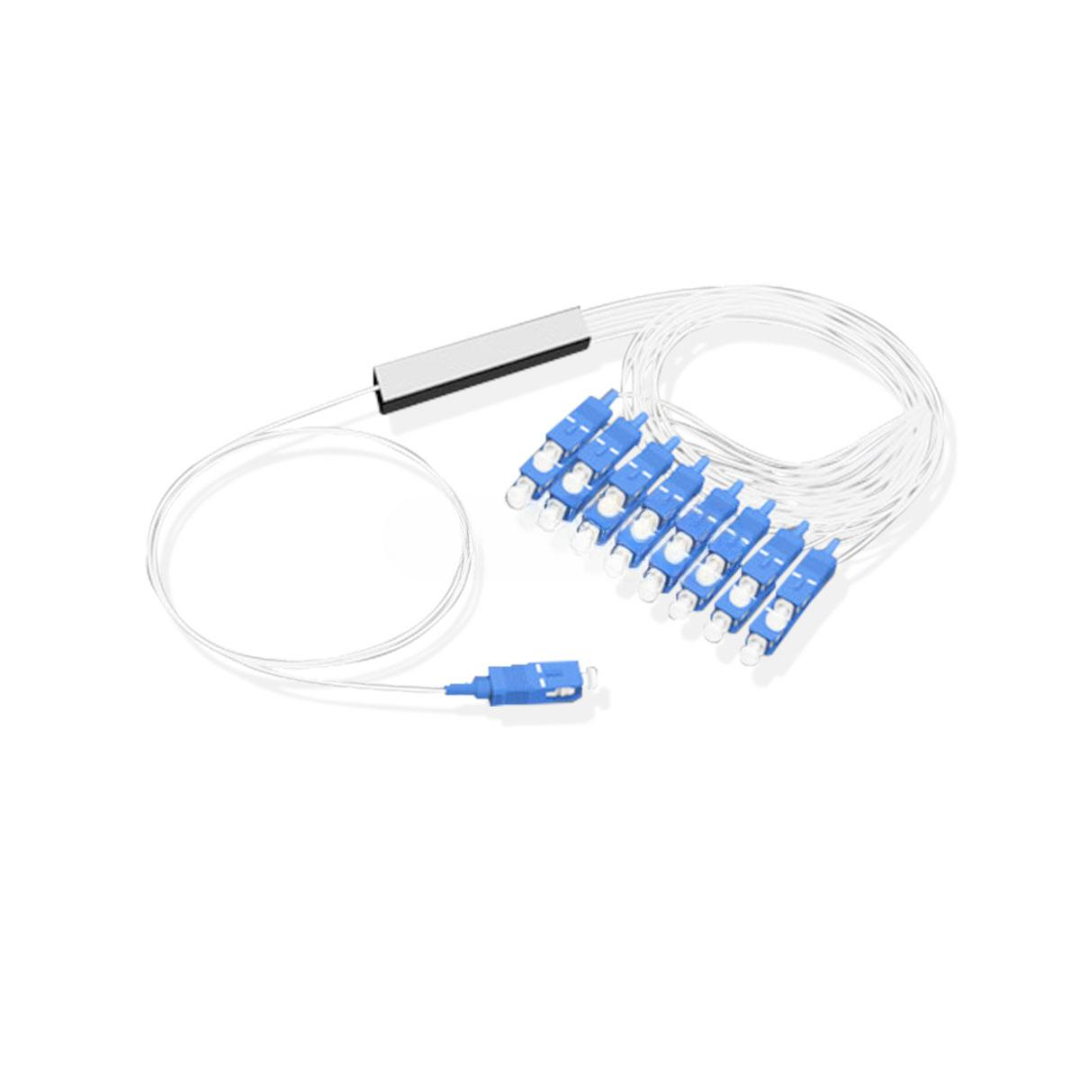

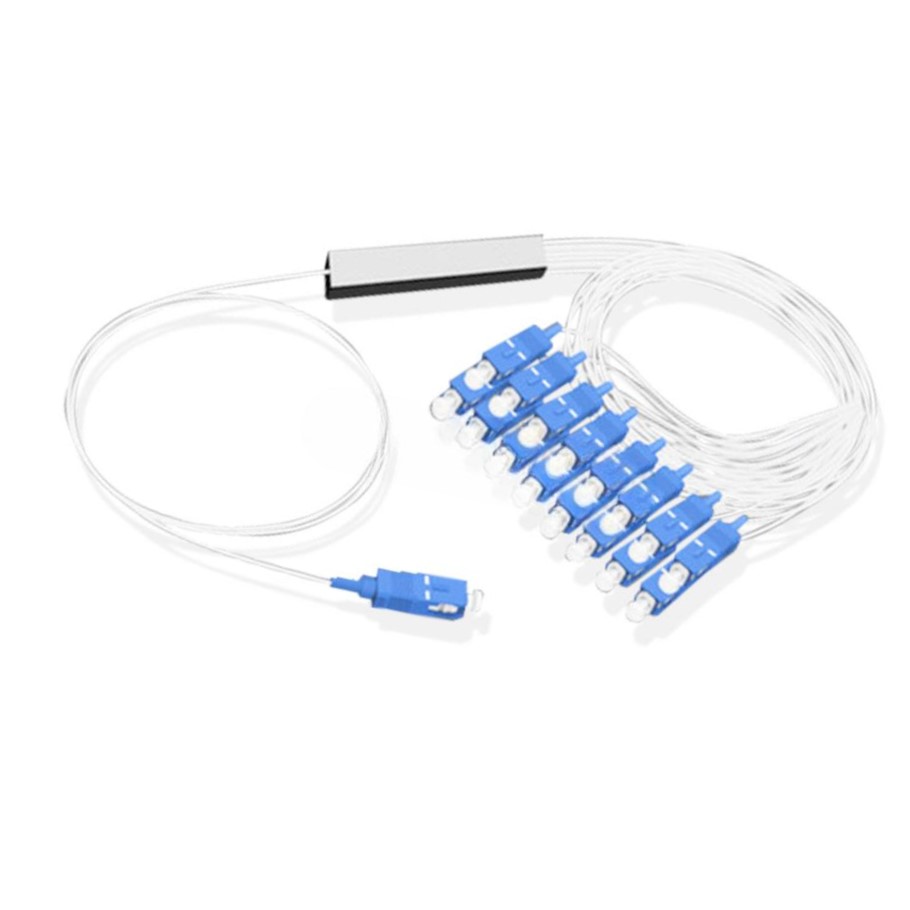

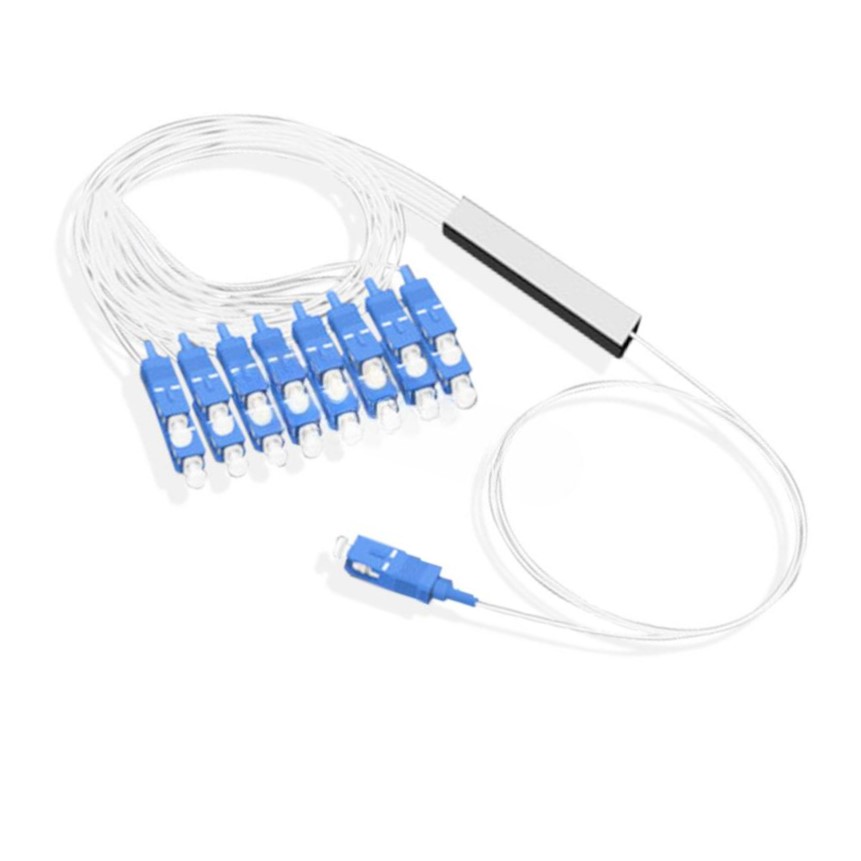

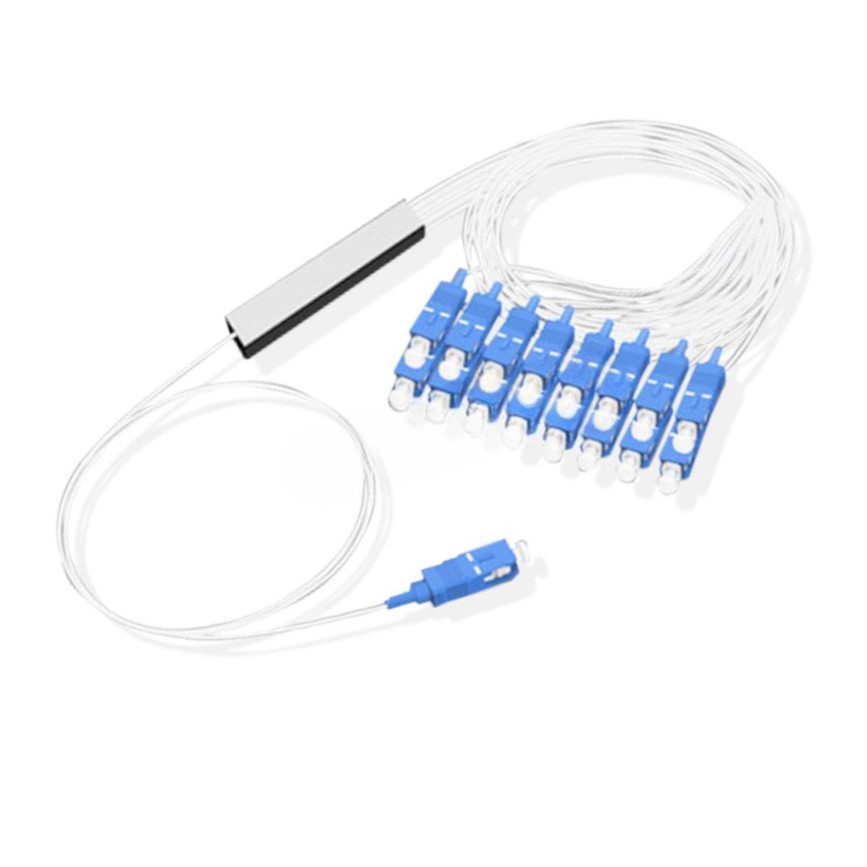

SC/UPC 1×16 Blockless Type 250um Fiber Splitter Optical
The SC/UPC 1×16 Blockless Fiber Splitter is a high-performance passive optical device designed for FTTH, FTTx, PON, and other fiber optic network applications that require reliable, uniform optical signal distribution. Featuring a compact blockless design and 250um bare fiber, it’s ideal for tight-space splicing, fiber trays, or installation inside optical distribution boxes.
This 1×16 PLC (Planar Lightwave Circuit) splitter splits one input optical signal evenly into 16 outputs with low insertion loss, excellent uniformity, and stable performance over a wide operating wavelength range.
Key Features
-
Splitter Type: 1×16 PLC Splitter
-
Design: Blockless type with 250um bare fiber
-
Connectors: SC/UPC connectors on input and output fibers
-
Operating Wavelength: 1260~1650nm (broadband PON)
-
Low Insertion Loss: Excellent optical performance and signal balance
-
Compact & Lightweight: Fits easily in splice trays and closures
-
High Reliability: Telcordia GR-1209 & GR-1221 compliant for long-term field use
-
Condition: 100% Brand New, factory-tested, and certified
Technical Specifications
| Category | Specification |
|---|---|
| Splitter Type | PLC (Planar Lightwave Circuit) |
| Configuration | 1×16 |
| Fiber Type | 250um bare fiber, singlemode |
| Connector Type | SC/UPC on input & outputs |
| Operating Wavelength | 1260–1650nm |
| Insertion Loss | ≤ 13.7 dB |
| Uniformity | ≤ 1.0 dB |
| Return Loss | ≥ 55 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.3 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Standards Compliance | Telcordia GR-1209, GR-1221, RoHS |
SC/UPC 1×16 Blockless Applications
FTTH/FTTx Networks: Evenly split optical signals to multiple subscribers in PON deployments
Passive Optical LANs: Efficient distribution for enterprise or campus networks
CATV Networks: RF over fiber signal distribution
Test & Measurement: Compact design for lab or field test setups
Space-Limited Installations: Perfect for integration into splice trays, closures, or compact enclosures
Customization & OEM Services
Custom Fiber Lengths: Tailor input/output pigtail lengths to site needs
Connector Options: SC/APC, LC/UPC, LC/APC, FC, or hybrid connections available
Private Label & Packaging: OEM branding and custom labeling for local resellers or installers
Bulk Kits: Ready-to-install splitter kits for large projects
QC Reports: Insertion loss test data included for each unit
SC/UPC 1×16 Blockless Wholesale & Bulk Supply
Factory Direct Pricing: Competitive wholesale rates for ISPs, installers, and system integrators
Worldwide Delivery: Secure export packaging, fast global fulfillment
Dedicated Account Managers: Personalized service for your bulk orders and rollouts
Full Warranty: 100% brand new, factory-certified, and compliant with global standards
SC/UPC 1×16 Blockless Why Choose Us
Premium Quality — Fully Tested & Certified
OEM & Customization for Resellers & Projects
Attractive Bulk Discounts
Reliable Global Logistics & Export Support
Technical Assistance — From Pre-Sales to Deployment
Contact Us for Best Pricing
Get your networks ready for high-performance PON deployment with the SC/UPC 1×16 Blockless Type 250um Fiber Splitter Optical — a smart, reliable solution for cost-effective signal distribution with trusted quality.
