Overview
Essential details
Model Number:
Fast Connector, SC fast connector
Type:
Fast Connector, Fiber Adapter & Connectors
Place of Origin:
Guangdong, China
Brand Name:
Product name:
Fiber Optic Fast Connector
Fiber Cable type:
3.1 x 2.0 mm drop cable
Return loss:
≥50dB
Durability:
1000 times mating
Endface type:
APC UPC PC
Color:
Blue Green
Delivery:
Fast delivery
Supply Ability
Supply Ability
30000 Piece/Pieces per Month
Packaging & delivery
Packaging Details

Standard Packing or Custom Packing Hot sale SC APC 2020 new embedded fiber optical fast connector

Port

shenzhen

Lead time:
Quantity(pieces) 1 – 10 11 – 500 501 – 1000 >1000
Lead time (days) 3 5 7 To be negotiated



Product Description

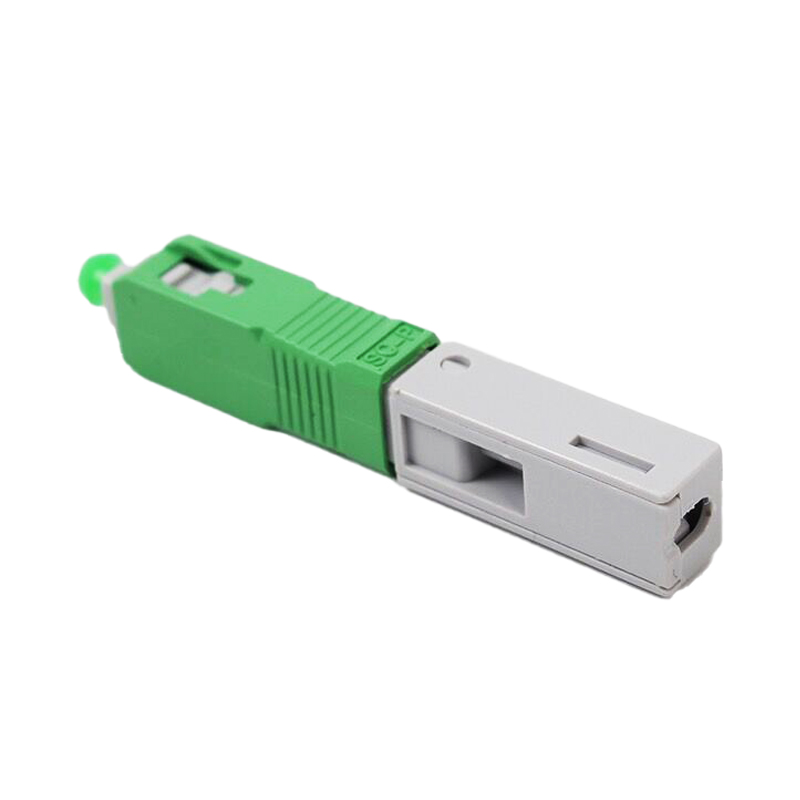

Hot sale SC APC 2020 new embedded fiber optical fast connector
Fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

Key Features:

1) Low insertion loss
2) Ease of installation
3) Low cost & Reliability
4) Ease of use
5) Low environmental sensitivity
6) High return loss (low amounts of reflection at the interface)

Applications:

1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
Specification
Fast Connector
Singemode(UPC)
Singemode(APC)
Multimode
Insertion loss
≤ 0.2db
≤ 0.2db
≤ 0.25db
Return loss
≥55db
≥65db
≥30db
Durability
≤ 0.2db typical change, 1000 times mating
Operating Temperature
-45 to +85 degree
Ferrule Hole Sizes
125.0+1/-0um, Concertricity:≤1.0um
125.0+1/-0um, Concertricity:≤0.5um
127.0um, Concertricity: ≤3.0um
125.5+1/-0um, Concertricity:≤1.0um
125.5+1/-0um, Concertricity:≤0.5um
126.0+1/-0um, Concertricity:≤1.0um
126.0+1/-0um, Concertricity:≤0.5um

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.

Product Details Pictures

Packing & Delivery
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo
Inner packing: individual package 1pcs in a blister box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
Transportation:ship it by air ,by sea, by express (DHL ,FEDEX ,UPS ,TNT ….)
