- Model Number:SPUe
- Type:Other
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTX
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 5 Piece/Pieces per Week
-
- Packaging Details
Cartons
-
- Port
SHENZHEN
- Lead time:Quantity(pieces)1 – 10>10Lead time (days)15To be negotiated
| Board Type | Board Name | Function |
| OMU board | OMUa | zHandles configuration management, performance management, fault management, security management, and loading management for the BSC6900 Software. zWorks as the OM agent for the LMT/M2000 to provide the BSC6900 OM interface for the LMT/M2000, thus achieving the communication between the BSC6900 Software and the LMT/M2000. zWorks as the interface to provide the web-based online help. |
| Switching processing board |
SCUa | zProvides MAC/GE switching and enables the convergence of ATM and IP networks. zProvides data switching channels. zProvides system-level or subrack-level configuration and maintenance. zDistributes clock signals for the BSC6900 Software. |
| TDM switching Network Unit |
TNUa | zProvides 128K x 128K time slots TDM switching zAllocates the TDM network resources |
| Clock processing board |
GCGa | Obtains the system clock source, performs the functions of phase-lock and holdover, and provides clock signals. Differences: Unlike the GCUa board, the GCGa board can receive and process the GPS signals. |
| GCUa | ||
|
Signaling processing board |
SPUb/ XPUb |
Manages user plane and signaling plane resources in the subrack and processes signaling. |
|
Service processing board |
DPUe/ DPUd/ DPUc |
Processes CS services and PS services within the system. |
|
Service identification board |
NIUa | Provides the service identification function. It works with the service processing boards to schedule different types of services. |
| Interface processing board |
AEUa | Provides 32 channels of ATM over E1/T1. zExtracts clock signals and sends the signals to the GCUa or GCGa board. |
| AOUc | Provides four channels over the channelized optical STM-1/OC-3 ports based on ATM protocols. zSupports ATM over E1/T1 over SDH or SONET. zProvides 252 E1s or 336 T1s. zExtracts clock signals and sends the signals to the GCUa or GCGa board. |
|
| FG2c | Provides 12 channels over FE electrical ports or 4 channels over GE electrical ports. zSupports IP over FE/GE. |
|
| GOUc | zProvides four channels over GE optical ports. zSupports IP over GE. |
|
| PEUa | Provides 32 channels of IP over E1/T1. zExtracts clock signals and sends the signals to the GCUa or GCGa board. |
|
| EIUa | zProvides four E1/T1 electrical ports for TDM transmission zTransmits, receives, encodes, and decodes 32 E1s/T1s. The E1 transmission rate is 2.048 Mbit/s; the T1 transmission rate is 1.544 Mbit/s zProcesses signals according to the LAPD protocol zProcesses signals according to the SS7 MTP2 protocol |
|
| POUc | Provides four channels over the channelized optical STM-1/OC-3 ports based on IP protocols, equivalent to 252 E1s or 336 T1s. zSupports IP over E1/T1 over SDH/SONET. zExtracts clock signals and sends the signals to the GCUa or GCGa board. |
|
| UOIa | zProvides four channels over the unchannelized STM-1/OC-3c optical ports. zSupports ATM/IP over SDH/SONET. zExtracts clock signals and sends the signals to the GCUa or GCGa board. |
|
| UOIc | zProvides eight channels over the unchannelized STM-1/OC-3c optical ports. zSupports ATM over SDH/SONET. zExtracts clock signals and sends the signals to the GCUa or GCGa board. |
|
|
Supported Interfaces and Usage |
OMUa | The following list shows a collection of interfaces which might be used during this evaluation for all models. |
| FG2c |
The interfaces boards are used for incoming and outgoing network traffic, which support VLAN, IP_based ACL, anti-DDoS attack |

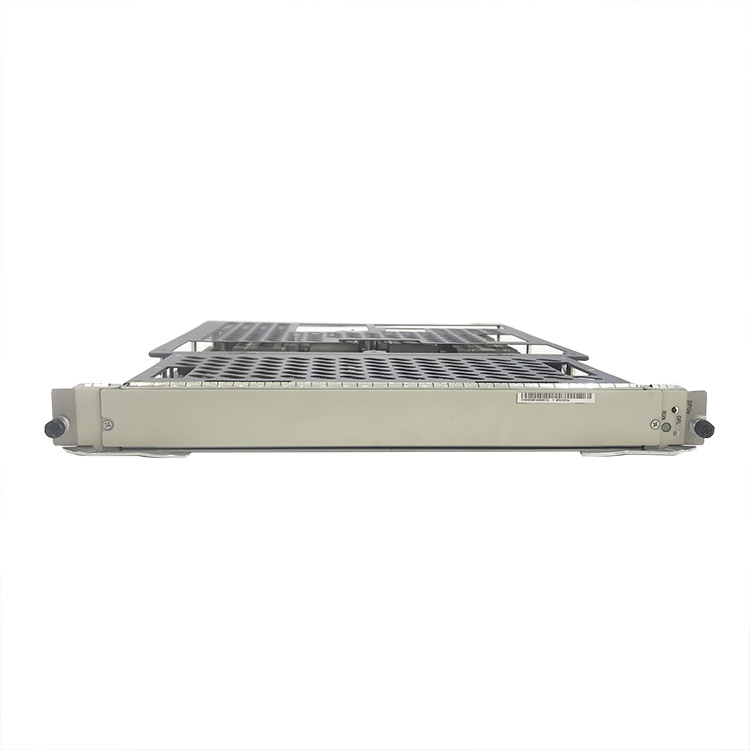

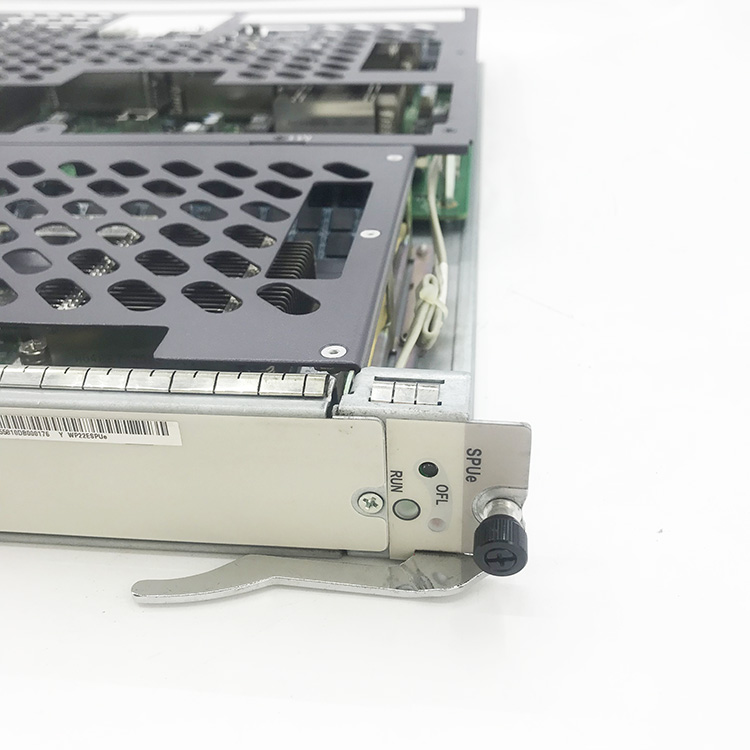

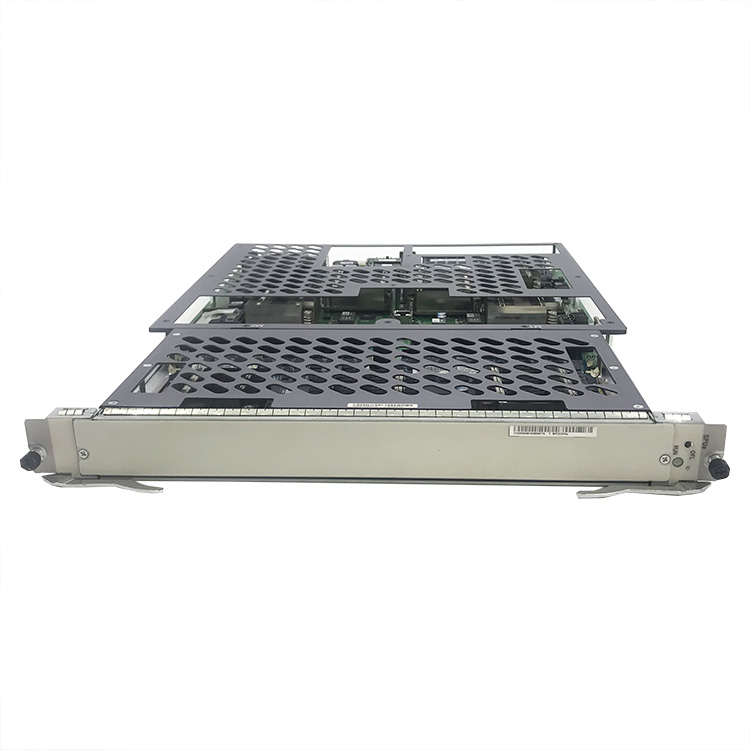

Product Pictures
