SS63SD4(L-4.2,SC) Huawei Brand New Optical Interface Board

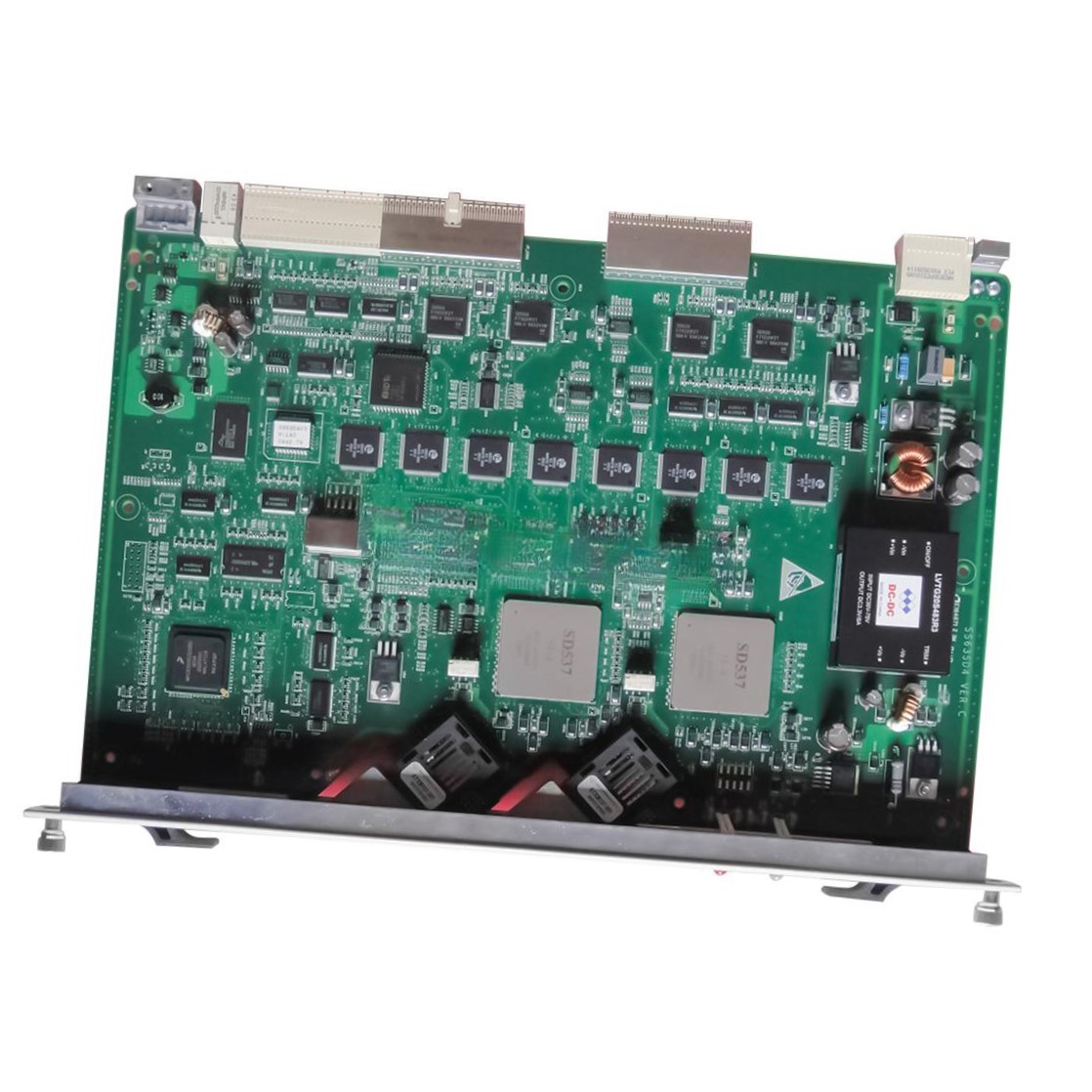

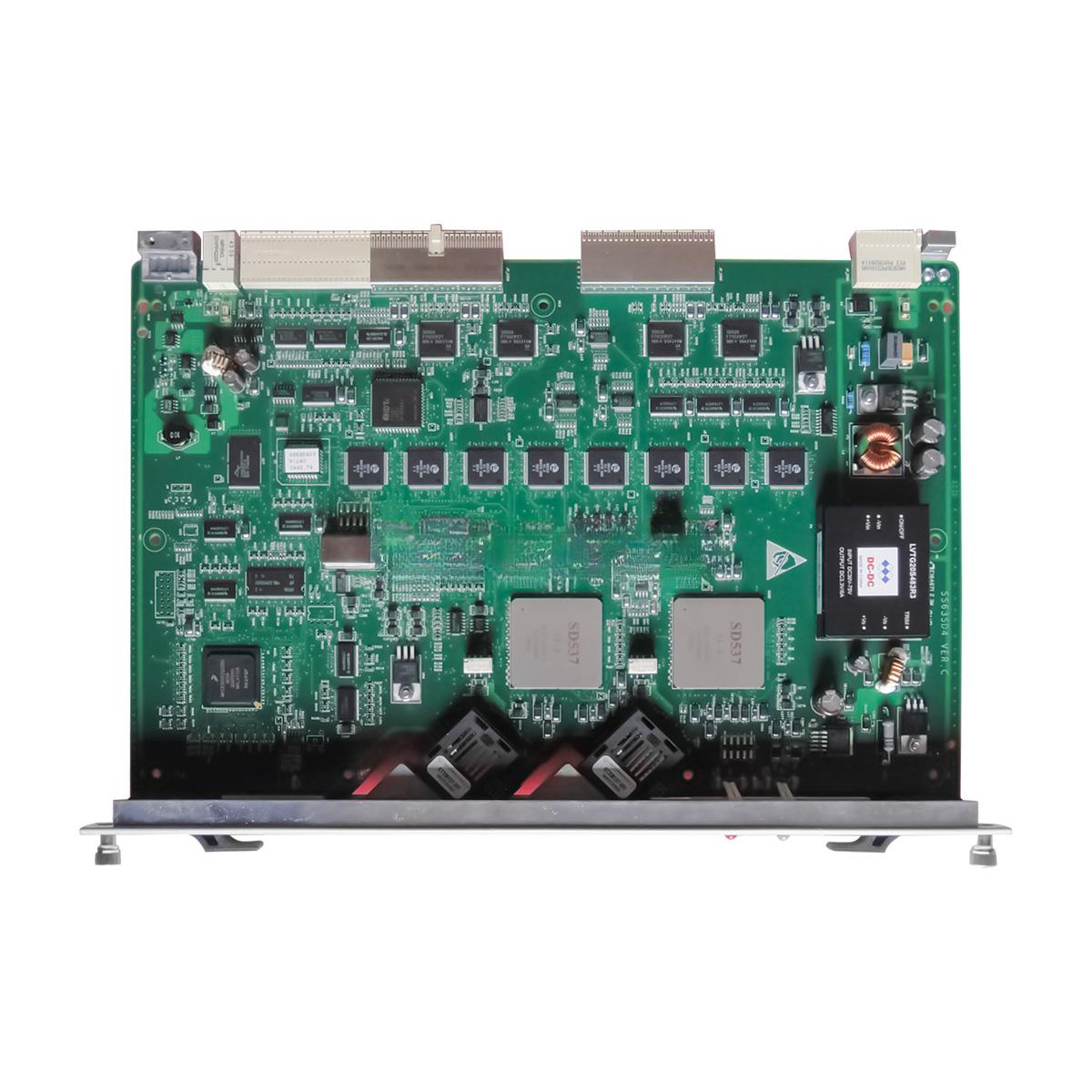

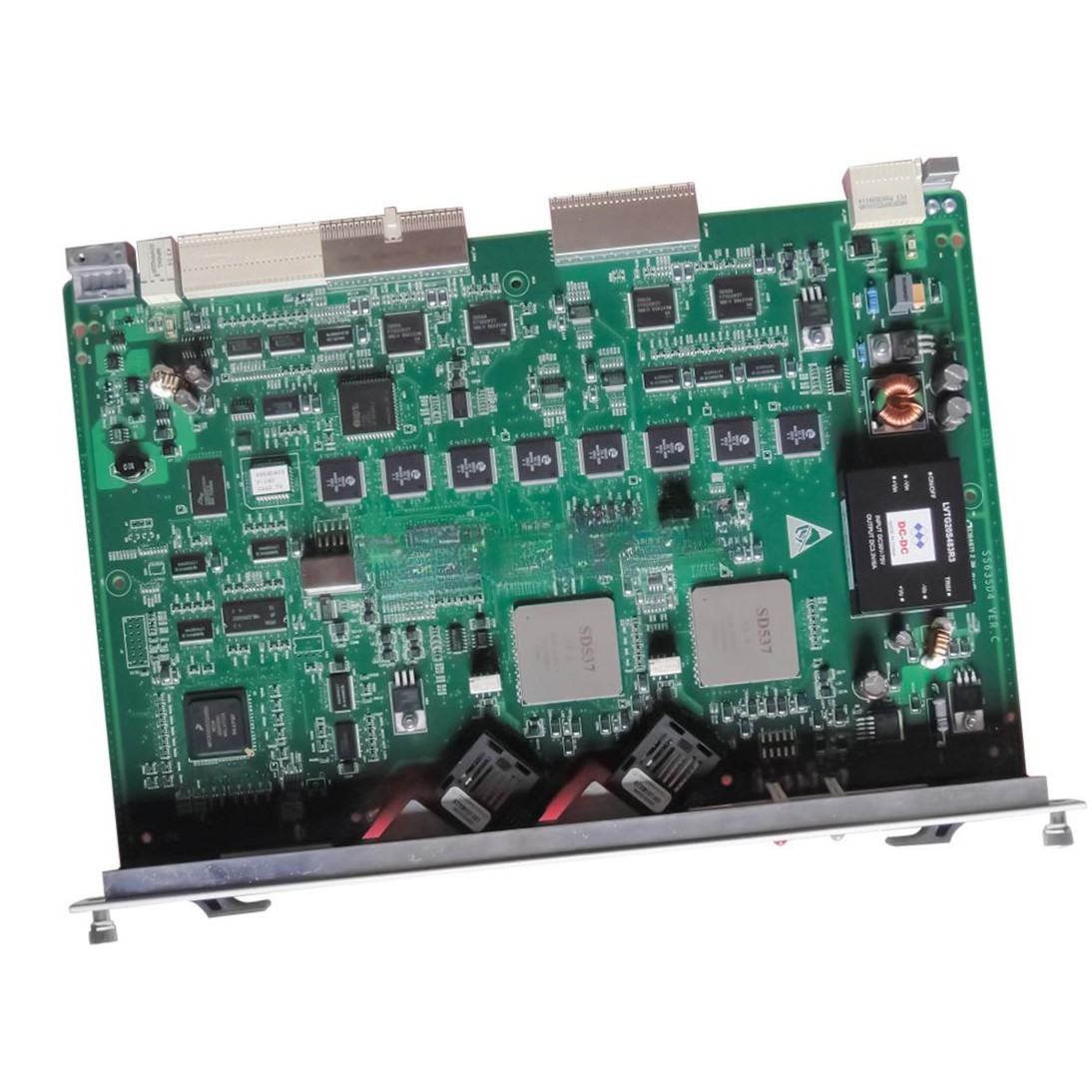

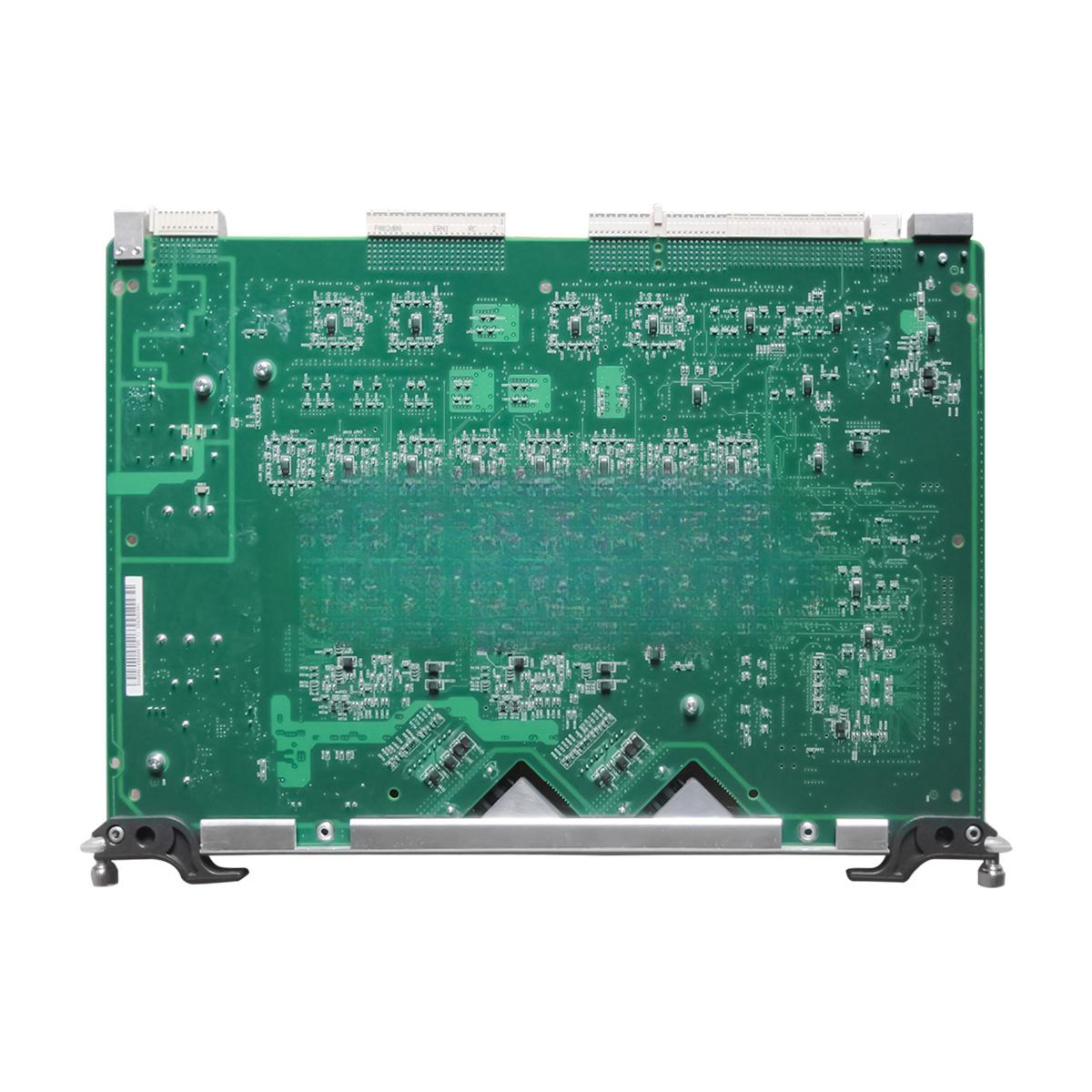

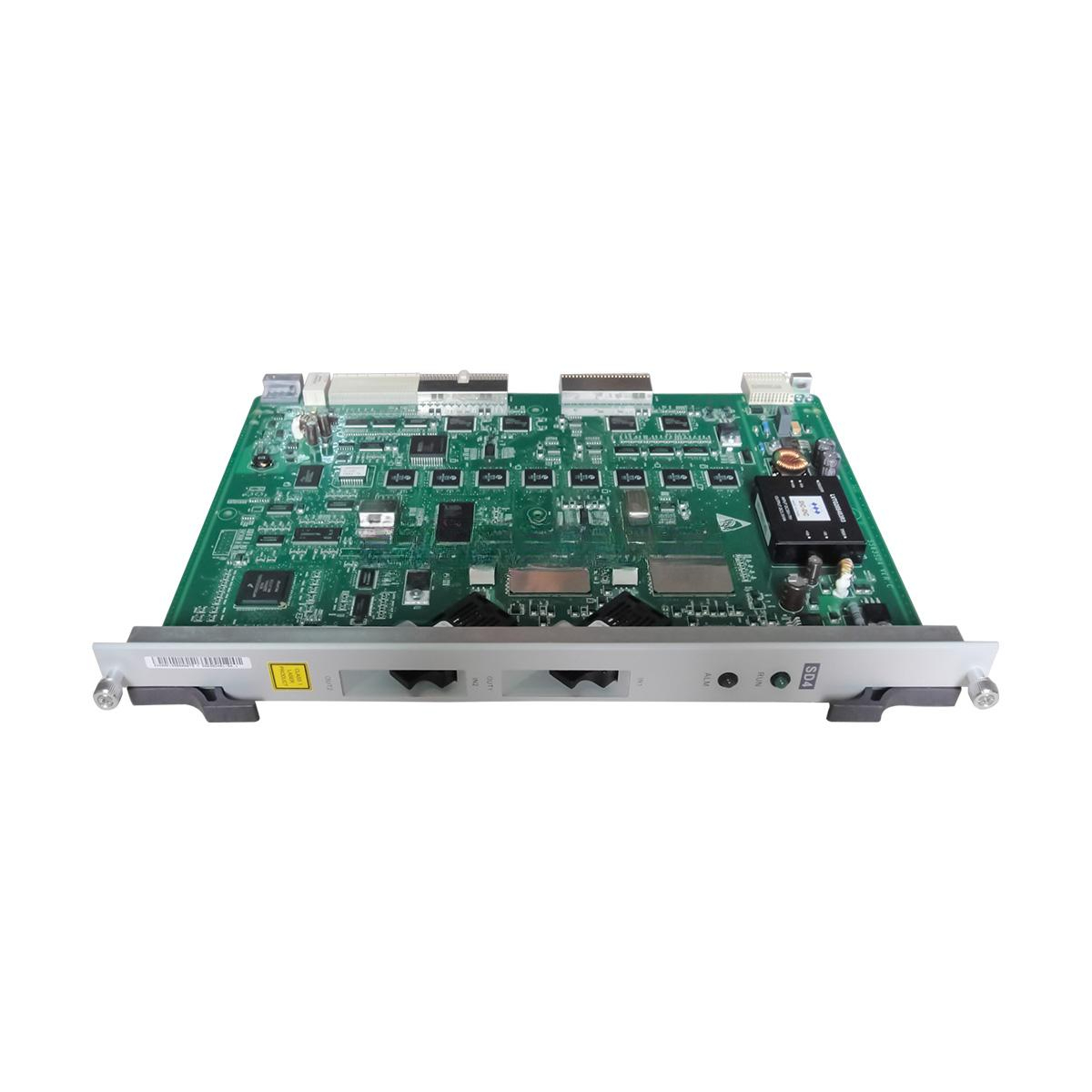

The SS63SD4(L-4.2,SC) Huawei is a high-performance optical interface board designed for Huawei OSN (Optical Service Node) series transmission systems. Supporting STM-4 (622 Mbps) SDH interfaces with SC connectors, this board ensures stable, long-distance optical transmission over single-mode fiber. Ideal for carrier-grade SDH transport networks, it is a reliable component for metro access, aggregation, and transmission backbones.
Key Features
-
Model: SS63SD4(L-4.2,SC)
-
Condition: 100% Brand New, Original Huawei
-
Service Type: STM-4 (622 Mbps) SDH optical interface
-
Connector Type: SC Duplex Interface
-
Transmission Mode: Single-mode Fiber
-
Reach: Long-distance transmission (up to 80 km, optics dependent)
-
Port Configuration: 1x Optical Port
-
Functional Integration: Includes scrambling, frame alignment, clock recovery, and error monitoring
-
Hot-Swappable: Easily replaceable in live systems without service interruption
-
Monitoring & Alarms: Full optical performance monitoring and event alarms
Technical Specifications
| Specification | Details |
|---|---|
| Model | SS63SD4(L-4.2,SC) |
| Board Type | SDH Optical Interface Board |
| Service Rate | STM-4 (622 Mbps) |
| Connector Interface | SC Duplex |
| Fiber Type | Single-mode |
| Transmission Distance | Up to 80 km (varies by optical module) |
| Compatibility | OSN3500, OSN7500, and other OSN series equipment |
| Power Consumption | ≤ 8W (typical) |
| Installation Slot | Line Unit Slot |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | ITU-T G.707, G.783, G.957 |
| Alarm Support | LOS, LOF, MS-AIS, RDI, B1/B2 Error Statistics |
| Warranty | 1–3 Years Manufacturer Warranty |
SS63SD4(L-4.2,SC) Huawei Applications
-
Telecom Backbone Networks — STM-4-based SDH aggregation and transport
-
Metro and Access Rings — Optimized for long-distance, stable optical connections
-
Industrial & Enterprise Networks — Secure and reliable optical layer transmission
-
Government & Utility Infrastructure — Designed for high-availability environments
Customization & OEM Options
-
Private Branding — OEM service with custom company branding and part numbers
-
Pre-configured Settings — Port mapping, loopback, and pre-loaded firmware settings
-
Rack Integration — Bundled with subrack, patch panels, and pre-assembled cables
-
Enhanced Testing — Extended soak and performance testing for mission-critical networks
-
Specialized Optics — Options for different optical modules (CWDM/DWDM, various reaches)
SS63SD4(L-4.2,SC) Huawei Wholesale & Global Procurement
-
Direct OEM Supply — Factory-sealed, genuine Huawei equipment
-
Volume Discounts — Competitive rates for integrators and resellers
-
Secure Export Packaging — Anti-static, foam-protected, compliant with international shipping standards
-
Fast Lead Time — Rapid dispatch for urgent deployments
-
Technical Support — Full documentation, integration assistance, and post-sales service
Why Choose SS63SD4(L-4.2,SC) Huawei Optical Board
-
Reliable STM-4 Performance — Long-haul optical transmission over SDH
-
Proven Huawei Quality — Trusted in global telecom infrastructure
-
Flexible Integration — Seamless with Huawei OSN platforms
-
Cost-Effective Solution — Balances performance and energy efficiency
-
Carrier-Grade Features — Alarm reporting, hot-swap, and compliance ready
Contact US
Equip your transport network with the SS63SD4(L-4.2,SC) Huawei Optical Interface Board — a trusted solution for high-performance STM-4 transmission.
