- Products Status:Stock
- Ports:10
- Transmission Rate:10/100Mbps
- Function:POE, QoS
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:1.25G
- Model Number:24GE-2GE-2SFP
- Place of Origin:Guangdong, China
- Key Feature1:Wholesales Price Standard POE Switch
- Key Feature2:28-Port Economical Gigabit Switch with 24-Port PoE
- Key Feature3:POE Switch for Hikvision IP Camera
- Application:Telecommunication
- Certification:CE RoHS FCC
- Transmission distance:100meters
- Power:320W
- Uplink rate:1000Mbps
- LED Display:Power ,T-LINK ,R-LINK,Rackable ,Desktop
- Name:24-Port Gigabit Smart PoE Switch
-
- Supply Ability
- 10000 Piece/Pieces per Day
-
- Packaging Details
Carton
Unmanaged 24-Port Gigabit Smart PoE Switch with 2 Combo SFP Slots 48V ethernet fiber switch poe for CCTV -
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 1011 – 500501 – 1000>1000Lead time (days)357To be negotiated
Unmanaged 24-Port Gigabit Smart PoE Switch with 2 Combo SFP Slots 48V ethernet fiber switch poe for CCTV

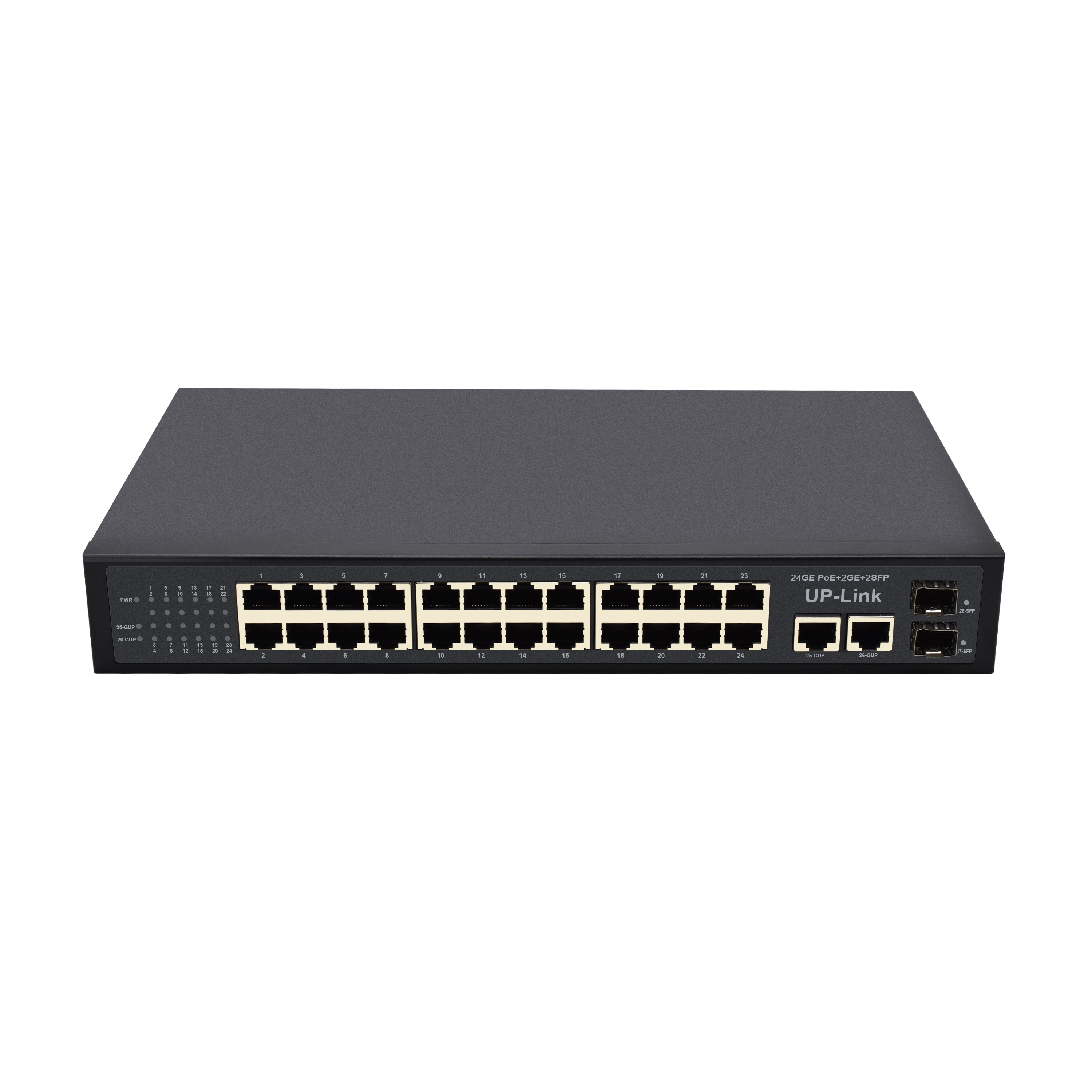

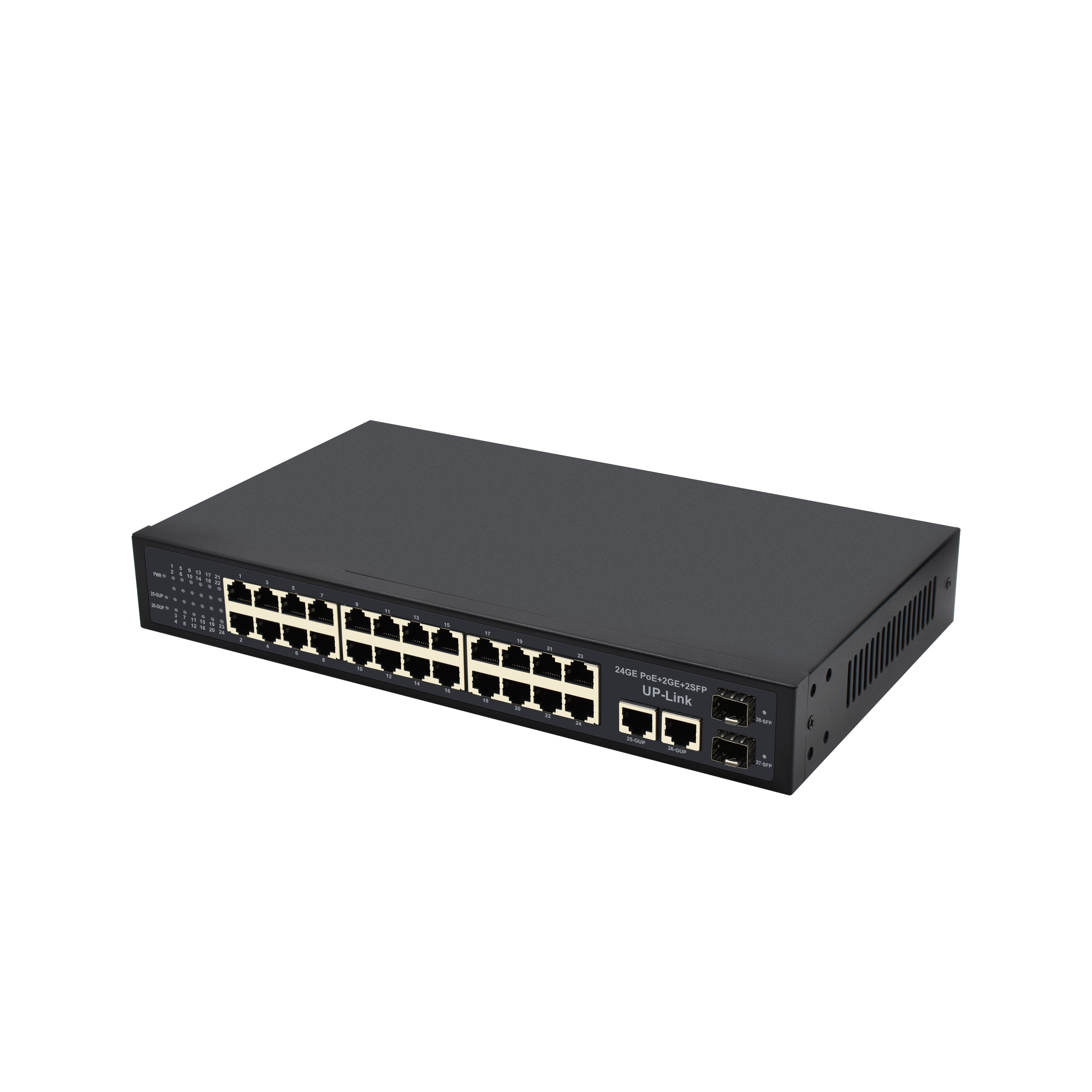

The SWITCH provides 24 10/100/1000Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 320W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2 combo SFP slots, expanding your network flexibly
Products Show
|
Product Name
|
Unmanaged 24-Port Gigabit Smart PoE Switch with 2 Combo SFP Slots 48V ethernet fiber switch poe for CCTV
|
|
Product Model
|
24GE-2GE-SFP
|
|
Product description
|
24*1000Mbps POE port+2*1000Mpbs uplink port+2G SFP
|
|
Interface
|
24*10/1000Mbps RJ45 port(All ports support MDI/MDIX self-adaptation)
|
|
Network media
|
category 5 and above unshielded twisted pair.(≤150meters)
|
|
Backplane bandwidth
|
56Gbps( Non-Blocking)
|
|
Forwarding method
|
Store-and-Forward(can realize line speed forward)
|
|
MAC Address
|
2K
|
|
Network protocol
|
IEEE802.3i;IEEE802.3u;IEEE802.3x Flow control;IEEE802.3af DTE Power via MDI
|
|
POE Port
|
1~24port support IEEE802.3af(15.4W)/at(30w) power supply
|
|
POE standard
|
IEEE802.3af(output power 15.4W)/at(30w)
|
|
POE Port features
|
each port 15.4W(IEEE802.3af)/at(30w)
|
|
Core of cable
|
1/2+,3/6-(4/5+,7/8- can custom-made)
|
|
Total Power
|
320W
|
|
Environmental conditions:
|
Working temperature:-35℃~75℃
Storage Temperature:-40℃~85℃ Operating humidity:-5~95%RH,noncondensing |
|
Electromagnetic radiation
|
FCC Class A, CE
|
|
Power supply
|
External power adapter(input AC100-240V 50/60HZ; output 52V1.8A/52V2.3A)
|
