SKU 1600667904399 Category
  • Products Status:Stock
  • Ports:≤ 8
  • Transmission Rate:10/100Mbps
  • Function:POE, QoS, VLAN Support
  • Communication Mode:Full-Duplex & Half-Duplex
  • Switch Capacity:1G
  • Model Number:4FE-1FE
  • Place of Origin:Guangdong, China
  • Key Feature3:IEEE802.3AF/AT
  • Key Feature2:65w POE Power whole switch
  • Key Feature1:4 Port Poe Switch
  • Application:Telecommunication
  • Certification:CE RoHS FCC
  • Transmission distance:250Merter POE Max
  • Transmission rate:10/100Mbps POE 4Port
  • Uplink rate:100Mbps uplink 1 port
  • LED Display:Power ,T-LINK ,R-LINK
  • Name:Desktop POE Switch 4Port
  • Selling Units:Single item
  • Single package size: 19.5X8.5X2.9 cm
  • Single gross weight:1.200 kg
  • Package Type:Carton 5-Port Fast Desktop Switch with 4-Port PoE 10/100Mbps, External Power 65W IEEE802.3af/at
  • Lead time:Quantity(pieces)1 – 100101 – 1000>1000Lead time (days)37To be negotiated
Product Description

5-Port Fast Desktop Switch with 4-Port PoE 10/100Mbps, External Power 65W IEEE802.3af/at

  This POE Switch provides 4*10/100Mbps PoE ports which support IEEE802.3af/at standard and 1* 10/100Mbps RJ45 Uplink ports. It is suitable for applications that requires POE and high speed network transmission.

* Five 10/100Mbps Fast Ethernet ports and four PoE+ ports.
* IEEE 802.3af/at PoE compliant (ports 1 – 4) for simplified deployment and installation.
* Up to 30W per PoE port (total power budget: 65W) for powering PoE-enabled devices.
* Auto-detection of powered devices (PD) and power consumption levels.
* 2K MAC address table and jumbo frames support up to 2KB.
* Plug & play, no installation required.
* Fanless quiet operation.
* External power adapter included.

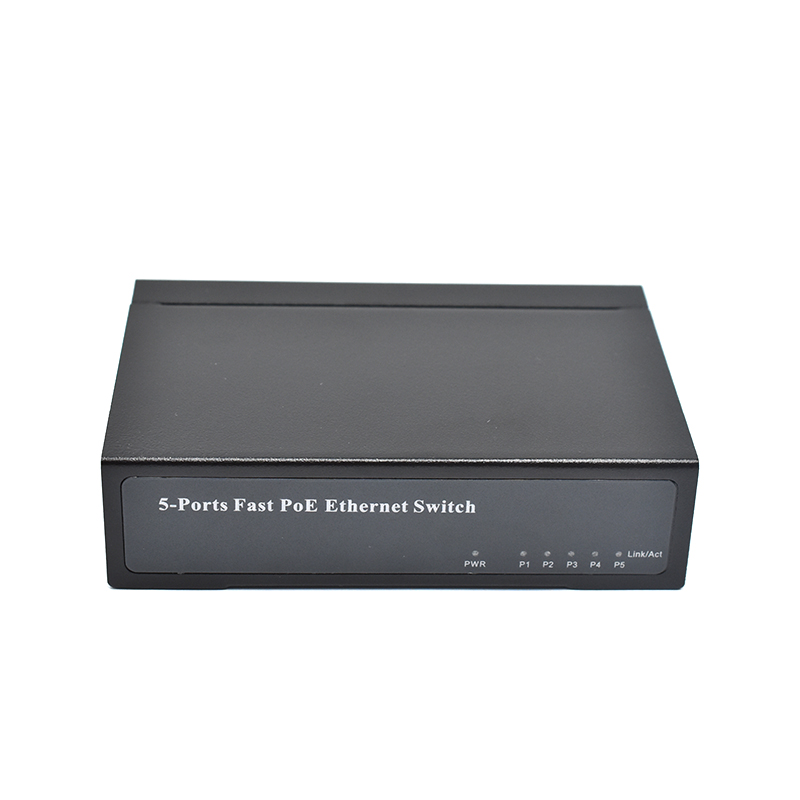

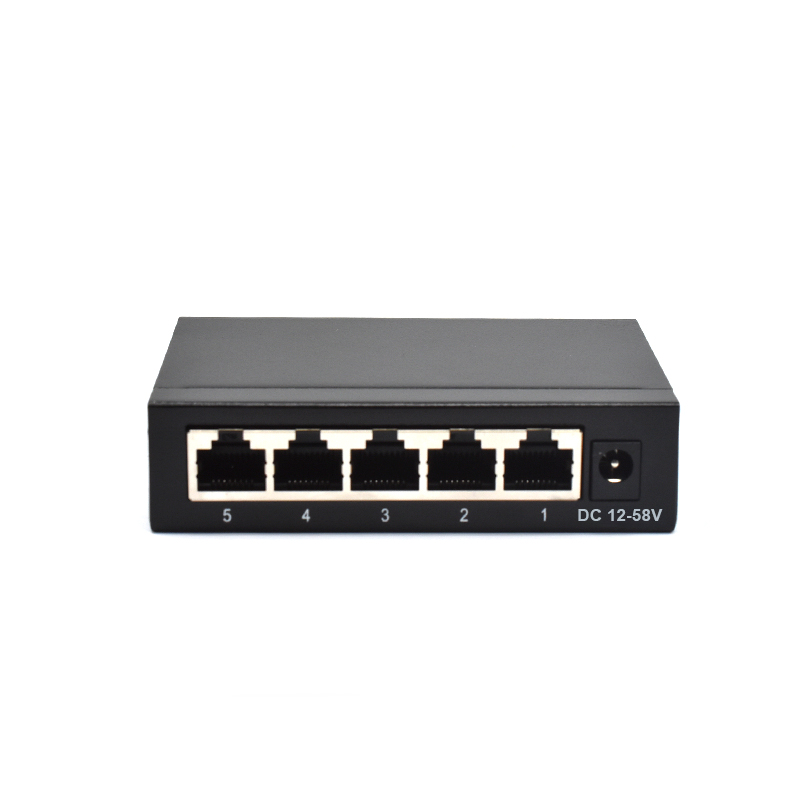

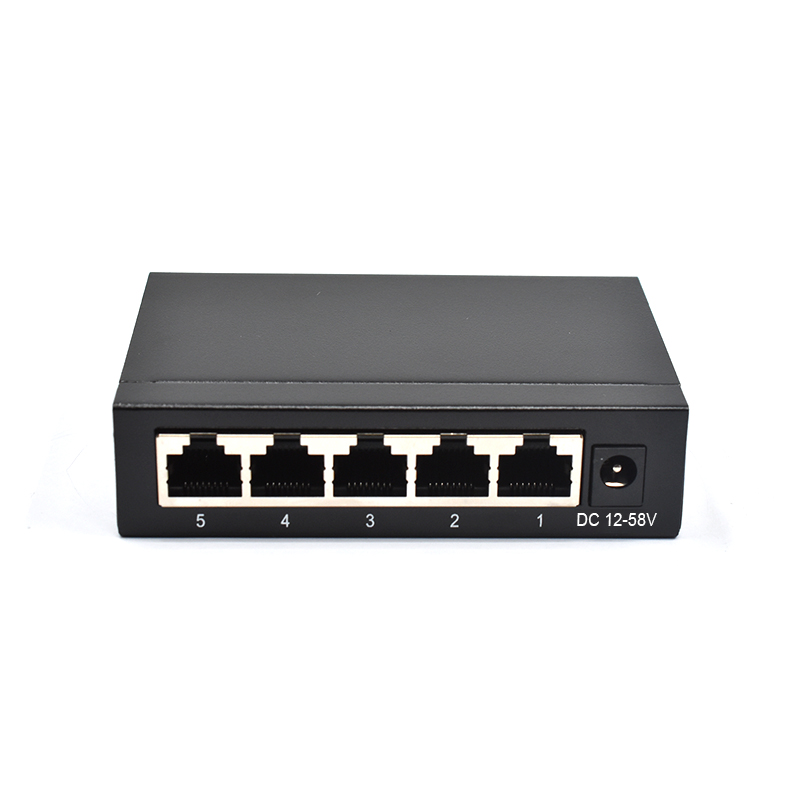

Products Show
Product description
10/100Mbps 4 Port + 1 *100 Mbps Uplink  Poe Switch
Model No.
Port description
4*10/100Mbps POE port (all ports support MDI/MDIX self-adapting)

1*100Mbps uplink port
Network media
100BASE-TX: ≥Cat 5 UTP (≤100m)
Network protocol
IEEE 802.3 I; The IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 af/at DTE Power via MDI
Backboard bandwidth: 1Gbps (no blocking)
Forwarding mode: store forward (can be forwarded by line speed)
MAC address list: 1K
1-4 port support for IEEE802.3 af (15.4 W) network power supply
Standard: IEEE 802.3 af/at (port output power 15.4 W
Type: terminal straddle method (optional middle span)
Port: 15.4w per port power (IEEE802.3 af/at)
Wire core: 1/2 +, 3/6 – line pair (optional: 4/5 +, 7/8-line pair)
Total power for POE: 65W
Working temperature: – 30 ° C ~ 70 ° C
Storage temperature: – 35° C ~ 75 ° C
Working humidity: 5% ~ 95%(no condensation)
NW: 0.9KG        GW: 1.2KG
