- Private Mold:Yes
- Products Status:Stock
- Ports:10
- Transmission Rate:10/100Mbps
- Function:POE, QoS
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:1.25G
- Model Number:16G2G1S
- Place of Origin:Guangdong, China
- Key Feature1:Wholesales Price Standard POE Switch
- Key Feature2:OEM/ODM 4 8 16 24 Port CCTV 10/100/1000M POE Switch
- Key Feature3:POE Switch for Hikvision IP Camera
- Application:Telecommunication
- Certification:CE RoHS FCC
- Transmission distance:100meters
- Power:65w/96w/120w/200w/300w
- Uplink rate:1000Mbps
- LED Display:Power ,T-LINK ,R-LINK,Rackable ,Desktop
- Name:Wanglink OEM 4 8 16 24 Port POE Switch for Hikvision IP Camera
-
- Supply Ability
- 10000 Piece/Pieces per Day
-
- Packaging Details
Carton
Factory OEM/ODM PoE switch 4 8 16 24 ports 10/100M & Gigabit 48V ethernet fiber switch poe for CCTV -
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 10001001 – 10000>10000Lead time (days)715To be negotiated
Product Description
Factory OEM/ODM PoE switch 4 8 16 24 ports 10/100M & Gigabit 48V ethernet fiber switch poe for CCTV
OEM/ODM 4 8 16 24 Port CCTV 10/100/1000M POE Switch for Hikvision IP Camera is designed to meet the POE power supply demand, and adopts high-speed Ethernet chip, which contain 16 port RJ45 port for POE power supply + 2 port RJ45 uplink port with 1 G SFP. The 16port PoE rj45 port all support IEEE802.3AF/AT standard to supply the power to the Powered Device, and each port maximum 30W, whole device maximum 72W. Automatic detection and identification of electrical equipment that meets the IEEE802.3AF/AT standard and supply the power for the device through UTP cable.

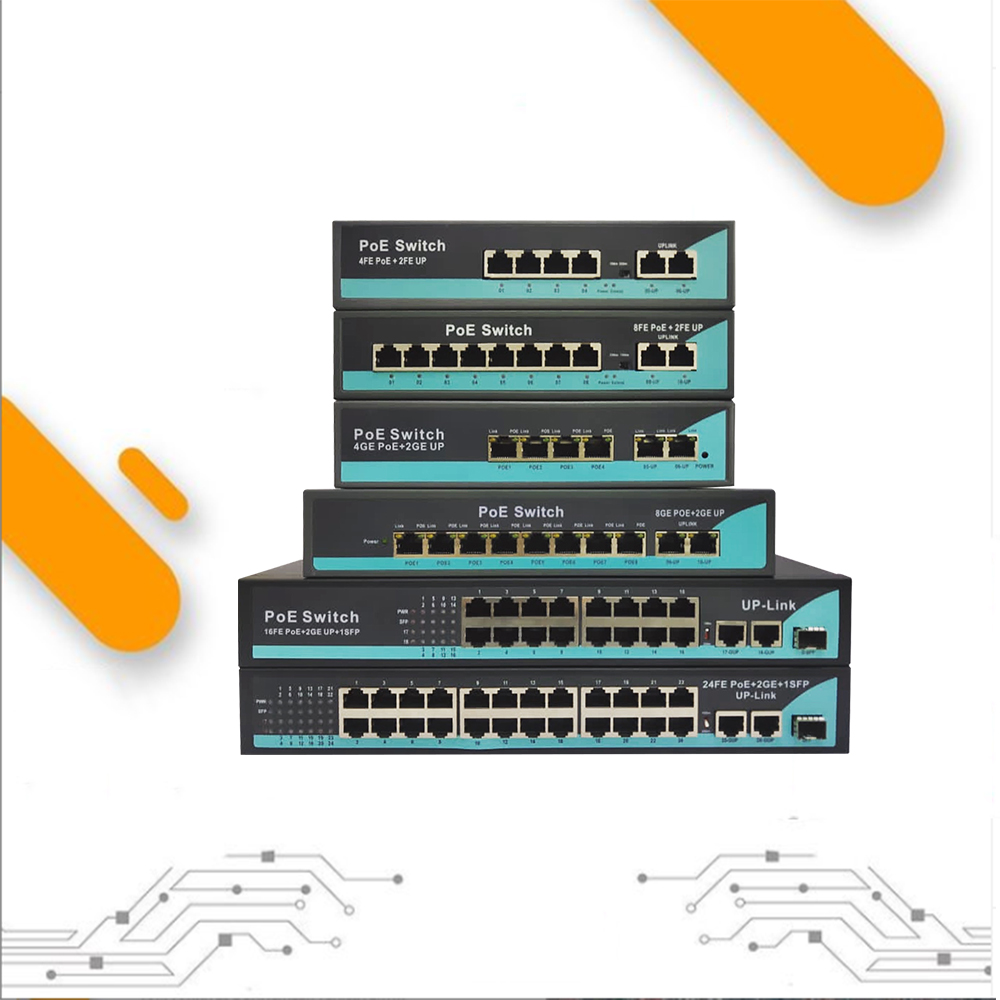

Products Show
|
Product Name
|
OEM/ODM 4 8 16 24 Port CCTV 10/100/1000M POE Switch for Hikvision IP Camera IEEE802.3af/at
|
|
Product Model
|
16G2G1S
|
|
Product description
|
16*1000Mbps POE port+2*1000Mpbs uplink port+1G SFP
|
|
Interface
|
16*10/1000Mbps RJ45 port(All ports support MDI/MDIX self-adaptation)
|
|
Network media
|
category 5 and above unshielded twisted pair.(≤150meters)
|
|
Backplane bandwidth
|
12Gbps( Non-Blocking)
|
|
Forwarding method
|
Store-and-Forward(can realize line speed forward)
|
|
MAC Address
|
1K
|
|
Network protocol
|
IEEE802.3i;IEEE802.3u;IEEE802.3x Flow control;IEEE802.3af DTE Power via MDI
|
|
POE Port
|
1~16 port support IEEE802.3af(15.4W)/at(30w) power supply
|
|
POE standard
|
IEEE802.3af(output power 15.4W)/at(30w)
|
|
POE Port features
|
each port 15.4W(IEEE802.3af)/at(30w)
|
|
Core of cable
|
1/2+,3/6-(4/5+,7/8- can custom-made)
|
|
Total Power
|
200W/300W
|
|
Environmental conditions:
|
Working temperature:-35℃~75℃
Storage Temperature:-40℃~85℃ Operating humidity:-5~95%RH,noncondensing |
|
Electromagnetic radiation
|
FCC Class A, CE
|
|
Power supply
|
External power adapter(input AC100-240V 50/60HZ; output 52V1.8A/52V2.3A)
|
