- Model Number:4FE+1GE+1S-POE
- Type:Enterprise Switch
- Place of Origin:Guangdong, China
- Product name:4-port poe switch
- Product Model:4FE+1GE+1S-POE
- Fiber Port:SFP
- Function:VLAN Support
- Certifications:CE, FCC, RoHS
- Max Transmission Distance:100M/250M
- Total Power Budget:65W
- Warranty:2 Years
- Application:CCTV Camera
-
- Supply Ability
- 30000 Piece/Pieces per Week
-
- Packaging Details
4FE PoE + 1 Gigabit Uplink + 1 SFP Fiber Ports Support IEEE802.3af/at External Power 65W 4 Port POE Switch
-
- Port
Shenzhen Yantian
- Lead time:Quantity(pieces)1 – 5051 – 500>500Lead time (days)1015To be negotiated
Product Description
4FE PoE + 1 Gigabit Uplink + 1 SFP Fiber Ports Support IEEE802.3af/at External Power 65W 4 Port POE Switch
Features:
1. IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant2. Support PoE IP cameras, PoE WIFI AP, and PoE IP phones3. Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure4. One-key Smart: Supports two kinds of working modes (100Meter POE, Extend 250Meter POE VLAN Mode)5. All ports support wire speed switching, jumbo frame transmission6. Support upstream ports lightning protection7. Dynamic power control to ensure stable output power (Enhanced)8. Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers’ products)9. Reliable short-circuit protection to ensure safety (Enhanced)10. Over-voltage and under-voltage protection (Some other manufacturers’ products don’t support this)

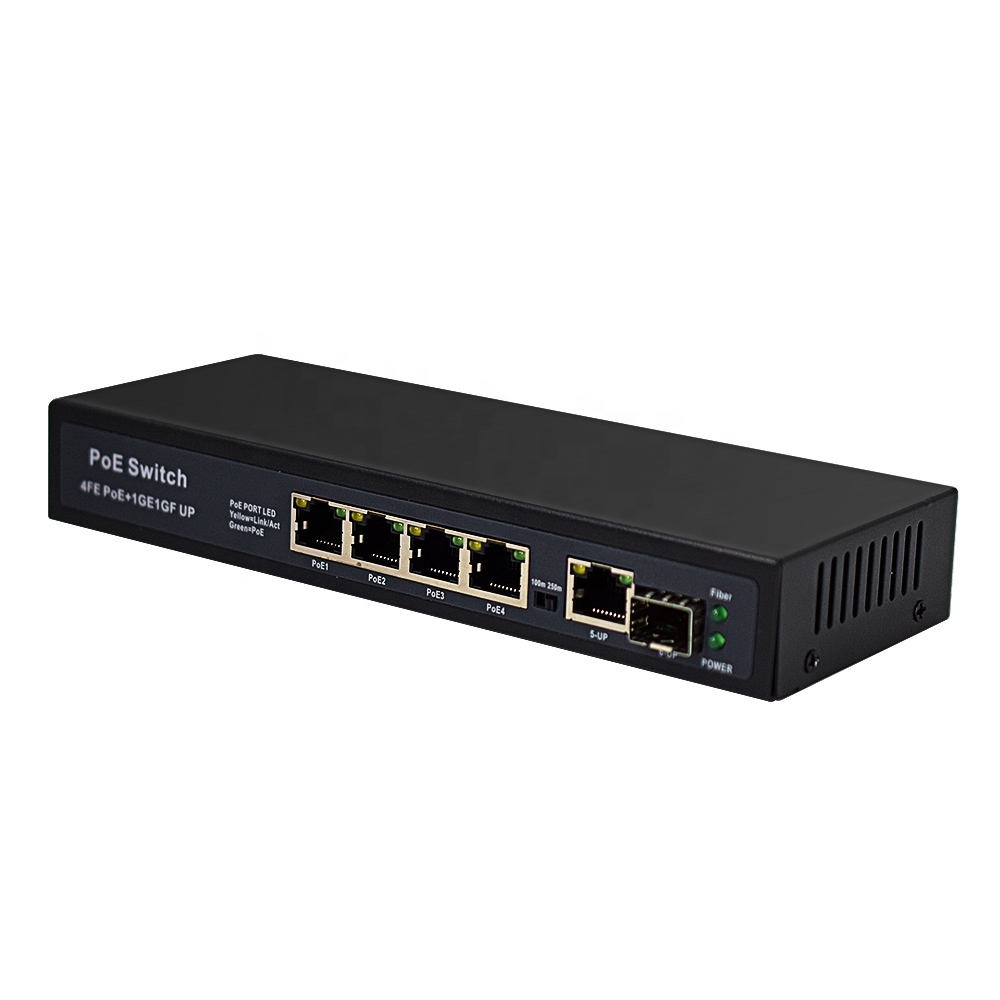

Products Show
|
Model
|
4FE+1GE+1S-POE
|
|
PoE Ports
|
4
|
|
Uplink Ports RJ45 Ports
|
1
|
|
SFP Fiber Port
|
1
|
|
VLAN Isolation
|
YES
|
|
SUPM Mode(250m)
|
YES
|
|
Max Transmission Distance
|
250METER
|
|
Total Power Budget
|
EXTERNAL POWER 52V 1.25A(65W)
|
|
Switching Capacity
|
4.8G
|
|
Transmission Method
|
Store and forward
|
|
Power Input
|
100~240V AC, 50-60 Hz
|
|
POE Standard
|
IEEE 802.3af, IEEE 802.3at
|
|
Power Output
|
Up to 30W per port
|
|
Pin Assignment
|
1/2(+), 3/6(-)
|
|
Temperature
|
Working: -20°~65°C Storage: -40°~70°C
|
|
PSE Type
|
End-Span
|
|
Humidity
(Non-condensing) |
Working: 10~90% Storage: 5~95%
|
|
Network protocol
|
IEEE 802.3, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af/at, IEEE 802.1q
|
|
Certifications
|
CE, FCC, RoHS
|
