- Products Status:Stock
- Ports:≤ 8
- Transmission Rate:10/100Mbps
- Function:POE, QoS, VLAN Support
- Communication Mode:Full-Duplex
- Switch Capacity:0.8G
- Model Number:4FE-2FE-POE
- Place of Origin:Guangdong, China
- Key Feature1:PoE Fast Ethernet Switch 4 Ports + 2 Uplink Ports
- Key Feature2:POE Power 52V 1.25A(65W)
- Key Feature3:IEEE802.3AF/AT
- Application:Telecommunication
- Certification:CE RoHS FCC
- Transmission distance:250Merter POE Max
- Transmission rate:10/100Mbps POE 4Port
- Uplink rate:100Mbps uplink 2 port
- LED Display:Power ,T-LINK ,R-LINK
- Name:100M 4+2 Uplink Poe Switch
- Selling Units:Single item
- Single package size: 19.5X8.5X2.9 cm
- Single gross weight:1.200 kg
- Package Type:Carton OEM/ODM 4-Port 10/100M PoE Switch + 2-Port Uplink, Extend to 250Meter, External Power 52V 1.25A(65W)
- Lead time:Quantity(pieces)1 – 100101 – 1000>1000Lead time (days)57To be negotiated
Product Description
OEM/ODM 4-Port 10/100M PoE Switch + 2-Port Uplink, Extend to 250Meter,
External Power 52V 1.25A(65W)
* 6x 10/100 Mbit/s Fast Ethernet ports (2 Uplink ports)
* 4 ports are 802.3af / at-compliant PoE ports
* Each of the 4 ports provides 15.4W(up to 30W Output Power max)
* All ports support Auto-MDI / MDI-X, auto-negotiation and flow control (802.3x for full duplex and backpressure for half-duplex)
* Status LEDs: Power, PoE, link / activity
* Compact metal housing
* External power supply
Products Show
|
Product description
|

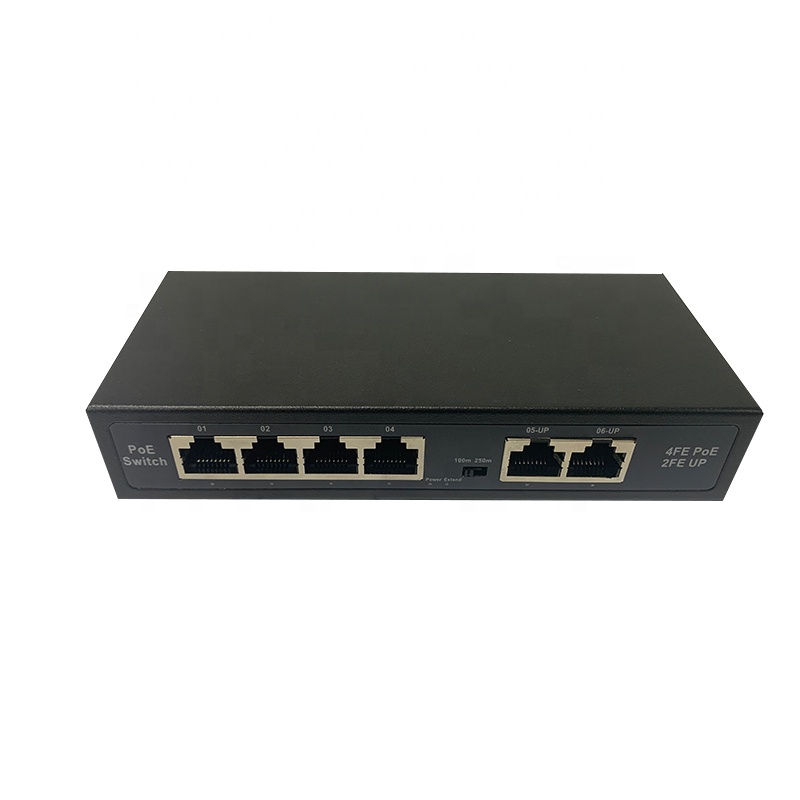

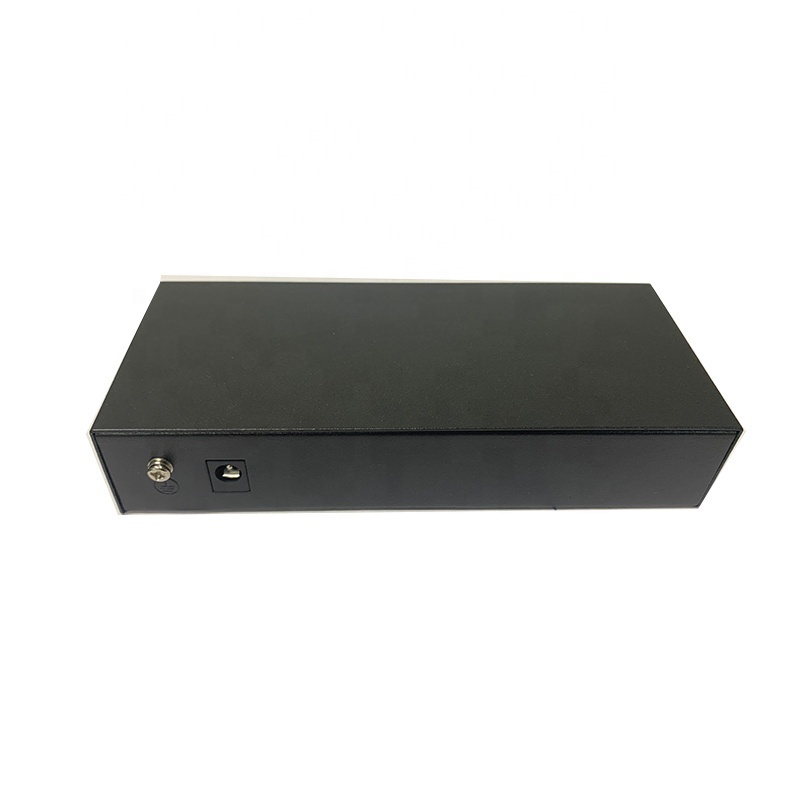

6-Port PoE Switch with 4 Long Reach 250m PoE Ports and 2 Uplink Ports
|
|
Model No.
|
WOR-4FE-2FE-POE
|
|
Port description
|
4*10/100Mbps POE port (all ports support MDI/MDIX self-adapting)
2*100Mbps uplink port
|
|
Network media
|
100BASE-TX: ≥Cat 5 UTP (≤100m)
|
|
Network protocol
|
IEEE 802.3 I; The IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 af/at DTE Power via MDI
|
|
Performance
|
Backboard bandwidth: 8Gbps (no blocking)
Forwarding mode: store forward (can be forwarded by line speed) MAC address list: 1K |
|
POE
|
1-4 port support for IEEE802.3 af (15.4 W) network power supply
Standard: IEEE 802.3 af/at (port output power 15.4 W Type: terminal straddle method (optional middle span) Port: 15.4w per port power (IEEE802.3 af/at) Wire core: 1/2 +, 3/6 – line pair (optional: 4/5 +, 7/8-line pair) Total power for POE: DC 52V 1.25A(65W) |
|
Environmental
|
Working temperature: – 30 ° C ~ 70 ° C
Storage temperature: – 35° C ~ 75 ° C Working humidity: 5% ~ 95%(no condensation) |
|
Weight
|
NW: 0.9KG GW: 1.2KG
|
