Home PoE Switch 4 Ports PoE Switch OEM/ODM 4-Port 10/100M PoE Switch + 2-Port Uplink, Extend to 250Meter, External Power 52V 1.25A(65W)
Internal Power supply PoE network switch SF411P SFP 4 10/100mbps 1 10/100/1000mbps uplink 1 SFP uplink RJ45 PoE Switch $239.00
Back to products
Factory OEM/ODM PoE switch 4 8 16 24 ports 10/100M & Gigabit 48V Ethernet Switch POE for CCTV $24.00

OEM/ODM 4-Port 10/100M PoE Switch + 2-Port Uplink, Extend to 250Meter, External Power 52V 1.25A(65W)

$194.00

Clear
Compare
Add to wishlist
SKU: 10000005889983 Categories: 4 Ports PoE Switch, All Products
Share:
  • Description
  • Additional information
Description
  • Products Status:Stock
  • Ports:≤ 8
  • Transmission Rate:10/100Mbps
  • Function:POE, QoS, VLAN Support
  • Communication Mode:Full-Duplex
  • Switch Capacity:0.8G
  • Model Number:4FE-2FE-POE
  • Place of Origin:Guangdong, China
  • Key Feature1:PoE Fast Ethernet Switch 4 Ports + 2 Uplink Ports
  • Key Feature2:POE Power 52V 1.25A(65W)
  • Key Feature3:IEEE802.3AF/AT
  • Application:Telecommunication
  • Certification:CE RoHS FCC
  • Transmission distance:250Merter POE Max
  • Transmission rate:10/100Mbps POE 4Port
  • Uplink rate:100Mbps uplink 2 port
  • LED Display:Power ,T-LINK ,R-LINK
  • Name:100M 4+2 Uplink Poe Switch
  • Selling Units:Single item
  • Single package size: 19.5X8.5X2.9 cm
  • Single gross weight:1.200 kg
  • Package Type:Carton OEM/ODM 4-Port 10/100M PoE Switch + 2-Port Uplink, Extend to 250Meter, External Power 52V 1.25A(65W)
  • Lead time:Quantity(pieces)1 – 100101 – 1000>1000Lead time (days)57To be negotiated
Product Description

OEM/ODM 4-Port 10/100M PoE Switch + 2-Port Uplink, Extend to 250Meter,

External Power 52V 1.25A(65W)


* 6x 10/100 Mbit/s Fast Ethernet ports (2 Uplink ports)
* 4 ports are 802.3af / at-compliant PoE ports
* Each of the 4 ports provides 15.4W(up to 30W Output Power max)
* All ports support Auto-MDI / MDI-X, auto-negotiation and flow control (802.3x for full duplex and backpressure for half-duplex)
* Status LEDs: Power, PoE, link / activity
* Compact metal housing
* External power supply

Products Show
Product description
6-Port PoE Switch with 4 Long Reach 250m PoE Ports and 2 Uplink Ports
Model No.
WOR-4FE-2FE-POE
Port description
4*10/100Mbps POE port (all ports support MDI/MDIX self-adapting)

2*100Mbps uplink port
Network media
100BASE-TX: ≥Cat 5 UTP (≤100m)
Network protocol
IEEE 802.3 I; The IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 af/at DTE Power via MDI
Performance
Backboard bandwidth: 8Gbps (no blocking)
Forwarding mode: store forward (can be forwarded by line speed)
MAC address list: 1K
POE
1-4 port support for IEEE802.3 af (15.4 W) network power supply
Standard: IEEE 802.3 af/at (port output power 15.4 W
Type: terminal straddle method (optional middle span)
Port: 15.4w per port power (IEEE802.3 af/at)
Wire core: 1/2 +, 3/6 – line pair (optional: 4/5 +, 7/8-line pair)
Total power for POE: DC 52V 1.25A(65W)
Environmental
Working temperature: – 30 ° C ~ 70 ° C
Storage temperature: – 35° C ~ 75 ° C
Working humidity: 5% ~ 95%(no condensation)
Weight
NW: 0.9KG        GW: 1.2KG
Additional information
Color

black

Related products

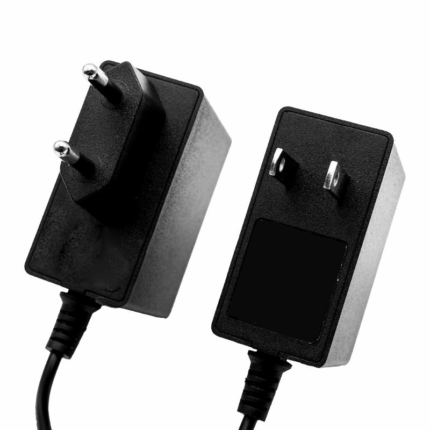

12V Power Adapter EU Original Quality Plug 1A 1.5A 2A 3A Options
