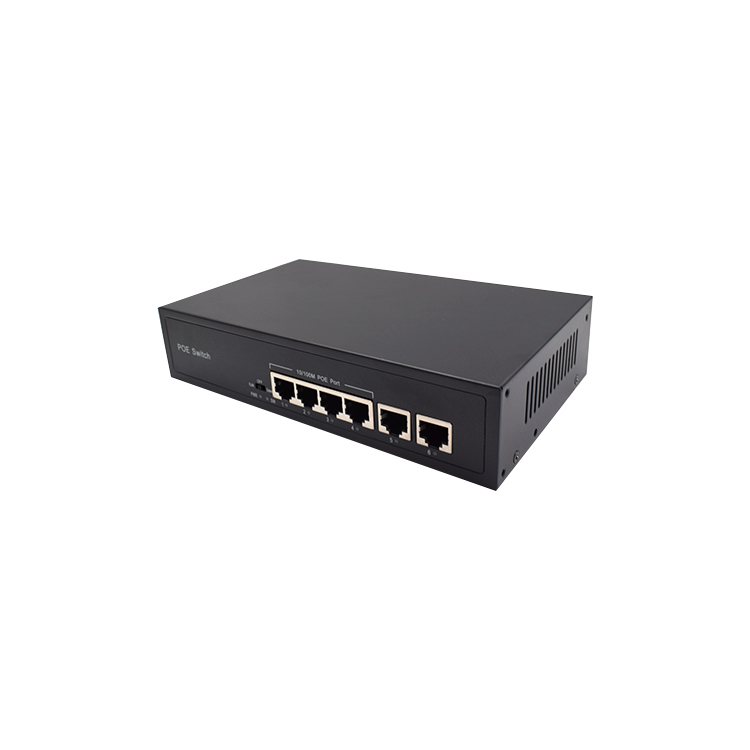

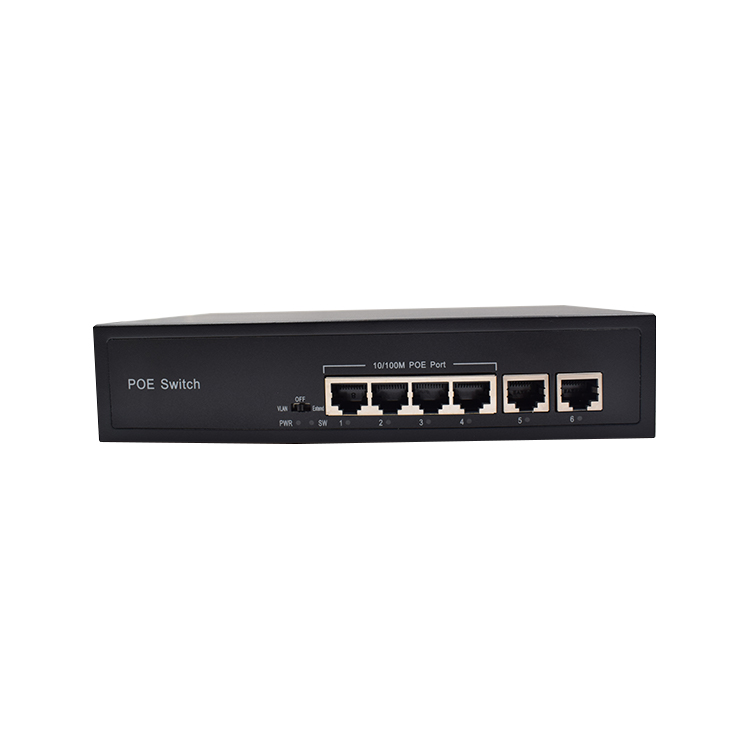

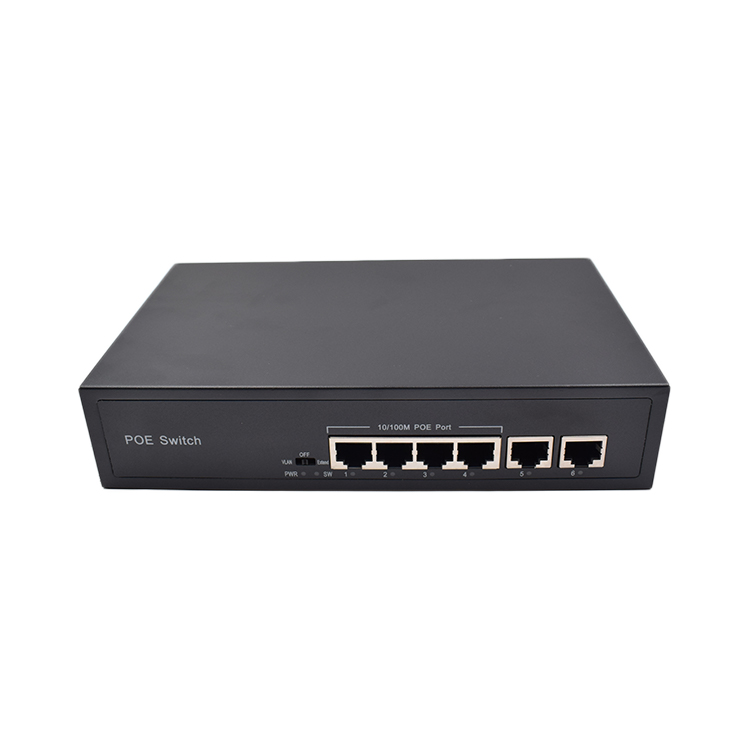

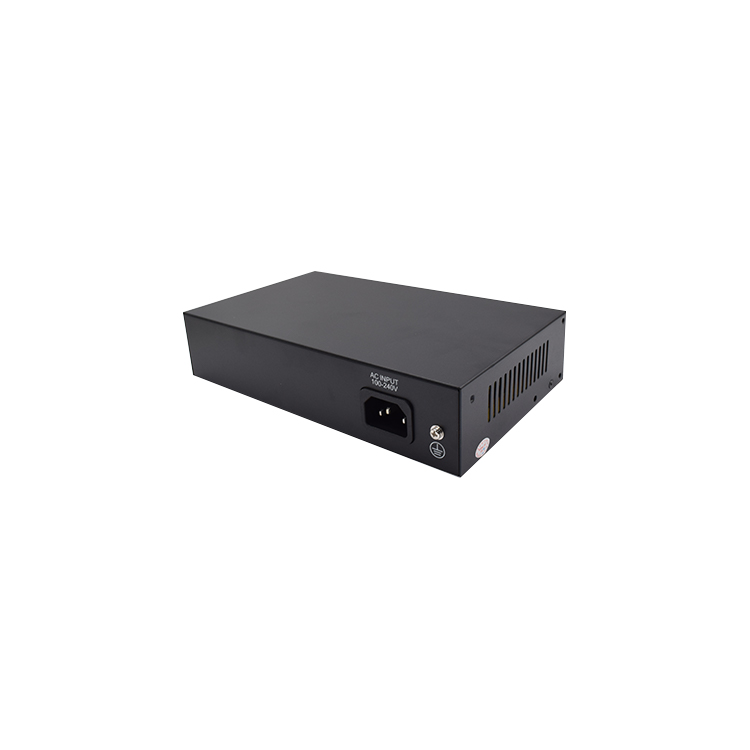

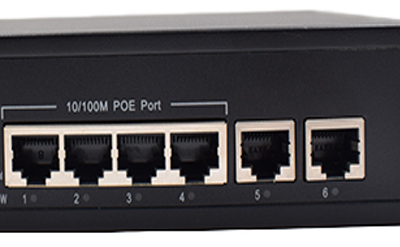

4 Ports 10/100Mbps + 2 Uplink ports Ethernet PoE Switch Desktop Unmanaged Network PoE 12v Switch

Private Mold:NO
Products Status:Stock
Ports:4
Transmission Rate:10/100Mbps
Function:POE
Communication Mode:Full-Duplex & Half-Duplex
Switch Capacity:1.2G
Brand Name:HTF
Model Number:HT-POE8606
Place of Origin:Guangdong, China
Interface:1~4 port 10/100Mbps PoE ports
Uplink Ports:2 10/100Mbps Uplink Ports
MAC:1K
PoE Port Power:30W+
Transfer Method:Store and Forward
Metal Case:Desktop/Wall mounted
Manufacturer:Shenzhen
Brand:Accept OEM
Operating Temperature:0℃~40℃ (32℉~104℉)
Warranty:12 months
Selling Units:Single item
Single package size: 24X19X7 cm
Single gross weight:1.200 kg
Package Type:Neutral gift box
Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32535To be negotiated

Feature

* 4 10/100 Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4)
* 2 100M uplink port
* 250M cable power support 65W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex

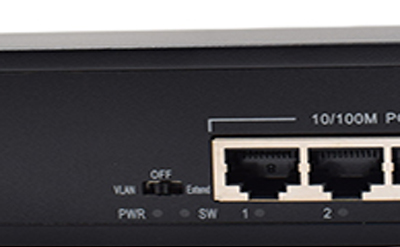

* Mode LED indicators for monitoring power, link, activity and speed
* Desktop mode with Metal Case
* Each POE port Up to 30W of power on
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet
* Terminals Supports 10/100 Base-T applications
* Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
* complies to IEEE 802.3af/at PoE standard and is backward

Products Description

Model	HT-POE8606
100M POE Rj45	4
100M UPLINK	2
Exchange Mechanism	Store-and-forward
Bandwidth	1.2G
MAC	1K
Environmental	Working Temperature: -10℃~55℃ Storage temperature: -40℃~70℃
	Storage temperature: -40℃~70℃
Environmental	Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing
	Storage Humidity:5%~90% RH non-condensing

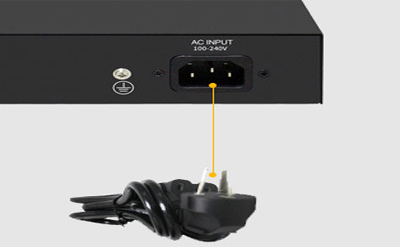

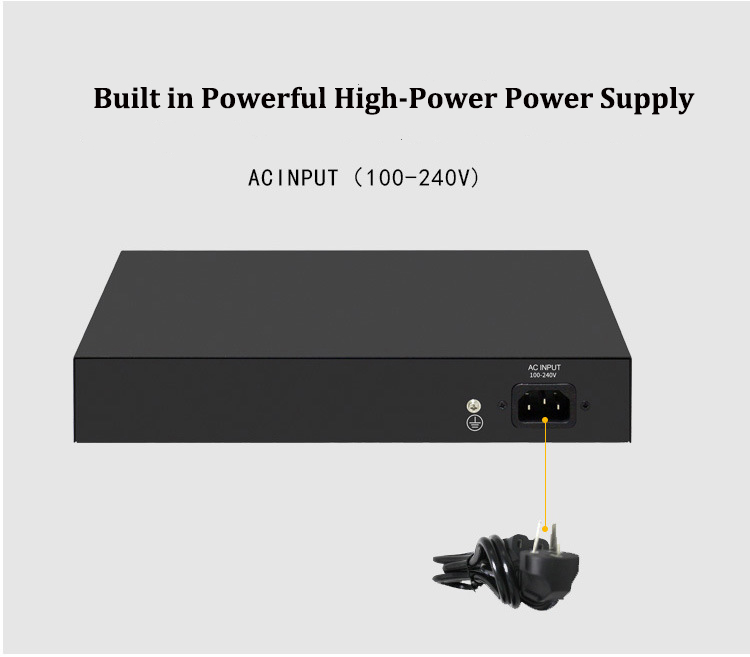

Power input	AC 100-240V 50/60Hz MAX 65W
