SKU 1600659699593 Category
Inquiry now
  • Private Mold:Yes
  • Products Status:Stock
  • Ports6
  • Transmission Rate:10/100Mbps
  • Function:LACP, POE, QoS, VLAN Support
  • Communication Mode:Full-Duplex
  • Switch Capacity:14.8Gbps
  • Place of Origin:Guangdong, China
  • Device Type:Switch
  • Input voltage:AC(100-240)V
  • Product status:Stock
  • IP Garde:IP40
  • PoE Ports:6*10/100Mbps PoE Ports
  • Weight:1kg
  • Dimensions (W x D x H):142.5*115*40mm
  • MOQ:1
  • Color:Balck
  • Selling Units:Single item
  • Single package size: 21X25X5 cm
  • Single gross weight:1.000 kg
  • Package Type:50pcs: 515*505*337mm
  • Lead time:Quantity(pieces)1 – 5051 – 100>100Lead time (days)1216To be negotiated

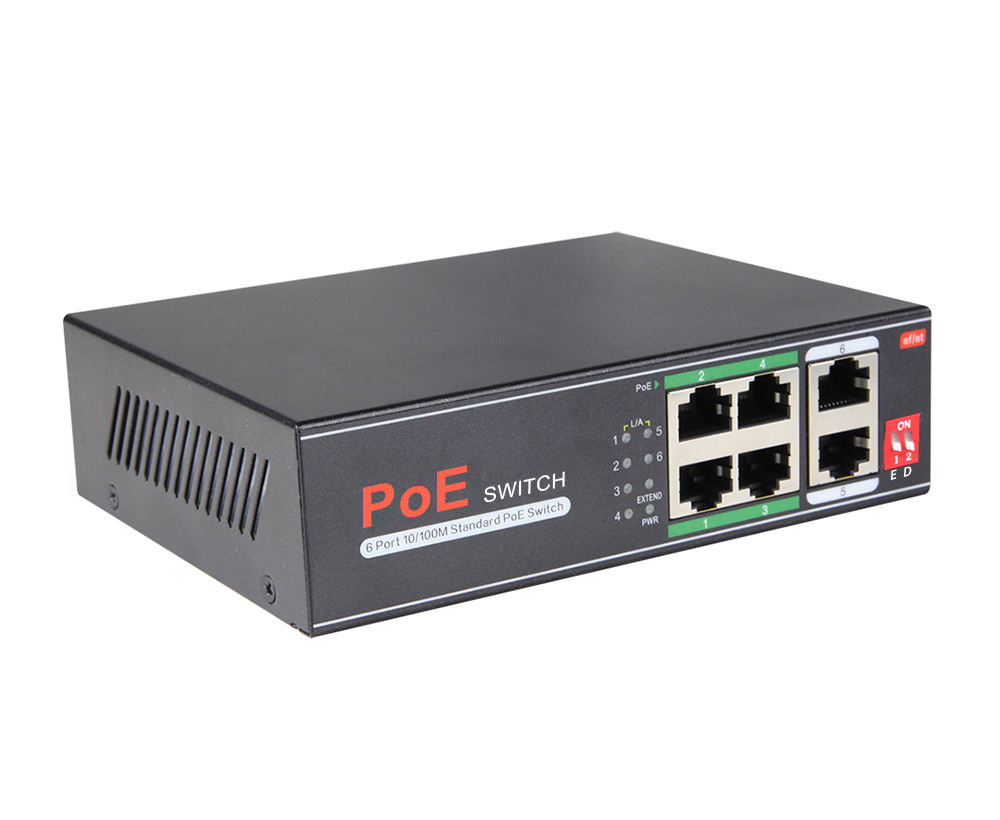

1064PLD series is a 10/100M unmanaged AI PoE switch independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 2*10/100Base-TX RJ45 ports. Port 1-4 can support IEEE802.3af/at standard PoE. single port  PoEpower reaches 30W, and the maximum PoE output power is 65W. It can support the watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom through network cable, to meet the network environment that needs high-density PoE power supply, s uitablefor hotels, campuses, parks, supermarkets, scenic spots, Factory quarters and SMB small and medium-sized enterprises form a cost-effective network.

10/100Mbps Access ,Dual RJ45 Ports Uplink

  —   6*10/100Base-TX RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

  —   Support non-blocking wire-speed forwarding.

  —   Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE Power Supply

 —    4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

 —    IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

 —    4*10/100Base-TXPoE ports can support the watchdog function, real-time detection of data communication status.


 Innovative Function

 —   long-distance transmission and VLAN mode (E): When the switch status is “ON”(default OFF), Port         1-4 rate is 10M/250m transmission, the port physical VLAN isolated, broadcast storm, the                     transmission distance can up to 250m;

—  AI self-healing mode (D): When the switch status is “ON”(default OFF), port 1-4 can support the             watchdog function and
automatically detects the data communication status in real-time.
— Power supply priority mode: the power supply priority function of PoEport is on by default, and the         power output of theleftmost PoE port (port 1) is guaranteed in priority, so as to eliminate the                 potential safety hazard of overload use.

Stable and Reliable

  —   Low power consumption, galvanized steel casing, no fan.

  —   Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

  —   CCC,CE, FCC, RoHS.

  —   Plug and play, no configuration, simple and convenient.

  —   The user-friendly panel, it can show the device status through the LED indicator of PWR,Link,PoE.

Fixed Port
4*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX Uplink RJ45 ports (Data)
Ethernet Port
Port 1-6 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meter)


100BASE-TX: Cat5 or later UTP(≤100 meter)
Functional Switch
E file: long distance transmission and VLAN isolation function

(Default: OFF, Use:ON)


D File: AI self-healing mode. When the network fails, PoE watchdog will restart the power supply of the device and automatically

repair the network communication. (Default: OFF, Use:ON)
After opening, port 17-24 support


10M/250 meters long distance

transmission.
Note: When the switch status changes, the PoE switch must be restarted for the

switch function to take effect.
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX; IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
1.6Gbps
Forwarding
Rate@64byte
0.89Mpps
6.55Mpps
Mac
1K
Buffer Memory
768K
LED Indicator
Power: PWR (green); Network: Link（yellow）; POE :PoE (green)

Functional switch : EXTEND (green)
PoE & Power
PoE Port
Port 3 to 6 IEEE802.3af/at @ POE
Port 1 to Port 24 IEEE802.3af/at @ POE
Power Supply Pin
Default: 1/2 (+), 3/6 (-) ; Optional 4/5(+), 7/8(-)
Max Power Per Port
30W; IEEE802.3af/at
Total PWR / Input Voltage
65W/ 52VDC
110W/52VDC
Power Supply
External power adaptor

AC100~240V 50-60Hz 1A
External power adaptor

AC100~240V 50-60Hz 2.2A
Power Consumption
Standby<4W, Full load<65W
Standby<5W, Full load<110W
Physical Parameter
Operation TEMP / Humidity
-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H)
118*89*28mm
330*204*44mm
Net /Gross Weight
<0.6kg / <1kg
<0.6kg / <1.2kg
Installation
Desktop, Wall-mounted
Certification & Warranty
Lightning protection
Lightning protection: 4KV 8/20us; Protection level: IP30
Certification
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty
1 years, lifelong maintenance.
Color

black
