- Products Status:Stock
- Ports:6
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:12Gbps
- Model Number:IES1000-5G-1F
- Place of Origin:Guangdong, China
- PoE Ports:4 Support IEEE802.3AF/AT Standard
- Certification:CE FCC RoHS
- Power Supply:60W
- Warranty:1 Year
- Selling Units:Single item
- Single package size: 35X23X12 cm
- Single gross weight:1.000 kg
- Package Type:carton
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Easy To Use

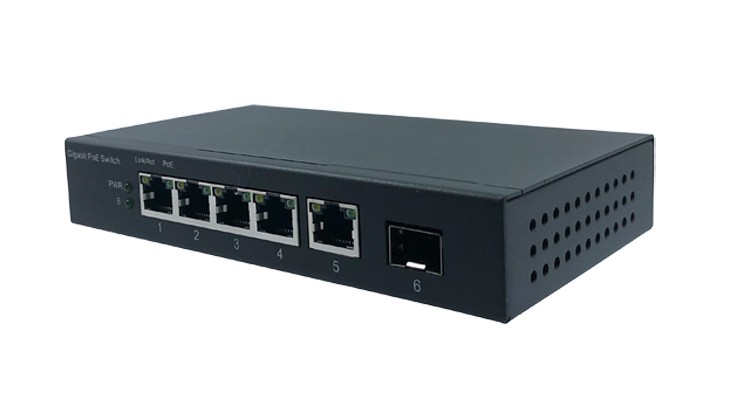

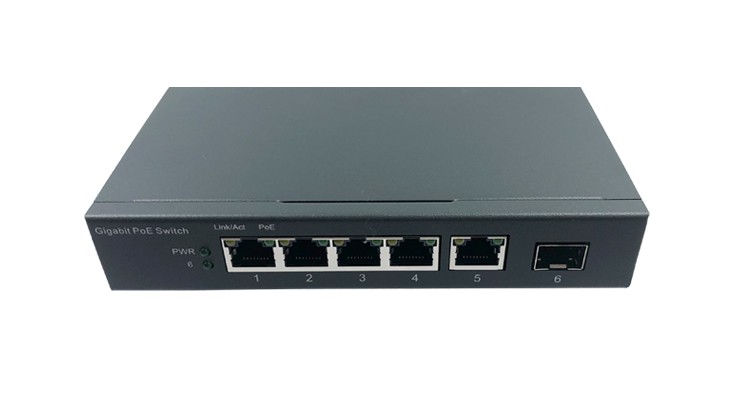

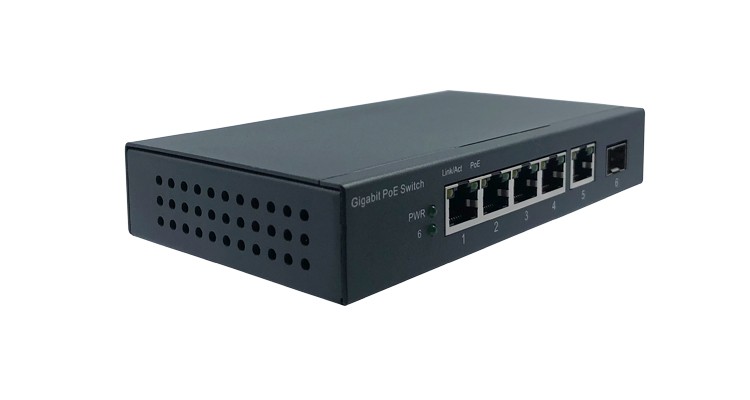

TS8204PF is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8204PF 6-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
TS8204PF is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8204PF 6-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
Key Features:
* Supports PoE power up to 15.4W for each PoE port
* Supports PoE power up to 60W for all PoE ports
* Supports PoE IEEE 802.3af compliant PDs
* Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
* 4 ports with poe, 1 port 10/100/1000M RJ45 and 1Port Gigabit SFP
* External power adapter supply
Specification
|
Interface
|
5 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps SFP Solt AUTO Negotiation/AUTO MDI/MDIX |
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
HARDWARE FEATURES
|
Fan Quantity
|
Fanless
|
|
External Power Supply
|
External Power Adapter(Output: 48VDC /1.25A)
|
|
PoE Ports (RJ45)
|
Standard: 802.3 af compliant
PoE Ports: Port1- Port 4 Power Supply: 60W |
|
Backbound Bandwidth
|
10Gbps
|
|
Mac Address Table
|
4K
|
|
Dimensions ( W x D x H )
|
(160*90*28 mm)
|
SOFTWARE FEATURES
|
Transmission Method
|
Store-And-Forward
|
|
Advanced Functions
|
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS |
OTHERS
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
TS8205PF, Power Adapter, Installation Guide
|
|
Environment
|
Operating Temperature: -40°C~85°C
Storage Temperature: -40°C~85°C
Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
