- Private Mold:NO
- Products Status:Stock
- Ports:16
- Transmission Rate:10/100Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:2.4G
- Brand Name:HTF
- Model Number:HT-POE1616
- Place of Origin:Guangdong, China
- Interface:1~16 port 10/100Mbps PoE ports
- 1000M SFP:1 SFP port
- Uplink Ports:2 Gigabit Uplink Ports
- PoE Port Power:30W+
- Transfer Method:Store and Forward
- Metal Case:Rackmounted
- Manufacturer:Shenzhen
- Brand:Accept OEM
- Operating Temperature:0℃~40℃ (32℉~104℉)
- Warranty:12 months
- Selling Units:Single item
- Single package size: 41X28X9.5 cm
- Single gross weight:2.750 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32835To be negotiated
Related Products
Feature
* 16 10/100M Auto-Negotiation RJ45 ports with 16 PoE ports (port-1~port-16) ,
* 2 Gigabit uplink port
* 1 Gigbit SFP port
250M cable power support 150W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Desktop mode with Metal Case
* Each POE port Up to 30W of power on
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Supports 10/100 Base-T applications
* Plug-and-Play no configuration required
* Internal power supply (AC 100-240V 50/60Hz MAX150W )
* Easy installation and maintenance
* complies to IEEE 802.3af/at PoE standard and is backward
* 2 Gigabit uplink port
* 1 Gigbit SFP port
250M cable power support 150W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Desktop mode with Metal Case
* Each POE port Up to 30W of power on
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Supports 10/100 Base-T applications
* Plug-and-Play no configuration required
* Internal power supply (AC 100-240V 50/60Hz MAX150W )
* Easy installation and maintenance
* complies to IEEE 802.3af/at PoE standard and is backward
Product Description
Model
|
HT-POE1616
|
100M POE Rj45
|
16
|
1000M UPLINK
|
2
|
1000M SFP
|
1
|
Exchange Mechanism
|
Store-and-forward
|
Bandwidth
|
20G
|
MAC
|
4K
|
Environmental |
Working Temperature: -10℃~55℃
Storage temperature: -40℃~70℃ |
Working Humidity :10%~90% RH non-condensing
Storage Humidity:5%~90% RH non-condensing |
|
Power input
|
AC 100-265V 50/60Hz MAX 150W
|
POE
|
IEEE802.3af/at, Port PoE 30W,
|
Standards Protocols |
IEEE 802.3
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3x |
Speed
|
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
Network Media |
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
Size
|
Product size: 295mm*195mm*45mm (L*W*H)
Packing size: 410mm*280mm*95mm(L*W*H) Weight: 2.5kg |

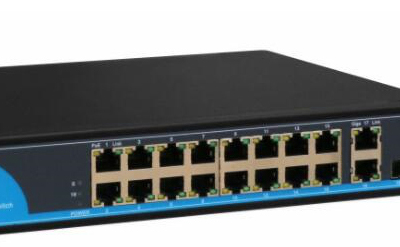

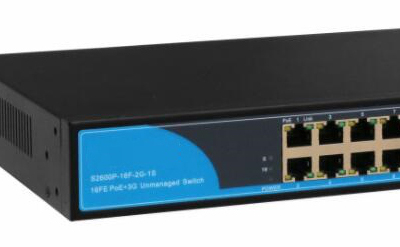

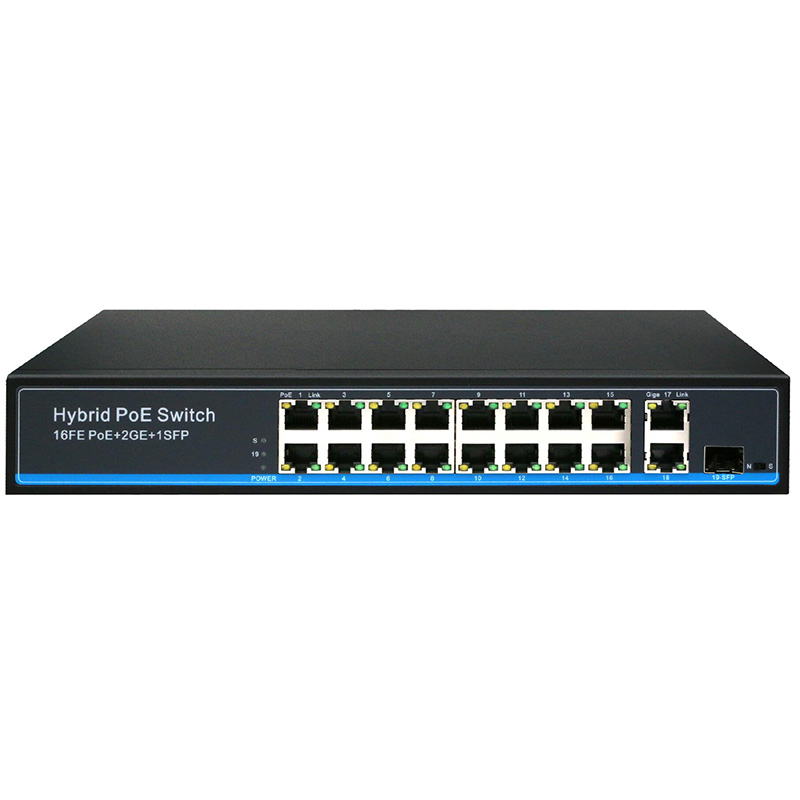

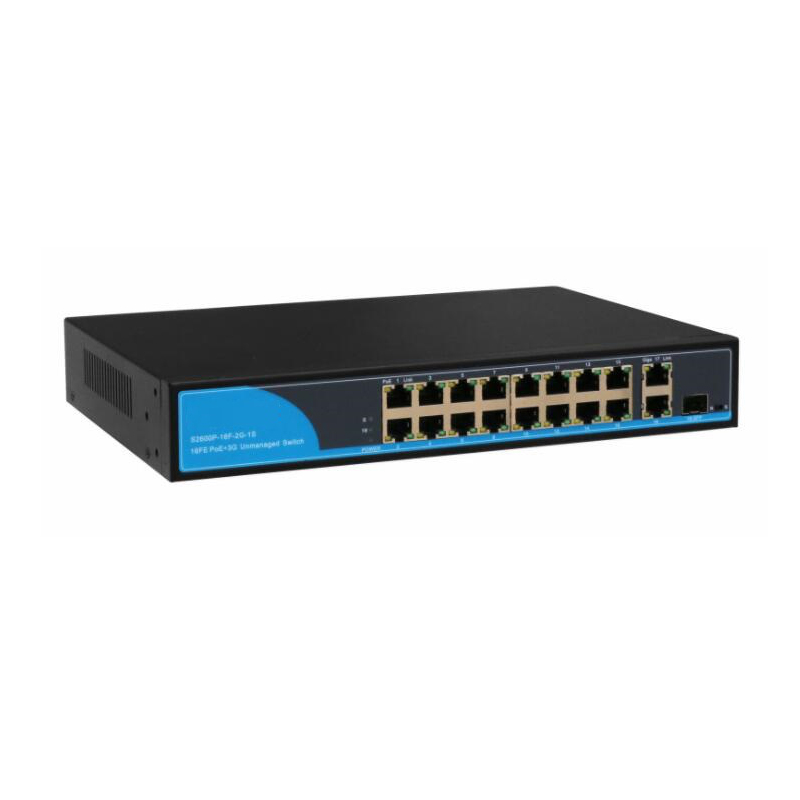

Product Photos

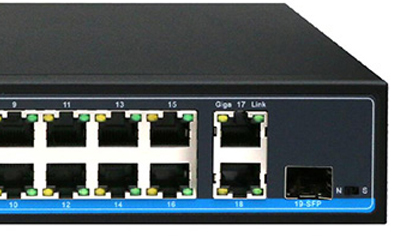

Details Images
Our Services
Reply your inquiry in 24 working hours;
Customization is available, OEM/ODM is warm welcome;
Delievery goods to our partners all over the world with high speed and great precision;
Offer our customers the most competitive with good quality wireless networking equipment.
Reply your inquiry in 24 working hours;
Customization is available, OEM/ODM is warm welcome;
Delievery goods to our partners all over the world with high speed and great precision;
Offer our customers the most competitive with good quality wireless networking equipment.
