- Private Mold:Yes
- Products Status:Stock
- Ports:24
- Transmission Rate:10/100/1000Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:56G
- Model Number:TS8200-24P-2F
- Place of Origin:Guangdong, China
- PoE Ports:24*10/100/1000Mbps POE Ports
- Whole Power Supply:400W
- Applications:IP Phone IP Camera
- PoE Standard:IEEE 802.3af/at
- Manufacturer:GXCOM Technology
- Certification:CE RoHS FCC
- MOQ:1 Pcs
- Size:440mm*290mm*45mm(L*W*H)
- Weight:5.0kg
- Selling Units:Single item
- Single package size: 46X46X30 cm
- Single gross weight:6.000 kg
- Package Type:ESD bag+bubble box+Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 500501 – 1000>1000Lead time (days)71520To be negotiated
Product Description
Introduction:
*24*10/100/1000mbps POE port; 2*10/100/1000mbps SFP. *100m Distance. * Vlan support. *Support IEEE802.3AF/AT. *Whole Power:400W. * All port supported by MDI/MDIX auto flip and self negotiation. * Supply 24*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port. *Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex
mode.
*Each port max. power supply reached 30W.Application:
*Wireless Access Point *IP Camera * IP Phone * Computer Networks
Specification
|
Model
|
24G poe+2F port full gigabit 00W POE switch(Built-in)
|
|
Model No.
|
TS8200-24P-2F
|
|
PoE Port
|
1 to 24 port support 1000Mbps IEEE802.3af/at
|
|
SFP port
|
25th-26th port support 1000Mbps
|
|
PoE output
|
15.4W/30W IEEE802.3af/at
|
|
PoE whole power
|
400W
|
|
PoE type
|
End-span
|
|
Power distance
|
≤150m
|
|
Network Standard
|
IEEE 802.3 、 IEEE802.3u 、802.3x、802.3af/at
|
|
Network Medium
|
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
|
Data Distance
|
≤150m
|
|
Switch capability
|
56Gbps
|
|
Forwarding Mode
|
Store and forward
|
|
Forwarding Rate
|
100BASE-tx：14800pps/port
1001000BASE-T: 1488095pps/port |
|
MAC Address
|
16K MAC address table
|
|
Port function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for
Half-duplex mode |
|
Indicator
|
LINK/ACT. 1000Mbps;POE Status indicator; POWER indicator
|
|
Working
Environment |
Working Temperature: 0°– 55°C
|
|
Input power
|
AC100-240V 50/60HZ
|
|
Weight
|
5.0kg
|
|
Size
|
440mm*290mm*45mm(L*W*H)
|
Packing & Delivery

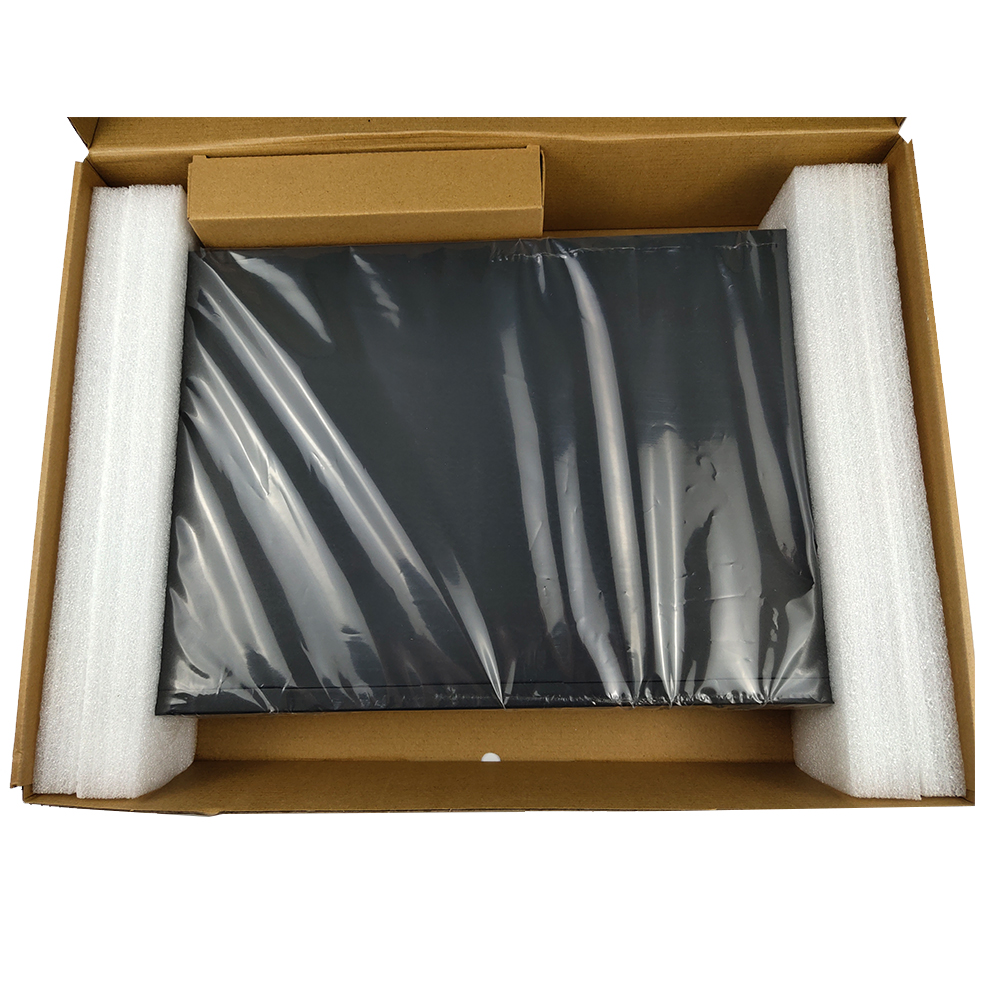

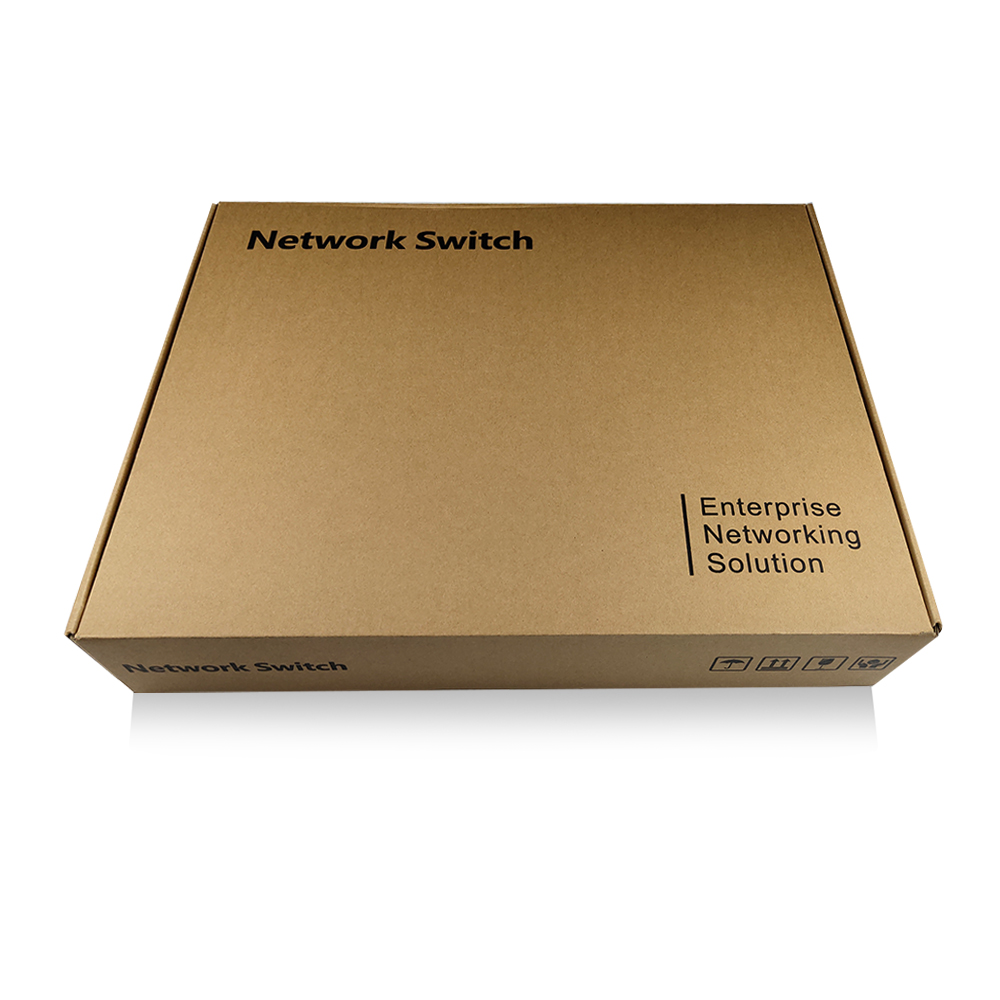

ESD bag+bubble box+Carton
