SKU 1600480587254 Categories ,
  • Products Status:Stock
  • Ports:24
  • Transmission Rate:10/100/1000Mbps
  • Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
  • Communication Mode:Full-Duplex & Half-Duplex
  • Switch Capacity:56Gbps
  • Model Number:TS8200-24P-2FM
  • Place of Origin:Guangdong, China
  • PoE Ports:24 Ports
  • Uplink Ports:2GE SFP
  • Management port:1*Console
  • PoE Standard:IEEE802.3af /IEEE802.3at
  • Whole Power:400W
  • Input:100-240VAC 50/60HZ
  • Max Power Per Port:30W
  • Certification:CE FCC RoHS
  • Operating temperature:0°– 55°C
  • Dimensions (W x D x H):440X290X45mm( W*L*H)
  • Supply Ability
    5000 Piece/Pieces per Month
  • Packaging Details

    bubble box, carton

  • Port

    GUANGZHOU SHENZHEN

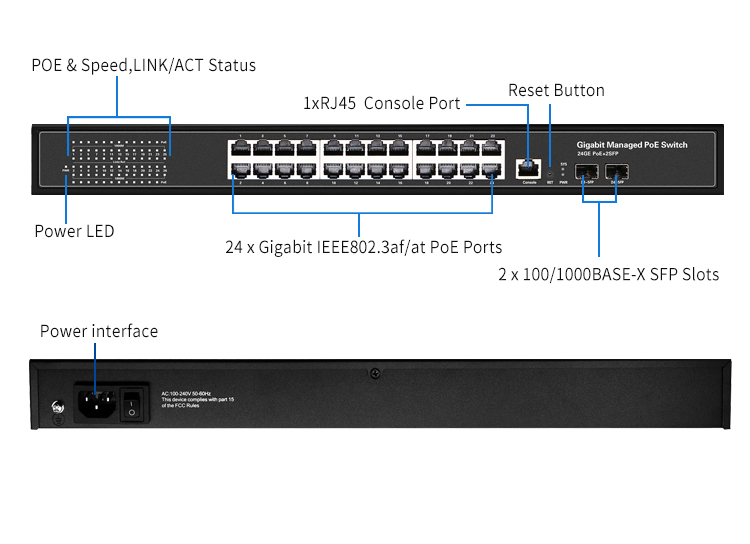

  • Picture Example:
Product Description

24 port manageable PoE switch Gigabit managed PoE with 2 SFP fiber port

Specifications

Hardware
Model
TS8224P-2FM
Port
24*10/100/1000M
2GE SFP
Management port
1*Console
Reset KEY
1
bandwidth
56Gbps
Packet forwarding
40.32Mpps
POE port
24
POE standards
IEEE802.3af/at max 30W/port
CPU
500MHZ
RAM
128M
MAC
8K
buffer
4.1M
FLASH
16M
transmission
Store and forward
Environmental
working temperature: 0℃~50℃
Storage temperature: -40℃~70℃
Operating humidity: 10%~90% Non-coagulation
Storage humidity: 5%~95% Non-coagulation
Product size
440(L)*290(W)*45(H)mm
Packing size
497(L)*393(W)*97(H)mm
Weight
5.0kg
Power in
AC 100~240V 50/60hz
Power
≤400W
WEB software function
Standards
IEEE 802.3x
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q, IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, EEE 802.1S
MAC Address
8K MAC addresses; MAC address learning and aging
VLAN
4k VLANS; Port-based VLANs; 802.1Q VLAN
Spanning Tree
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocol
802.1x argumentation agreement
Link Aggregation
Max 8 aggregation groups, each supports 8 ports
Static aggregation and dynamic aggregation
Port Mirror
Many-to-one port mirroring
Loop Guard
Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery
Isolation
Support downlink ports isolated from each other and communicate with upstream port
Port flow control
Half duplex based back pressure control
Full duplex based on PAUSE frames
Line rate
Support port based input / output bandwidth management
IGMP Snooping
IGMPv1/2/3 and MLDv1/2 Snooping
GMRP protocol registration
Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses
DHCP
DHCP Snooping
Storm suppression
Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering
Security
User port+IP address+MAC
ACL based on IP and MAC
Security properties of port based MAC address quantities
QOS
802.1p port queue priority algorithm
Cos/Tos, QOS sign
WRR (Weighted Round Robin), Weighted priority rotation algorithm
WRR, SP, WFQ, 3 priority scheduling models
Port
Auto-MDIX ; Auto negotiation
System Maintenance
Upgrade package upload; system log view
WEB restore factory configuration
PoE Management
Open or close port
Standard POE scheduling management
A variety of timing reset function (recently upgraded)
POE Automatic equipment on-line inspection
Management and maintenance
WEB NMS
Remote configuration and maintenance using Telnet
SNMP V1/V2/V3; SSH V1/V2
RMON
Color

Black
