- Products Status:Stock
- Ports:26
- Transmission Rate:10/100/1000Mbps
- Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:56Gbps
- Model Number:TS8224P-2F
- Place of Origin:Guangdong, China
- Product Name:Industrial Poe Switch
- Device Type:Switch – 24 Ports – Managed
- PoE Ports:1-24 Port Support PoE
- Applications:Support PoE IP Cameras
- PoE Standard:IEEE802.3af /IEEE802.3at
- Uplink Ports:2*1.25Gbps SFP Ports
- Total power:300W
- Keywords:24 port PoE switch
- Warranty:3 Years
- Selling Units:Single item
- Single package size: 44X29X4.5 cm
- Single gross weight:5.000 kg
- Package Type:bubble box, carton
- Lead time:Quantity(pieces)1 – 23 – 5051 – 100>100Lead time (days)51520To be negotiated
Product Description
24 26 port network fiber switch 48V gigabit Ethernet PoE switch with 2 uplink optical fiber SFP
Overview

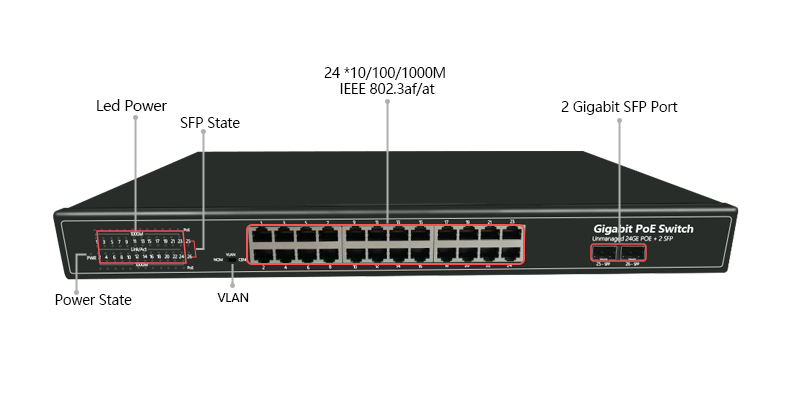

TS8224P-2F Gigabit PoE switch, support 802.3at/af-compliant PoE , single port PoE power supply of up to 30W.
It provides 24 10/100/1000M adaptive RJ45 port, all the ports have the line speed forwarding capacity; provide 2 independent Gigabit SFP (Mini GBIC) expansion slot optical fiber module, fully protect user investment, convenient and flexible. TS8224P-2F is with powerful VLAN capabilities like as IEEE802.1Q, VLAN, meet the needs of different users, make the network more convenient, efficient and safe.
Main Features
>> 24*10/100/1000Mbps POE port; 2*10/100/1000Mbps SFP>> 100m Distance>> Vlan support>> Support IEEE802.3AF/AT>> Whole Power:400W>> All port supported by MDI/MDIX auto flip and self negotiation>> Supply 24*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.>> Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.>> Each port max. power supply reached 30W.
Application:

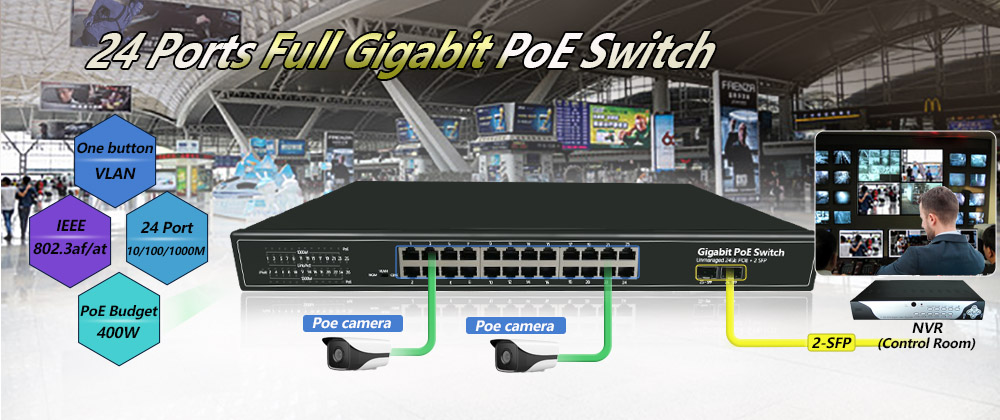

>> Wireless Access Point>> IP Camera>> IP Phone>> Computer Networks
|
Technical Parameters
|
Description
|
|
Model
|
TS8224P-2F
|
|
Port
|
2GE SFP
|
|
Reset KEY
|
1
|
|
bandwidth
|
56Gbps
|
|
Packet forwarding
|
40.32Mpps
|
|
POE port
|
24
|
|
POE standards
|
IEEE802.3af/at max 30W/port
|
|
CPU
|
500MHZ
|
|
RAM
|
128M
|
|
MAC
|
8k
|
|
Buffer
|
4.1M
|
|
FLASH
|
16M
|
|
transmission
|
Store and forward
working temperature : 0℃~50℃
|
|
Environmental
|
Storage temperature : -40℃~70℃
Operating humidity : 10%~90% Non coagulation
Storage humidity : 5%~95% Non coagulation
|
|
Product size
|
440(L)*290(W)*45(H)mm
|
|
Packing size
|
497(L)*393(W)*97(H)mm
|
|
Weight
|
5.0kg
|
|
Power in
|
AC 100~240V 50/60hz
|
|
Power
|
≤400W
|
