- Private Mold:Yes
- Products Status:Stock
- Ports:16
- Transmission Rate:10/100/1000Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:56G
- Model Number:TS8216P-2F
- Place of Origin:Guangdong, China

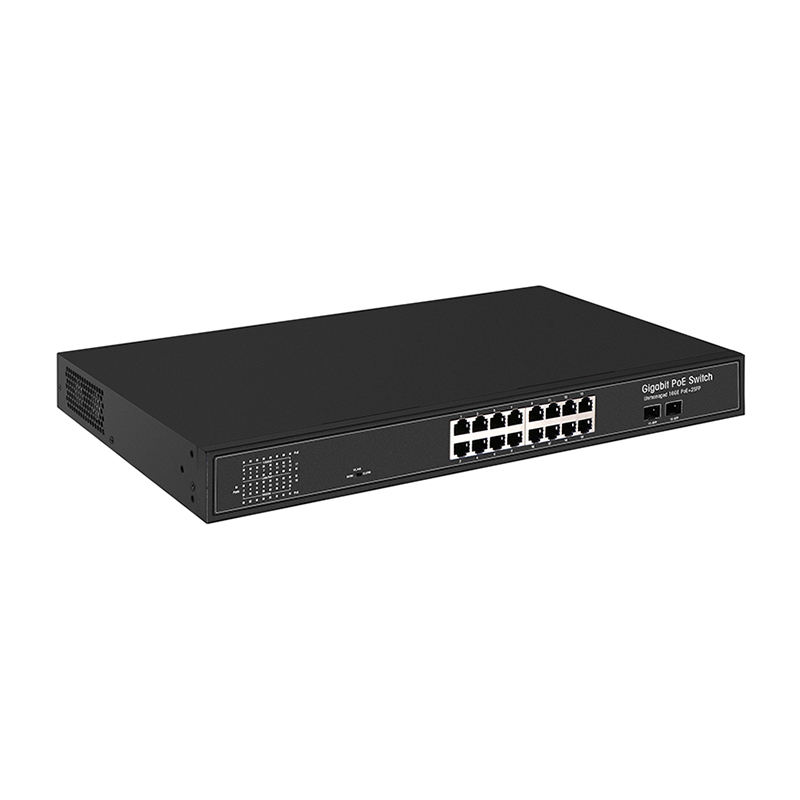

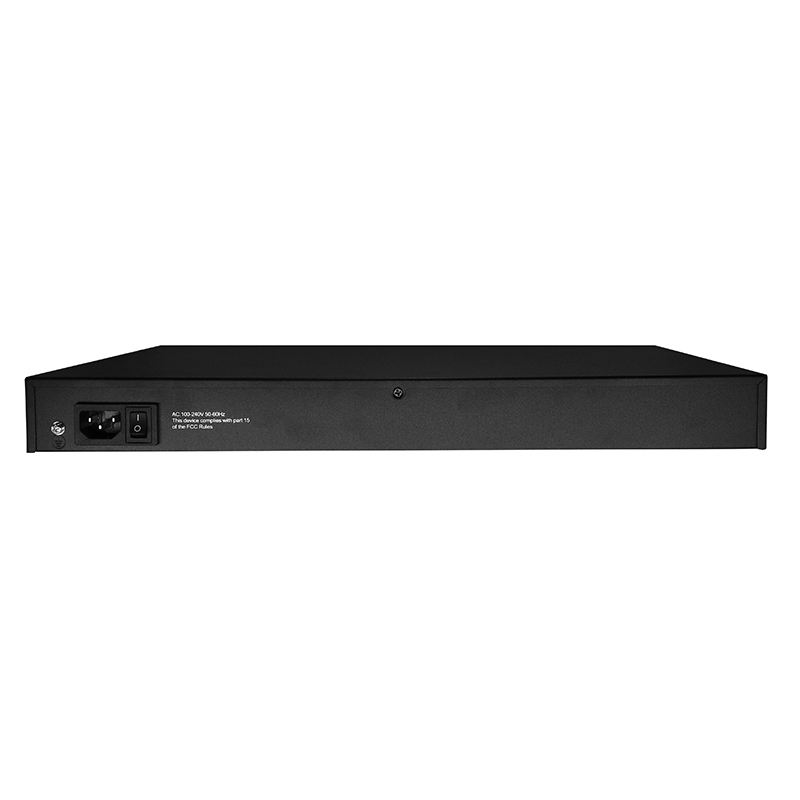

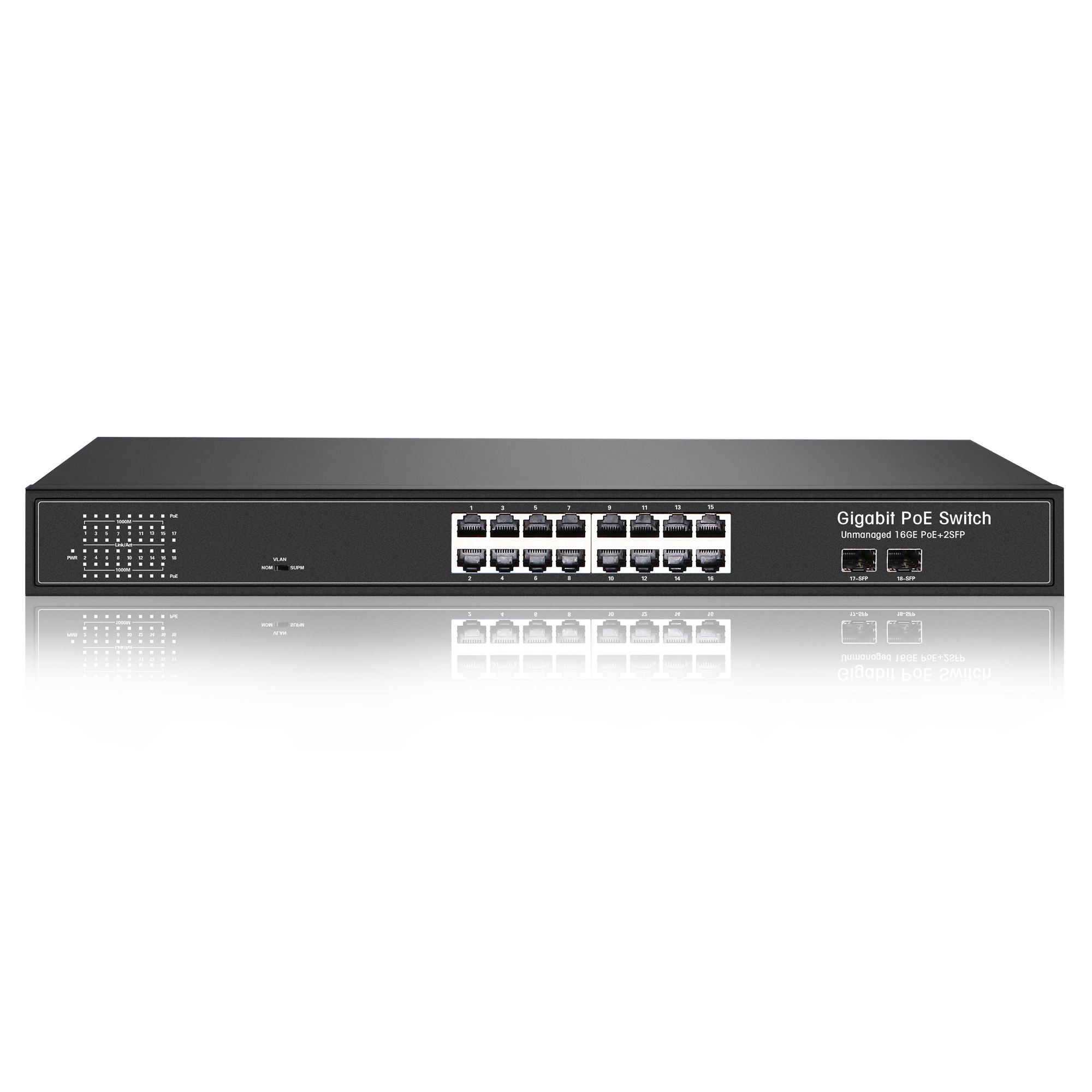

- Product Name:16 Port PoE+2 SFP Port Full Gigabit POE Switch
- PoE Standard:IEEE802.3af/at
- Condition:100%new
- Power Supply:300W
- Usage:IP Camera IP Phone
- Warranty:1 Year
- MOQ:1 Pcs
- Weight:5.0kg
- Size:440mm*290mm*45mm(L*W*H)
- Selling Units:Single item
- Single package size: 47X31X6 cm
- Single gross weight:5.300 kg
- Package Type:ESD bag+bubble box+Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 500501 – 1000>1000Lead time (days)71520To be negotiated
Product Description
Introduction：
16*10/100/1000mbps POE port; 2*10/100/1000mbps SFP 100m Distance Vlan support Support IEEE802.3AF/AT Whole Power:300W All port supported by MDI/MDIX auto flip and self negotiation Supply 18*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode. Each port max. power supply reached 30W.
Application： Wireless Access Point IP Camera IP Phone Computer Networks
Specification
|
Model
|
16G PoE+2F port full gigabit 300W PoE Switch(Built-in)
|
|
Model No.
|
TS8216P-2F
|
|
PoE Port
|
1 to 16 port support 1000Mbps IEEE802.3af/at
|
|
SFP port
|
17th-18th port support 1000Mbps
|
|
PoE output
|
15.4W/30W IEEE802.3af/at
|
|
PoE whole power
|
300W
|
|
PoE type
|
End-span
|
|
Power distance
|
≤150m
|
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network Medium
|
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
|
Data Distance
|
≤150m
|
|
Switch capability
|
56Gbps
|
|
Forwarding Mode
|
Store and forward
|
|
Forwarding Rate
|
100BASE-tx：14800pps/port
1001000BASE-T: 1488095pps/port |
|
MAC Address
|
16K MAC address table
|
|
Port function
|
Power priority mechanism, fast and forward,
MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
Indicator
|
LINK/ACT. 100Mbps;POE Status indicator;
POWER indicator |
|
Working Environment
|
Working Temperature: 0°– 55°C
|
|
Input power
|
AC100-240V 50/60HZ
|
|
Weight
|
5.0kg
|
|
Size
|
440mm*290mm*45mm(L*W*H)
|
Packing & Delivery

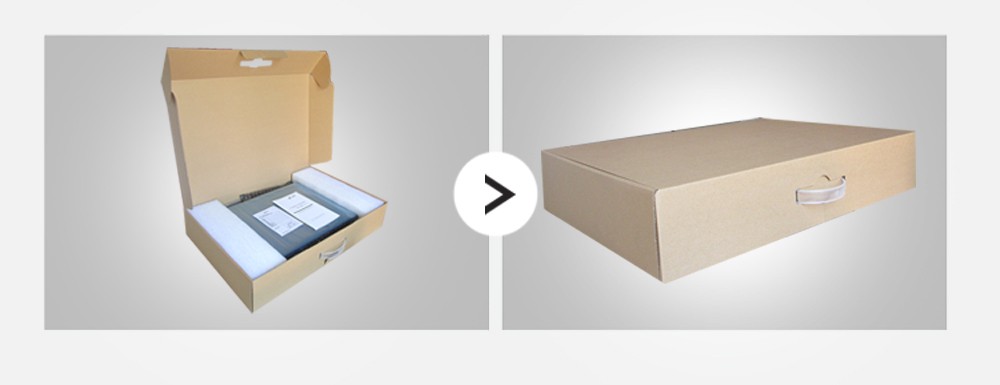

ESD bag+bubble box+Carton
